RIITOP NVMe to Oculink Adapter (20cm), M.2 NVMe PCIe 4.0 x4 to OCuLink SFF-8611 4i Host Adapter Speed up to 64Gbps for eGPU and SSD

Please Note:

Some Laptops does not support NVMe Socket to expand to connect eGPU, please check the protocol of NVMe Socket on the user manual from brand website first.

Features:

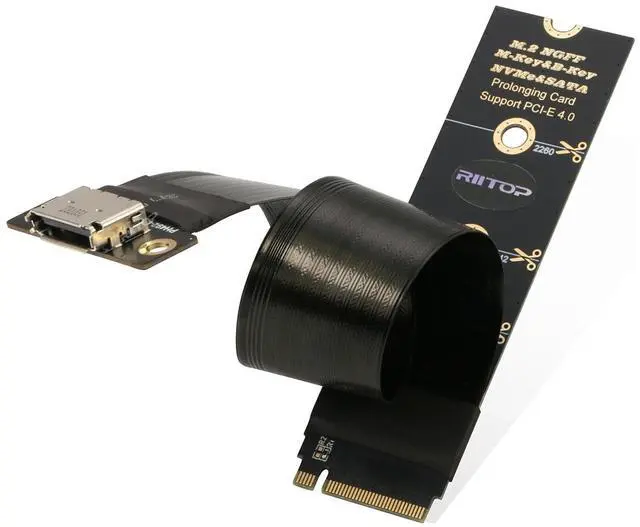

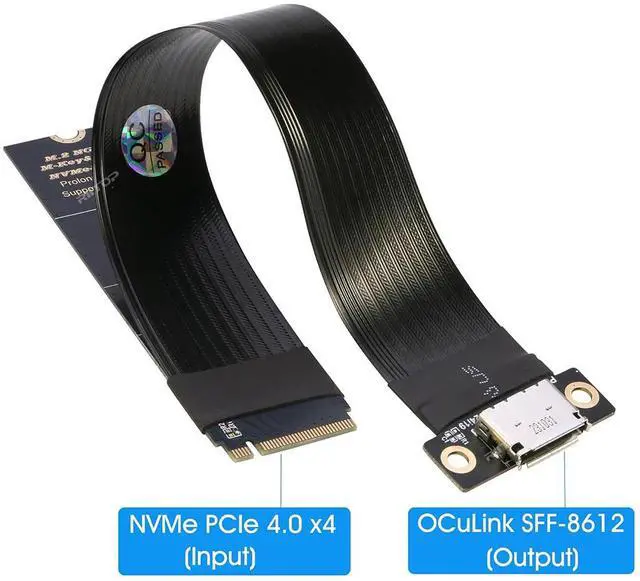

RIITOP SFF-8612 to NVMe Extender allows you expand an OCuLink SF-8611 4i Host via M.2 PCIe NVMe Socket of Laptop or MINI PC, to connect OCuLink eGPU or U.2 U.3 SSD. It comes with 15cm FPC Circuit Board.

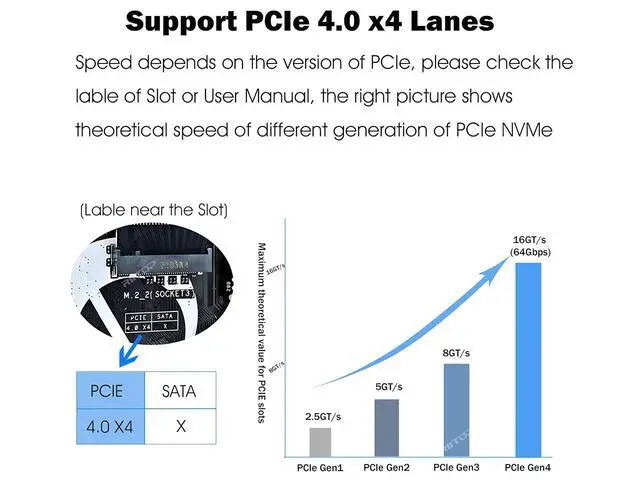

Supports PCIe 4.0/3.0 x4, Data transfer rate up to 64Gbps, no speed limited.

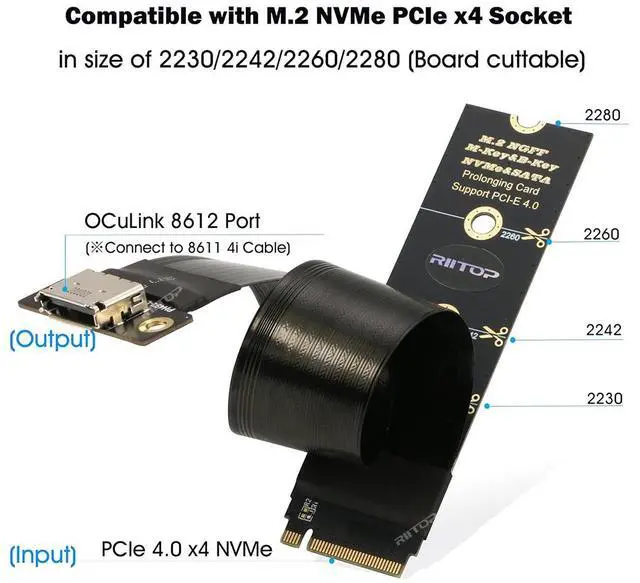

The NVMe Board's full length is 22x80mm, but it can be cut to short size 22x30mm, 22x42mm, 22x60mm to fit different size of SSD Socket.

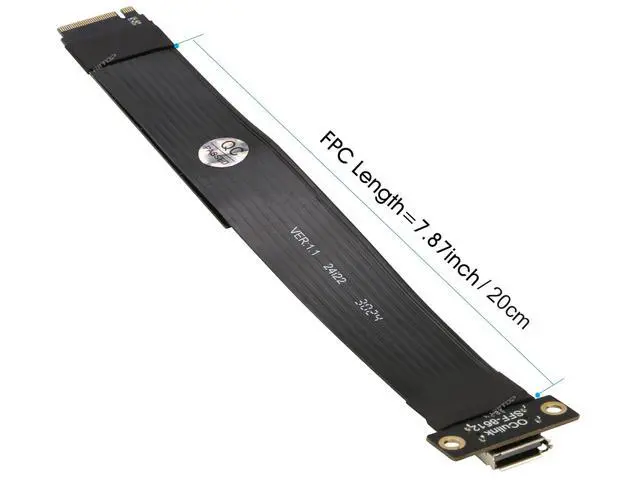

20cm FPC Circuit Board will help you Connect OCuLink Cable easily.

Hardware Requirement:

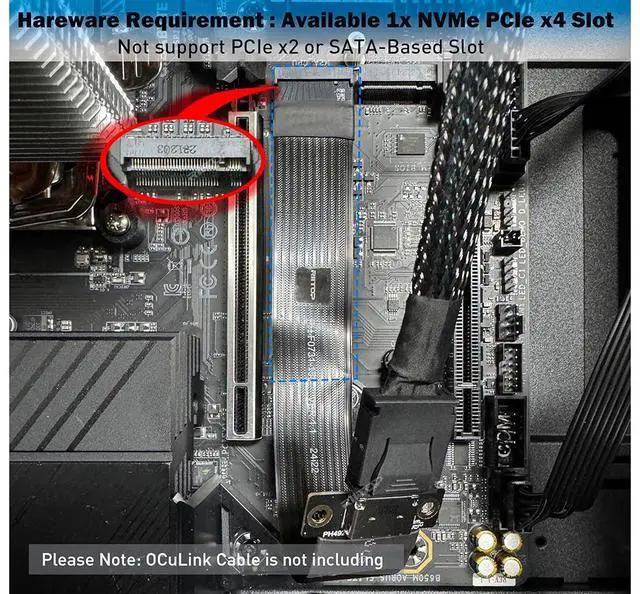

1x Available M.2 NVMe PCIe x4 Socket.

Please note:

1. PCIe x2 or any SATA-Based M.2 Socket can NOT Compatible.

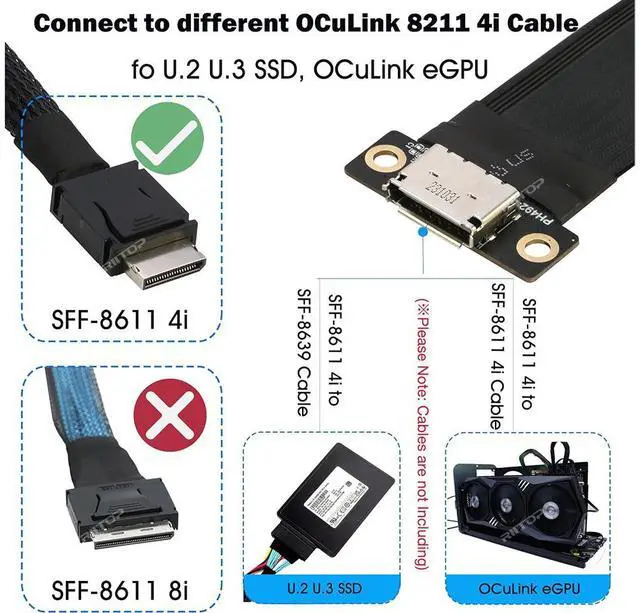

2. There is no Cable in package, please prepare the right Cable to connect the device you want to use, one side of the cable should be SFF-8611 4i (SFF-8611 has 2 versions: 4i and 8i).

Package Including:

1x NVMe to OCuLink SFF-8612 Extender,20CM;

1x Scredriver;

1x Fixing Screw.
