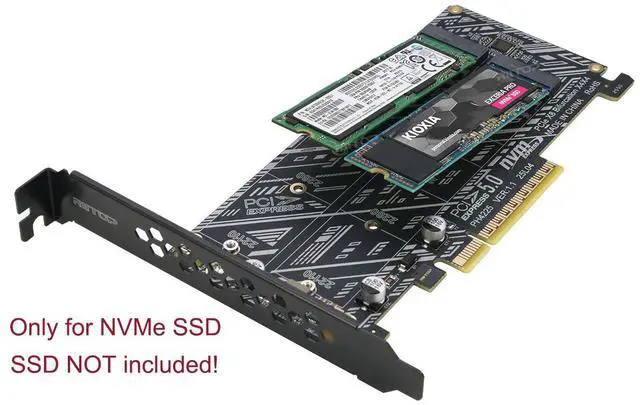

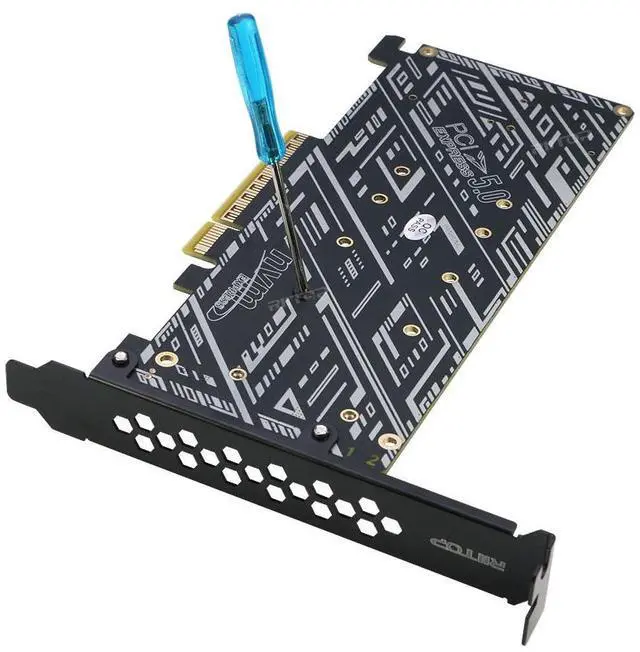

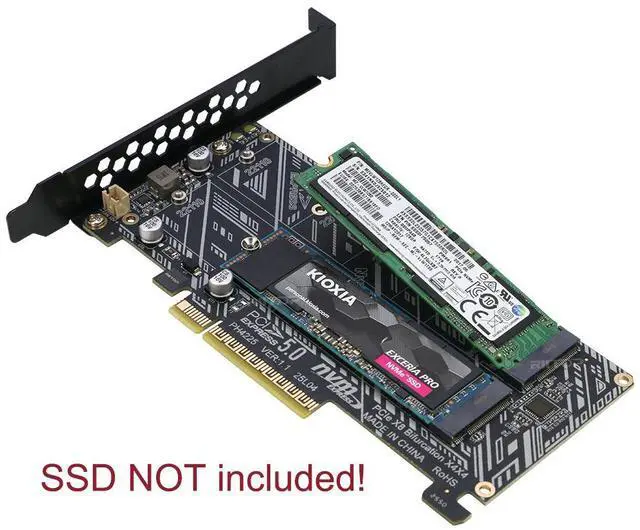

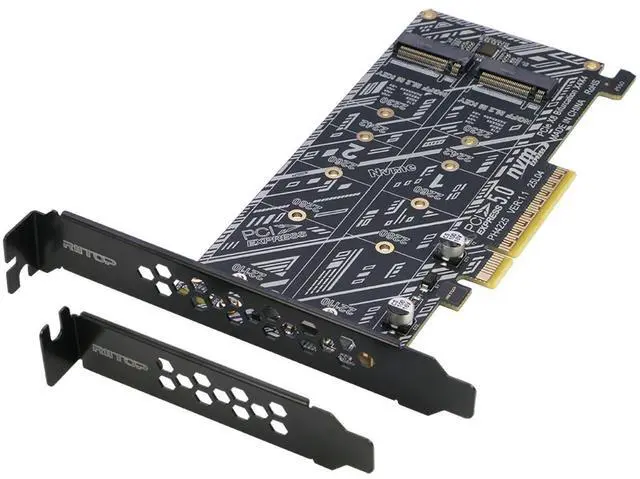

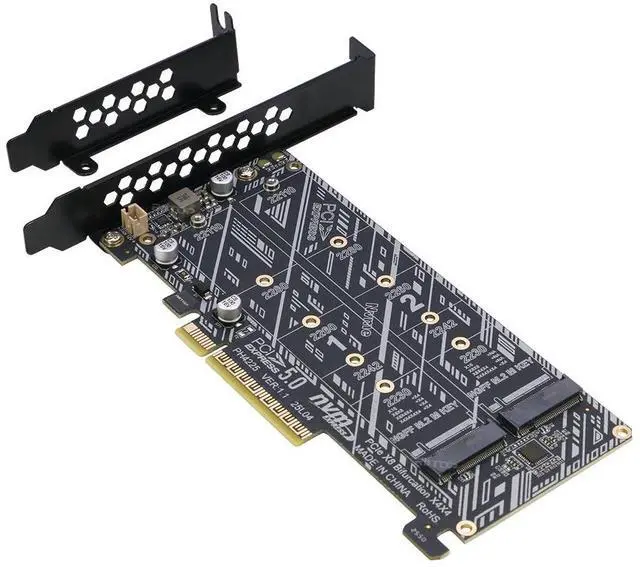

Dual-Slot NVMe to PCIe 5.0 X8 Interface Expansion Card (Supports Up to x8 Bandwidth) 64Gbps Backward Compatible with PCIe 4.0/3.0/2.0 Adapters Supports 2230/2242/2260/2280 SSD Form Factors
Limited time offer, ends 07/13 By RIITOP
- Features a PCIe 5.0 x16 interface design supporting up to x8 bandwidth (theoretical speed of 64Gbps). Backward compatible with PCIe 4.0/3.0/2.0 standards, it adapts to various motherboard interfaces to fully unleash NVMe drive performance.
- Your mainboard must support PCIe Bifurcation / Splitting. In the BIOS PCIe configuration settings, there must be options like "x4x4" or "x4x4x4x4" or "PCIe RAID " or " Hyper M.2 x16".
- This PCIe storage adapter supports M.2 NVMe SSD in form factor 2230 / 2242 / 2260 / 2280 / 22110. It's driver-free for OS with native NVMe support like Windows 8 + / macOS / Linux.
- BOOTABLE SSD : This M.2 NVMe converter supports SSD booting. Your mainboard must have PCIe boot function. Ideal for multi-OS users, software developers.
- RAID SUPPORT : This storage expansion card supports RAID by OS utilities or 3rd party software. For example: Disk Management in Windows, Disk Utility in macOS, mdadm in Linux.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Important note:
Suggest to add this card to the first PCIe x16 slot on your mainboard, and make sure it support PCIe Bifurcation (x4/x4 or x4/x4/x4/x4); if add to other slot, please to confirm that slot can work at x16 mode and support PCIe Bifurcation (x4/x4 or x4/x4/x4/x4) BEFORE!
Need a free PCIe x8/x16 slot on mainboard to install, please confirm before bid.
Specifications:
Interface and Bandwidth:PCIe 5.0 x16 interface form factor, supports up to x8 bandwidth (64Gbps), backward compatible with PCIe 4.0/3.0/2.0.

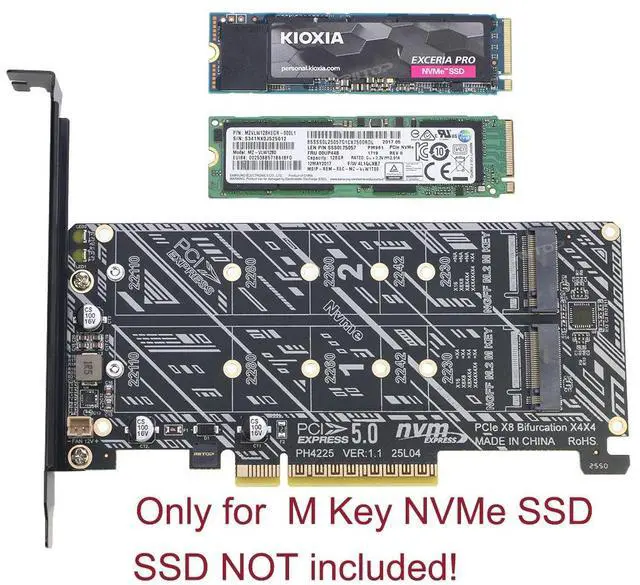

Drive Compatibility:Dual M.2 NVMe slots supporting 2230/2242/2260/2280 form factors.
Hardware Specifications:
Item Type: NVMe SSD to PCIe Adapter Card.
Support Hard Disk: M Key SSD.
Transmission Speed: 2 x 32Gbps.
System & Usage:
Compatible with Windows 8/10/11, Linux, and other systems; supports plug-and-play functionality.
Package Includes:
1 x Dual port NVMe to PCIe x8 Adapter Card.
2 x Nuts.
3 x Screws.
1 x Screwdriver.
