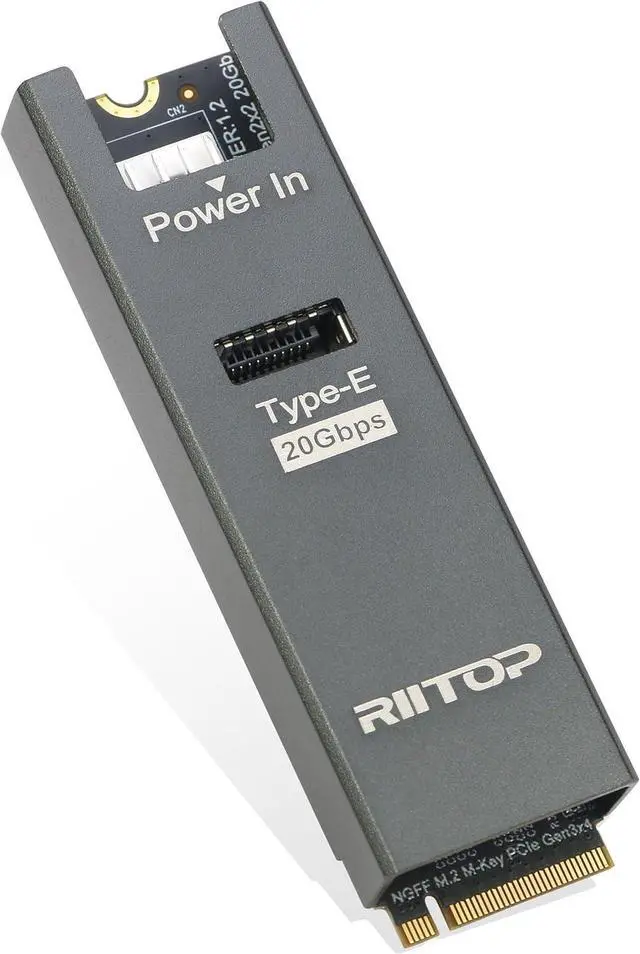

20Gbps Type-E USB 3.1 Front Panel Socket to M.2 NVME M-Key Express Card Adapter ASM3242 Chipset for Motherboard

Features:

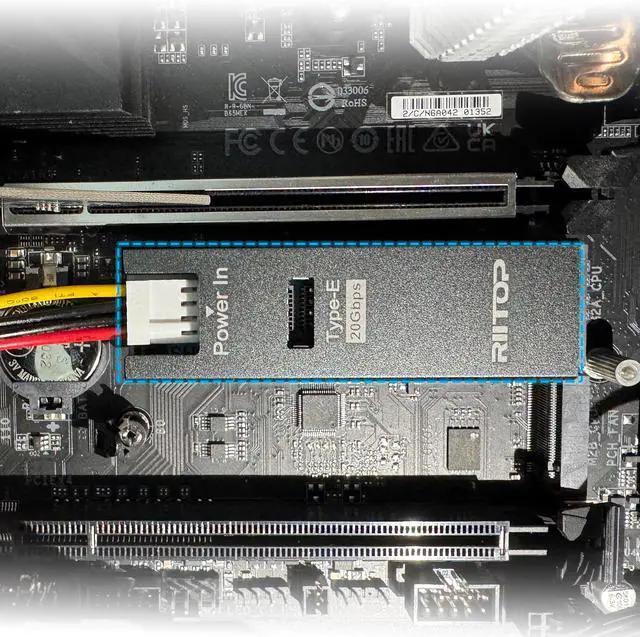

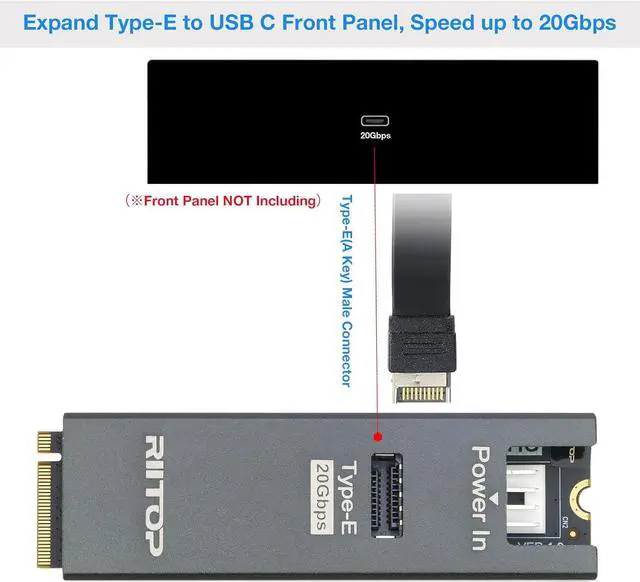

[NVMe to Type-E Socket] RIITOP NVMe PCIe to USB C Type-e connector can expaind an USB 3.2 Gen 2x2 (20Gbps) Internal Header via 1x Spare M.2 NVMe Slot, to delivers fast data transfer speeds directly to your PC case's front-panel USB-C port, making it ideal for large file transfers with external SSDs.

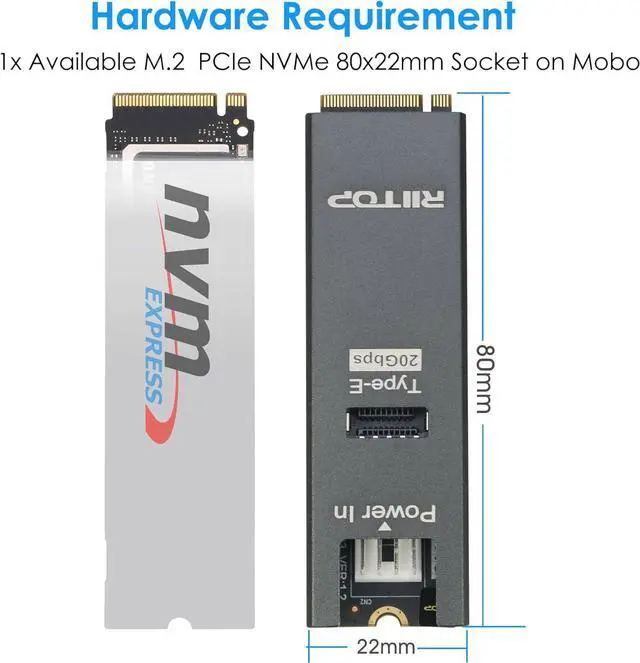

[Advantage] 1. Utilizes Spare NVMe Slot, Saves PCIe Slots: RIITOP M.2 NVMe to USB-C Internal Connector only need M.2 (Key M) Slot, Do not occupy PCIe Slot in small chasis.2. Speed up to 20Gbps 2. Aluminum Housing will protect the PCB from bending during connecting.

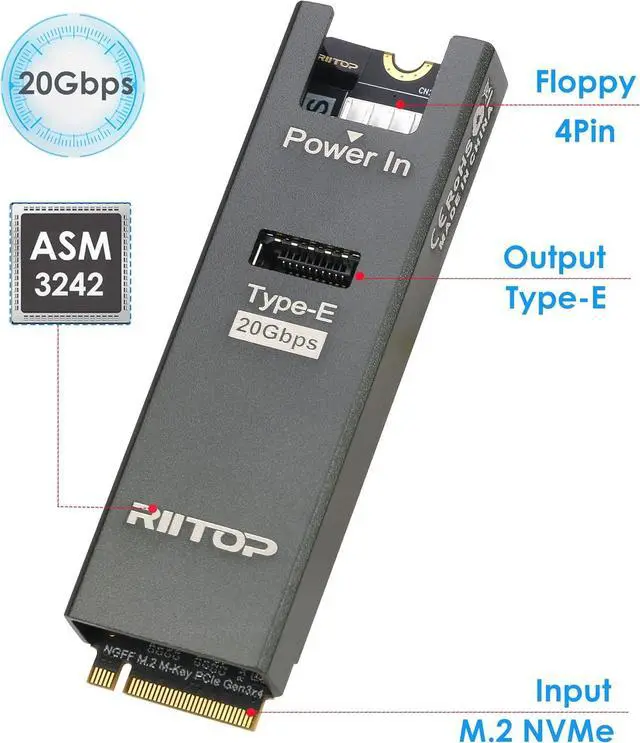

[Built-in 20Gbps Chipset With Heatsink] RIITOP USB 3.2 Gen2x2 PCIe Adapter is equipped with the reliable ASMedia ASM3242 controller, total 20Gbps bandwidth. The advanced Heatsink will help the chipset working in lower temperature, avoid having any issues with reliability due to overheating.

[Design with 4-Pin Power Connector] Features a dedicated small 4-pin (floppy drive) power connector to ensure stable and sufficient power when large file transfering, (Please Note: the expansion USB Port can only support data transferring, not support Chargring).

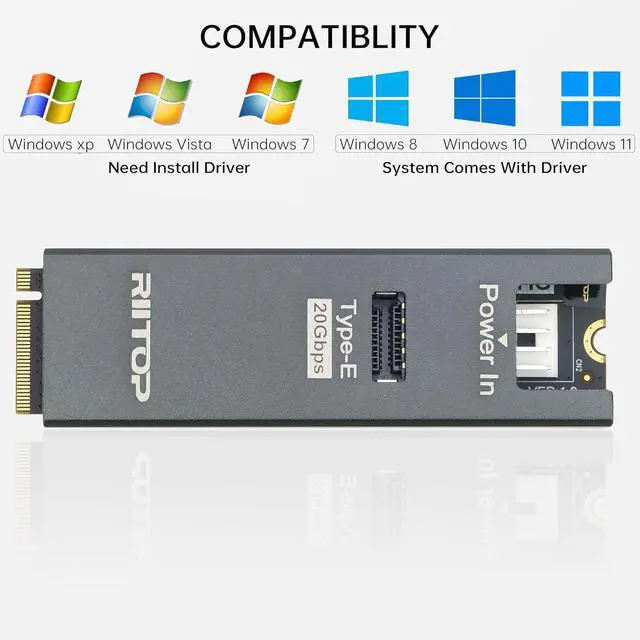

[Compatible OS] Plug and Play on Windows 11, 10, 8.x (32/64bit) and Windows Server 2012, 2012R2, 2016, 2019, 2022 systems. But Need to Install Driver on Windows XP, Vista, 7 (32/64bit) and Windows Server 2003, 2003R2, 2008, 2008R2 (32/64bit) systems.

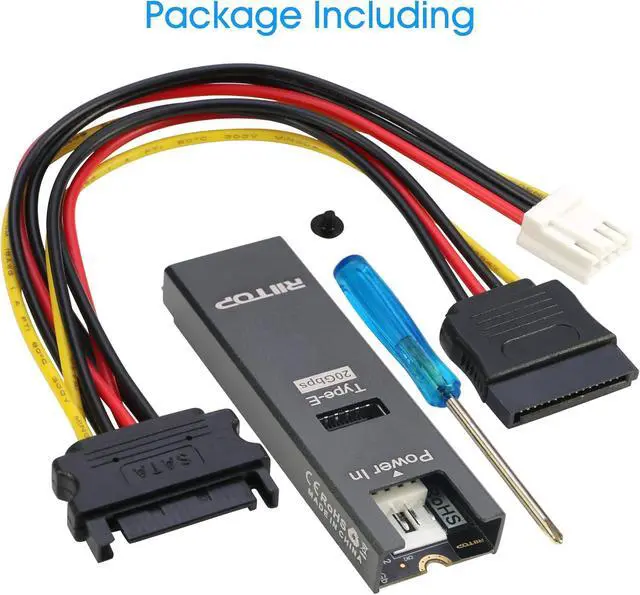

Package Including:

1x RIITOP M.2 NVMe to USB C Type-E Internal Adapter with Aluminum Housing,

1x SATA to 4Pin + SATA Power Cable,

1x Fixing Screw
