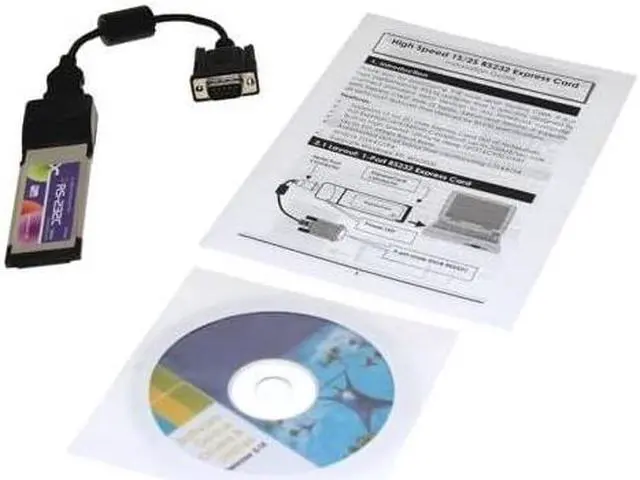

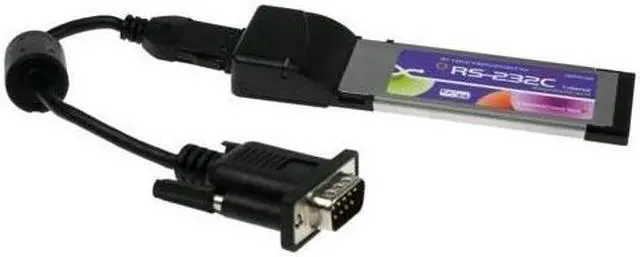

SERIALGEAR One Port RS-232 ExpressCard DB-9 Dongle for New Laptops

The SS-AS1RS provides a reliable solution for Notebook PC to connect serial peripherals such as GPS receivers, serial printers/plotters, barcode scanners, digital cameras, PDAs, Cell Phones and fax/modems over its new Express Card Slots.

The SS-AS1RS is compact in size and low power requirements to support the major serial portable devices. The UART is the newest generation of the 16C950. It equipped a 128-byte deep data FIFO and auto-flow control features to speed up the data transfer to 921.6Kbps without the under-run and over-run problems. Is ideal for a wide variety of applications including field data collection, industrial control and monitoring.

Features

• System For Systems with at least one 34mm or 54mm Express Card Slot


• 16C950 UART compatible, 128-byte deep FIFOs per Transmitter and Receiver


• Up to 921.6Kbps baud rate.


• Automated in band flow control using programmable Xon/Xoff in both directions


• Automated out-of-band flow control using CTS#RTS# and/or DSR#DTR# I/O Hardware


• One DB9-Male RS232C Serial Port Connector with 15pin-to DB9M cable


• One 26-pin Express Card Connector for Notebooks OS Support Windows 98, ME, XP, 2000


• Form Factor 4.41" x 1.34" (11.20cm x 3.40cm)
