    GLOTRENDS WA03 M.2 Key E to Mini PCIe WiFi Adapter for M.2 WiFi 4/5/6/6e/7 Module, with 3.5-dBi SMA Antenna Kits

    Be the first to review this product...
    • M.2 Key E to PCIe
    • Mini PCIe to PCIe
    • M.2 Key E to Mini PCIe
    • M.2 Key E to Key M
    • M.2 Key E to Mini PCIe WiFi Adapter with SMA Antenna Kits, work with NGFF M.2 WiFi 4/5/6/6e/7 module
    • WiFi and Bluetooth signals go through the Mini PCIe interface, so there is no need for a Bluetooth USB cable.
    • Triple Band 2.4GHz 5GHz 6GHz Antenna: 3.5 dBi RP-SMA Male antenna, with 2 x 15cm U.FL/IPEX4 to RP-SMA Female pigtail cable
    • Compatible with BE200NGW, AX210NGW, AX200NGW, 9260NGW, 8265NGW, 8260NGW, 7265NGW, 7260NGW, and Broadcom, Realtek, Atheros NGFF M.2 2230 Interface (Key E/A+E) WiFi module. Support WiFi 4/5/6/6E/7, Bluetooth 4.0/4.1/4.2/5.0/5.1/5.2/5.3/5.4
    • To be noted: can not work with M.2 CNVio2/CNVio interface WiFi module, such as intel AX211NGW, AX201NGW, AC 9560NGW, AC 9462NGW, AC 9461NGW, etc. Not support Mini PCIe WiFi module.
    • 12cm Regular-profile bracket and 8cm Low-profile bracket.
    +
    +
    Overview
    Specs
    Reviews
    avatar

    Any questions? Our AI beta will help you find out quickly.

    Try me now
    Model: WA03
    A-end Mini PCIe
    B-end E Key
    WiFi Compatibility WiFi 4/5/6/6E/7
    Bluetooth Compatibility Bluetooth 4.0/4.1/4.2/5.0/5.1/5.2/5.3/5.4
    Antenna 3.5 dBi RP-SMA Male antenna, with 2 x 15cm U.FL/IPEX4 to RP-SMA Female pigtail cable
    Used for BE200NGW, AX210NGW, AX200NGW, 9260NGW, 8265NGW, 8260NGW, 7265NGW, 7260NGW, etc.
    Support Coral TPU (M.2 Accelerator A+E key)
    Mini PCIe WiFi Adapter

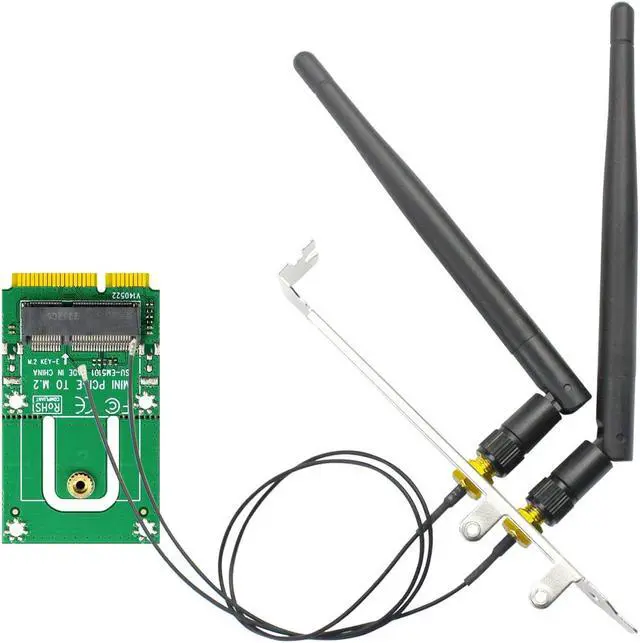

    Mini PCIe to Key E WiFi Adapter with SMA Antenna Kits
    Mini PCIe WiFi Adapter

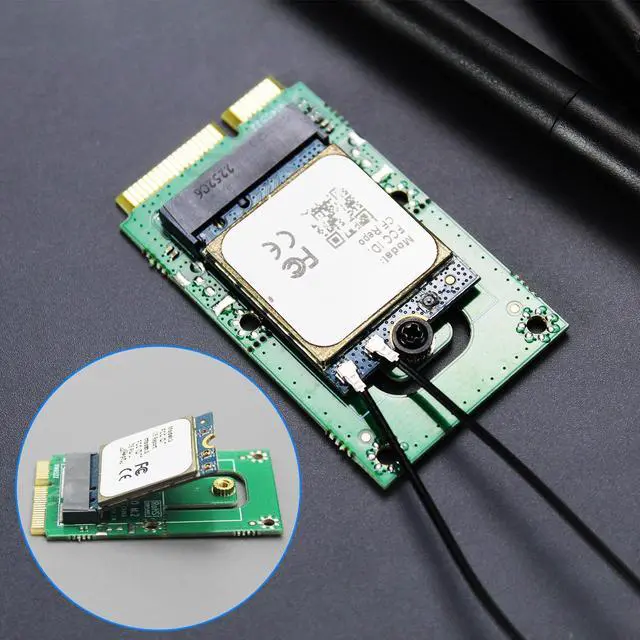

    Work with M.2 form factor WiFi module
    Mini PCIe WiFi Adapter

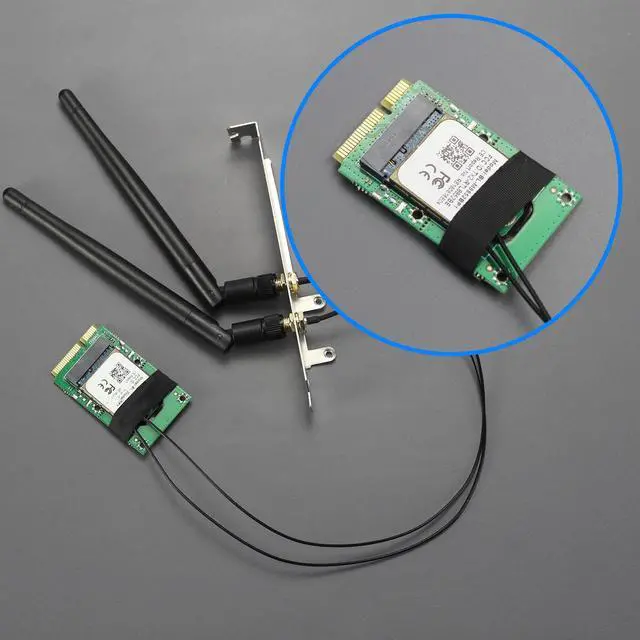

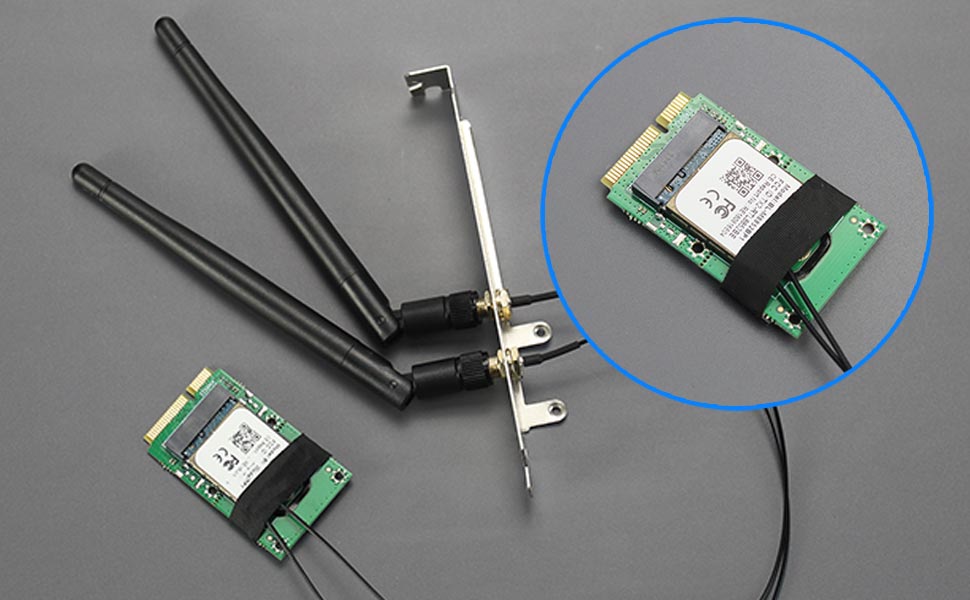

    Insulating Tape

    As the IPEX4 interface is very small, it is easy to fall off when snapping the network card interface, so cover the IPEX4 interface with insulating tape so that it will not fall off.

    Mini PCIe WiFi Adapter

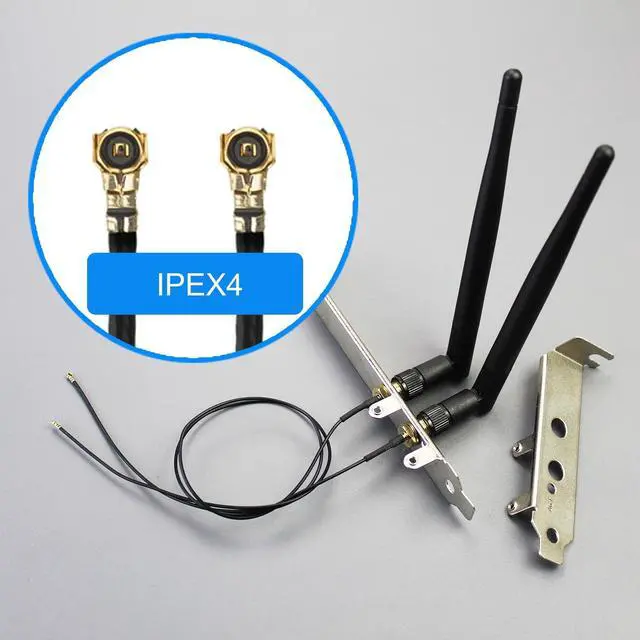

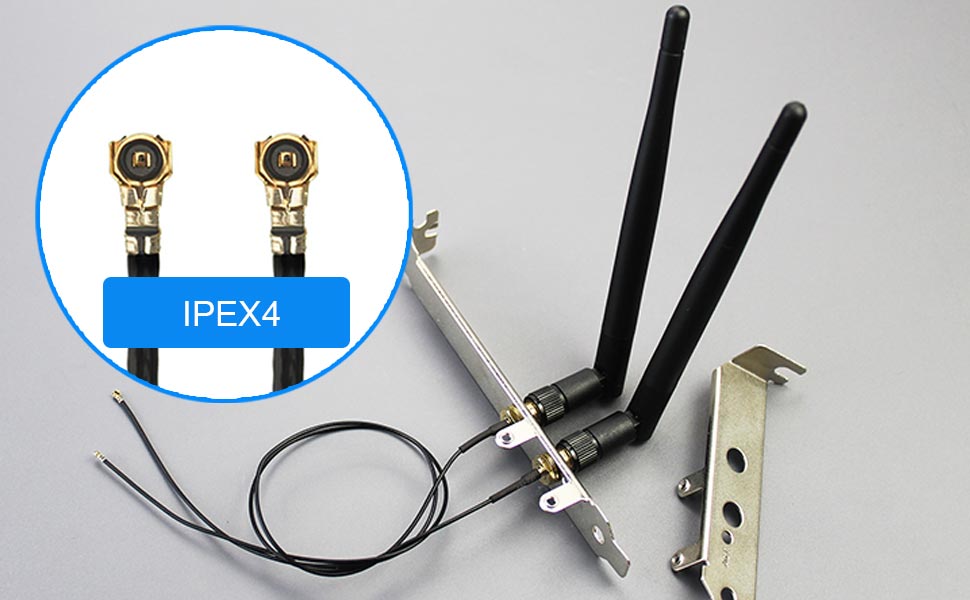

    Antenna
    • 3.5 dBi RP-SMA Male Antenna
    • 2 x 15cm U.FL/IPEX4 to RP-SMA Female pigtail cable
    • Frequency range supported: 2.4GHz, 5GHz-6GHz Antenna
    Mini PCIe WiFi Adapter

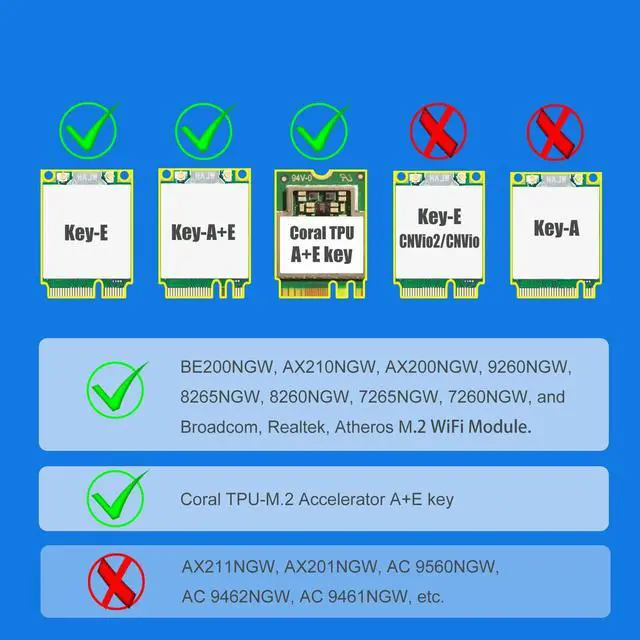

    Fit for
    • Support M.2 Key-E/A+E WiFi module, such as Intel AX210NGW, AX200NGW, 9260NGW, 8265NGW, 8260NGW, 7265NGW, 7260NGW, etc
    • Support Coral TPU - M.2 Accelerator A+E key
    • Note: Can not work with M.2 CNVio2/CNVio interface WiFi modular, such as intel AX211NGW, AX201NGW, AC 9560NGW, AC 9462NGW, AC 9461NGW, etc.
    Mini PCIe WiFi Adapter

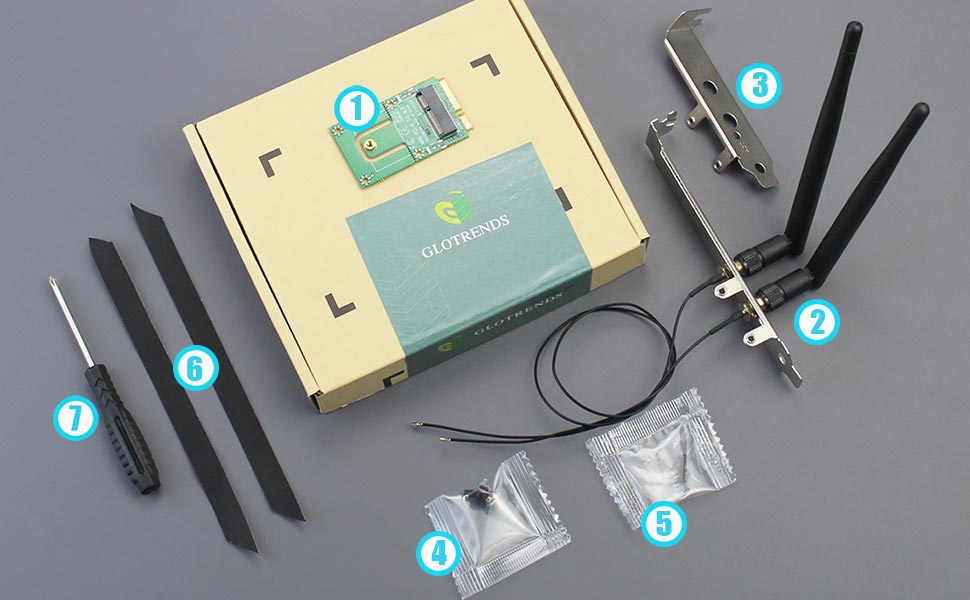

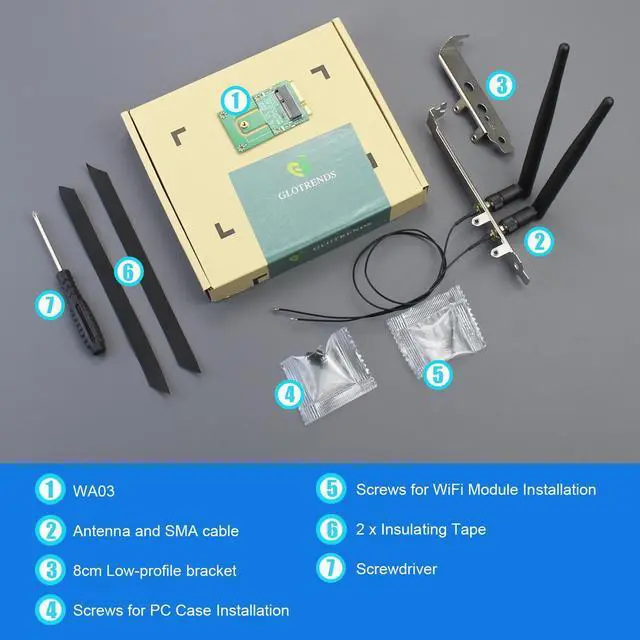

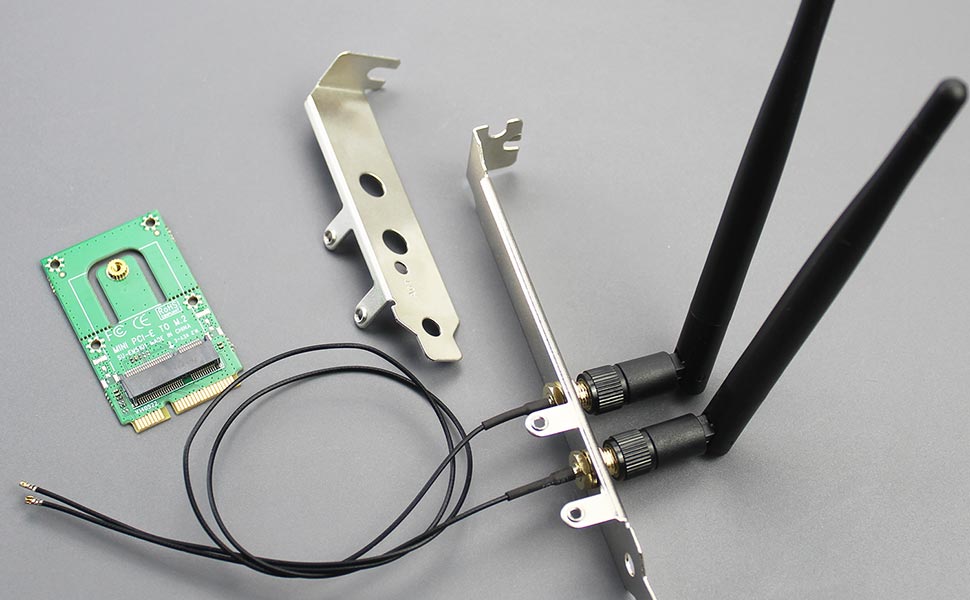

    The package includes
    1. WA03
    2. Antenna and SMB cable
    3. 8cm Low-profile Bracket
    4. Screws for mounting to PC chassis
    5. Screws for WiFi module Installation
    6. 2 x Insulating Tape
    7. Screw Driver
    1) Mini PCI-Express to M.2 NGFF Key E/A+E adapter converter

    2) Work with M.2 NGFF Key E/A+E Wireless Network Card (not included), and require PCIe X1 lane for installation. It cannot work with M.2 CNVI wireless wifi module.

    3) Support WiFi 4/WiFi 5/WiFi 6/WiFi 6AC/WiFi 6AE, 802.11a/b/g/n/ac/ax/ae, Bluetooth 4.0/4.1/4.2/5.0/5.1/5.2

    4) Compatibility: AX210NGW,AX200NGW,9260NGW,8265NGW,8260NGW,7265NGW,7260NGW, and Broadcom, Realtek, Atheros M.2 NGFF Key E/A+E Wireless Network Card, etc

    5) Dual Band 2.4GHz 5GHz WiFi Antenna: 3.5 dBi RP-SMA Male antenna, with 15cm U.FL/IPEX4 to RP-SMA Female pigtail cable

    6) Regular-profile mounting bracket and low-profile mounting bracket.

    7) Note: This item is only a signal converter, and does not have any driver. But you may need to install a driver for your M.2 NGFF Key E/A+E Wireless Network Card
