Features:

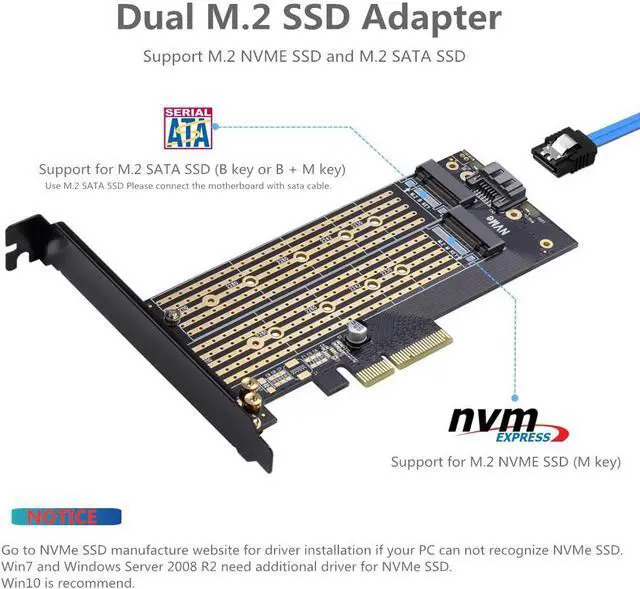

Supports one M.2PCIe (NVMe or AHCI) SSD and one M.2 SATA 6Gbps SSD simultaneously
Supports PCIE M.2 SSD (NVMe or AHCI, Key-M)
SupportsSATA-based M.2 SSD (Key-B / B+M)
Supports PCIe Gen3 and PCIe Gen2 M.2 NGFF 110mm, 80mm, 60mm, 42mm,30mm SSD
Supports PCIe 1.0, PCIe 2.0, PCIe 3.0 and PCIe 4.0 motherboard
PCB 24 X 5copper hole effective ventilation heat dissipation,Including 2 heat sinks
Transparent tothe operating system and no driver required
NOTE :
You are kindly reminded that the 7-pin SATA cable must be connectedto motherboard if you want to read the M.2 SATA SSD (Key B).(SATA Cable Has Been Included)
You are kindly reminded that this adapter only support PCIe X4 X8X16 slot. DO NOT support PCIe X1 slot.

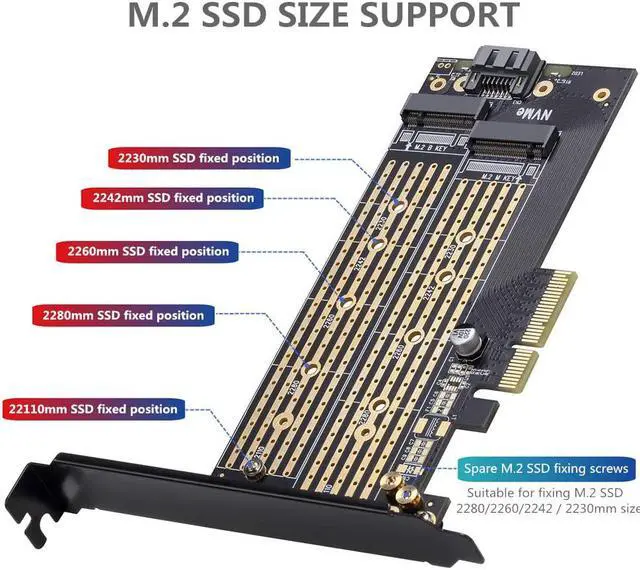

Size support:
Supports NVME & SATA M.2 SSD(22110mm/2280mm/2260mm/2242mm/2230mm)

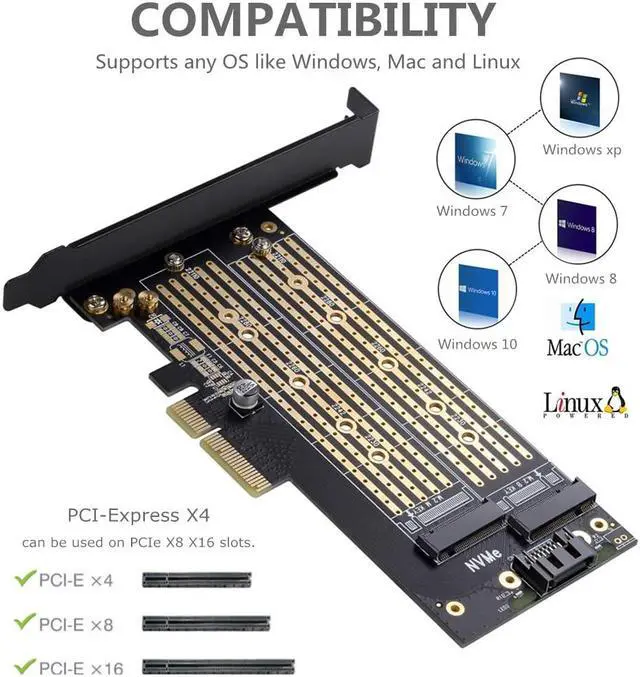

System:
Supports any OS like Windows, Mac and Linux.(no driver required)
Applicable Slots:
Supports PCI-Express X4, X8, X16 slots.

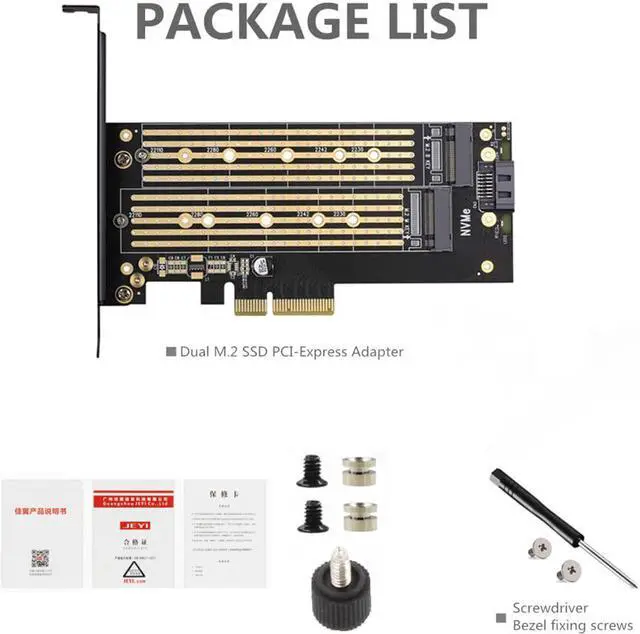

Package list:
M.2 (NVME & SATA) SSD Adapter Card x1
Regular/Low Profile PCIe Bracket x1
Aluminum Heatsink x1
Screwdriver x1
Screw kit x1
