SATA IDE Adapter 40 Pin IDE to SATA Connector 3.5 HDD IDE Hard Disk DVD Burner Adapter Converter With 7Pin-SATA Data Cable

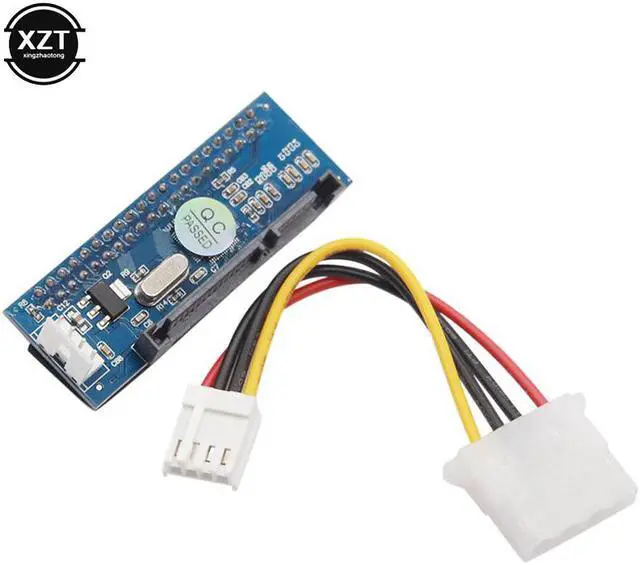

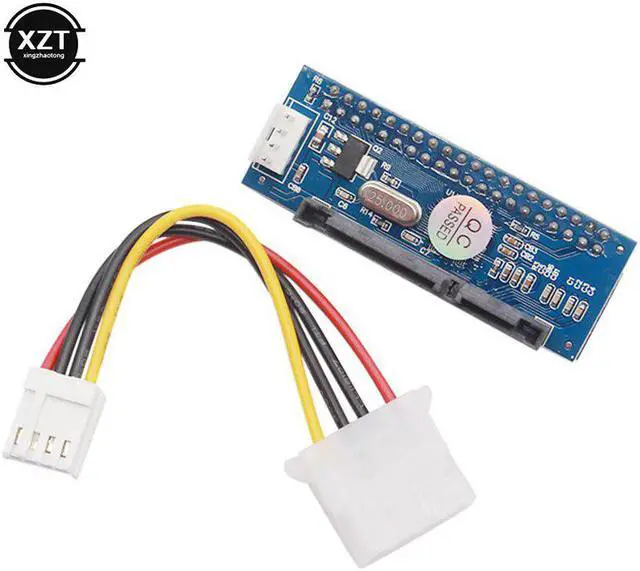

Wiring method: 1\Some adapter boards and hard drives/optical drives require power supply. The jumper must be set to the MASTER position. To work properly. 2\If the built-in power cord is insufficient, you can also use the 4pin power supply on the computer power supply. 3\Generally, people use old hard drives or CD-ROM drives. The connector pins may be rusty, so you can scrape them with a small blade. Plug in several times. Avoid bad contact.

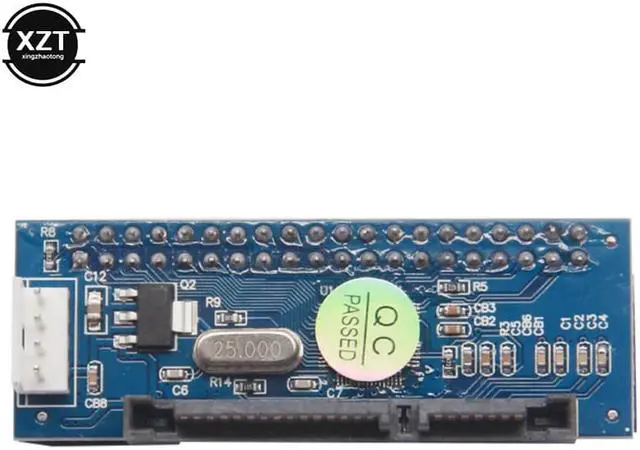

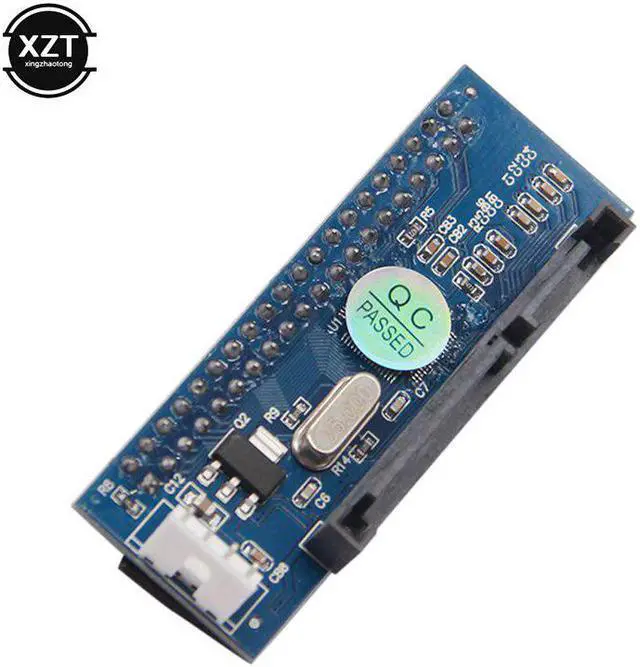

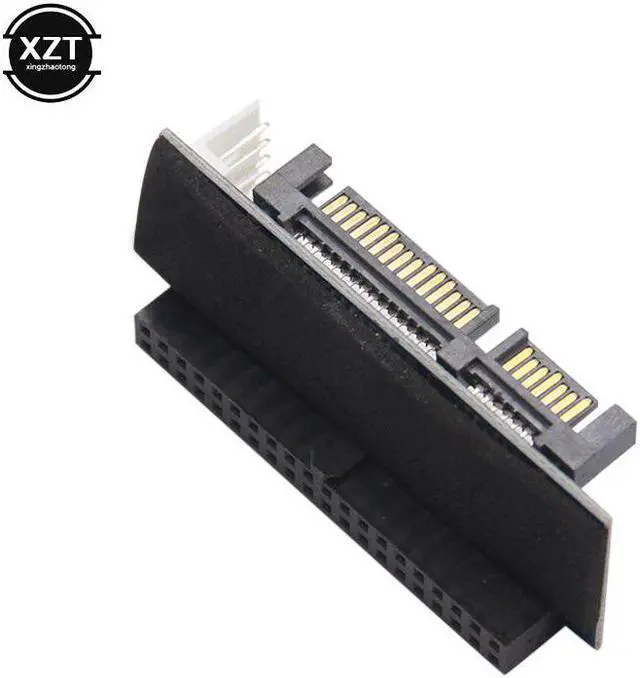

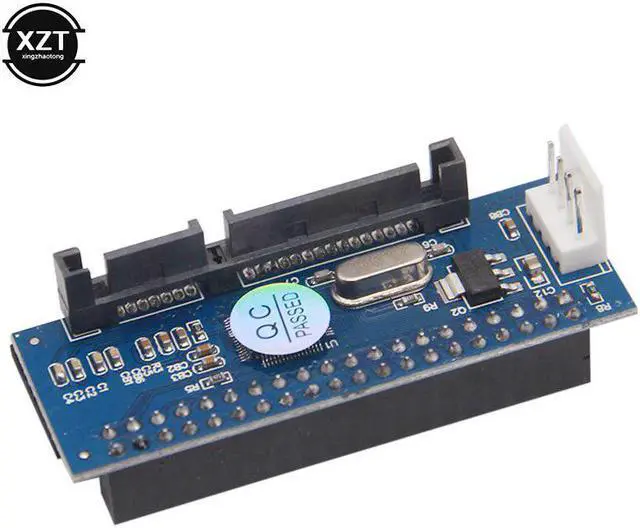

Product name: IDE to SATA adapter card
Use model: JM20330
Product material: PCB double-layer circuit board
Scope of application: suitable for IDE optical drives, burners, 3.5 -inch hard drives, video recorder hard drives
Compatible system: compatible with windowsXp\win7\win8 32-bit\64-bit system Compatible and support various brands of desktop computers:
1. The video recorder's IDE hard disk is converted to SATA, and it is connected to the SATA port of the motherboard.

2. Convert 3.5 -inch IDE hard disk to SATA, connect to the motherboard SATA port for use

3. Convert IDE optical drive to SATA, connect to motherboard SATA port for use

4. Convert IDE burner to SATA, connect to motherboard SATA port for use

5. The desktop 3.5 -inch IDE hard disk can be transferred to the SATA video recorder (please format the hard disk on the computer first).

6. The transferred hard disk can be used as master and slave (requires system reinstallation, refresh in BIOSS, etc. ).

7. The converted optical drive can be used as a system.

8. The adapter card supports a parallel port hard disk with a maximum capacity of 1000G.

9. For IDE devices using adapter cards, the jumper cap must be inserted in the MASTER position.

10. Compatible with SATA 1st generation, SATA 2nd generation, SATA 3rd generation

11. Plug and play, no driver required Common faults when the product cannot be used:

1. Check if there is a problem with the SATA data cable and see if it is loose. Or change to a normal SATA cable.

2. Check whether the jumper is connected to the main disk, and the value is in the MASTSER position.

3. Whether the settings in the boot BIOS are correct. Some motherboards require BIOS settings (set SATA mode to IDE MODE)

4. If it still can't be used, it may be a compatibility problem. Some devices of this type of conversion card have compatibility problems.

5. Compatibility is not recognized due to product reasons, it will be fixed later, share it below.
When it is not recognized: Right click on "My Computer-Properties"-"Hardware"-"Device Manager". Then open "IDE ATA/PATA Controller" and then double-click the primary and secondary IDE channels, and select "Advanced "Settings", set "Device Type" to "Auto-detection", and "Transfer Mode" to "DMA (if available) "-click OK. After restarting, see if the system finds new hardware.

6. This model does not support motherboard IDE interface to SATA hard disk, etc. Please pay attention to purchase, the direction cannot be reversed
Features: 100% Brand new and high quality! The Adapter tur
