FebSmart 5X 10Gbps USB-A Ports PCIE USB 3.2 Gen 2 Expansion Card for Windows 7.8,8.1,10,Server; MAC OS 10.9.x, 10.10.x, 10.12.x, 10.13.x, 10.14.x, 10.15.x-Build in Self-Powered Technology

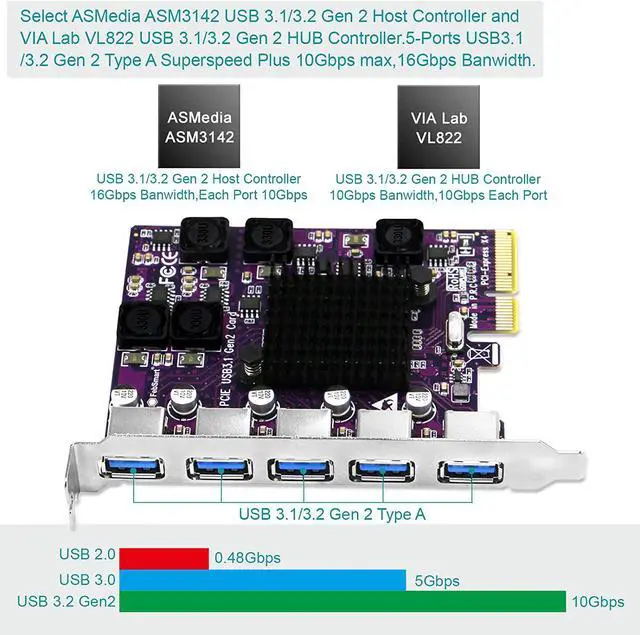

3. Based on ASMedia ASM3142 the 3rd generation USB 3.1 / 3.2 Gen 2 host controller and the latest VIA
Lab VL822 USB 3.1 / 3.2 Gen 2 hub controller. Supports USB 3.1 / 3.2 Mutiple INs function, will auto-coordinate each USB port banwidth. The Added-on Heat-Sink will help PCIE USB card core components stay away from overheat, make sure connected USB device always stay at peak speed. 4.

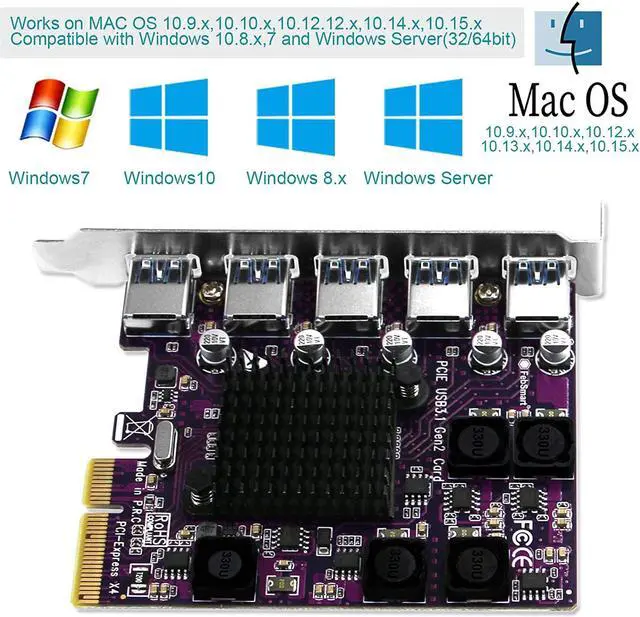

Compatible System:
1. Plug and Play on MAC OS 10.5. x, 10.6. x, 10.7. x, 10.8. x, 10.9. x, 10.10. x, 10.12. x, 10.13. x, 10.14. x, 10.15. x and later system. NOT works on MAC OS 10.11. x system. 2. Driver free on Windows 10, 8.1, 8, and Windows Server 2012, 2012R2, 2016, 2019(32/64bit), Need to install driver on Windows 7, Windows Server 2008, 2008R2(32/64bit).
3. Supports most of main stream Linux system. 5.

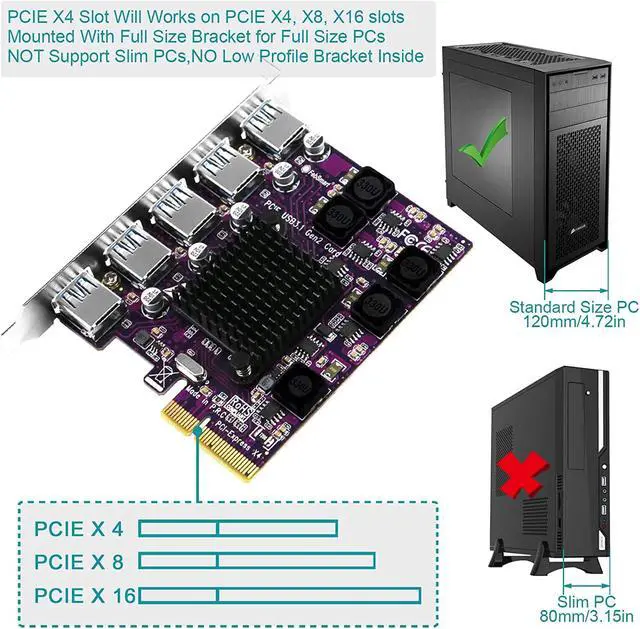

WARNNING: 1. Compatible with PCIE X4, X8, X16 slot, NOT works on PCIE X1, X2 slot.
2. Please use this card on PCIE 3.0 X4 slot with USB 3.1 / 3.2 gen 2 device or can not get peak speed. 3. The USB-A port 1, 2, 3, 4 support BC 1.2 fast charging function, please check product description carefully before purchase. 4. NOT support slim PCs, works on standard size PC only. 5. The USB 3.1 Gen 2 is same as USB 3.2 Gen 2, the USB association named same agreements in different year.
Product Descreption: FebSmart FS-A5-Pro allow users add 5X USB 3.1 / 3.2 Gen 2 Type A super speed plus 10Gbps ports on desktop computers for video, audio, photos or files transfer and live data storage. Build in FebSmart Self-Powered Technology for HDD/SSD enclosure, VR sensors etc high power-consuming data devices. It also provides stable and fast connection for normal USB device which includes web cameras, mice, keyboard, smart phone, video capture, KVM switch, USB hub etc. It also support BC 1.2 fast charging for smart phones, iPad, tablet. It is a low cost and effective way to add USB 3.1 / 3.2 Gen 2 ports on desktop PCs. The 5X added on USB ports will not occupy mother baord USB Main Lan Speed, it's an extra bandwidth by PCI Express X4 on computers or servers.

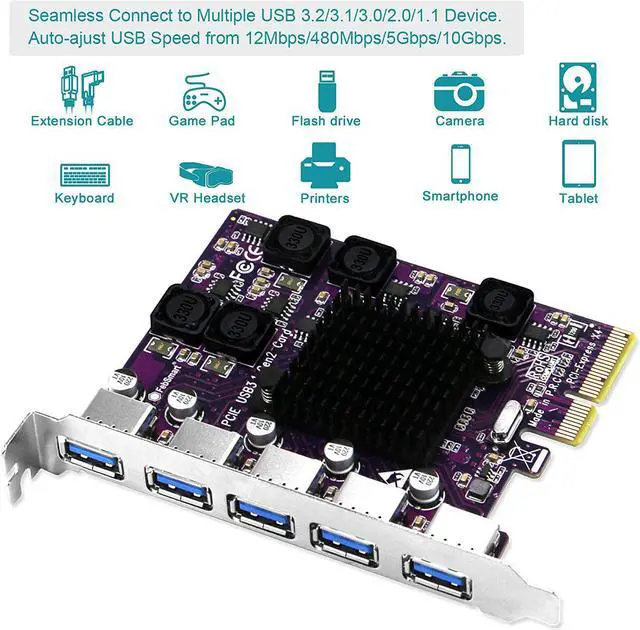

Product Features: 1. Expand to 5X USB 3.1 / 3.2 Gen 2 Type A 10Gbps ports on newly build dektop computers by PCIE 3.0 X4 slot. 2. Support auto speed negotiation USB 3.1 / 3.2 Gen 2 10Gbps, USB 3.0 5Gbps, USB 2.0 480Mbps, USB 1.1 12Mbps. 3. USB Port 1, 2, 3, 4 support BC 1.2 fast charging, will charge 2A max for smart phones, iPad, tablet PCs, iPhones. 4. Build in FebSmart Self-Powered Technology, no need additional power supply, super easy install on computers. 5. Mounted with full height bracket for standard size desktop PCs, No low-profile bracket inside, not works on slim size PCs. 6..

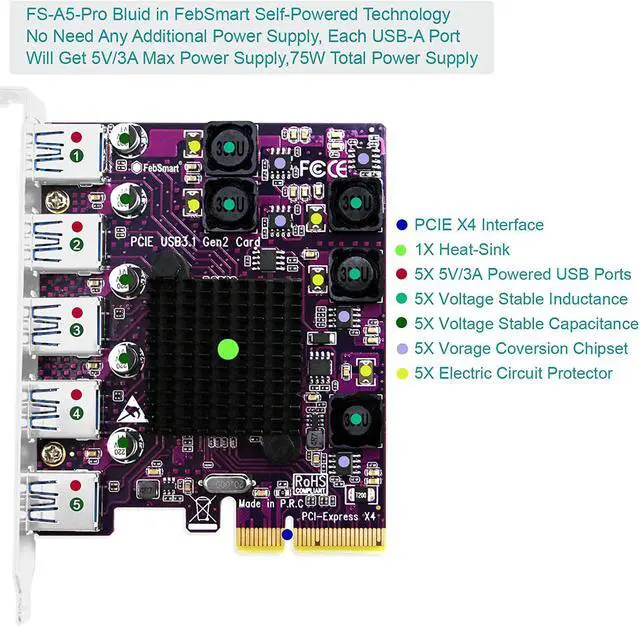

PCI Express communicate speed: PCIE 3.0 / 4.0 16Gbps, PCIE 2.0 10Gbps, PCIE 1.0 5Gbps. Better use this card on PCIE 3.0 / 4.0 mother board. 7. Support USB 3.1 / 3.2 Gen 2 Multiple INs. Complaint with USB 3.1 specification revision 1.0 and Intel extensible host controller interface revision 1.1. 8. Added-on Heat-Sink will help PCIE USB card core components stay away from overheat, ensure connected USB device always stay at peak speed. What is FebSmart Self-Powered Technology? FebSmart Self-Powered Technology is a new solution to add more power supply on USB expansion cards. The old version PCI Express USB card need to plug an power cable from the desktop computer power control center. Even added-on additional power, USB ports still lack power when you running few high power-consuming devices simultaneously, such as HDD/SSD enclosure. PCI Express slot can provide 75W max power almost 12V/ 6.25A. We add on 1X voltage transformer on each USB port, can pick up 12/ 2.5A transfer to 5V/15A. Then we add 1X power module on each USB port distribute current to each port 5V/3A max power(support BC 1.2 fast charging).

To protect USB device, we designed 5X electric circuit protector, 5X voltage stable capacitance and 5X voltage stable inductance. Do not worry data loss or burning USB devices now. Add super fast USB 3.1 / 3.2 gen 2 host controller card on PCs. Choose More Stable, Fast and Safe data connection with FebSmart.
System Requirements: 1. Plug and Play on MAC OS 10.5. x, 10.6. x, 10.7. x, 10.8. x, 10.9. x, 10.10. x, 10.12. x, 10.13. x, 10.14. x, 10.15. x and later system. NOT works on MAC OS 10.11. x system. 2. Driver Free on Windows 10, 8.1, 8 and Server 2012, 2012R2, 2016, 2019 (32/64bit), Need to install driver on Windows 7 and Server 2008, 2008R2(32/64bit).
Package: 1X FS-A5-Pro 1X User Manual 1X Mount-screw
