Features
- Supports one M.2PCIe (NVMe or AHCI) SSD and one M.2 SATA 6Gbps SSD simultaneously
- Supports PCIE M.2 SSD (NVMe or AHCI, Key-M)
- SupportsSATA-based M.2 SSD (Key-B / B+M)

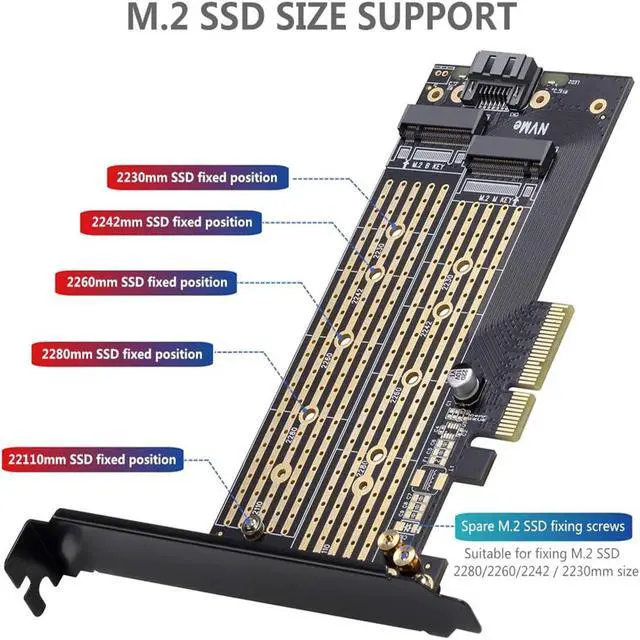

- Supports PCIe Gen3 and PCIe Gen2 M.2 NGFF 110mm, 80mm, 60mm, 42mm,30mm SSD
- Supports PCIe 1.0, PCIe 2.0, PCIe 3.0 and PCIe 4.0 motherboard
- PCB 24 X 5copper hole effective ventilation heat dissipation,Including 2 heat sinks
- Transparent tothe operating system and no driver required
NOTE :
- You are kindly reminded that the 7-pin SATA cable must be connectedto motherboard if you want to read the M.2 SATA SSD (Key B).(SATA Cable Has Been Included)
- You are kindly reminded that this adapter only support PCIe X4 X8X16 slot. DO NOT support PCIe X1 slot.

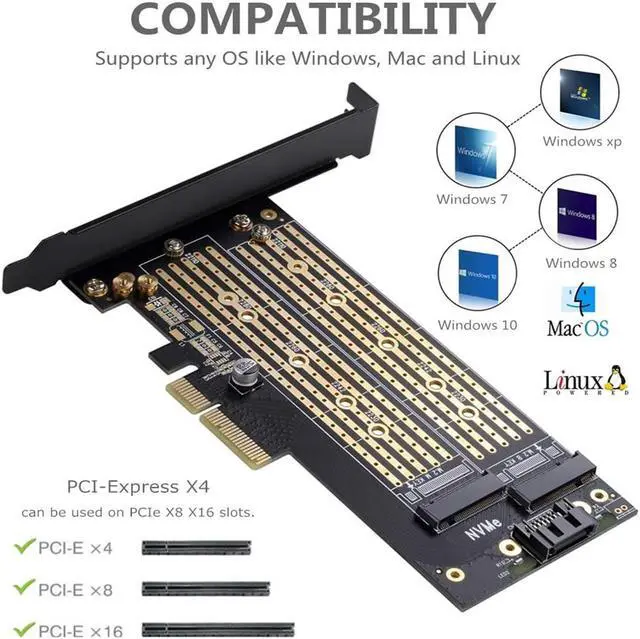

Compatibility
Size support:

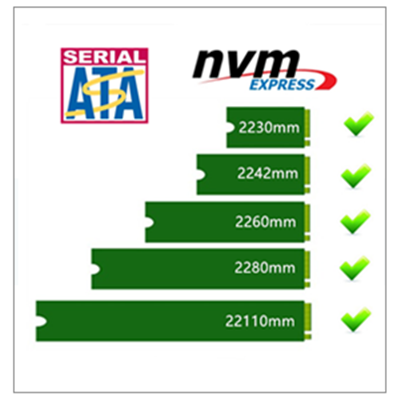

- Supports NVME & SATA M.2 SSD(22110mm/2280mm/2260mm/2242mm/2230mm)
System:
- Supports any OS like Windows, Mac and Linux.(no driver required)
Applicable Slots:
Supports PCI-Express X4, X8, X16 slots.

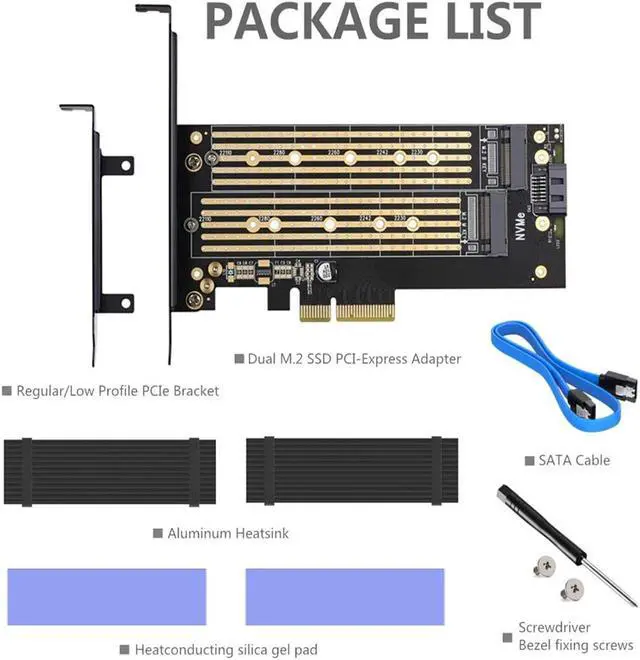

Package list
- M.2 (NVME & SATA) SSD Adapter Card x1
- Regular/Low Profile PCIe Bracket x2
- Aluminum Heatsink x2
- Heatconducting silica gel pad x2
- SATA Cable x1
- Screwdriver x1
- Screw kit x1
