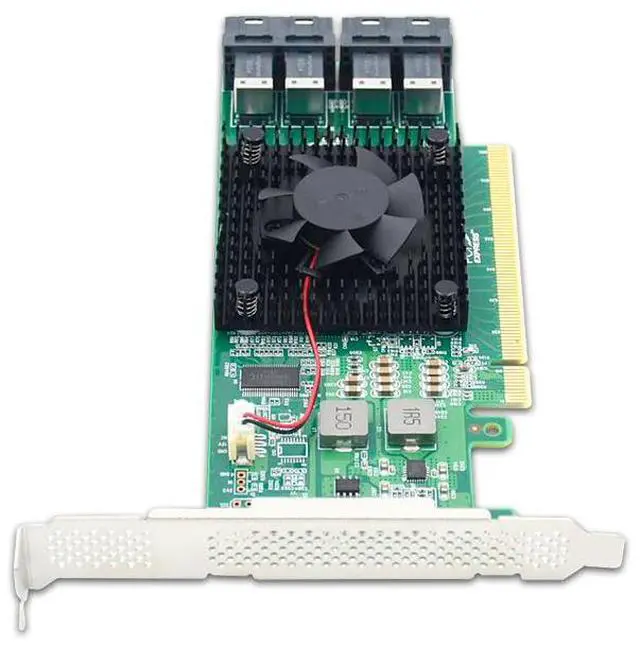

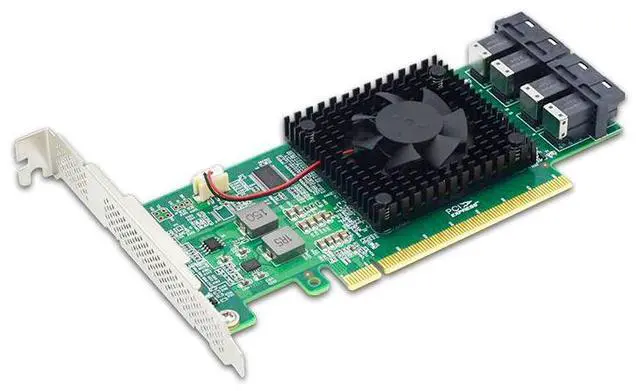

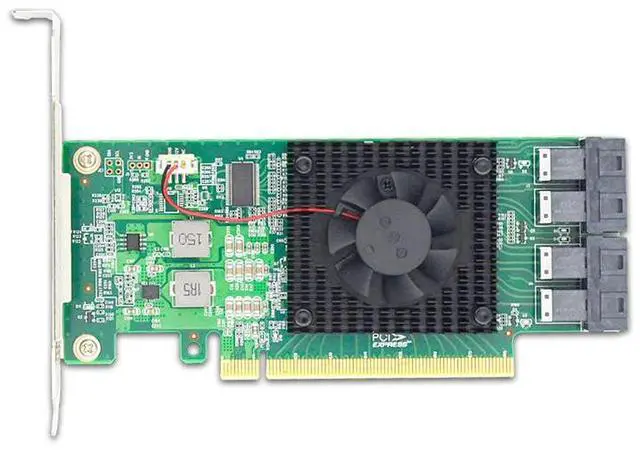

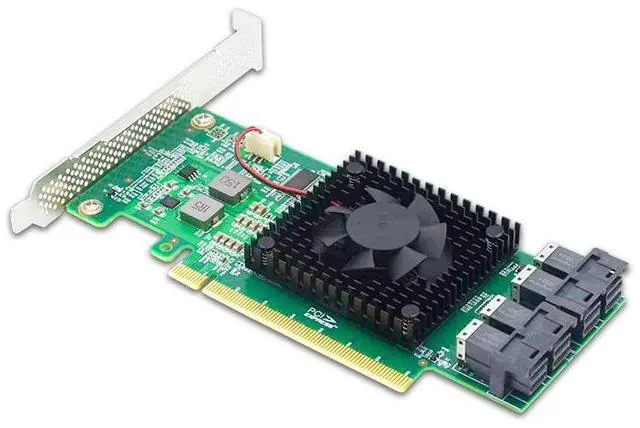

eShinreal 4-Port U.2 NVMe SSD Adapter Card PCIe 3.0 x16 to SFF-8643 NVMe Switch Adapter (PLX8747)
- 4x U.2 (SFF-8639) NVMe Ports Supports four PCIe 3.0 x4 NVMe SSDs simultaneously.
- PCIe 3.0 x16 Host Interface Delivers up to 15.76 GB/s total bandwidth (shared across drives).
- PLX8747 PCIe Switch Chip Provides non-blocking, low-latency switching for multi-drive setups.
- Hot-Swap & Enterprise Ready Works with U.2 backplanes for easy SSD maintenance.
- Passive Cooling Design, ideal for rackmount & silent workstations.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
This PCIe 3.0 x16 to quad NVMe switch adapter leverages the Broadcom PLX8747 PCIe switch chip, enabling high-performance NVMe SSD connectivity for enterprise storage, servers, and workstations. With four U. 2 (SFF-8639) ports, it maximizes storage density while efficiently managing PCIe lane allocation for optimal performance.
Technical
Host Interface: PCIe 3.0 x16 (compatible with x8/x4 slots at reduced bandwidth)
Device Ports: 4x U. 2 (SFF-8639)
Supported Protocols: NVMe 1.3 / 1.4
Switch Chip: Broadcom PLX8747
Form Factor: Full-height (low-profile bracket optional)
Power Consumption: ~15W (no auxiliary power required)
OS Support: Windows Server, Linux, VMware (driver-free for NVMe)
Applications
NVMe Storage JBOF (Just a Bunch of Flash) Expand storage in 1U/2U servers.
High-Performance Workstations Ideal for video editing, AI/ML, and databases.
All-Flash Arrays (AFA) & Hyperscale Storage Boost IOPS & throughput for enterprise workloads.
Technical
Specifications
Host Interface: PCIe 3.0 x16 (compatible with x8/x4 slots at reduced bandwidth)
Device Ports: 4x U. 2 (SFF-8639)
Supported Protocols: NVMe 1.3 / 1.4
Switch Chip: Broadcom PLX8747
Form Factor: Full-height (low-profile bracket optional)
Power Consumption: ~15W (no auxiliary power required)
OS Support: Windows Server, Linux, VMware (driver-free for NVMe)
Applications
NVMe Storage JBOF (Just a Bunch of Flash) Expand storage in 1U/2U servers.
High-Performance Workstations Ideal for video editing, AI/ML, and databases.
All-Flash Arrays (AFA) & Hyperscale Storage Boost IOPS & throughput for enterprise workloads.
