2 Port MCIO 4i to PCIe 5.0 x16 Expansion Card- XIC 054PE
- Dual MCIO to PCIe Slot Adapter: Converts two PCIe 5.0 MCIO 4i cable inputs into one standard PCIe x16 slot, enabling the connection of high-performance add-in cards via cable.
- Flexible x8/x4 Bandwidth Modes: Provides full PCIe x8 electrical bandwidth when both MCIO inputs are connected. It also supports an x4 mode using only the primary input, allowing connection of more devices.
- Optimized Design for Ease of Use: Features redesigned PCB routing and a relocated power socket to simplify cable and power connector management during installation and maintenance.
- High-Speed PCIe 5.0 Performance: Built with an 85 Ohm ultra-low loss PCB and a high-quality PCIe 5.0 slot to ensure signal integrity and support maximum data transfer speeds for GPUs and accelerators.
- Dedicated GPU Power & Critical Warning: Includes a 12V GPU power connector backed by a 6A voltage regulator. It carries a strong warning to use only the correct power supply, as a connection error will destroy both the adapter and the connected GPU.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Overview

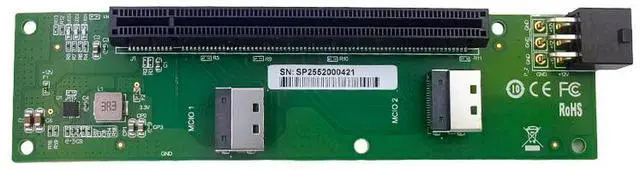

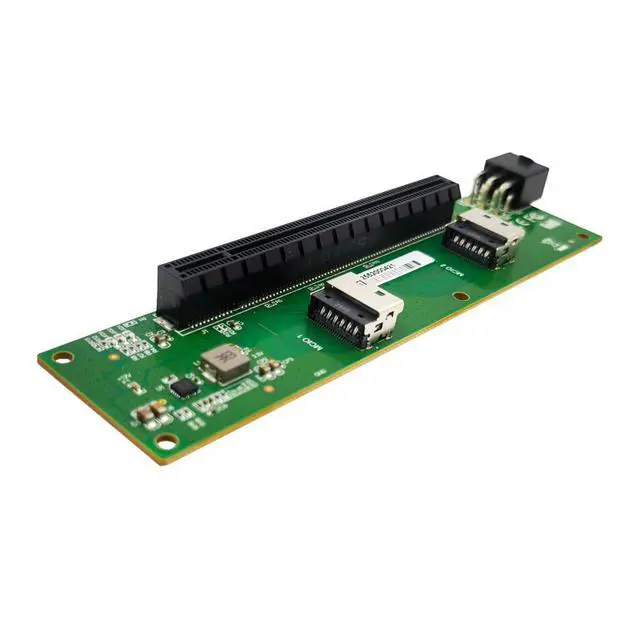

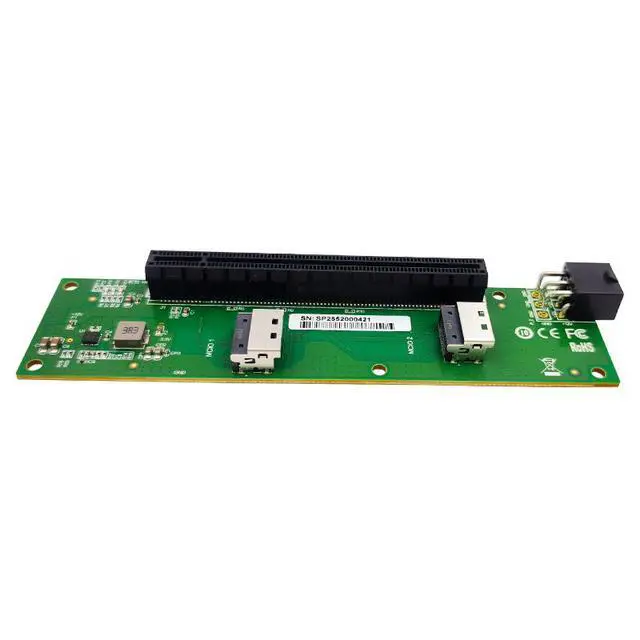

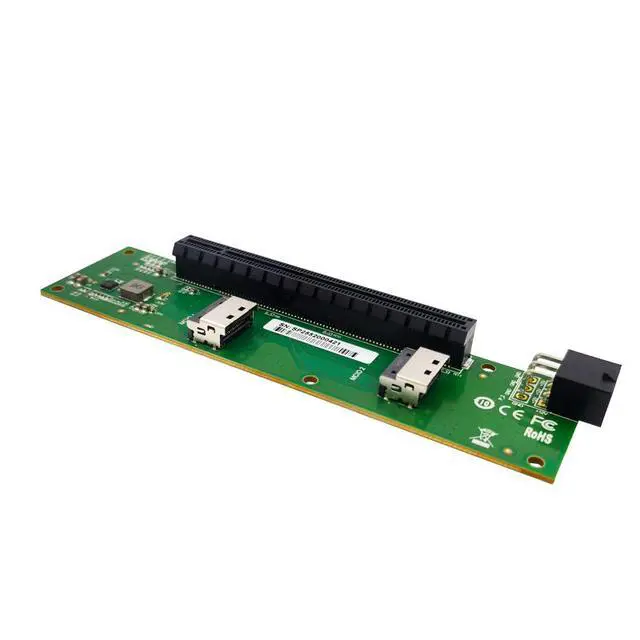

XIC 054PE is two MCIO 4I to PCIe5.0 x16 slot riser card, It optimizes the PCB
routing and changes the position of the power socket, making it easier to plug and
unplug.It can be extended to a PCIe x16 slot by plugging into a PCIe AIC card (e.g.,
Switch, Retimer, etc.) with 2 MCIO 4I connectors, providing PCIe x8 bandwidth and
faster transfer speeds. It can also connect only the first MCIO connector to realize the
use of PCIe x4 devices to achieve the purpose of connecting more PCIe devices.
It can easily connect graphics cards, accelerator cards, and other Add-in-Card
devices to improve efficiency.
Key Features
two PCIe5.0 MCIO 4i input
one PCIe x16 mechanical output (PCIe x8 electrical bandwidth)
PCIe gen5 - high quality SMT slot,
85Ohm Ultra Low Loss PCB
can work in x4 mode with one cable (input near the power plug)
can work in x8 mode with both inputs connected (must be the same CPU host port
and lane ordering must be 0-3->4-7, NOT 4-7->0-3, switching the cables will help!)
GPU Power connector to supply 12V. DO NOT connect the wrong power
connector, it will destroy the Adapter and your GPU!!!
6A 12V->3.3V buck voltage regulator
