eShinreal PCIe 5.0 x16 to 4-Port M.2 NVMe SSD Adapter Card XIC PE5162
- Quad PCIe 5.0 x4 Performance: Hosts four M.2 NVMe SSDs, with each drive receiving a dedicated PCIe 5.0 x4 lane, ensuring maximum individual and aggregate bandwidth.
- PCIe Bifurcation Required: Must be installed in a PCIe x16 slot that supports BIOS-level PCIe bifurcation (x4x4x4x4 mode), which is essential for the card to function correctly.
- Broad PCIe Generation Compatibility: Supports PCIe Gen5, Gen4, and Gen3 NVMe SSDs, offering flexibility for both current and previous-generation drives.
- Flexible Form Factor: Includes both a full-height and a low-profile bracket, making it compatible with standard desktops and small form-factor workstations.
- High-Density Storage Expansion: Provides a solution to add four high-speed M.2 NVMe drives to a single PCIe x16 slot, significantly expanding storage capacity and speed.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

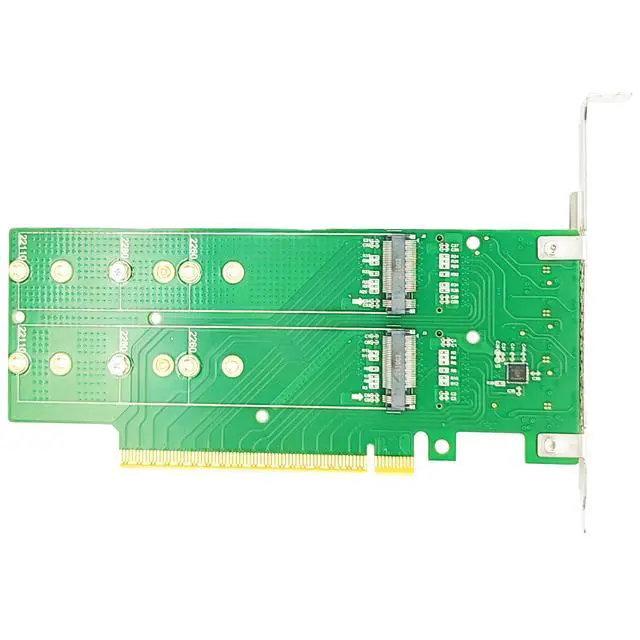

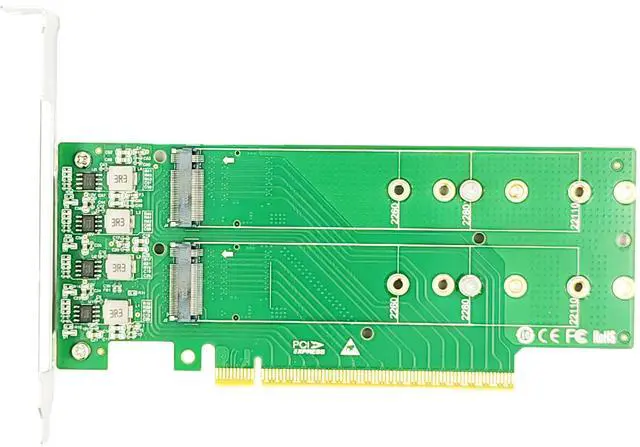

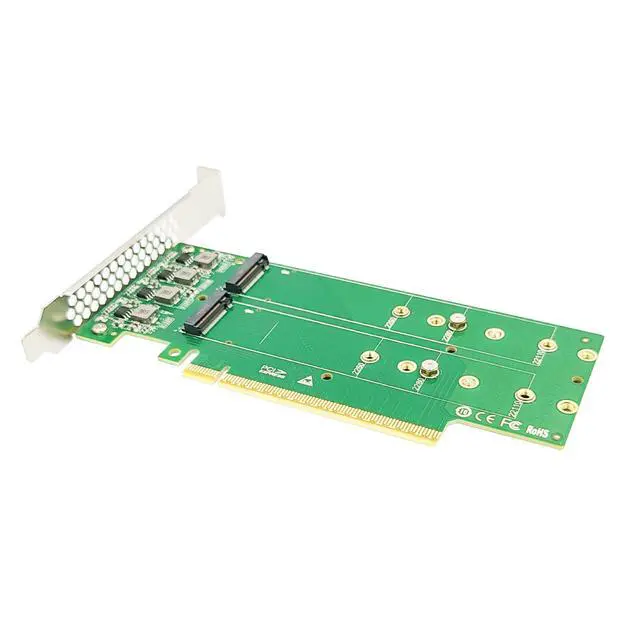

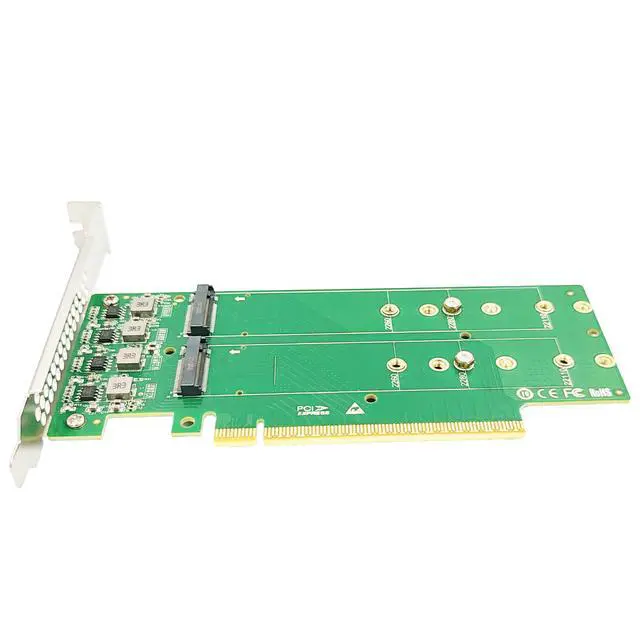

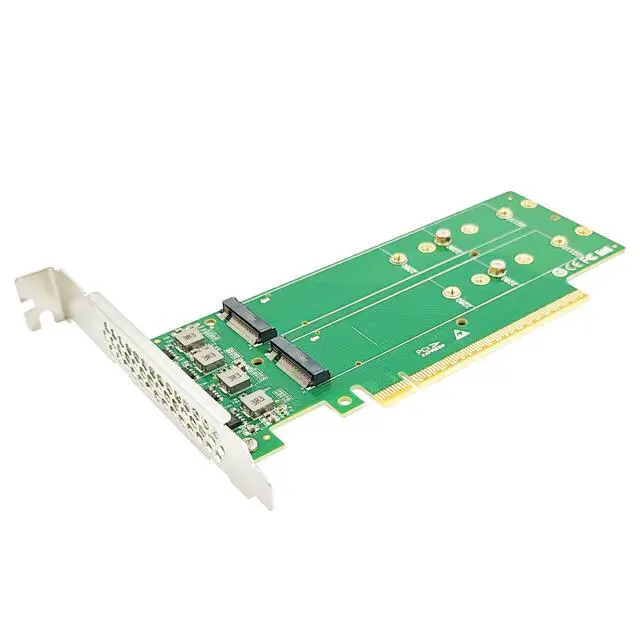

XIC PE5162 M.2 4 Ports Card is a great storage solution for any workstation with PCIe5.0
x16 bandwidth. It has four M.2 M-key connectors to accept four M.2 NVMe SSD Drives, So
each M.2 SSD Drives has dedicated PCIe 5.0 x4 bus bandwidth. It allows user to add 4 M.2
NVMe into any PCIe x16 slot to achieve their full potential bandwidth.
Features:
Supports 4 PCIe M.2 NVMe SSDs.
Compatible with PCIe Gen5, Gen4, Gen3.
Comes with a full-profile bracket (preinstalled), and also includes a low-profile bracket for a
small form-factor computer.
Computer with PCI Express Slot (x16) support PCIe Bifurcation mode.
Please kindly verify with your mainboard manufacture to make sure the motherboard BIOS
support Bifurcation for the PCI Express you are using.
