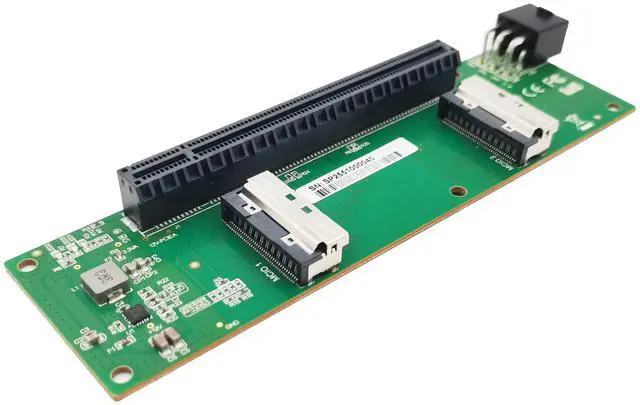

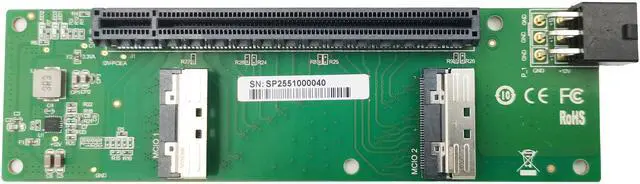

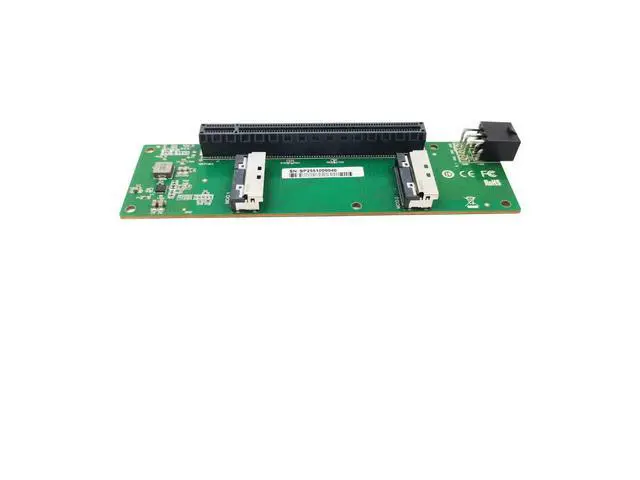

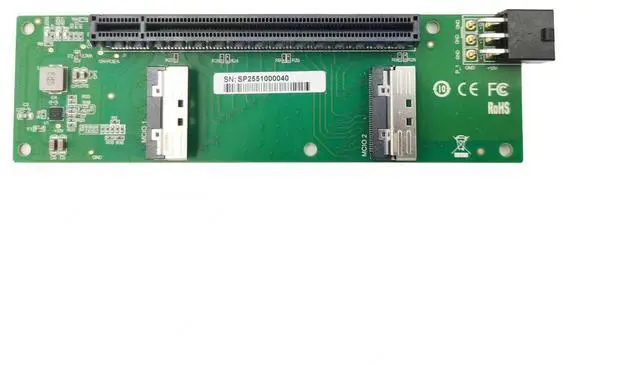

eShinreal MCIO 8i to PCIe 5.0 x16 Slot Riser Card High-Speed PCIe Gen5 Expansion Adapter XIC 0516PEV3
- Dual MCIO 8i to Full x16 Adapter: Aggregates two PCIe 5.0 MCIO 8i cable inputs into one full-bandwidth PCIe 5.0 x16 slot, enabling connection of high-performance GPUs and accelerator cards via cables.
- Dual-Mode x16/x8 Operation: Delivers full PCIe x16 electrical bandwidth when both MCIO inputs are connected. It also operates in x8 mode using only the primary input for greater device connectivity.
- Enhanced Design & Critical Compatibility Note: Features optimized PCB routing and a repositioned power socket for easier use. Requires correct cable lane ordering (0-78-15) when using both inputs; swapping cables can resolve connection issues.
- Premium Signal Integrity: Built with an 85 Ohm ultra-low loss PCB and a high-quality PCIe 5.0 SMT slot to maintain signal integrity for high-speed data transfers.
- Dedicated Power with Safety Warning: Includes a dedicated 12V GPU power connector and a 6A voltage regulator. Crucially, using the wrong power connector will destroy both the adapter and the connected GPU.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Overview
XIC 0516PE V3 is a upgraded MCIO 8I to PCIe5.0 x16 slot riser card, It optimizes the
PCB routing and changes the position of the power socket, making it easier to plug
and unplug.It can be extended to a PCIe x16 slot by plugging into a PCIe AIC card
(e.g., Switch, Retimer, etc.) with 2 MCIO connectors, providing greater bandwidth and
faster transfer speeds. It can also connect only the first MCIO connector to realize the
use of PCIe x8 devices to achieve the purpose of connecting more PCIe devices.
It can easily connect graphics cards, accelerator cards, and other Add-in-Card
devices to improve efficiency.
Key Features
two 56G PCIe5.0 MCIO 8i input
one PCIe x16 electrical/mechanical output
PCIe gen5 - high quality SMT slot,
85Ohm Ultra Low Loss PCB
can work in x8 mode with one cable (input near the power plug)
can work in x16 mode with both inputs connected (must be the same CPU host port
and lane ordering must be 0-7->8-15, NOT 8-15->0-7, switching the cables will help!)
GPU Power connector to supply 12V. DO NOT connect the wrong power
connector, it will destroy the Adapter and your GPU!!!
6A 12V->3.3V buck voltage regulator
