eShinreal MCIO 8i to PCIe Gen5 x16 Riser Card for Server and Enterprise Systems-XIC 0516PEV4
- Dual MCIO 8i to Full x16 Slot: Combines two PCIe 5.0 MCIO 8i cable inputs into a single full-bandwidth PCIe 5.0 x16 slot, enabling high-performance GPU and accelerator card connections via flexible cabling.
- Dual-Mode x16/x8 Flexibility: Operates in full x16 bandwidth mode when both MCIO connectors are used, or in x8 mode with only the primary connector to maximize system PCIe device capacity.
- Optimized Physical Layout (V4 Upgrade): Features a revised orientation of MCIO connectors and the power socket, specifically designed to improve accessibility and ease of cable connection and disconnection.
- High-Speed Signal Integrity: Utilizes an 85 Ohm ultra-low loss PCB and a PCIe Gen5 SMT slot to ensure reliable performance and minimize signal loss at maximum data transfer rates.
- Critical Power & Connection Guidelines: Includes a dedicated 12V GPU power connector with a 6A regulator. Essential Warning: Incorrect power connection will destroy the card and GPU. For x16 mode, correct cable lane ordering (0-78-15) from the same host port is mandatory.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Overview

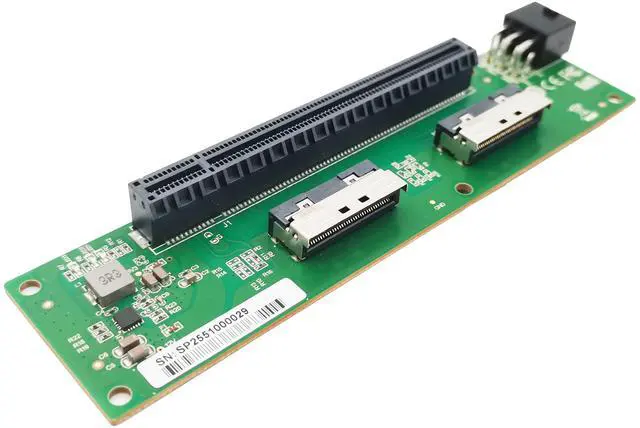

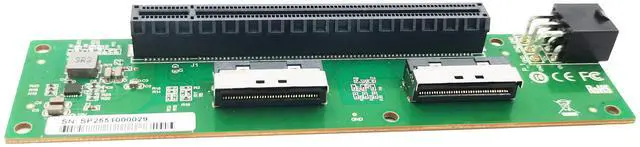

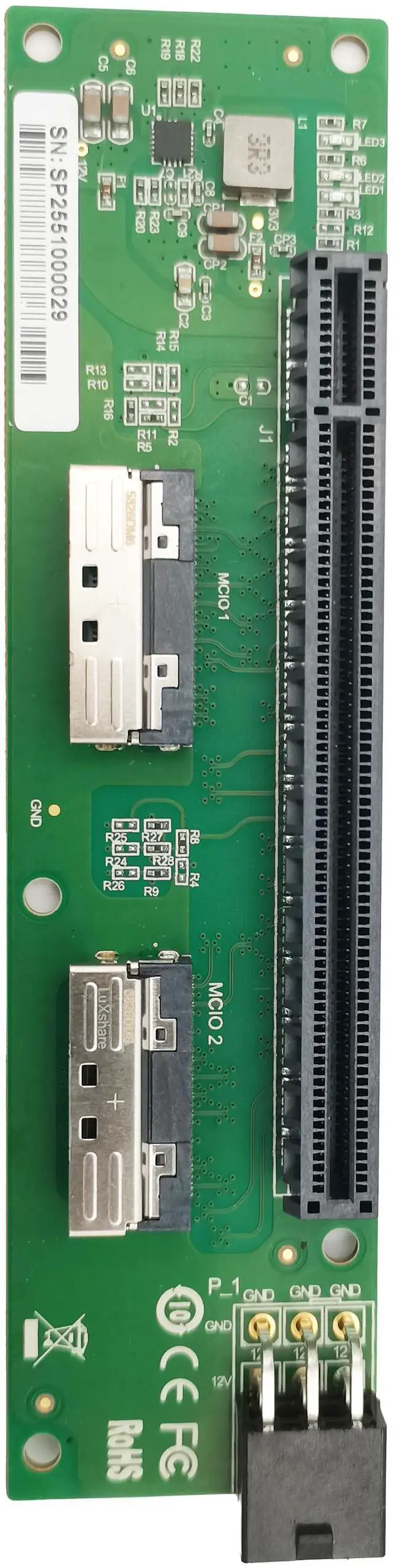

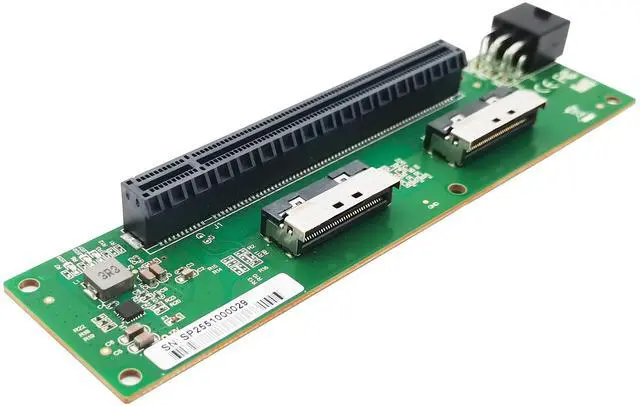

XIC 0516PE V4 is a MCIO 8I to PCIe5.0 x16 slot riser card, It adjusted the orientation
of MCIO connectors and power sockets, making it easier to plug and unplug.It can be
extended to a PCIe x16 slot by plugging into a PCIe AIC card (e.g., Switch, Retimer,
etc.) with 2 MCIO connectors, providing greater bandwidth and faster transfer speeds.
It can also connect only the first MCIO connector to realize the use of PCIe x8 devices
to achieve the purpose of connecting more PCIe devices.
It can easily connect graphics cards, accelerator cards, and other Add-in-Card
devices to improve efficiency.
Key Features
two 56G PCIe5.0 MCIO 8i input
one PCIe x16 electrical/mechanical output
PCIe gen5 - high quality SMT slot,
85Ohm Ultra Low Loss PCB
can work in x8 mode with one cable (input near the power plug)
can work in x16 mode with both inputs connected (must be the same CPU host port
and lane ordering must be 0-7->8-15, NOT 8-15->0-7, switching the cables will help!)
GPU Power connector to supply 12V. DO NOT connect the wrong power
connector, it will destroy the Adapter and your GPU!!!
6A 12V->3.3V buck voltage regulator
