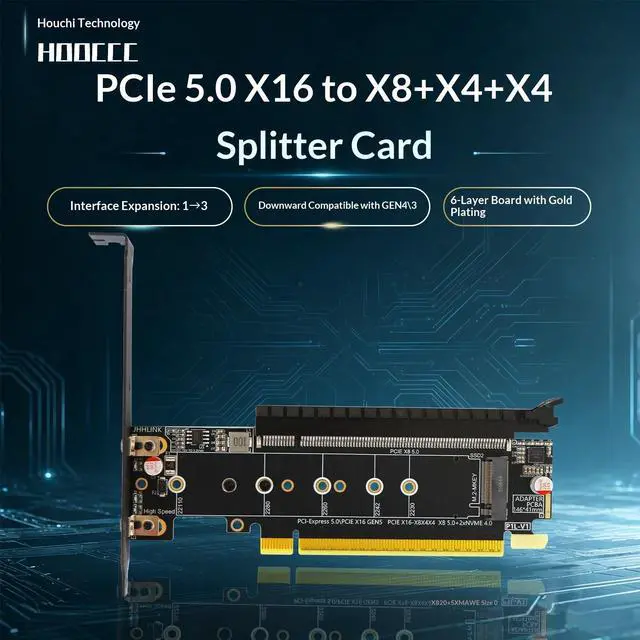

HOOCCC PCIe 5.0 X16 to X8+X4+X4 Splitter Card, PCIe 5.0 x8 Slot for Graphics Card, PCIe 4.0 x4 M.2 NVMe SSD Slot, 6-Layer Gold Plated, with Full-Height & Low-Profile Brackets

Unlock Your Motherboard's Potential

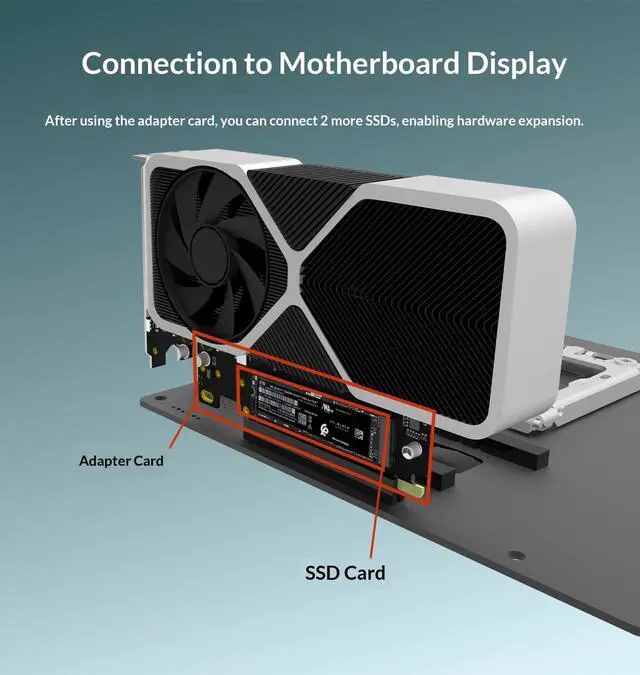

Maximize your system's I/O capabilities with the HOUCHI PCIe 5.0 Splitter Card. Designed for enthusiasts and professionals who refuse to compromise, this adapter allows you to split a single PCIe 5.0 x16 slot into three dedicated channels: one x8 slot for a high-end graphics card, one x4 M.2 NVMe slot for ultra-fast storage, and one additional x4 interface for other expansion cards.

Key Features:

1. 1-to-3 Interface Expansion: Transform 1x PCIe 5.0/4.0/3.0 x16 slot into 1x PCIe 5.0 x8 (for GPU) + 1x M.2 Key M NVMe (PCIe 4.0 x4) + 1x PCIe 4.0 x4 interface.
2. PCIe 5.0 Ready: Supports blazing-fast PCIe 5.0 speeds for graphics cards, ensuring you get the full bandwidth for next-gen GPUs. Fully backward compatible with PCIe 4.0 and 3.0 devices.

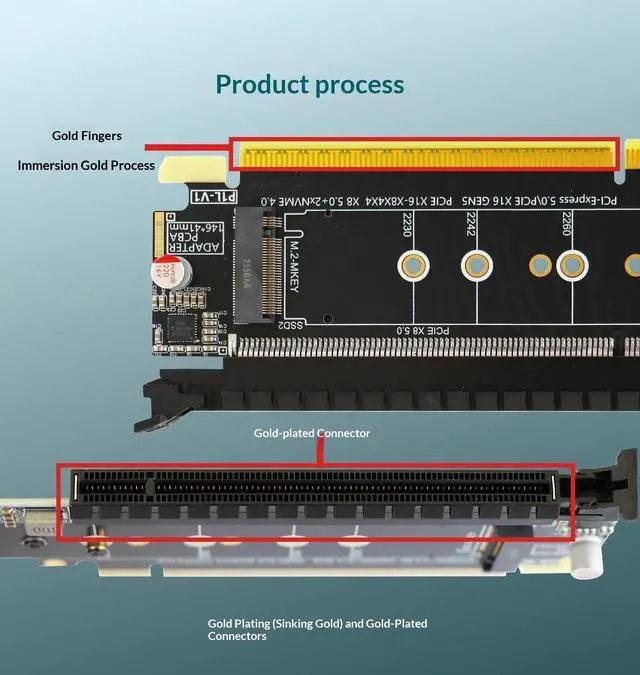

3. Premium Build Quality: Utilizes a 6-Layer PCB with Immersion Gold (Sinking Gold) on the gold fingers and connectors. This ensures superior signal integrity, heat dissipation, and long-term reliability.
4. Advanced Stability: Features a dedicated Clock Splitter IC, DC-DC voltage regulation module, solid-state capacitors, and self-recovery fuses to maintain stable power delivery and prevent data loss.
5. Flexible Installation: Includes both Full-Height (120mm) and Low-Profile (80mm) brackets, making it compatible with standard ATX cases and compact HTPC/mini-tower cases.

Technical Specifications:

1. Model: P1L
2. Input Interface: PCIe x16 Gold Finger (PCIe 5.0/4.0/3.0)
3. Output Interfaces:
4. 1 x PCIe x8 Slot (Supports PCIe 5.0)
5. 1 x M.2 M-Key Socket (Supports PCIe 4.0 x4 NVMe SSD, Does NOT support PCIe 5.0 SSD)
6. 1 x PCIe x4 Interface (via the board layout)

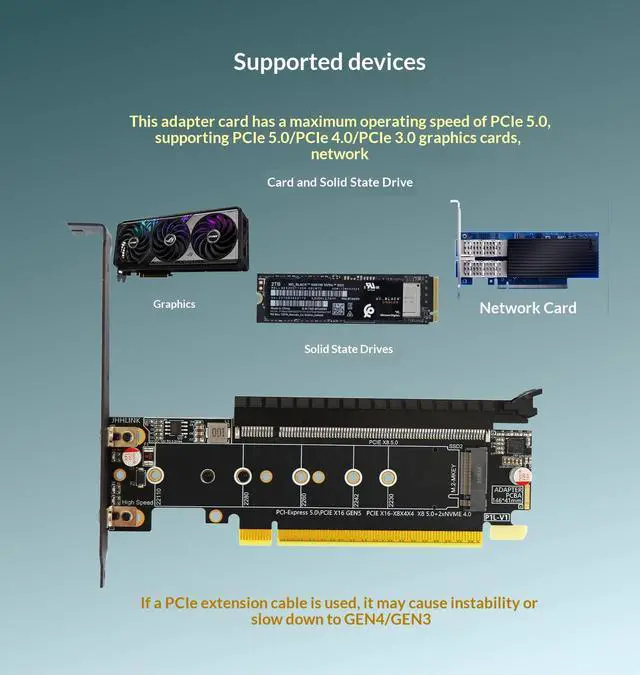

7. Supported Devices: Graphics Cards, M.2 NVMe Solid State Drives, Network Cards, Capture Cards.

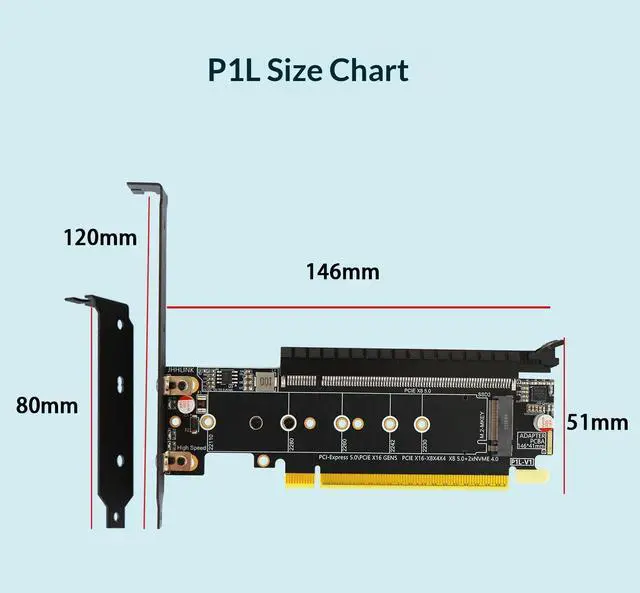

8. Board Dimensions: 146mm (L) x 51mm (H)
9. Bracket Options: 120mm (Full-Height) / 80mm (Half-Height)

Important Notes:

1. Motherboard Support: This card requires motherboard BIOS support for PCIe splitting (Bifurcation). Please ensure your motherboard supports x8/x4/x4 splitting before purchasing.

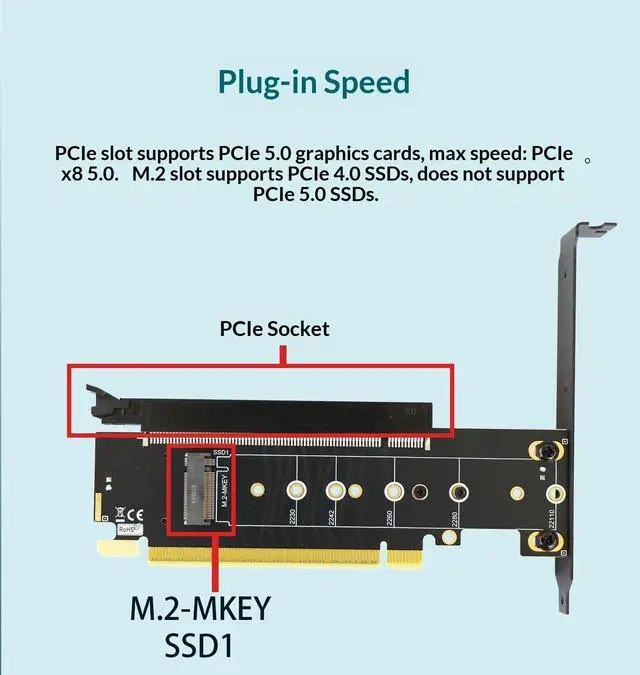

2. M.2 Slot Speed: The M.2 slot operates at PCIe 4.0 x4 speed only. It does not support PCIe 5.0 SSDs.

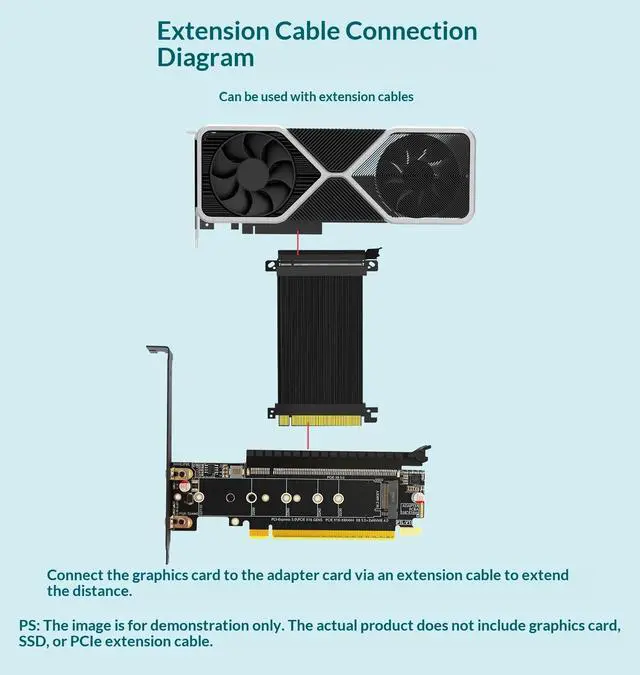

3. Extension Cables: If using PCIe extension cables to connect the GPU, performance may be unstable or drop to GEN4/GEN3 speeds depending on the cable quality.
4. Package Contents: 1x Splitter Card, 1x Full-Height Bracket, 1x Low-Profile Bracket. (Graphics card, SSD, and extension cables are NOT included).
