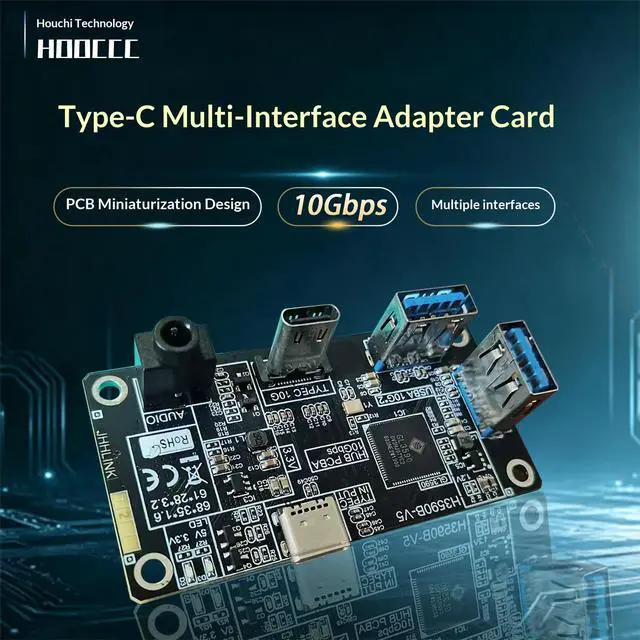

    HOOCCC H3590B-V6 USB 3.2 Gen 2 10Gbps Type-C Hub Board GL3590 Chipset | 2x USB-A 10G | 1x Type-C 10G PD | Audio Mic | Mini PCB for DIY Laptop PC Host

    Be the first to review this product...
    • 10Gbps SuperSpeed+ Transfer:
    • Powered by the Genesys Logic GL3590 controller, this adapter board supports USB 3.2 Gen 2 (10Gbps) data transfer rates. Perfect for connecting high-speed NVMe enclosures, SSDs, and large file backups, achieving read/write speeds up to 1000MB/s (as tested).
    • Rich Multi-Interface Expansion:

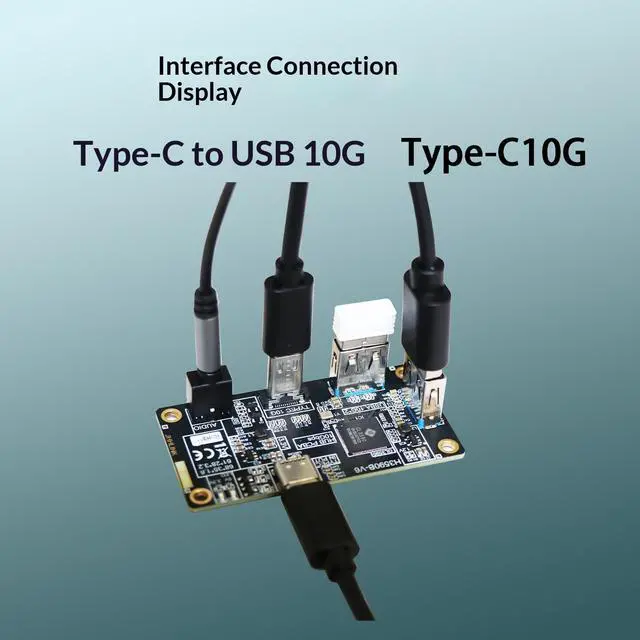

    • Expand a single Type-C port into a versatile workstation. Features 1x Type-C 10Gbps Input, 2x USB-A 10Gbps Ports, 1x Type-C 10Gbps Output (for daisy-chaining or power/data), and a 2-in-1 Audio/Mic 3.5mm jack. Ideal for setups requiring multiple peripherals simultaneously.
    • Ultra-Compact PCB Design:

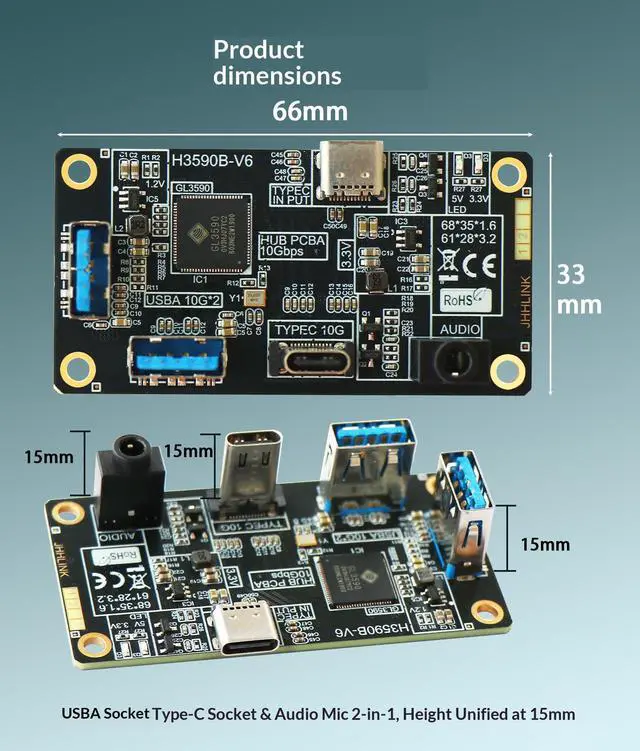

    • With a miniaturized footprint of only 66mm x 33mm, this bare board is designed for DIY enthusiasts, custom laptops, and embedded projects. The unified component height (15mm) ensures it fits in tight spaces without interfering with other hardware.
    • Integrated Audio Solution:
    • Built-in audio chip supports 2-in-1 Microphone and Headphone functions via a standard 3.5mm TRRS connector. Add audio capability to your USB-C only devices or custom PC builds without needing a separate sound card.
    • Plug & Play Stability:
    • No drivers required for Windows, Linux, or Mac OS. Hot-swappable support allows you to connect and disconnect devices without rebooting. Note: Data cable and accessories are not included; this is a bare circuit board for technical users and integrators.
    +
    +
    Overview
    Specs
    Reviews
    avatar

    Any questions? Our AI mode will help you find out quickly.

    Try me now

    HOUCHI H3590B-V6 USB 3.2 Gen 2 10Gbps Type-C Expansion Board - GL3590 Chipset


    Upgrade your custom PC, laptop, or DIY project with the HOUCHI H3590B-V6 multi-interface adapter board. Built around the high-performance Genesys Logic GL3590 controller, this compact PCB delivers true USB 3.2 Gen 2 10Gbps bandwidth, turning a single Type-C port into a versatile connectivity hub for data, audio, and peripherals.


    Key Features

    • True 10Gbps SuperSpeed+: Supports USB 3.2 Gen 2 (10Gbps) data transfer. Achieve read/write speeds up to 1000MB/s, perfect for NVMe SSD enclosures and high-speed data backups.

    • GL3590 Premium Chipset: Equipped with the industry-standard GL3590 USB Hub controller, ensuring stable signal integrity, efficient power management, and wide compatibility.

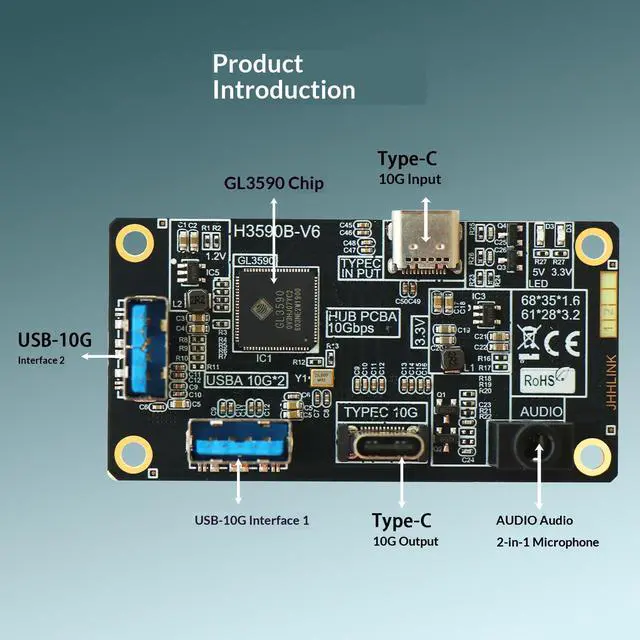

    • Versatile Port Selection: Features 2x USB-A 3.2 Gen 2 ports, 1x Type-C 10Gbps port (for data/power), and a 2-in-1 3.5mm Audio/Mic jack. Covers all your essential connectivity needs.

    • Compact DIY Design: Miniature PCB size (66mm x 33mm) with a unified height of 15mm. Ideal for SFF builds, laptop internal mods, or industrial embedded applications.

    • Integrated Audio Solution: Built-in audio codec supports both headphone and microphone functions via a single 3.5mm TRRS connector.

    • Plug & Play: No drivers required for Windows 10/11, Linux, and macOS. Hot-swappable support for easy device connection.

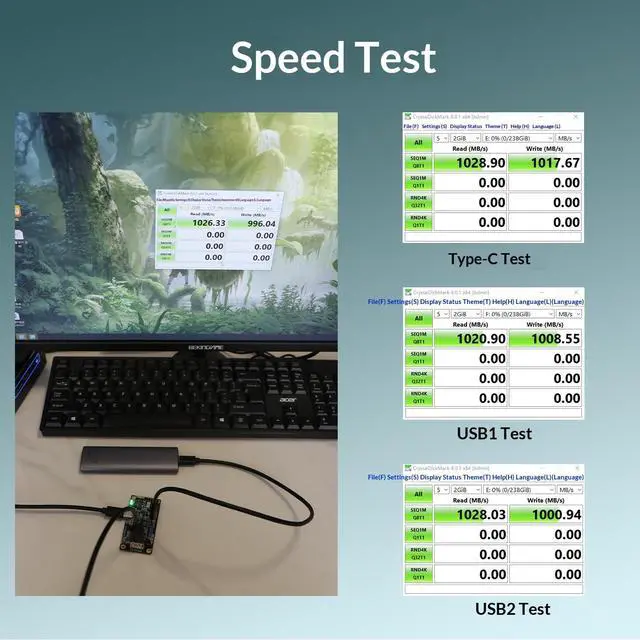

    Performance Benchmark

    Tested with a high-speed NVMe enclosure, the H3590B-V6 delivers exceptional performance, reaching read/write speeds of approximately 1028MB/s, maximizing the potential of your USB 3.2 Gen 2 devices.


    Specifications

    BrandHOUCHI
    ModelH3590B-V6
    ChipsetGenesys Logic GL3590
    USB StandardUSB 3.2 Gen 2 (10Gbps)
    Ports2 x USB-A 3.2 Gen 2 (10Gbps)
    1 x USB-C 3.2 Gen 2 (10Gbps)
    1 x 3.5mm Audio/Mic Combo Jack
    PCB Dimensions66mm x 33mm
    Component Height15mm (Unified)
    CompatibilityWindows, Linux, macOS


    Installation & Usage Notes

    1. This is a bare circuit board (PCB) designed for technical users and DIY integrators.

    2. Ensure your host device supports USB 3.2 Gen 2 (10Gbps) to achieve maximum performance.

    3. Connect the input port to your PC host using a high-quality USB-C 3.2 Gen 2 cable (not included).

    4. For optimal performance with high-power devices (like external SSDs), ensure the board is receiving adequate power.


    Important Reminder

    DIY Component: This listing is for the PCB board only. Data cables, mounting screws, and other accessories are NOT INCLUDED. Please confirm the pin definition and physical dimensions match your project requirements before purchasing.


    Package Includes

    • 1 x HOUCHI H3590B-V6 Expansion Board

    Warranty & Returns

    Warranty, Returns, And Additional Information

    Warranty

    • Please contact the Seller directly for warranty information. Warranty information may also be found on the Manufacturer's website.
    • CONTACT

    Return Policies

    • Return for refund within: 30 days
    • Return for replacement within: non-replaceable
    • This item is covered by HOOCCC Return Policy
