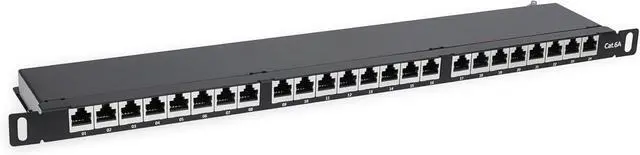

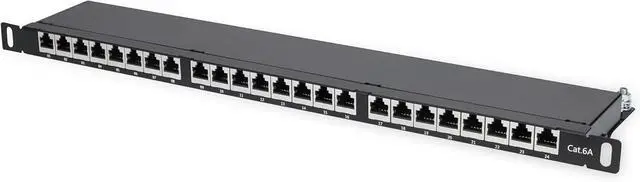

Intellinet Cat6a Shielded Desktop Patch Panel, 24-Port, FTP, 19", 0.5 U, 90° Top-Entry Punch-Down Blocks, Black

Solid and reliable terminations for copper cable, featuring a minimum of 3-micron gold-plated jack contacts

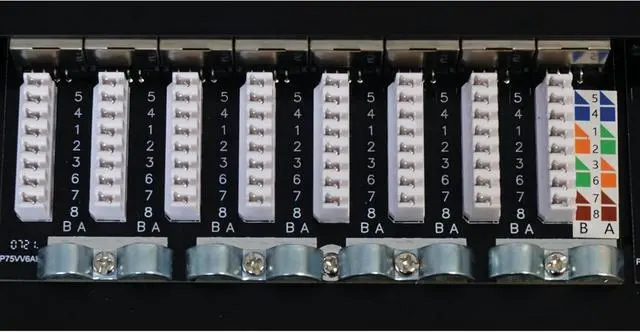

Top-entry punch-down blocks simplify installation
Compatible with Krone punch-down tools
Supports 23 to 26 AWG stranded and solid wire
For use with fully shielded twisted pair (FTP) Cat6a network cable
Ideal for Ethernet, Fast Ethernet and Gigabit Ethernet network applications
Meets 19 Inch rackmount standards

Cat6a Shielded Patch Panel for proper network connections

The Intellinet Network Solutions Cat6a Shielded Patch Panel helps IT staff create the right Cat6a-compliant network for their organization. Whether wiring connection points for all compatible equipment or adding more ports to the network with the latest Ethernet cabling standard available, the Cat6a Shielded Patch Panel helps the network grow and evolve. The panel is designed for fully shielded twisted-pair Cat6a wires, and compatible Krone punch-down tools will help get ports wired quickly. The Intellinet Network Solutions Cat6a Shielded Patch Panel adheres to current industry standards and is 19 Inch-rack compliant.

Specifications

Standards

IEEE 802.3 (10Base-T Ethernet)
IEEE 802.3u (100Base-TX Fast Ethernet)
IEEE 802.3ab (1000Base-T Gigabit Ethernet)
ISO/IEC 11801
ANSI/TIA
568 A/B color-coded

Certifications
CE
RoHS
FCC

Physical
Dimensions: 107 (L) x 482 (W) x 22 (H) mm (4.21 [L] x 18.98 [W] x 0.87 [H] in.)
Horizontal distance between left and right mounting holes: 465 mm (18.3 in.)
Weight: 1.14 kg (2.51 lbs)

Environmental
Operating temperature: 10 60°C (32 140°F)
Operating humidity: 10 90% RH, non-condensing
Storage temperature: -40 70°C (-40 158°F)

Package Contents
Cat6a Shielded Patch Panel
Grounding wire
Quick Instruction Guide.
