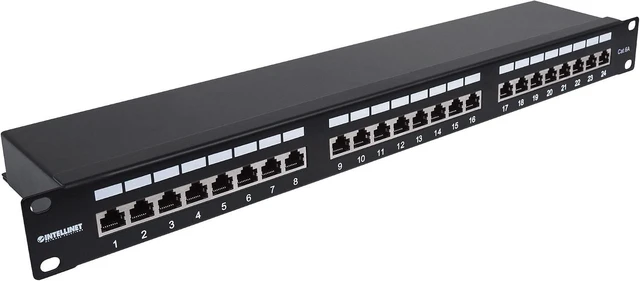

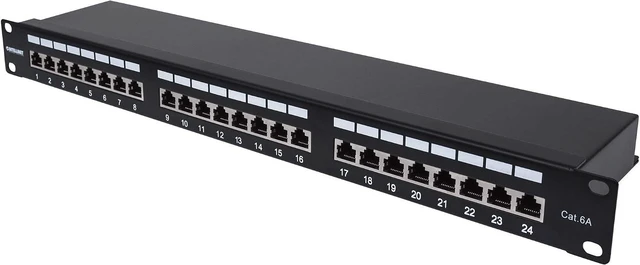

Intellinet Cat6a Shielded 24-Port 1U Patch Panel, Black
- 24-port Cat6a shielded patch panel for 19-inch rackmount installations, with 1U height and black steel-plastic body. Designed for indoor Ethernet cabling, it uses RJ45 terminations and supports structured network wiring in cabinets and server racks.
- Top-entry punch-down blocks make cable termination more direct, while Krone-compatible punch-down tools are supported. The panel is built for copper FTP Cat6a cable and helps organize network runs in data centers, wiring closets, and rackmount enclosures.
- Gold-plated jack contacts are used for solid, reliable copper terminations. Contacts are phosphor bronze with gold plating, and the panel supports 22 to 24 AWG stranded or solid wire for Ethernet, Fast Ethernet, and Gigabit Ethernet applications.
- Shielded construction is intended for fully shielded twisted pair Cat6a network cable. The 24-port layout and 1U format suit structured cabling setups where a compact patching panel is needed for rackmount network distribution and patching.
- M
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Solid and reliable terminations for copper cable, featuring a minimum of 3-micron gold-plated jack contacts
Top-entry punch-down blocks simplify installation
Compatible with Krone punch-down tools
Supports 22 to 24 AWG stranded and solid wire
For use with fully shielded twisted pair (FTP) Cat6a network cable
Ideal for Ethernet, Fast Ethernet and Gigabit Ethernet network applications
Meets 19 Inch rackmount standards
The Intellinet Network Solutions Cat6a Shielded Patch Panel helps IT staff create the right Cat6a-compliant network for their organization. Whether wiring connection points for all eligible pieces of equipment or adding more ports to the network with the latest Ethernet cabling standard available, the Cat6a Shielded Patch Panel makes the evolution of your network possible. The panel is designed for fully shielded twisted-pair Cat6a wires, and compatible Krone punch-down tools will help get ports wired quickly. The Intellinet Network Solutions Cat6a Shielded Patch Panel adheres to current industry standards and is 19 Inch-rack compliant.
Specifications
Standards
IEEE 802.3 (10Base-T Ethernet)
IEEE 802.3u (100Base-TX Fast Ethernet)
IEEE 802.3ab (1000Base-T Gigabit Ethernet)
Certifications
UL listed
RoHS compliant
CE
Material
Main body: Steel and plastic
Contacts: Phosphor bronze
Contact plating: Gold
Physical
Dimensions: 98.5 (L) x 482 (W) x 44.3 (H) [mm] / 3.88 (L) x 18.98 (W) x 1.74 (H) [in]
Horizontal distance between left and right mounting holes: 465 mm (18.3 in.)
Vertical distance between top and bottom mounting holes: 32 mm (1.25 in.)
Weight: 1.5 kg
Environmental
Operating temperature: 0 70°C (32 158°F)
Package Contents
Cat6a Shielded Patch Panel
Grounding wire
Quick Install Guide.
