Coolgear 4 Port Managed USB 3.2 Gen 1 Hub with 15KV ESD Surge Protection and Individual Port Control for PCs

The CG-4PU3MGD is a managed USB 3.2 Gen 1 (or commonly called USB3.0) hub which is designed to provide rich unique features for industrial applications. It provides an instant expansion of 4 USB 3.2 Gen 1 downstream facing ports and keeps the excellent reliability and compatibility with all USB 3.2 Gen 1, USB 2.0 and 1.1 existing devices.
Provides 4 Downstream Facing Ports Compliant with USB 3.2 Gen 1 Specifications
Metal Case, DIN Rail and wall mountable
Software Manageable Bus power for each Port with Windows (11, 10, 8, 7), Mac, and Linux OS Support
Provides 4 LEDs Indicating each bus power states
Supports USB Screw-Lock Cables and Terminal Blocks
Supports 5Gbps (Super-speed), 480Mbps (High speed), 12Mbps (Full-speed) and 1.5Mbps (Low-speed) Speed
Supports 15KV ESD Level 4 Protection for Each Port
Note: The last USB port of this hub (Port 4) does NOT support USB 2.0 / 1.1 devices. It is used to communicate with managing utilities. However, it still supports USB 3.2 Gen 1 devices.

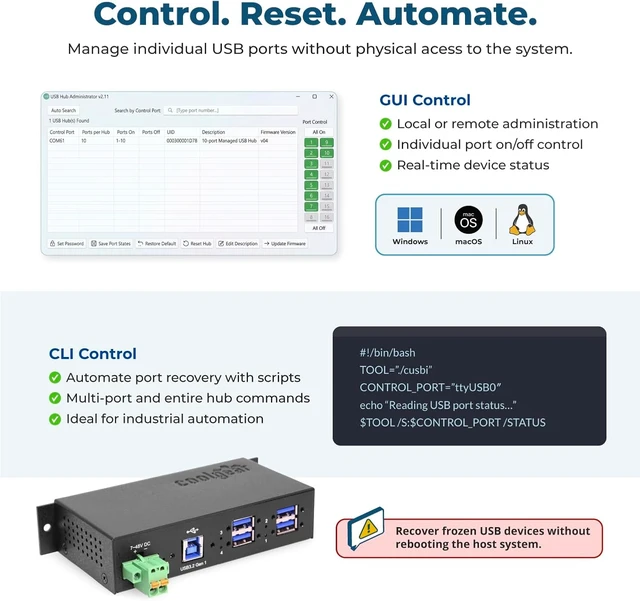

The CG-4PU3MGD is supplied with the managing software utilities which can turn on/off the bus power of each downstream device or even reset the entire hub. It also can save the designated state to its flash memory and read it back as the initial state of its next power up cycle. Different utilities were supported for different operating systems such as Windows, intel x86-64 and ARM based Linux.
The CG-4PU3MGD software package contains several managing software utilities which support different platforms allowing better control over each individual ports status. A GUI (Graphical User Interface) and console command prompt utilities for all major Microsoft Windows and Mac OS. It also includes utilities for different Linux versions. The utilities were written to easily operate with the applications software written with different language such as C#, C++, VB, Python or even a PHP server scripting language.
Housing: SECC (Galvanized Steel)
Form Factor: 6.41 × 2.16 × 1.22 in.
Item Weight: 0.569 lbs.
Mounting Options: Surface, Wall, and DIN Rail
Supports USB Screw-Lock Cables and Terminal Blocks
+7~48V DC Wide Range Input Power
USB Battery Charging v1.2 : CDP, DCP modes
4 Port Managed USB 3.2 Gen 1 Hub
USB-A to Screw-Lock USB-B Cable
Management Software Disc
2-Pin Power Connector
DIN Rail Mounting Clip
2x Screws
Housed in a compact steel chassis with built in mountable flanges, the 4-port hub is ready to mount on a wall or surface, or DIN rail with optional clip.
Perfect for discreet installations in offices, labs, warehouses, heavy machinery, automation equipment, and other industrial applications.
Your Trusted Partner based in the USA, Providing Advanced Engineering, Highly Reliable and Superior Built Products to handle the most demanding industries for over 20 years. Reach out to us for CAD, Mechanical Drawings and, Data Sheets.
Extensive on-site research, development, and engineering directly from our Lab in the USA allowing us to provide innovative products ready to handle the most demanding industries.
Industrial rugged steel mountable chassis for the most demanding environments. Ready to tackle your office, lab, warehouse, heavy machinery, automation equipment, industrial setting applications, and more.
High Quality component selection offering higher duty cycle and longevity. Constantly researching new avenues to get you reliable connections for your peripherals.
