Coolgear USB to RS232 TTL

USB to RS232 TTL voltage choices just got easier!
Up until now you've had to make a choice between USB to TTL adapters and their voltage with either or selections. This USB to RS232 TTL/CMOS adapter cable eliminates that by allowing you to choose a voltage setting right at the adapter's connection point at the terminal block
The USB-2323TTLMOS provides a USB to RS232 port with 5V/3.3V/2.5V/1.8V TTL / CMOS compatible Logic levels. The RS232 signals include TXD, RXD, and GND. The RS232 TTL cable is USB bus powered and does not need any DC power from an external AC Power Adapter. The TTL /CMOS RS232 signals are processed on the 5-pin Terminal Block.
Features
Provides 1 TTL/CMOS RS232 Serial Port over USB Port
Supports 3-Signal TTL/CMOS RS232 Conversion: (TXD, RXD, GND)
The 2,500Vrms Isolation Model is Available

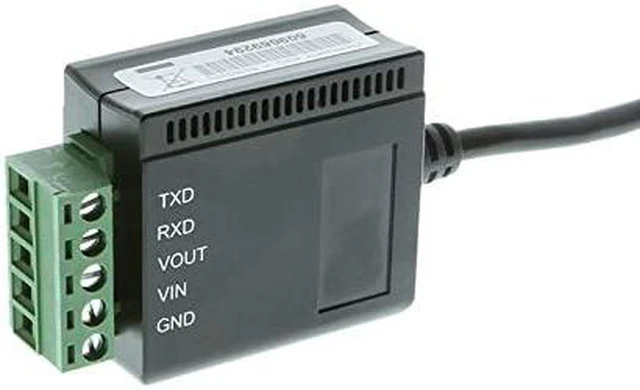

Supports a 5-pin Terminal Blocks for TTL/COMS Signal Wiring

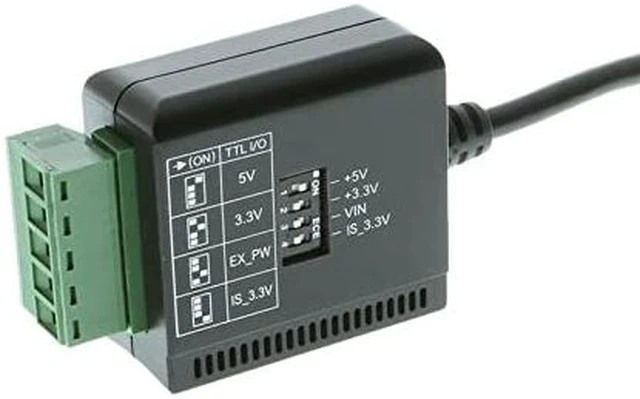

5V/3.3V/2.5V/1.8V Logic Level Selectable by DIP Switch
Signal Levels are Similar to Standard RS232 but in TTL/CMOS Swing Level
Easy Serial Port Expansion over USB Port
USB1.1 and USB2.0 Forward Compatible
Built-in FTDI USB UART Chip
Supports Serial Speed from 300bps to 921.6Kbps
Supports 7,8 Data Bits
Odd, Even, Mark, Space, None parity mode
Supports 1, or 2 Stop Bits
USB Bus Powered, no External Power Supply Needed.
+2.5V or +1.8V DC Power Input Required on the 5-pin Terminal Blocks in case of Supporting 2.5V or 1.8V Logic Levels
Supports Win98, ME, XP, CE, 2000, 2003, 2008 Win 7, Vista, 8, 10, Windows 11, Linux and Mac OS
Form Factor 1.77" (L) x 1.65" (W) x 1.15" (H) (4.49 x 4.18 x 2.20 cm)
Package Contents
USB to RS232 TTL CMOS Adapter
Driver Disc
