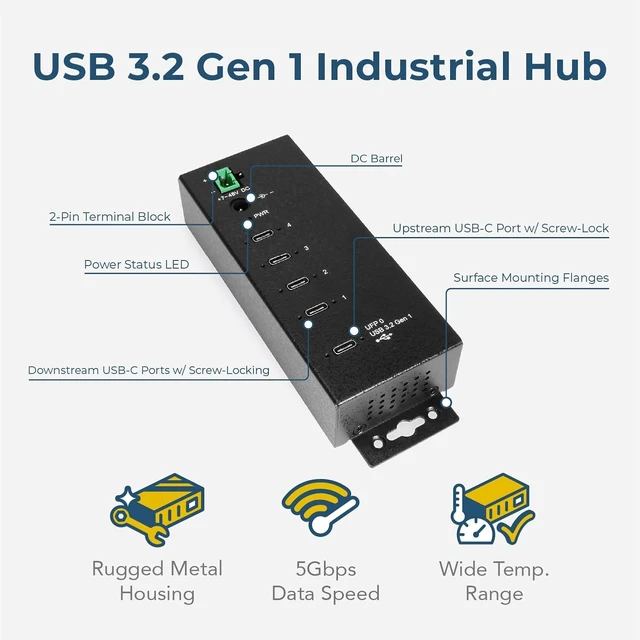

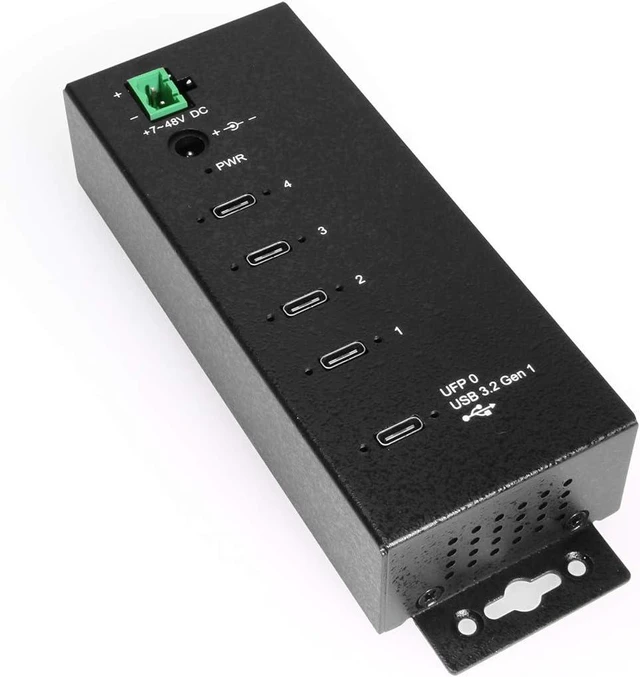

Coolgear Industrial 4-Port USB-C 3.2 Gen 1 Hub, 15kV ESD Protection, 5 Gbps Speeds, Rugged Metal Housing, DIN Rail and Wall Mountable

The CG-4U3CML provides a unique self-powered mode working with a wide range (+7~48V DC) input DC power from its terminal blocks and DC jack connectors. It supports fast USB charging specifications by turning its downstream ports from a Standard Downstream Port (SDP) into a Charging Downstream Port (CDP) or a Dedicated Charging Port (DCP).
Compliance: USB 3.2 Gen 1 / 2.0 / 1.1 compliant
Upstream: 1 USB port, Type C connector, Screw-lock type
Downstream: 4 USB ports, Type C connectors, Screw-lock type
Power Connector: 2-Pin Terminal Block, DC Barrel Jack 2.1mm ID × 5.5mm OD
Speed: 5Gbps (Super-speed), 480Mbps (High speed), 12Mbps (Full-speed) and 1.5Mbps (Low-speed)
Protection: Supports 15KV ESD Protection for Each Port
Supply Current: 900mA USB Bus Power for Each Down-stream Port
OS Support: Windows 11, 10, 8, 7, Linux, and macOS
Housing: SECC (Galvanized Steel)

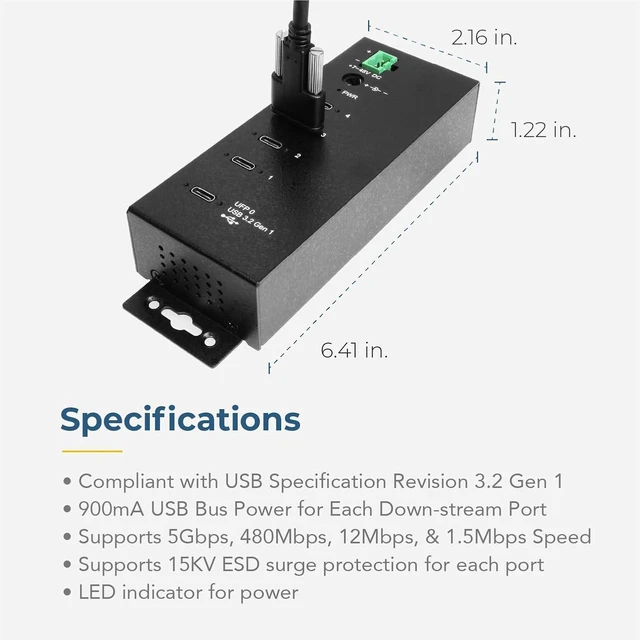

Form Factor: 6.25 × 2.25 × 1.25 in. (158.75 × 57.15 × 31.75 mm)
Item Weight: 0.44 lbs. (200g)

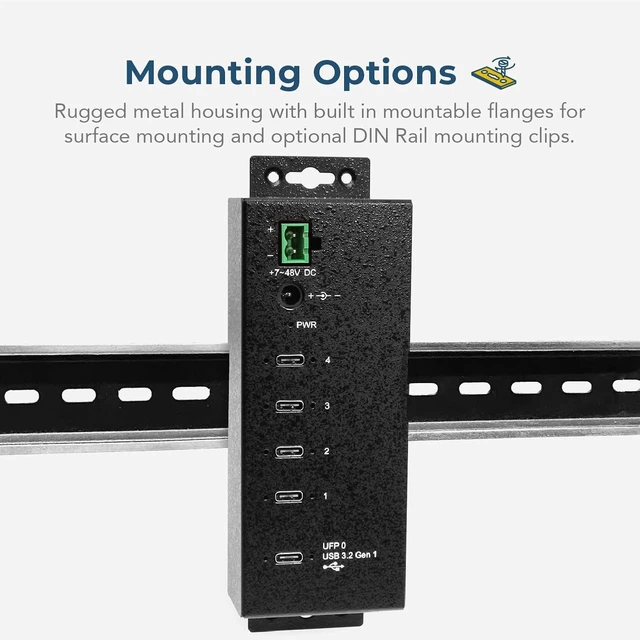

Mounting Options: Surface, Wall, and DIN Rail
Input Voltage: +7 ~ 48 VDC external power

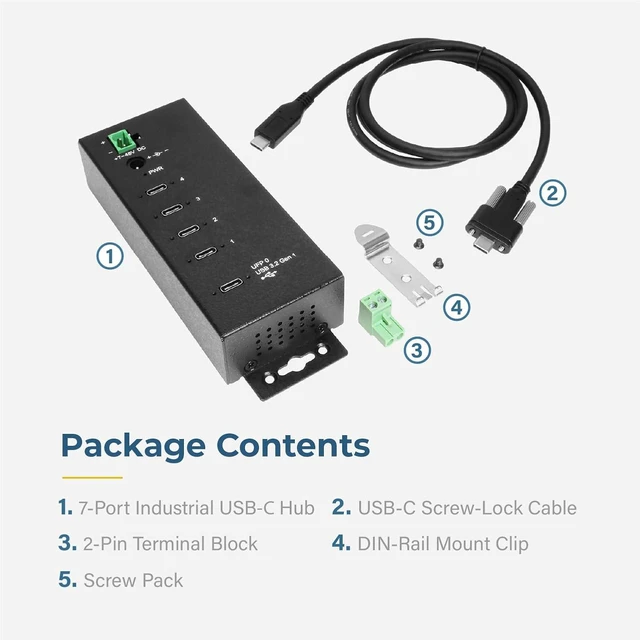

4-Port USB 3.2 Gen 1 Type-C Hub
3 Screw-Lock USB-C to USB-C Cable
2 Pin phoenix connector
DIN Rail Mounting Clip
2x Screws
Product Manual
Your Trusted Partner based in the USA, Providing Advanced Engineering, Highly Reliable and Superior Built Products to handle the most demanding industries for over 20 years. Reach out to us for CAD, Mechanical Drawings and, Data Sheets.
Extensive on-site research, development, and engineering directly from our Lab in the USA allowing us to provide innovative products ready to handle the most demanding industries.
Industrial rugged steel mountable chassis for the most demanding environments. Ready to tackle your office, lab, warehouse, heavy machinery, automation equipment, industrial setting applications, and more.
High Quality component selection offering higher duty cycle and longevity. Constantly researching new avenues to get you reliable connections for your peripherals.
Features: Mechanical: Power Specifications: What's in the Box: Why Coolgear? Advanced Engineering Superior Build Quality Reliability
