Coolgear 7 Port USB 3.1 Gen1 Hub 15KV ESD Surge Protection w/Power Adapter
- Protect Your Equipment: The 7-port hub supports 15KV ESD surge protection for each port to keep your connected peripherals safe from harm.
- Super Fast Speeds: This USB hub is 3.2 Gen 1 compliant, ensuring super-fast 5Gbps data transfer speeds. It supports super speed, high speed and full speed which enables it to be compatible with 2.0 / 1.1.
- Superior Build Quality: Housed in a rugged steel chassis with built in mountable flanges, the 7-port hub is perfect for workstations installations in offices, labs, warehouses, and other industrial applications.
- Upstream: 1 USB port, Type B connector, Screw-lock type
- Downstream: 7 USB ports, Type A connectors, Screw-lock type
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now

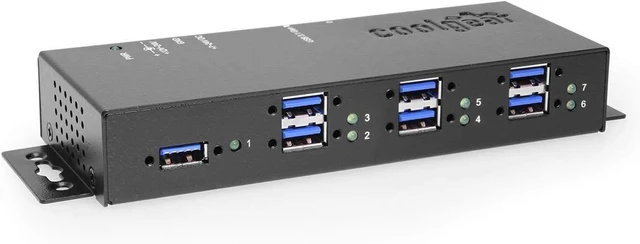

Compact 7 Port USB 3.1 Metal Hub With Surge Protection

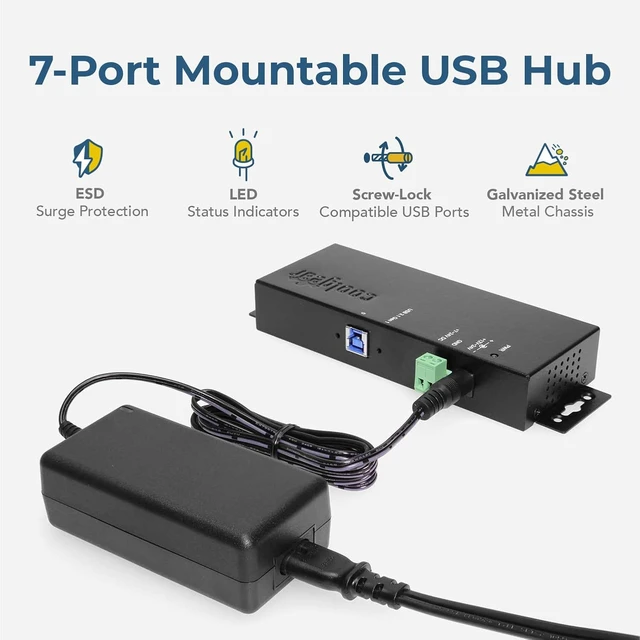

Coolgear's new 7 Port USB 3.1 hub is a compact solution using the newest technology. It's uniquely designed shell expands your USB port usage by 7 from your USB 3.1 Gen1 host port. This is a self powered hub uses a +7~24V DC 2-pin terminal block power connector from the external power adapter.
The 7-Port USB 3.1 hub supports up to 5Gbps of data transfer but is backward compatible with legacy USB 2.0/1.1/1.0 speeds. It can horizontally surface mounted to secure a stationary mount. This USB 3.1 hub is in compliance with USB battery charging for CDP and DCP modes. The hub supports 1.5A per port with a safety of 2A Thermal Shutdown protection.
7 USB 3.1 Type A Ports

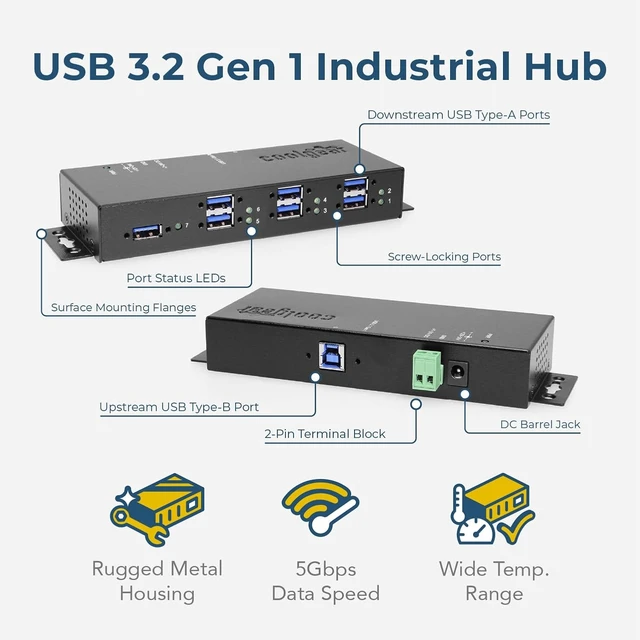

1 USB-B Upstream and 7 USB-A Downstream USB 3.1 Gen1 Facing Ports
Supports 5Gbps, 480Mbps, 12Mbps and 1.5Mbps Transfer Rate
Supports 15KV ESD Surge Protection for Each Port

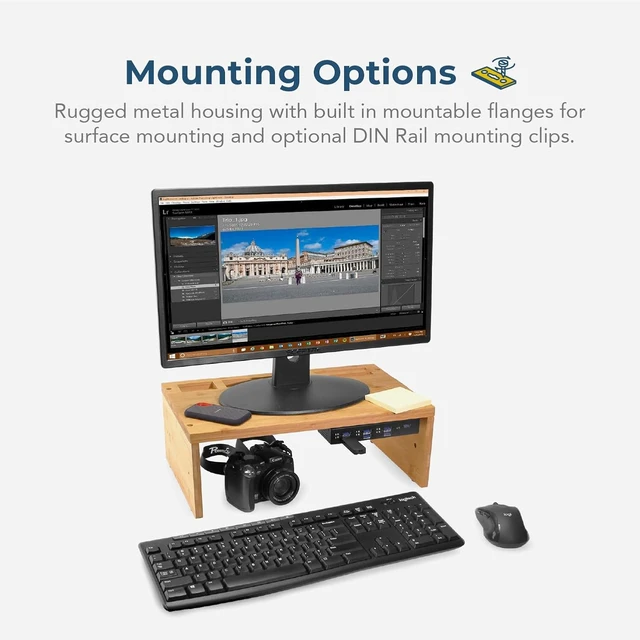

Horizontal surface or DIN Rail Mountable
Rigid Wall-Mountable Metal Case

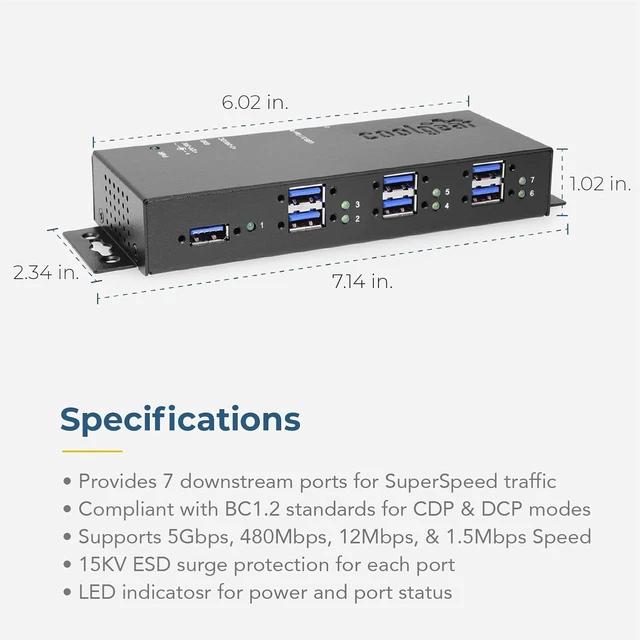

Product Dimensions 6.03 in(L)(7.14 w/ears) x 2.34 in(W) x 1.05 in(h)
Item Weight 1.743 pounds
Supports Surface Mounting
Rugged Metal Enclosure
Environmental Specifications
Operating Temperature: 0 to 55 degrees C (32 to 131 degrees F)
Operating Humidity: 5 to 95% RH
Input Voltage: +7~24V DC
1.5A per USB port with thermal shutdown at 2A per port
Charging Protocols: Apple Charge 2.4A, CDP, DCP

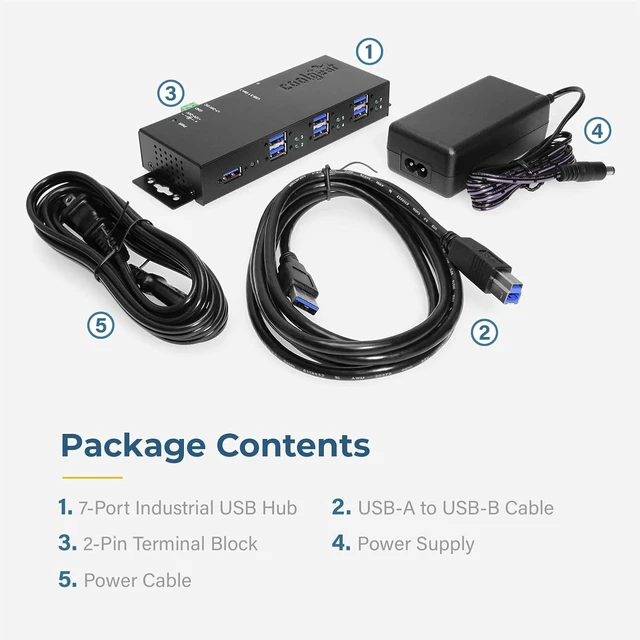

7-Port USB 3.1 Metal Hub
6ft. USB-A to B USB 3.0 Cable
Power Adapter & Cord
Quick Installation Guide
Industrial-Grade USB Technology By pairing innovative products with excellent support, Coolgear Inc. has become a leading manufacturer of commercial-grade USB hubs, chargers, serial adapters, devices and cables. Theyre easy to install but powerful enough for the most cutting-edge applications.
Features: Mechanical: Power Specifications What's in the Box: About Coolgear:
Coolgear's new 7 Port USB 3.1 hub is a compact solution using the newest technology. It's uniquely designed shell expands your USB port usage by 7 from your USB 3.1 Gen1 host port. This is a self powered hub uses a +7~24V DC 2-pin terminal block power connector from the external power adapter.
The 7-Port USB 3.1 hub supports up to 5Gbps of data transfer but is backward compatible with legacy USB 2.0/1.1/1.0 speeds. It can horizontally surface mounted to secure a stationary mount. This USB 3.1 hub is in compliance with USB battery charging for CDP and DCP modes. The hub supports 1.5A per port with a safety of 2A Thermal Shutdown protection.
7 USB 3.1 Type A Ports
1 USB-B Upstream and 7 USB-A Downstream USB 3.1 Gen1 Facing Ports
Supports 5Gbps, 480Mbps, 12Mbps and 1.5Mbps Transfer Rate
Supports 15KV ESD Surge Protection for Each Port
Horizontal surface or DIN Rail Mountable
Rigid Wall-Mountable Metal Case
Product Dimensions 6.03 in(L)(7.14 w/ears) x 2.34 in(W) x 1.05 in(h)
Item Weight 1.743 pounds
Supports Surface Mounting
Rugged Metal Enclosure
Environmental Specifications
Operating Temperature: 0 to 55 degrees C (32 to 131 degrees F)
Operating Humidity: 5 to 95% RH
Input Voltage: +7~24V DC
1.5A per USB port with thermal shutdown at 2A per port
Charging Protocols: Apple Charge 2.4A, CDP, DCP
7-Port USB 3.1 Metal Hub
6ft. USB-A to B USB 3.0 Cable
Power Adapter & Cord
Quick Installation Guide
Industrial-Grade USB Technology By pairing innovative products with excellent support, Coolgear Inc. has become a leading manufacturer of commercial-grade USB hubs, chargers, serial adapters, devices and cables. Theyre easy to install but powerful enough for the most cutting-edge applications.
Features: Mechanical: Power Specifications What's in the Box: About Coolgear:
