DeLOCK 64055 USB Type-A to Serial RS-422/485 DB9 Adapter with Surge Protection

Short description:
This USB Type-A to RS-422/485 adapter by Delock expands the computer by an industrial interface for machine controls, fieldbus systems, measuring devices, computers, printers etc.

Protection features:
The adapter protects itself and externally connected devices from electrostatic discharges (ESD) and surges.

Extended temperature range
The adapter offers high reliability with extended temperature range even in demanding environments.
Specification Connectors:
Cable:
1 x USB Type-A plug.
1 x Serial RS-422/485 DB9 Male

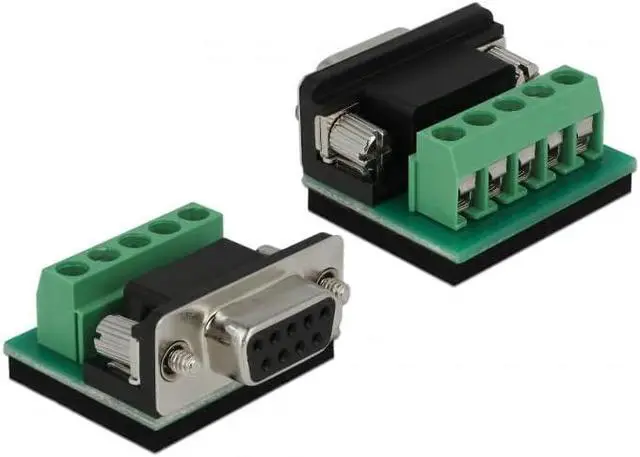

Terminal block:
1 x Serial RS-422/485 DB9 Female
1 x RS-422/485 terminal block 5 pin.
Chipset: FTDI FT232R
Automatic data flow control.
Data transfer: asynchronous, full duplex, half duplex
Data transfer rate up to 921.6 Kbps
Supports Modbus
± 15 kV ESD protection on all signal pins.
Overvoltage protection: 600 W peak pulse (TVS)
3 x LED indicators for power and activity.
Case material: plastic.
Colour: blue.
Operating Temperature: -40°C ~ 85°C
Relative humidity: 5 - 95% (non-condensing)
Cable length including connectors: approx. 1.5 m.
Plug & Play.
System Requirements Linux Kernel 4.6 or higher
Mac OS 10.14.1 or later
Windows 7/7-64/8.1/8.1-64/10/10-64/11.
PC or notebook with a free USB Type-A port.

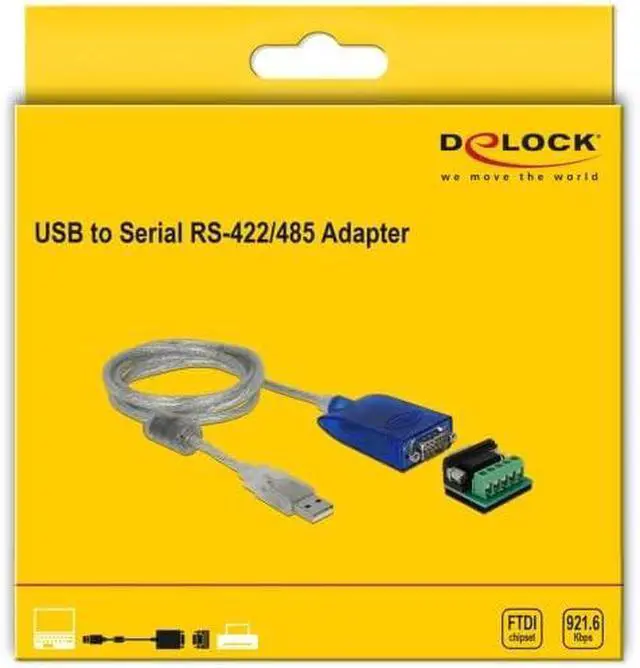

Package contents: USB Type-A to RS-422/485 converter
Driver CD
Terminal block.
Packaging: Retail Box.
