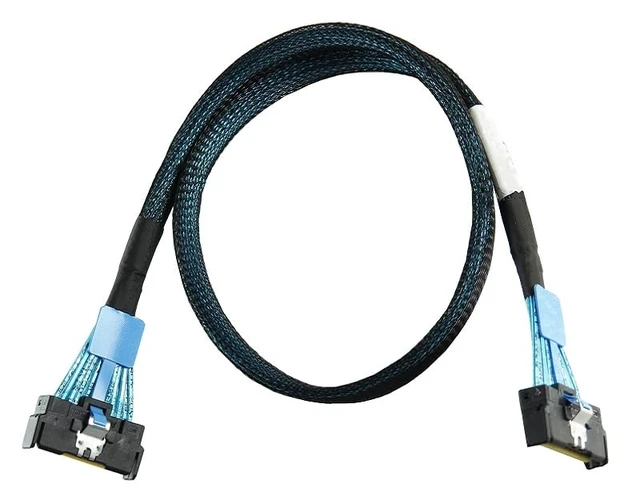

Micro SATA Cables PCIe x16 GPU Solution KIT Cable: 50cm PCIe 5.0

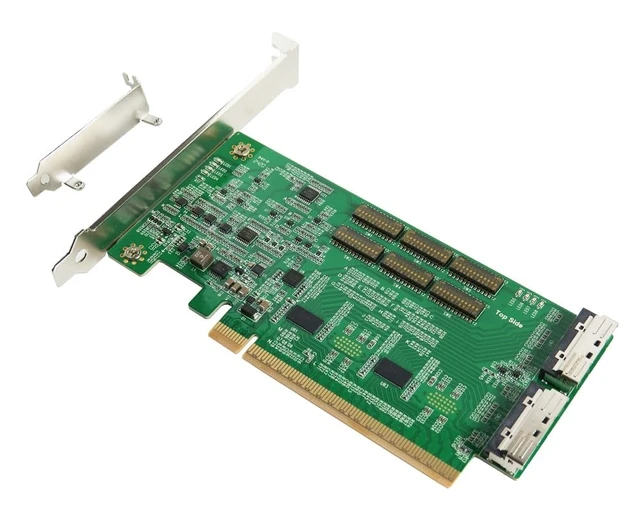

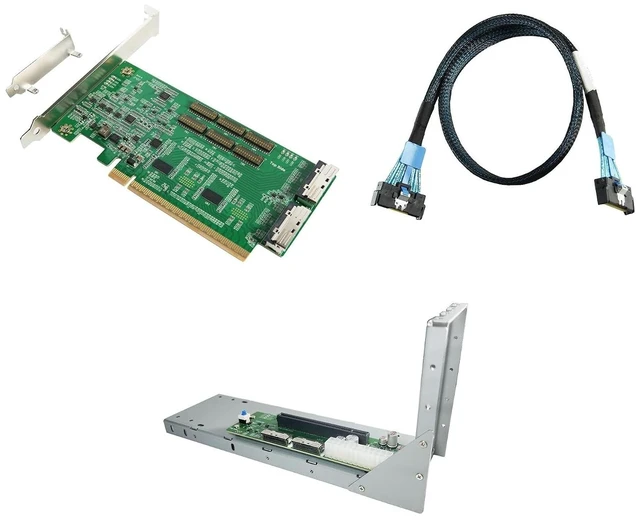

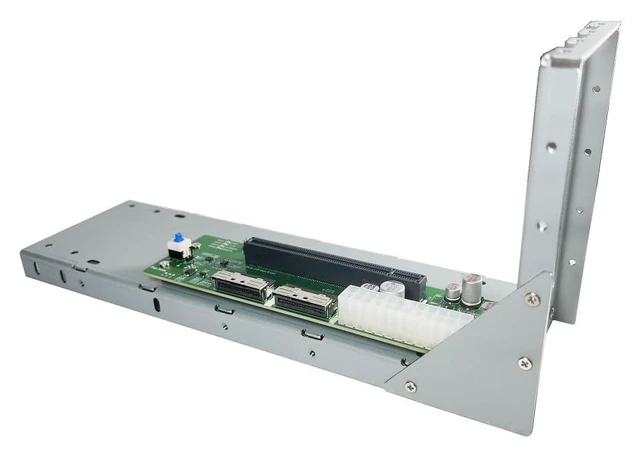

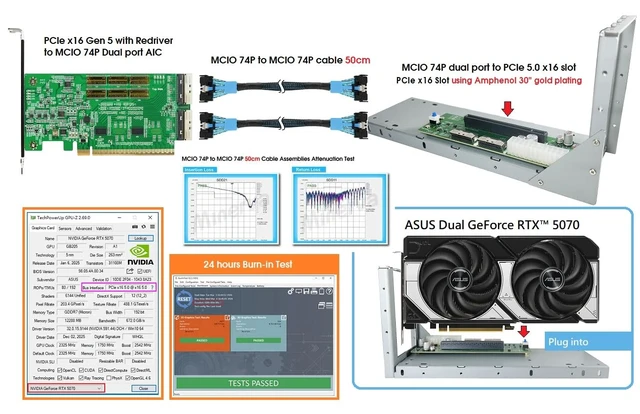

Micro SATA Cables PCIe Gen 5 MCIO Connectivity Kit AIC + 50cm Cable + Hot-Plug Slot Bridge | 3-Piece Set | PN: MCIO-2203-16X / MCIO-2362-50 / Hot-Plug Slot Card | 32 GT/s | ReDriver | SFF-TA-1016 | Enterprise Server NVMe Expansion.Product DescriptionUnlock the full potential of PCIe Gen 5 storage and compute expansion with this purpose-matched 3-piece connectivity kit from Micro SATA Cables a specialist supplier of hard-to-find enterprise interconnects trusted by data center engineers, system integrators, and OEM builders worldwide.This kit solves a common modern server challenge: how to attach MCIO-interfaced NVMe backplanes, accelerators, and high-speed storage controllers to PCIe Gen 5 host systems and equally, how to drive standard PCIe add-in cards from MCIO cable sources all while maintaining Gen 5 signal integrity over internal cable runs.What's in the KitItem 1 PCIe x16 GEN 5 with ReDriver to MCIO 74P Dual Port Add-in-Card (PN: MCIO-2203-16X)Installs in your server's PCIe x16 Gen 5 host slot and breaks out dual MCIO 74-pin ports each carrying 8 lanes at 32 GT/s. The integrated ReDriver actively conditions all signal pairs, dramatically extending the cable distances over which Gen 5 integrity is maintained. On-board power management, clock buffering, and SMBus OOB control make this a true enterprise-grade expansion card.Item 2 MCIO 74P to MCIO 74P PCIe GEN 5 Cable, 50 cm (PN: MCIO-2362-50)A 50 cm, individually shielded twinaxial cable with MCIO 74-pin male connectors on both ends, rated for PCIe Gen 5 at 85 controlled impedance. Directly connects the MCIO output ports of Item 1 to any MCIO-equipped device or Item 3's input ports. Gold-plated, latch-secured connectors ensure reliable mating under server vibration and thermal cycling.Item 3 MCIO 74P x2 to PCIe x16 Slot with Hot Plug (Bridge Card)Accepts two MCIO 74-pin x8 cable inputs and presents a full PCIe x16 mechanical slot, allowing any standard PCIe add-in card (GPU, accelerator, RAID controller, SmartNIC) to be powered from MCIO cable sources. Hot-plug functionality permits live card insertion and removal without system reboots critical for high-availability server environments.Key BenefitsFull PCIe Gen 5 Throughput: 32 GT/s per lane across all three components no bandwidth bottleneck anywhere in the chain.Active ReDriver Technology: The AIC's built-in ReDriver re-amplifies and re-times signals, enabling reliable cable runs that passive adapters cannot support at Gen 5 speeds.Matched, Tested Together: MCIO-2362-50 cable is the specified companion cable for the MCIO-2203-16X AIC, ensuring plug-and-play compatibility with correct connector keying on both ends.Hot-Plug Capable: The PCIe x16 slot card supports live device insertion ideal for all-flash arrays, AI inference clusters, and NVMe-oF storage appliances where uptime is non-negotiable.Backward Compatible: All three components auto-negotiate to PCIe Gen 4 or Gen 3 speeds when connected to older devices protecting your existing hardware investment.Enterprise Power Management: TVS-protected 12V input, on-board PWM buck regulators, load switches with automatic fault restart, and gold-plated 30" contact surfaces ensure long operational life in 24/7 server environments.OOB Management Ready: SMBus switch, I/O expander, and buffer gates on the AIC support out-of-band monitoring and remote PERST# reset of attached MCIO devices.Micro SATA Cables # GPU-2474-KIT
