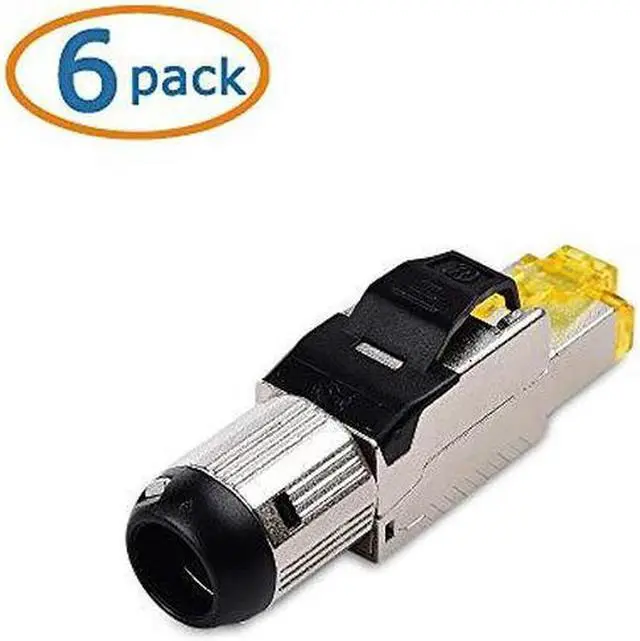

Cable Matters 6-Pack Tool Free Shielded RJ45 Cat 8, Cat8 Field Termination Plug, Cat8 Connector, Cat8 Plug

Brand: Cable Matters

Color: red

Features:

• FULL METAL JACKET RJ45 field plug for Cat 8 channel network switch and server connections; Modular plugs with robust die-cast housing provides superior shielding and mitigates alien crosstalk on a Cat 8 Ethernet cable; Supports 22 AWG to 24 AWG shielded Cat8 wire with an outside diameter between 7.0 and 8.5 mm; Backwards compatible as Cat 6A or Cat 7 connector
• CAT8 PERFORMANCE for a 10GBASE-T 25GBASE-T or even a 40GBASE-T channel compliant network up to 30 meters; GHMT Cat 8 channel performance verified; Fully backwards compatible with Cat 6 (Cat6) Cat 6A (Cat6A) Cat 7 (Cat7A) Ethernet networks

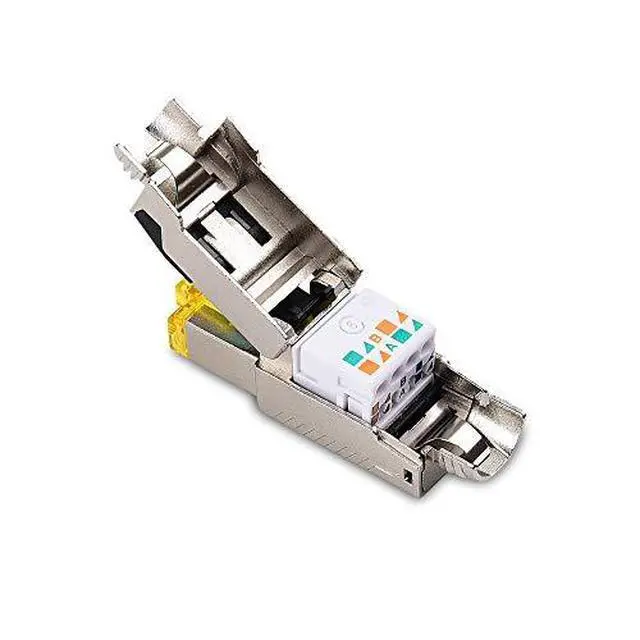

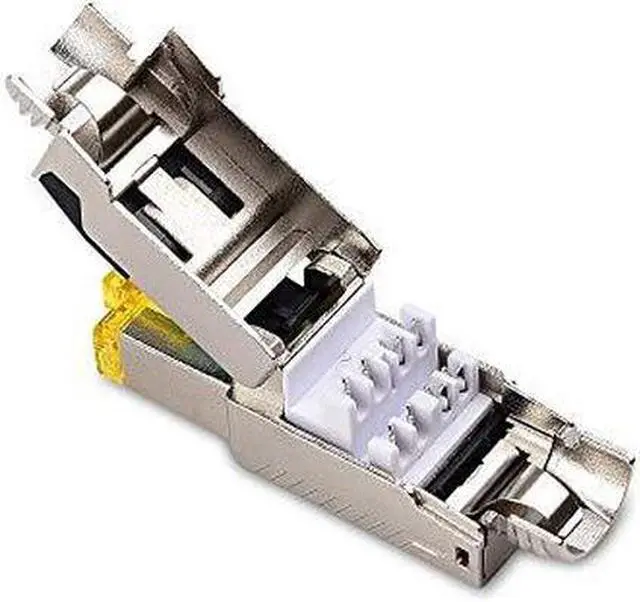

• IMPACT TOOL FREE RJ45 CONNECTOR with an open hinged design simplifies placement and termination of bulky shielded cable; IDC modules can be wired for T568A or T568B wiring with a color-coded pass through termination cap
• SUPERIOR CONSTRUCTION combines a one piece metal housing with an integrated silencing cylinder to suppress EMI NEXT and AXT electromagnetic noise and crosstalk; A screw-on metal strain-relief boot protects the cable integrity and increases the shielding performance; An IP20 rated dust cover protects the RJ45 contacts when transporting or storing a terminated cable
• PoE PLUS COMPLIANT for IEEE 802.3 at Power over Ethernet (PoE+) applications; Terminate a Cat8 Ethernet cable with support for Cat 8 auto-negotiation in a mixed network with variable data transfer speeds to a 1 GB switch 10 GB switch or 40 GB switch

Binding: Electronics

Publisher: Cable Matters

Details: CONNECT MORE with Cable Matters Networking Products


10 Gig to 40 Gig Network Migration Solution
The Cable Matters Cat 8 Shielded RJ45 Field Termination Plug provides an affordable copper based alternative for connecting 10 25 or 50 Gigabit Ethernet channel components. It provides an affordable alternative to Twinax direct attach cable while providing backwards compatibility with Cat 7 and Cat 6A. Supports PoE+ and Cat8 data center applications for Top-of-Row Middle-of-Row and End-of-Row configurations up to 30 meters.

Cost-Effective 6-Pack with a Lifetime Warranty
This fully shielded field termination plug is designed for sensitive environments that demand security with protection against EMI/RFI electromagnetic noise and alien crosstalk. A rugged metal construction with an integrated silencing cylinder and a screw-on metal strain relief boot provide superior Cat 8 performance up to 40 Gigabit.

Specifications
- Network connector: RJ45 8P/8C Female with 50 micron gold-plated contacts
- Integrated silencing cylinder for NEXT AXT noise suppression

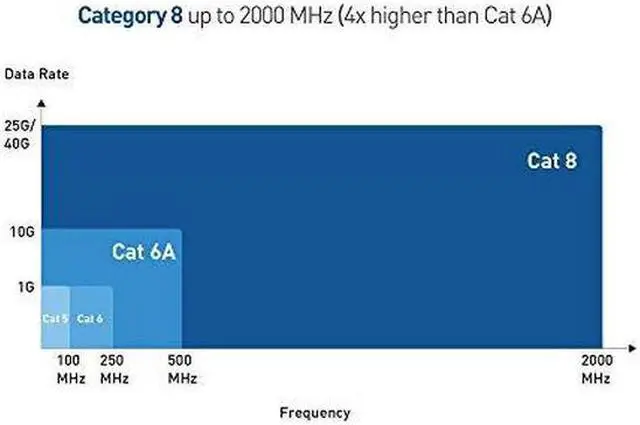

- Category 8 TIA/EIA 568-C. 2 performance up to 2000 MHz
- Imact Tool-free 568-A or 568-B termination
- Compatible with 22-26 AWG shielded twisted pair cable

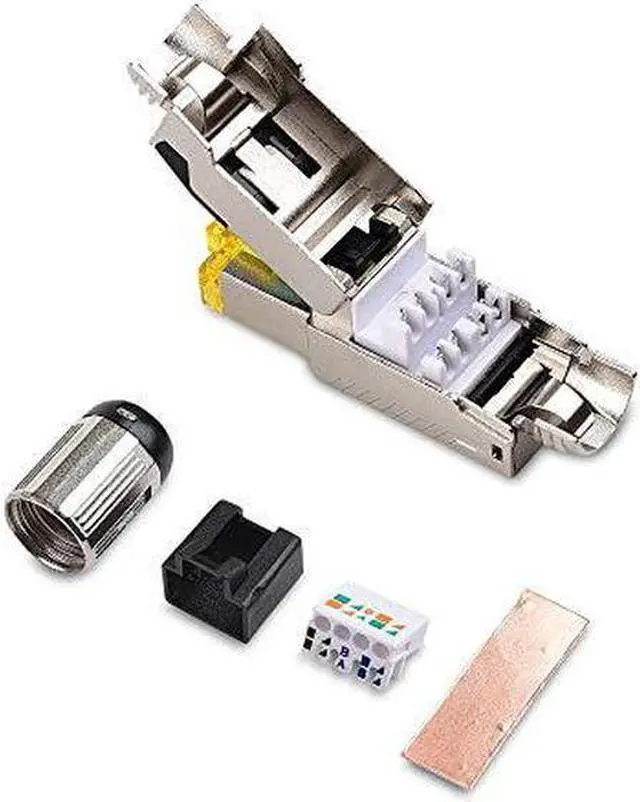

Package Contents

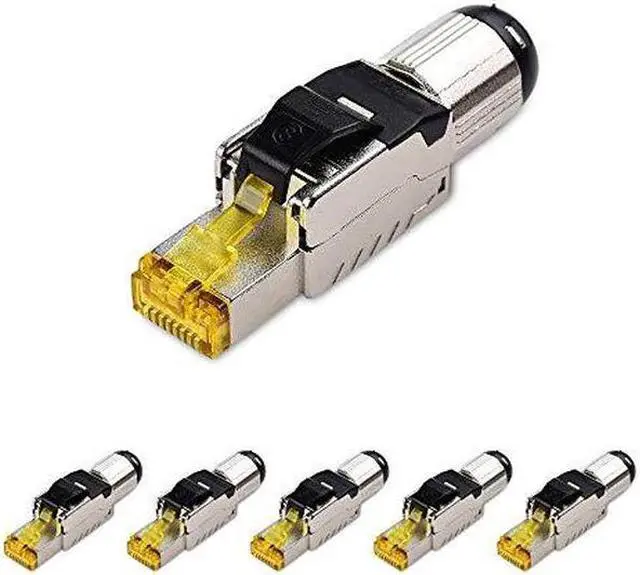

- 6x Cat 8 RJ45 Shielded Field Termination Plugs
- 6x Tool-free caps
- 6x Copper foil tape
- 1x Instruction sheet

Warranty
Limited Lifetime Warranty and Lifetime Product Support

UPC: 818707021972

EAN: 0818707021972

Package Dimensions: 7.5 x 4.8 x 1.4 inches
