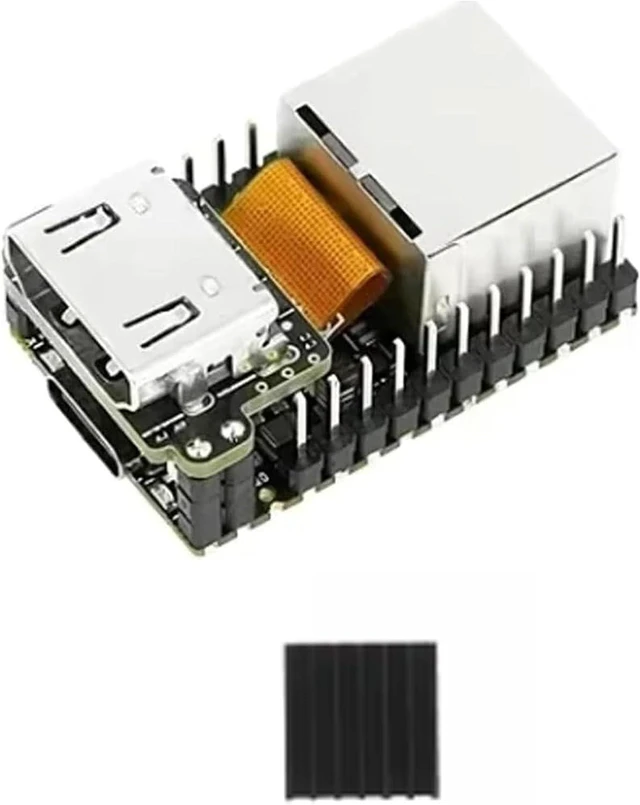

Sipeed NanoKVM Lite IP KVM Over IP, RISC-V Server MGMT, HDMI USB Plug&Play
- Ultra-compact IP KVM over IP delivers true out-of-band server management independent of host operating system. Gain full direct access to BIOS, boot menus and complete hardware-level troubleshooting even if your PC, mini server or homelab rig crashes, locks up or fails to boot, ideal low-cost alternative to expensive enterprise IPMI, iDRAC and iLO equipment.
- Equipped with HDMI video capture input, virtual USB port for keyboard, mouse and mass storage simulation, plus built-in 100Mbps Ethernet for low-latency wired data transmission. It simulates a physical USB drive to mount ISO files remotely, supporting unattended OS reinstallation, firmware flashing and cross-platform system configuration without local USB media.
- Built on open-source LicheeRV Nano RISC-V core Linux SBC with fully editable firmware available on GitHub for DIY developers. True plug & play setup requires no extra driver installation; the ultra-tiny PCB form factor fits neatly inside PC cases, mini rack cabinets and
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Brand Sipeed
Item model number NanoKVM-Lite
Item Type Keyword ELECTRONIC SWITCH
Color Black
Country of Origin China
Number of Ports 2
Connector Type HDMI, Ethernet (RJ45), USB-C
Connectivity Technology Wired Ethernet
Maximum Display Resolution 1080p
Special Features IP-KVM over IP, Remote BIOS Access, Virtual USB Storage, HDMI Capture, Web-based Control, ATX Power Control
Compatible Devices Server, ATX PC, Desktop Computer, Raspberry Pi
Control Method Web Browser, App
Switch Style KVM over IP
Power Source USB-C (5V)
Voltage 5 Volts DC
Included Components NanoKVM Lite (System SD Card NOT included), Heatsink
Certification FCC, CE, RoHS
Processor Type SOPHGO SG2002 (RISC-V C906)
Processor Count 1
Processor Speed 1.0 GHz
RAM Size 256 MB
Memory Technology DDR3
Operating System Linux
Form Factor Standalone / Bare Board
Number of Computers Controlled 1
Cable Included No
Hardware Interface HDMI, USB, Ethernet
Features
NanoKVM is available in two versions:
NanoKVM Lite is the basic configuration, suitable for individual users with some DlY skills and enterprise users with bulk requirements.
NanoKVM Full is the complete configuration, featuring a refined case and full accessories, with a pre-installed system image card for out-of-the-box use,recommended for individual users.
Item model number NanoKVM-Lite
Item Type Keyword ELECTRONIC SWITCH
Color Black
Country of Origin China
Number of Ports 2
Connector Type HDMI, Ethernet (RJ45), USB-C
Connectivity Technology Wired Ethernet
Maximum Display Resolution 1080p
Special Features IP-KVM over IP, Remote BIOS Access, Virtual USB Storage, HDMI Capture, Web-based Control, ATX Power Control
Compatible Devices Server, ATX PC, Desktop Computer, Raspberry Pi
Control Method Web Browser, App
Switch Style KVM over IP
Power Source USB-C (5V)
Voltage 5 Volts DC
Included Components NanoKVM Lite (System SD Card NOT included), Heatsink
Certification FCC, CE, RoHS
Processor Type SOPHGO SG2002 (RISC-V C906)
Processor Count 1
Processor Speed 1.0 GHz
RAM Size 256 MB
Memory Technology DDR3
Operating System Linux
Form Factor Standalone / Bare Board
Number of Computers Controlled 1
Cable Included No
Hardware Interface HDMI, USB, Ethernet
Features
NanoKVM is available in two versions:
NanoKVM Lite is the basic configuration, suitable for individual users with some DlY skills and enterprise users with bulk requirements.
NanoKVM Full is the complete configuration, featuring a refined case and full accessories, with a pre-installed system image card for out-of-the-box use,recommended for individual users.
