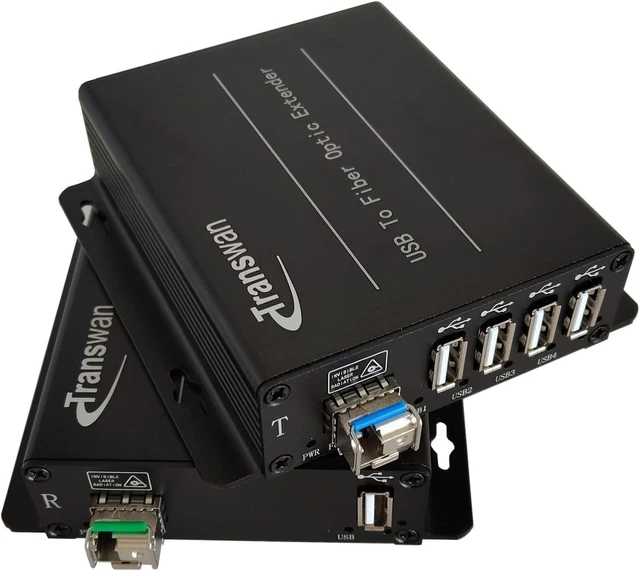

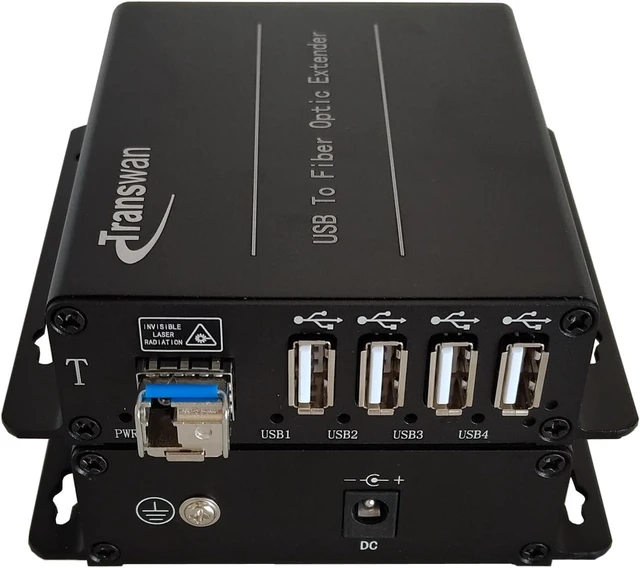

USB 2.0 hub Over Fiber Extender to Max 5 Km Over 1 Core Single-Mode Fiber, Compatible with USB 1.1, w/SFP Module, Supports Oscilloscope Devices etc
- Support USB1.1 and USB 2.0 devices Such as Cameras, Printers, Scanners, Audio devices, USB touch screens, Game Controllers, Mouse and Keyboard Dongle, FTDI RS232 Converter, FPGA Programmer, USB video capture device, Orientalmotor Controller, USB Wireless Dongle, USB headset, USB to RS232 Adapter,Arbitrary Waveform Generator 33250A & 82357B, Data Acquisition Device (DAQ), PicoScope Oscilloscope, Audio DAC(but Except RME's), Akai APC devices etc.
- Max distance 5 Kilometers over 1 Core Single mode fiber cable; 4 ports USB 2.0 extend to 1 port at display, or 1 port USB 2.0 splitted to 4 Ports USB 2.0
- 1 fiber bi-directional transmission, pure hardware design, no driver needed, support plug and play
- Auto recognition of High-speed (25Mbps480Mbps)Full-speed (500Kbps12Mbps)Low-speed (10Kbps1.5Mbps) USB devices. so Be Backwards Compatible with USB 1.1
- Be compatible with all Operation systems like Windows, Mac OS, LINUX, UNIX etc.
- Power-up sequence: Because of USB status (Suspend and Re
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now

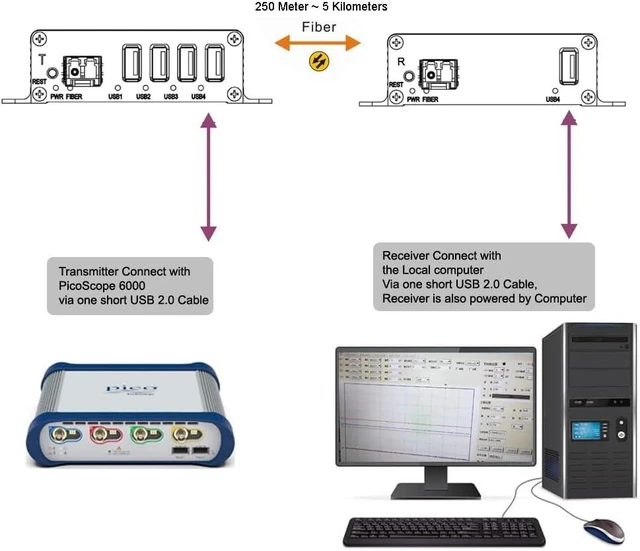

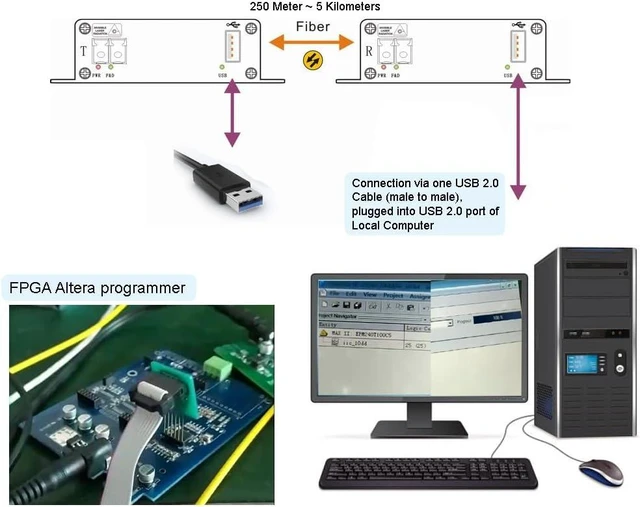

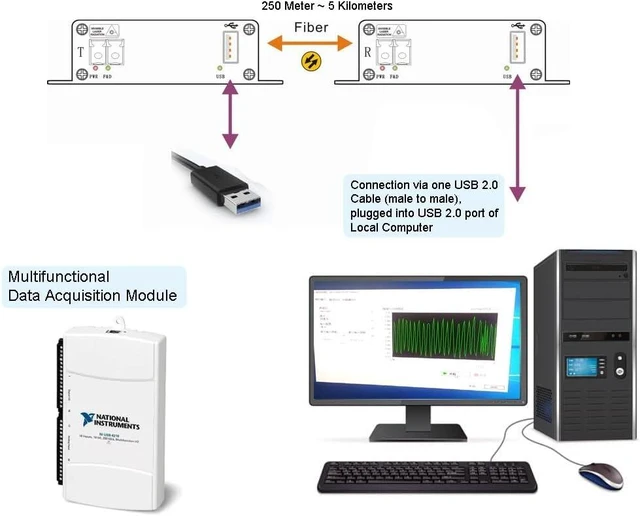

BY-USB-388SF includes a transmitter and a receiver, which can extend USB 2.0/1.1 device to a remote location over 1 Core Single Mode fiber cable, max distance 5 Kilometers. it can also splitter 1 Channel USB 2.0 signal over fiber to 4 USB 2.0 ports in remote display.
It can be widely used in military command and control system, police command and control system, traffic management system, energy and electricity supply industry, government office, medical system, commercial presentation, multimedia and public utilities etc
Optical Connector: 1 x LC/PC
Wave length: 1310 nm/1550
Physical Size (L× W ×H): 104 mm x 104 mm x 28 mm
Case: Aluminum
Color: Black
N.W.: 0.75Kg
Power Voltage: 5V DC
Transmitter power consumption: <18W
Receiver power consumption: <3.5W
Environment Working temperature: -20-70
Storage temperature: -40-85
Humidity: 0-95% (non-condensing)
USB interface(Type A):
Receiver: 1 port, connect to PC
Transmitter: 4 ports, connect to USB 2.0/1.1 device
Package:
1. 1 x transmitter (client side)
2. 1 x receiver (host side)
3. 1 x Power supply adapters DC 5~12V with US/EU/UK/AU plug for the transmitter.
4. 1 x USB 2.0 cable, the receiver powered by the local PC via USB cable
5. 1 x Manual
It can be widely used in military command and control system, police command and control system, traffic management system, energy and electricity supply industry, government office, medical system, commercial presentation, multimedia and public utilities etc
Optical Connector: 1 x LC/PC
Wave length: 1310 nm/1550
Physical Size (L× W ×H): 104 mm x 104 mm x 28 mm
Case: Aluminum
Color: Black
N.W.: 0.75Kg
Power Voltage: 5V DC
Transmitter power consumption: <18W
Receiver power consumption: <3.5W
Environment Working temperature: -20-70
Storage temperature: -40-85
Humidity: 0-95% (non-condensing)
USB interface(Type A):
Receiver: 1 port, connect to PC
Transmitter: 4 ports, connect to USB 2.0/1.1 device
Package:
1. 1 x transmitter (client side)
2. 1 x receiver (host side)
3. 1 x Power supply adapters DC 5~12V with US/EU/UK/AU plug for the transmitter.
4. 1 x USB 2.0 cable, the receiver powered by the local PC via USB cable
5. 1 x Manual
