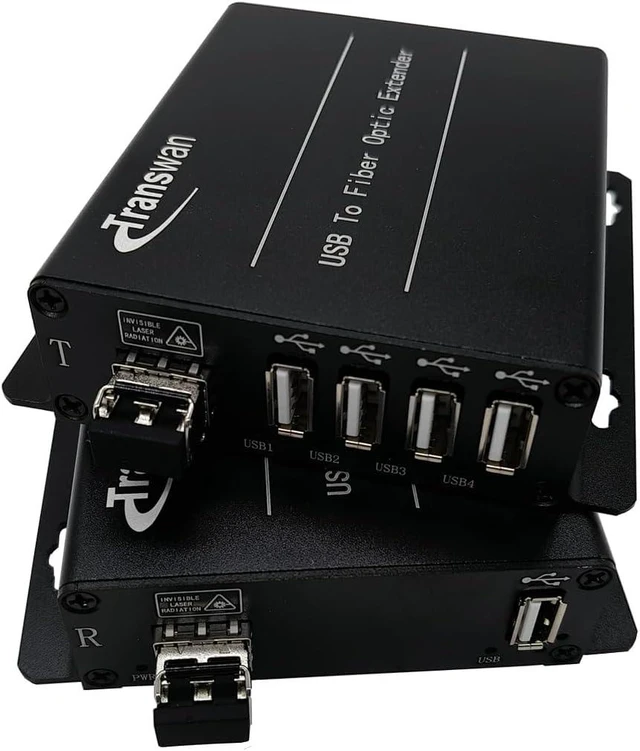

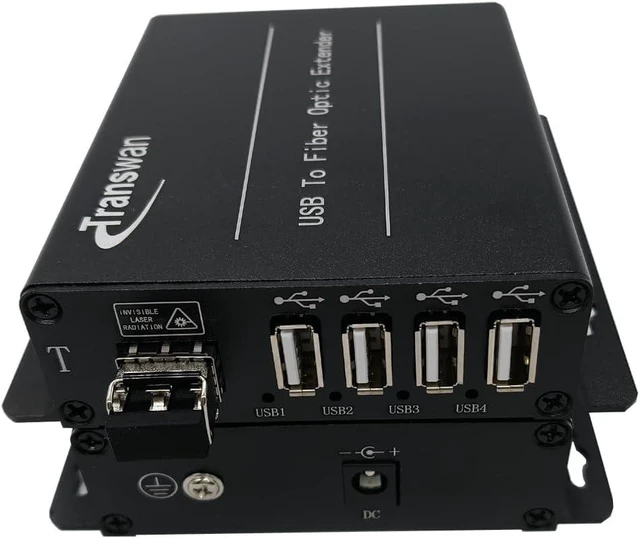

4 Ports USB 2.0/1.1 hub Fiber Extender to Max 500 Meters (1640 FT) Over Multi-Mode Fiber (OM1~OM5) with SFP Module (BY-USB-388MF(4 Ports Hub Over MMF))
- 4 ports USB 2.0 Hub extend over Fiber or 1 port USB 2.0 splitted to 4 Ports USB 2.0 over Fiber
- over Max 500 Meters 2 Strands Multimode (OM1~OM5) fibers transmission
- pure hardware design, no driver needed, compatible with all operation systems, support plug and play
- Auto recognition of High-speed25Mbps480MbpsFull-speed500Kbps12MbpsLow-speed10Kbps1.5MbpsUSB device
- Support USB1.1 and USB 2.0 devices, Such as Cameras, Printers, Scanners, Audio devices, USB touch screens, Game Controllers, Mouse and Keyboard Dongle, FTDI USB to RS232 Converter, FPGA Programmer, USB video capture device, Orientalmotor Controller, USB wireless Dongle, USB headset, USB to RS232 Adapter, Spectrum Analyzer, Arbitrary Waveform Generator 33250A & 82357B, PicoScope PC Oscilloscope Kit, Data Acquisition Device (DAQ), Audio DAC(but Except RME's), Akai APC Device, Simple Touchscreen etc.
- Be compatible with all Operation systems like Windows, Mac OS, LINUX, UNIX etc.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now

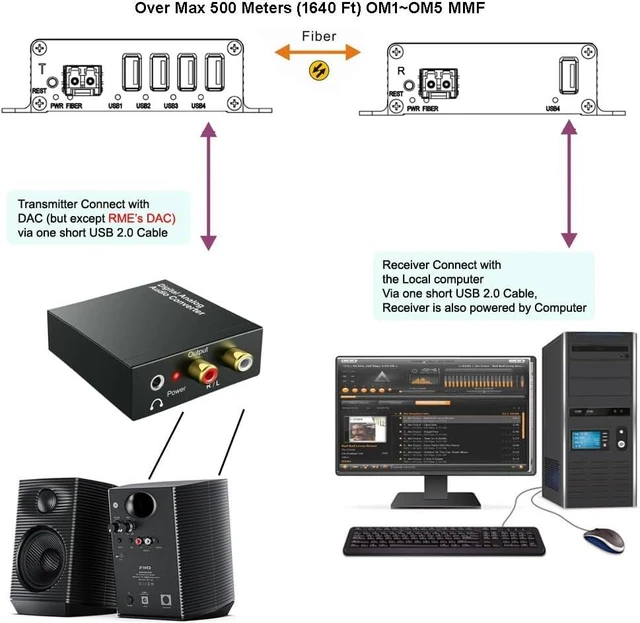

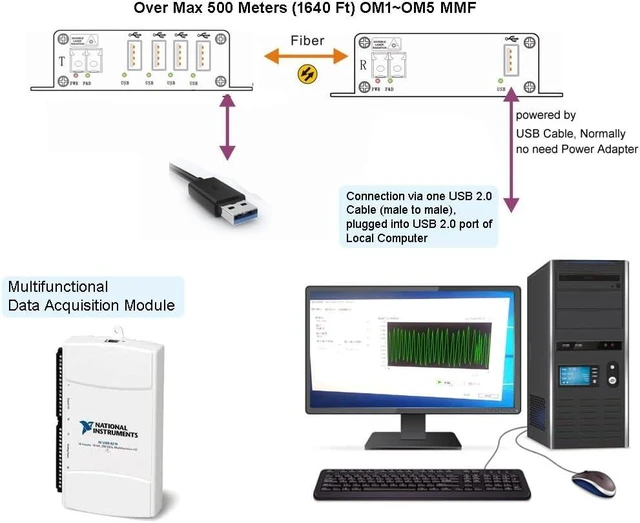

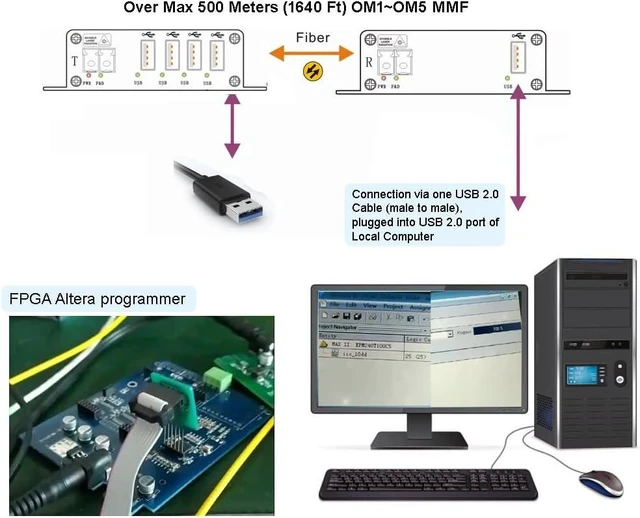

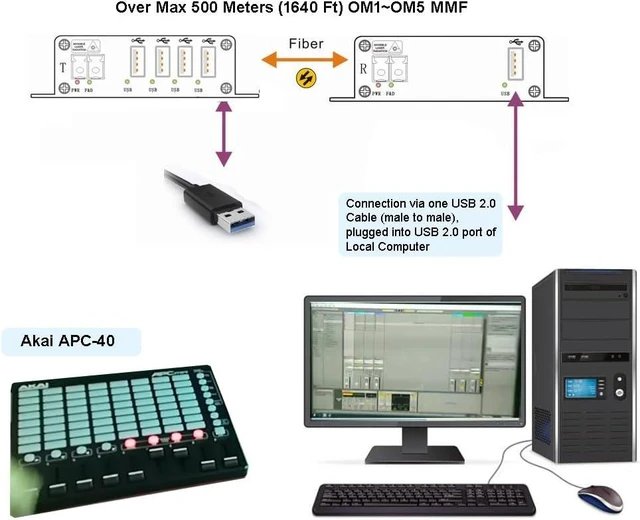

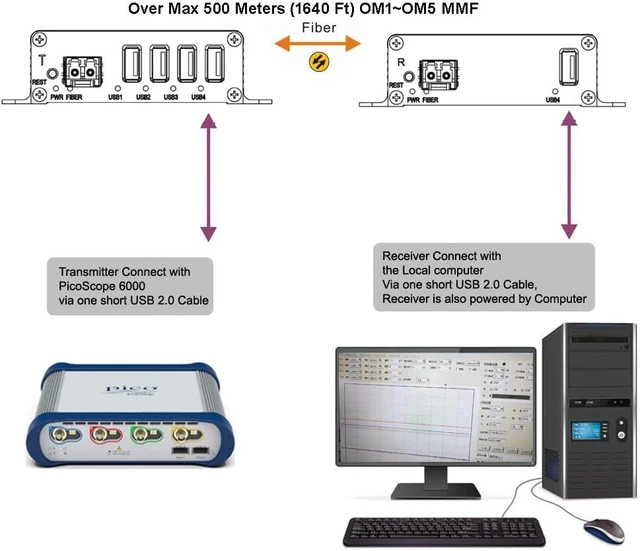

BY-USB-388MF includes a transmitter and a receiver, which can extend USB 2.0 device to a remote location over 2 Multi-mode fiber cable. it can also split 1 Channel USB 2.0 signal over fiber to 4 USB 2.0 ports in remote display.
BY-USB-388MF can be widely used in military command and control system, police command and control system, traffic management system, energy and electricity supply industry, government office, medical system, commercial presentation, multimedia and public utilities etc.
Specs
Optical Connector: 2 x LC/PC
Wave length: 850nm VCSEL
Support Fiber types: OM1~OM5, 50/125m(MMF), 62.5/125m(MMF)
Physical Size (L× W ×H): 104mm x104mm x28mm
Case: Aluminum
Color: Black
N.W.: 0.75Kg
Power Voltage: 5~12V DC, 5.5/2.5mm
Transmitter power consumption: <18W
Receiver power consumption: <3.5W
Environment Working temperature: -20-70
Storage temperature: -40-85
Humidity: 0-95% (non-condensing)
USB interface(Type A):
Receiver: 1 port, connect to PC
Transmitter: 1~4 ports, connect to USB 2.0 device
Power-up sequence:
Because of USB status (Suspend and Resume), Both the the computer and the USB device it's being connected to should be shut down completely BEFORE making all the connections. The USB devices and the transmitter module it's connected to must both be powered up and running BEFORE the computer is booted up. Otherwise, the USB device's driver in the computer will not be loaded, and the devices will not connect. In case the USB device's driver shows can not Identify the Device or shows "Unknown Device", please unplug and plug the receiver module.
Package Contains:
1. 1 x transmitter (client side) with SFP module.
2. 1 x receiver (host side) with SFP module.
3. 1 x Power supply adapters DC 5~12V with US/EU/UK/AU plug for the transmitter.
4. 1 x USB 2.0 cable, the receiver powered by the local PC via short USB cable.
5. 1 x Manual.
BY-USB-388MF can be widely used in military command and control system, police command and control system, traffic management system, energy and electricity supply industry, government office, medical system, commercial presentation, multimedia and public utilities etc.
Specs
Optical Connector: 2 x LC/PC
Wave length: 850nm VCSEL
Support Fiber types: OM1~OM5, 50/125m(MMF), 62.5/125m(MMF)
Physical Size (L× W ×H): 104mm x104mm x28mm
Case: Aluminum
Color: Black
N.W.: 0.75Kg
Power Voltage: 5~12V DC, 5.5/2.5mm
Transmitter power consumption: <18W
Receiver power consumption: <3.5W
Environment Working temperature: -20-70
Storage temperature: -40-85
Humidity: 0-95% (non-condensing)
USB interface(Type A):
Receiver: 1 port, connect to PC
Transmitter: 1~4 ports, connect to USB 2.0 device
Power-up sequence:
Because of USB status (Suspend and Resume), Both the the computer and the USB device it's being connected to should be shut down completely BEFORE making all the connections. The USB devices and the transmitter module it's connected to must both be powered up and running BEFORE the computer is booted up. Otherwise, the USB device's driver in the computer will not be loaded, and the devices will not connect. In case the USB device's driver shows can not Identify the Device or shows "Unknown Device", please unplug and plug the receiver module.
Package Contains:
1. 1 x transmitter (client side) with SFP module.
2. 1 x receiver (host side) with SFP module.
3. 1 x Power supply adapters DC 5~12V with US/EU/UK/AU plug for the transmitter.
4. 1 x USB 2.0 cable, the receiver powered by the local PC via short USB cable.
5. 1 x Manual.
