EX-1163HMS USB 2.0 Hub Metal 4-Port
- USB 2.0 metal hub with four downstream
- Power supply +7 V to +24 V DC via terminal block
- Compact industrial design
- Individual power output configuration
- 500 mA current on all 4 ports
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now

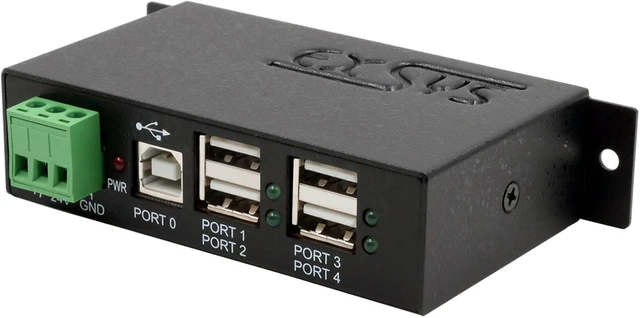

EX-1163HMS - USB 2.0 metal hub with 4 ports, incl. DIN-RAIL kit with 15KV ESD surge protection

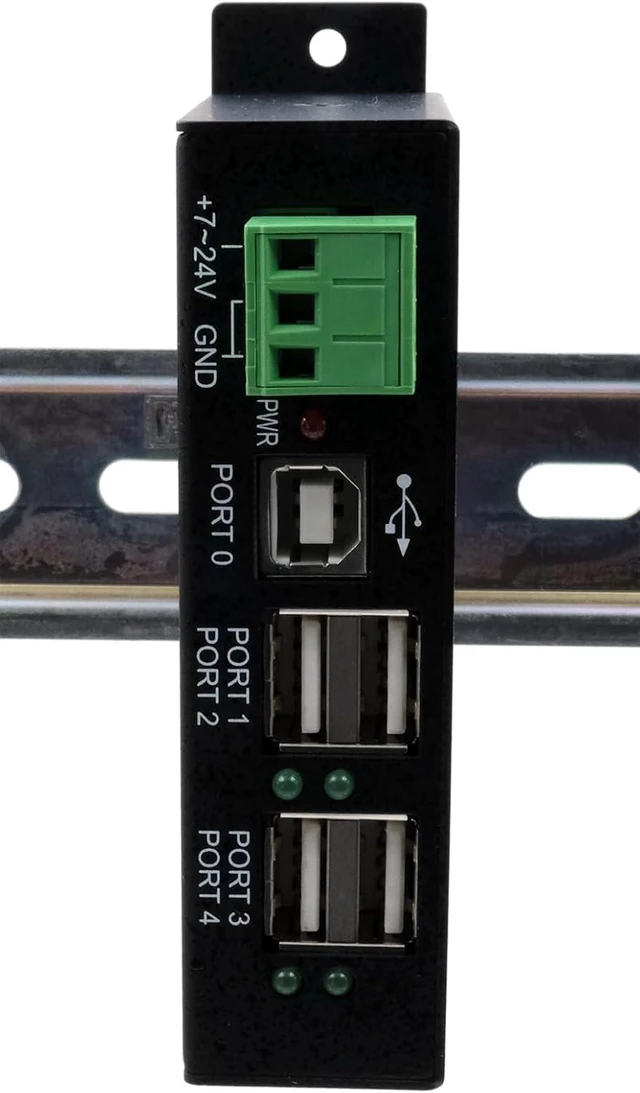

The industrial-grade EX-1163HMS USB hub with four USB 2.0 outputs can be installed on the wall or on a support rail.

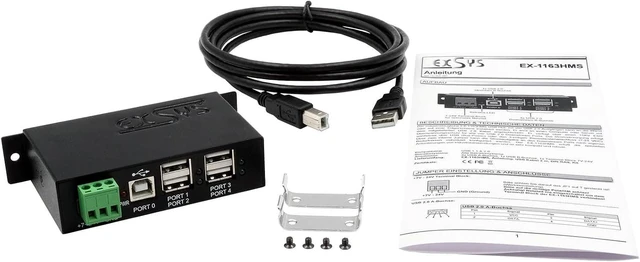

It connects to a computer or server with the included USB 2.0 cable. It features 15KV ESD surge protection for all four USB 2.0 downstream ports.

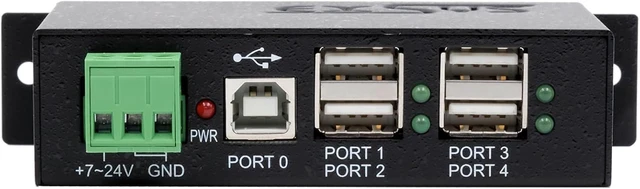

The power supply is either via USB (bus power) or the 3-pin terminal block connection (7-24 VDC).
Two internal jumpers allow you to configure the power output at the downstream ports individually according to your own needs. The EX-1163HMS meets the special requirements of industrial applications and is very compact and robust.
USB 2.0 HUB with four downstream ports
15KV ESD surge protection for all 4 ports.
Power supply +7 to +24 VDC via the terminal block
Power supply optionally also from USB bus +5 V (bus power).
Individual configuration of the power output on the downstream ports possible
Automatic detection of input polarity on the current terminal block
Automatic detection of data transfer rate of connected peripherals

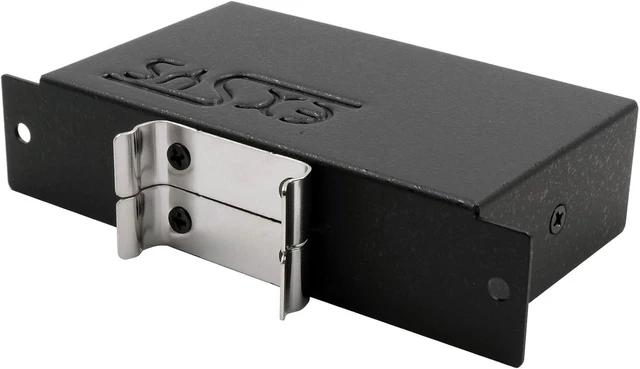

Easy installation thanks to the included DIN rail bracket (DIN-Rail).
500 mA current on all 4 ports.
Compact industrial design in metal housing
5 x status LEDs.
Chipset: Terminus FE 2.1
The industrial-grade EX-1163HMS USB hub with four USB 2.0 outputs can be installed on the wall or on a support rail.
It connects to a computer or server with the included USB 2.0 cable. It features 15KV ESD surge protection for all four USB 2.0 downstream ports.
The power supply is either via USB (bus power) or the 3-pin terminal block connection (7-24 VDC).
Two internal jumpers allow you to configure the power output at the downstream ports individually according to your own needs. The EX-1163HMS meets the special requirements of industrial applications and is very compact and robust.
USB 2.0 HUB with four downstream ports
15KV ESD surge protection for all 4 ports.
Power supply +7 to +24 VDC via the terminal block
Power supply optionally also from USB bus +5 V (bus power).
Individual configuration of the power output on the downstream ports possible
Automatic detection of input polarity on the current terminal block
Automatic detection of data transfer rate of connected peripherals
Easy installation thanks to the included DIN rail bracket (DIN-Rail).
500 mA current on all 4 ports.
Compact industrial design in metal housing
5 x status LEDs.
Chipset: Terminus FE 2.1
