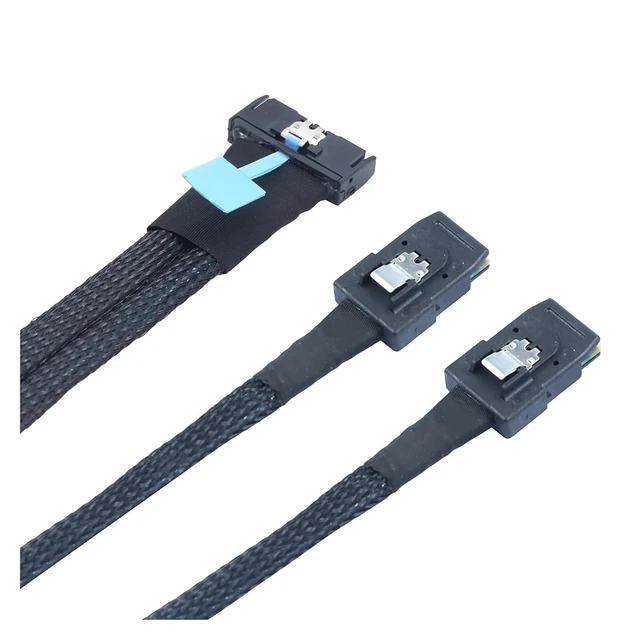

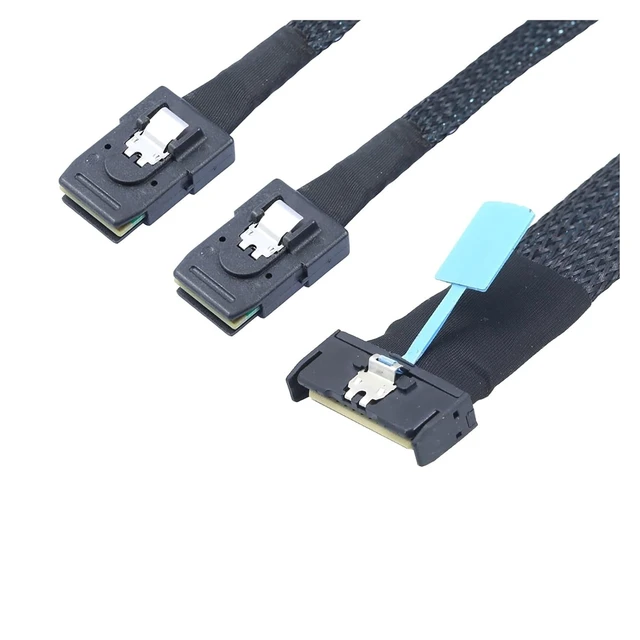

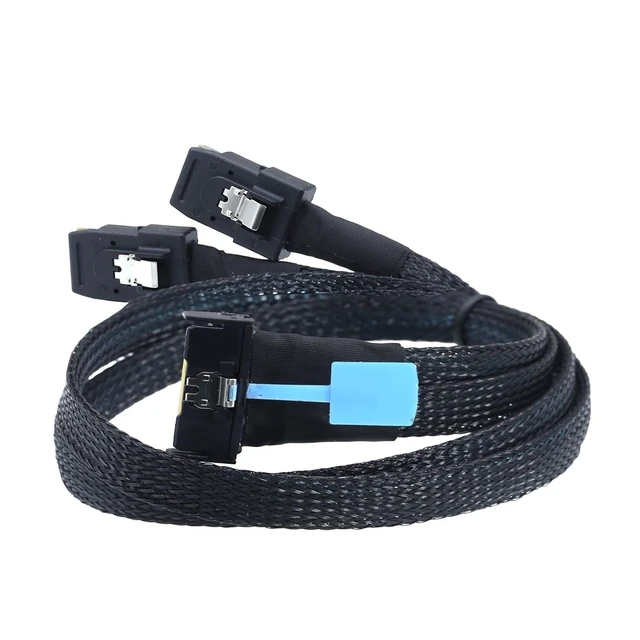

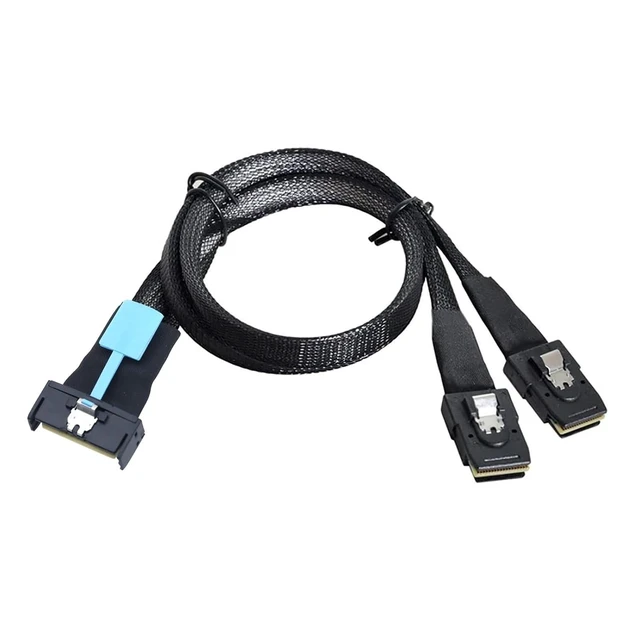

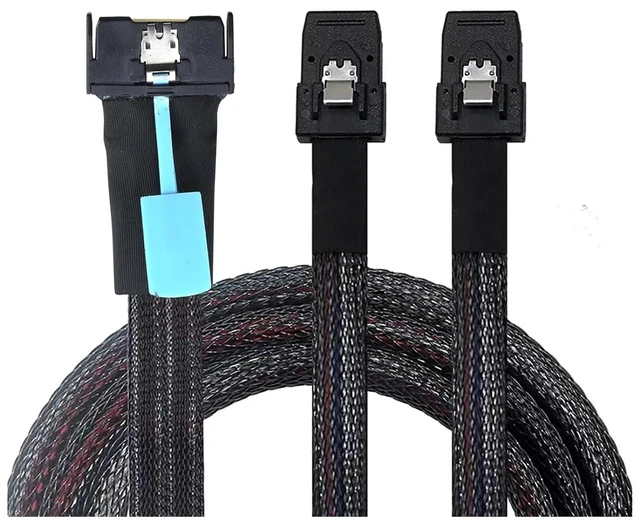

PCI-E 5.0 Cool Edge IO MCIO 8X 74Pin to 2X 36Pin S-AS SFF-8087 Extension Data and Cord Cable(1M)

PCI-E 5.0 M1ni Cool Edge IO MCIO 8X 74Pin to 2X 36Pin M1ni S-AS SFF-8087 Extension Data and Cord Cable
Product Description:
PCI-E 5.0 M1ni Cool Edge IO MCIO 8X 74Pin to 2X 36Pin M1ni S-AS SFF-8087 Extension Data and Cord Cable
Series: M1ni S-AS
Cable Length: 0.5M/1M
Wire Size: 30AWG/32AWG. Tinned Copper, OD: 0. 65*1.48MM
Lock to Mating Part: With Latch
Plating: Au 30u' min over Ni 100u' min
Color: Cable , Over Black
Flammability: Cable Horizontal flame, PCB 94V-0, PBT 94V-0
Applications
Data/Communications
1. (Redundant Array of Independent Disks)
2. Workstations
3. Rack-mount server
4. Servers
5. Storage rack
Features and Benefits
1. Transmission rate 24Gbps.
2. Meet SAS4.0 specification.
Mechanical Performance
Mating Force and Unmating Force
Condition: EIA 364-13. Insert and extract at a speed of
25mm/minute.
Mating Force: 55 N maximum for M1ni S-AS.
Unmating Force: 49 N maximum for M1ni S-AS.
Electrical Performance
1.Current Rating
0.5Amperes maximum per pin when mated.
2. Voltage Rating
30VAC per when mated or unmated.
3. Resistance
30mohm max. initial, 15mohm maximum after stress test.
4. Dielectric Withstanding Voltage
500 VAC for 1 minute no breakdown.
5. Insulation Resistance
1000 Mohm minimum.
Signal Integrity
1. Mated Connector Impedance: 85 ±15%
2. Cable Absolute Impedance: 85 ±10%
3. Cable Pair Matching: ±5
4. Common Impedance: 25 to 40 ohms
5. Insertion loss: -6dB maximum up to 4.5Ghz;
6. Crosstalk: -26 dBup to 24Ghz;
Product Compliance
Model Number : MCIO 8X-8087*2
TY>pe : PCI-Express Cables
