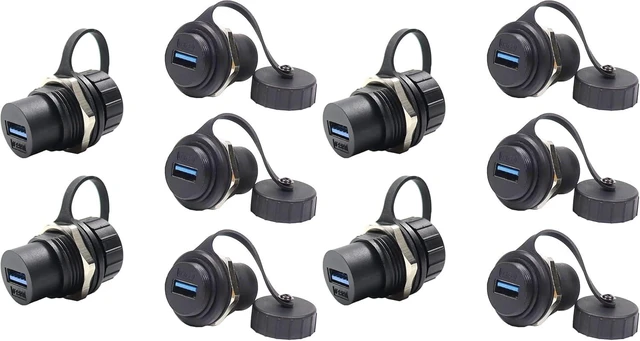

PENGLIN 5PCS USB3.0 Waterproof Connector,Industrial Panel Mount Bulkhead,Female to Female Feed Thru Data Transfer Coupler (Pack of 2)
- The information below is per-pack only
- USB 3.0 COUPLERIP67 Waterproof USB 3.0 coupler can turn USB male port to female port for connecting other device, or joins two USB cables together and extends the overall reach.
- DURABLE QUALITYReinforced nylon PA6BG33 shell, scratch resistance, superior construction for reliable connectivity of the USB 3.0 extender.
- EASY INSTALLATIONStandard USB 3.0 Connector for Panel Mount Installations, USB female to female field installable coupler, no soldering, no installation tools. IP67 waterproof, adapt to a variety of harsh environments, acid, alkali, oxidation and so on. Guarantee the stability of the current.
- WIDELY APPLICATIONConnects equipment with USB ports like a PC, Mac, desktop, laptop, notebook, media player, USB external hard drive, AV receiver or other equipment with USB ports with the cables concealed behind the wall via wall plates.
- NO LAGPENGLIN USB 3.0 coupler plug and play and enjoy high-speed data transmission with this U
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Feed Thru Coupler Usb patch panel waterproof Usb3.0 panel mount waterproof usb coupler bulkhead Usb coupler mount usb3.0 socket panel Usb 86 panel usb cable extender Panel mount bulkhead usb dtype moudle DTYPE USB SOCKET Usb panel mount usb3.0 coupler bulkhead Usb coupler mount usb 3.0 socket panel Usb 86 panel usb3.0 cable extender Panel mount bulkhead usb dtype moudle DTYPE USB SOCKET Usb 3.0 patch panel DTYPE USB SOCKET Usb panel mount Usb dtype d series usb usb coupler bulkhead Usb coupler mount usb socket panel Usb 86 panel usb cable extender Panel mount bulkhead usb dtype moudle Usb patch panel :
Using the standards based USB connection system insures compatibility with existing hardware.
Standard USB D-type international installation port, can be installed in a fixed position, suitable for 86 panels, ground plugs, wall plugs, desk plugs
Female to Female USB D Series Module Panel Mount Couplers, Connecting Two Cables to Extend the Length of Existing Cable For Optimal Settlement.
Specification:
Current Type: Weak Current
Contact Material: Bronze(CuSn8)
Insulator Material: PBTP 15 % GR
Shell Material: Zinc Diecast(ZnAl4Cu1)
Panel thickness: 2.0-10mm/0.08-0.39in
Contact resistance: <10
Dielectric strength: 1kVdc
Frequency range: 1-100MHz
Insulation resistance: >0.5G
Rated voltage: 50V
Rated current per contact: 1.5A
Using the standards based USB connection system insures compatibility with existing hardware.
Standard USB D-type international installation port, can be installed in a fixed position, suitable for 86 panels, ground plugs, wall plugs, desk plugs
Female to Female USB D Series Module Panel Mount Couplers, Connecting Two Cables to Extend the Length of Existing Cable For Optimal Settlement.
Specification:
Current Type: Weak Current
Contact Material: Bronze(CuSn8)
Insulator Material: PBTP 15 % GR
Shell Material: Zinc Diecast(ZnAl4Cu1)
Panel thickness: 2.0-10mm/0.08-0.39in
Contact resistance: <10
Dielectric strength: 1kVdc
Frequency range: 1-100MHz
Insulation resistance: >0.5G
Rated voltage: 50V
Rated current per contact: 1.5A
