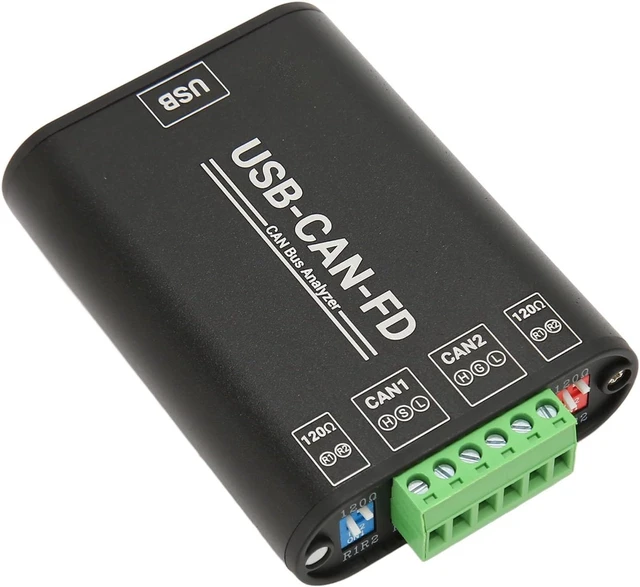

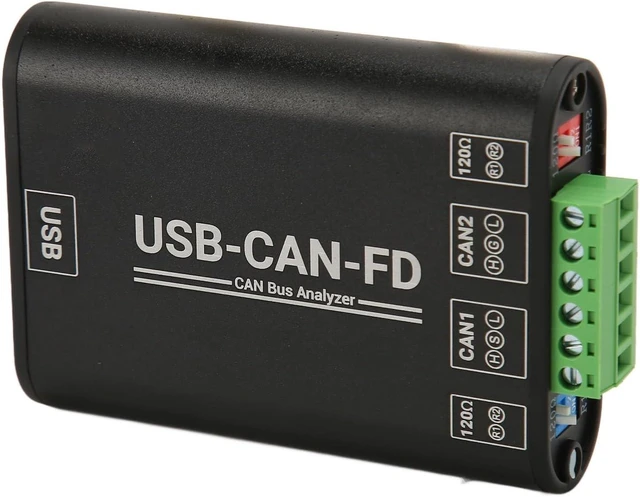

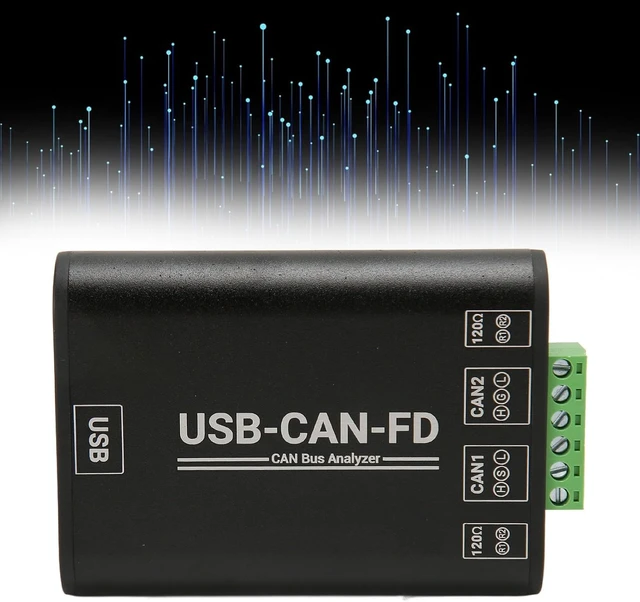

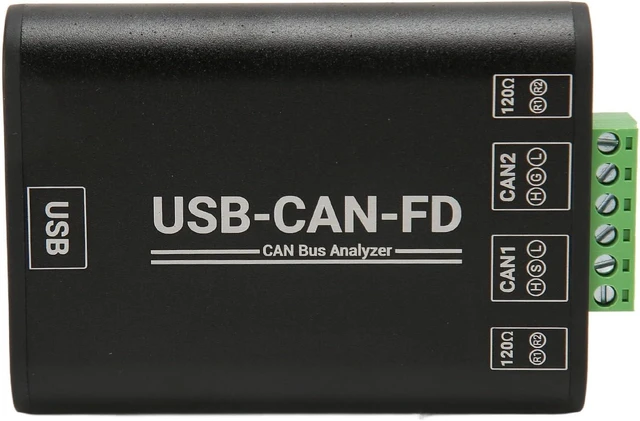

USB to CAN FD Adapter Industrial Grade Data Analyzer for 7/8/10/11 Aluminum Alloy

1. Highly efficient communication: With two independent CAN FD interfaces, galvanic isolation and multiple protection circuits, this industrial grade USB to CAN FD adapter ensures reliable and safe data communication.
2. User-friendly software support: This adapter is compatible with XP/7/8/10/11 and comes with drivers, CAN FD Tools software, secondary development examples and tutorials for easy setup and adjustment.
3. Versatile use: ideal for learning, debugging and integrating CAN/CAN FD bus communication in industrial, energy and intelligent control systems and offers a wide range of application scenarios.
4. Robust and durable: This adapter made of aluminium alloy is compact, shockproof and durable and ensures long-term performance and reliability.
5. [Fast data transfer] With a data transceiver capacity of 20,000 frames/sec. at reception and 5,000 frames/sec. when transmitting, combined with a 1500 frame reception buffer and automatic retransmission, this adapter ensures

Technical data:
Item Type:Industrial Grade USB to CAN FD Adapter
Material: aluminium alloy.
USB interface: 5V (direct powered by USB port, no additional power required)
CAN/CAN-FD Interface:
Number of CAN/CAN FD channels: Two: CAN1 and CAN2 (independent and unaffected, fully insulated, isolation voltage 3000V DC)

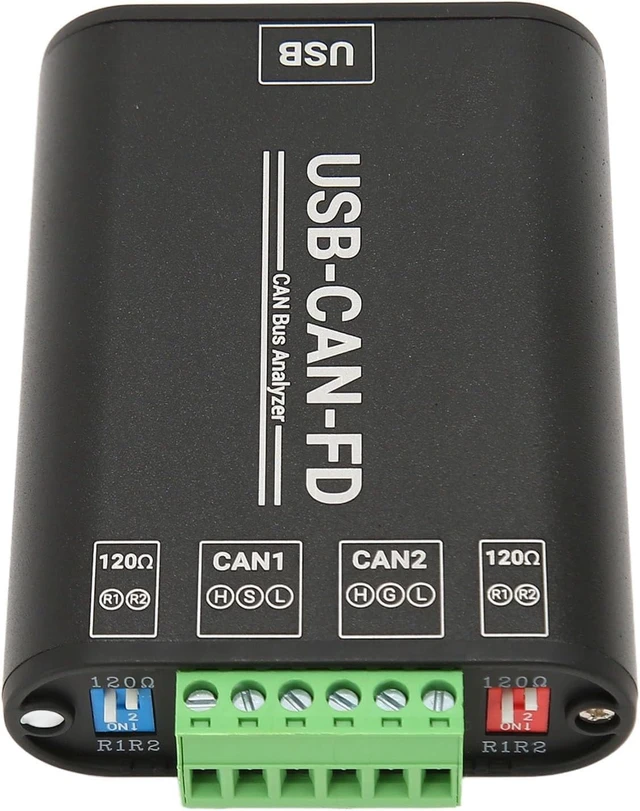

Interface: Terminal (OPEN6 grid 5.08 mm)
MATCHING RESISTORS: Two 120 terminating resistors are built in for each CAN/CAN FD, which can be activated by a switch.
Communication rate: 100 Kbps to 5 Mbps (configurable via software)
Protocol support: CAN2.0A and 2.0B, ISO 11898 1 CAN FD protocol specification V.1.0 protocols
Data transceiver capacity: 20,000 frames/sec For each CAN/CAN FD reception, 5,000 frames/sec. For any CAN/CAN FD sending.
Data transceiver buffer: 1500 frames per CAN/CAN FD receiving buffer, 64 frames per CAN/CAN FD transmission buffer (automatic retransmission in case of transmission error)

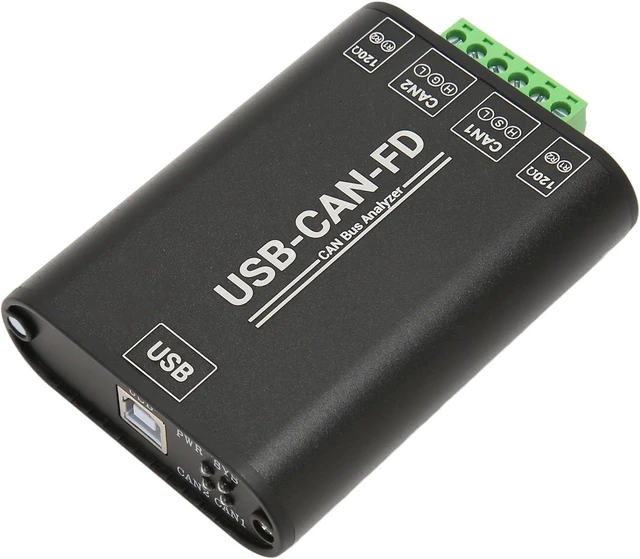

Indicator light:
WR: power indicator.
SYS: system status indicator, normally off; if there is an error on the bus, it is always on.
CAN1: CAN1 channel indicator (flashes when sending and receiving data)
CAN2: CAN2 channel indicator (flashes when sending and receiving data)
Supported systems: For XP/7/8/10/11 (32 bit and 64 bit), not supported for systems.
Size: approx. 96 x 104 x 70 x 25 mm / 3.8 x 4.1 x 2.8 x 1.0 inches.

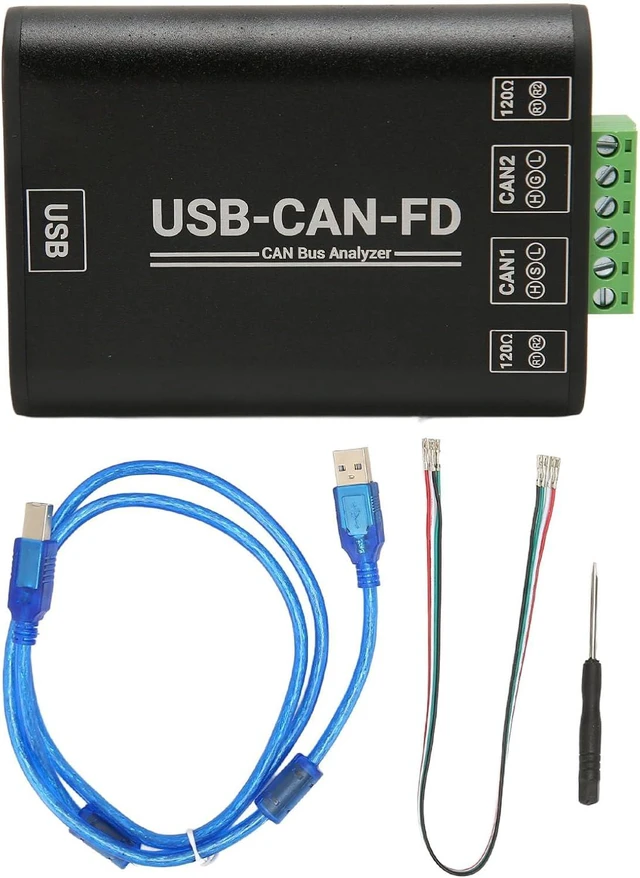

Package list:
1 x communication module.
1 x USB cable.
1 x connection cable.
1 x screwdriver.

Note:
Not supported for systems.
