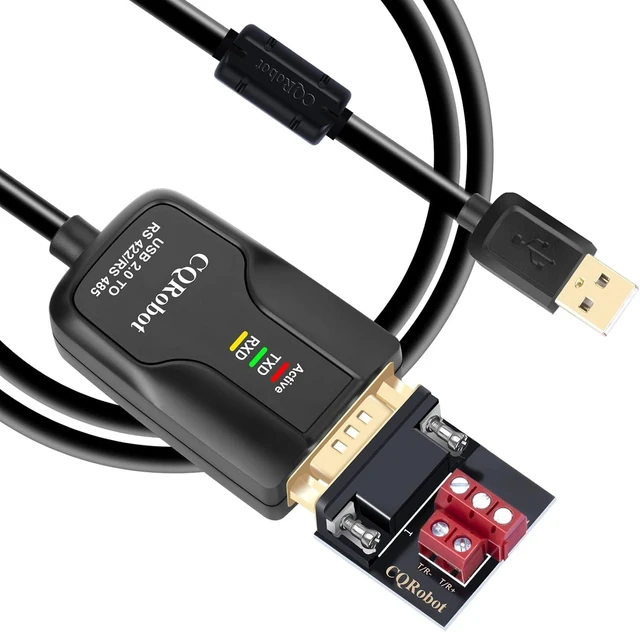

CQRobot Industrial 10.5 ft USB to RS485/RS422 Serial Port Adapter Cable
- The USB to RS422 or RS485 converter has a built-in high-performance FTDI chipset FT232 chip, allowing you to quickly connect RS422 or RS485 devices to the USB port of your laptop.
- The serial port converter is very suitable for industrial environments. It provides 600 watt surge protection and 15KV ESD isolation protection on all signal pins to protect expensive and usually sensitive control equipment from electrical damage.
- The converter has a built-in zero-delay automatic transceiver, and the unique I/O circuit automatically controls the data flow without any handshake signal. (Such as RTS, DTR, etc.) and jumper sets to achieve full-duplex, half-duplex mode conversion, support 32 node devices.
- There are no IRQ and COM port conflicts, since the port do not require any additional IRQ, DMA, memory as resources on the system; RS422 for Half duplex and RS485 for Full duplex communication.
- Comply with FCC, CE, RoHs standards, With power, TX and RX LED indicators to check connection and
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
With the continuous development of the PC industry, USB interface is substituting the old industrial and low speed PC interface, but there are so much important equipment still use the RS422/RS485 interface in the industrial environment. So many users have to use the USB to RS422/RS485 converter to realize the data transfer between PC and RS422/RS485 equipment.
USB to RS422/RS485 CABLE is auniversal converter of USB to RS422/RS485. which is without addition power supply, compatible with USB, RS422, RS485 standards, It can convert USB signals to a balanced differential RS422 or RS485 signals. Each line has surge protection, and various surge voltage protections. The tiny capacitance distance RS422/RS485 interface of high-speed transmission. RS422, RS485 connect by RJ45 and DB9 interface. Converter with zero delay automatic transceiver inside, unique I/O circuit automatically control data flow direction, without any handshake signals (such as RTS, DTR, etc.) and jumpers set realize full-duplex, half-duplex mode conversion, plug and play. Ensure the product fix for all existing communication software and hardware interface.

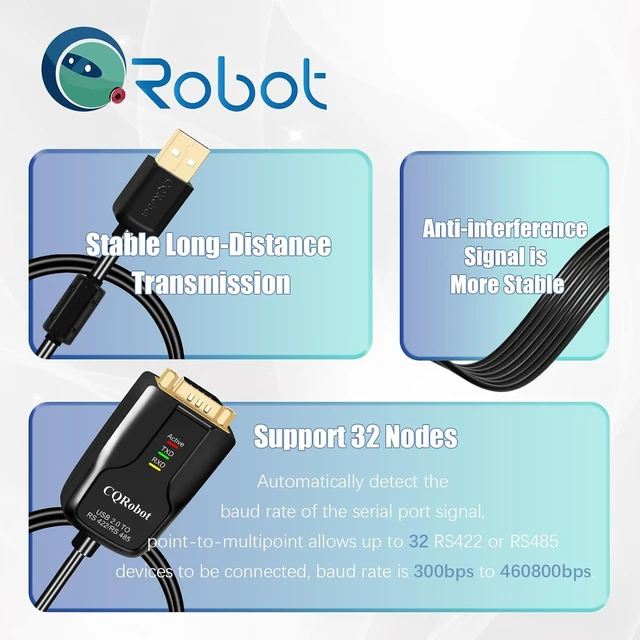

Interface converter can provide point-to-point, point-to-multipoint communication and provide reliable connections. Point-to-multipoint each converter can be connected to 32 RS422 or RS485 interface devices, transfer rates: 921600bps to 300M, 38400bps to 600M, 9600bps to 1.2KM, with power indicator light and quantity indicator can indicate the fault condition. Supported communication methods are USB to RS422, USB to RS485 conversion.
USB to RS422 / RS485 converter supports approximately four types of communication:
point to point - four full-duplex
point to multi-point - four full-duplex
point to point - two half-duple
point to multi-point - two half-duplex
When the converter is working at full-duplex, need to add a matched resustance to avoid reflects and disturbance of signal.(120, 1/4W)

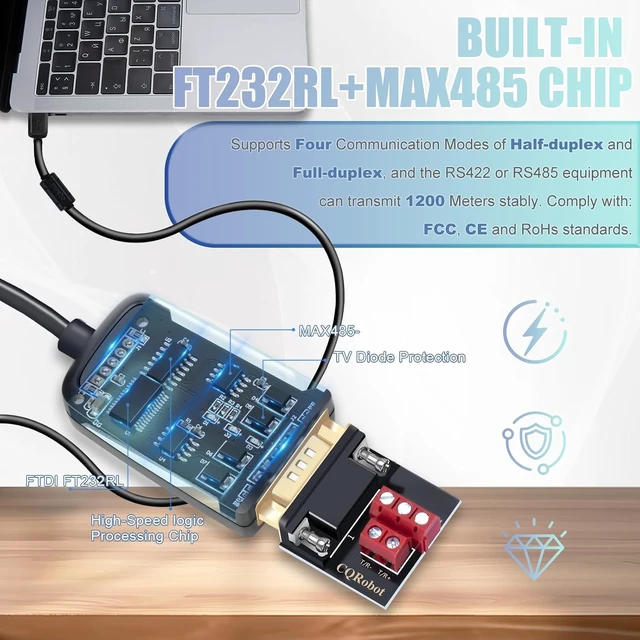

Chip: Built-in FTDI chipset FT232 chip;

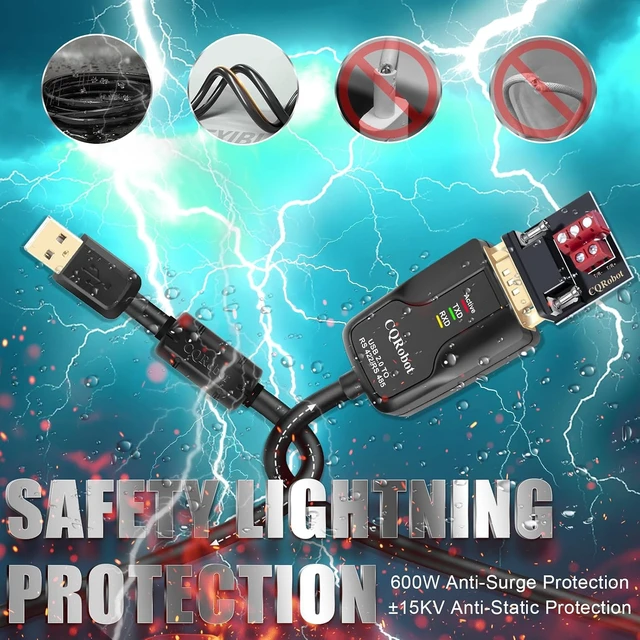

Interface protection: 600 W surge protection, plus / minus 15KV ESD protection;
Interface: USB A Male, DB9 Male;
Signal indicator: Active (power), TXD (data transmission), RXD (data reception).
Certification: FCC, CE, RoHs;
Standards: Compatible with USB 2.0, downward compatibility and standard RS422, RS485
USB signal: VCC, DATA +, DATA-, GND;

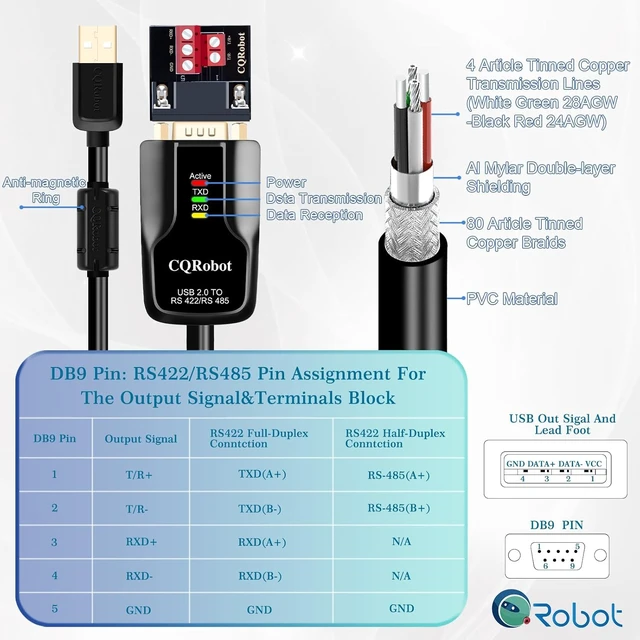

RS422 signal: T / R +, T / R-, RXD +, RXD, GND;
RS485 signal: T / R +, T / R, GND.

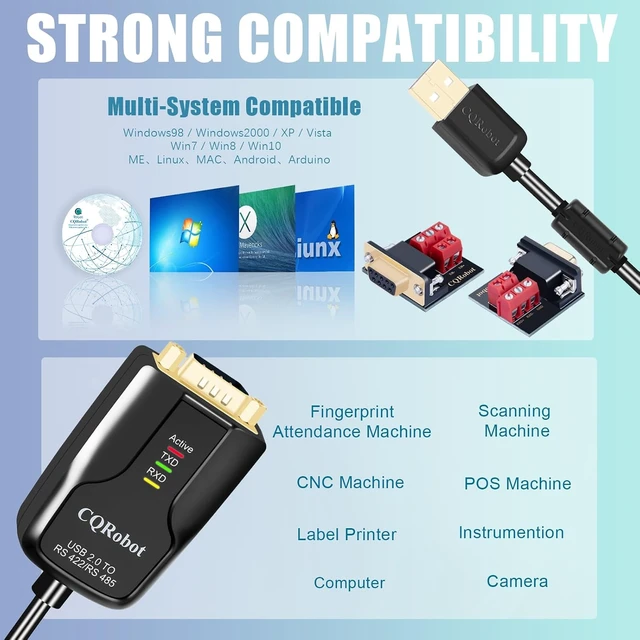

Support Windows 98 / Windows 2000 / XP / Vista / Win 7 / Win 8 / Win 10 / ME, Linux, MAC, Android, Arduino and other systems.
It comes with a DB9 to 5P port splitter, Plug and Play, easy and convenient.
Certification FCC, CE, RoHs; Standards Compliant with USB 2.0, downward compatibility, and standard RS422, RS485; USB Signal VCC, DATA+, DATA-, GND; RS422 Signal T/R+, T/R-, RXD+, RXD, GND; RS485 Signal T/R+, T/R, GND; Interface USB A Male, DB9 Male; Transmission Media: Transmission Rate: 300bps to 921600bps, automatically detects serial signal rate; 921600bps at 300M, 38400bps at 600M, 9600bps at 1.2KM; Operating Environment -25 Degree Celsius to +70 Degree Celsius, relative humidity at 5% to 95%; Interface Protection 600W surge protection, Plus/Minus 15KV Esd protection; Signal Indicator Green Light Active (power), TXD (data transmission), RXD (data reception); Working Mode Asynchronous working, point-to-point or point-to-more, full duplex 4-line, half duplex 2-line; Directional Control Using data flow automatic control technology, automatic control and data transmission criterion; Load Capacity Support to more each converter allows connecting 32 RS422 interface RS485 or equipment; Transmission Range Twisted-pair or shielded wire; 1200 Meter of RS422/485, 5 Meter of USB cable.
1 * CD Driver
1 * User's Guide
1 * DB9 to 5P Converter
1 * USB to RS422 / RS485 Converter
Double Shielding Strong Compatibility Compatible System Wiring Device Specification Interface and Signal
