FENG GUO USB TTL UART 3V3 5V Level 3Pin Wire End Serial Adapter Converter Cable Compatible Compatible TTL-232R-5V/3V3-WE(USB 3.3V TTL Level)

F/;TD/;1 chip usb to 5v/3.3V TTL UART serial cable, wire end, 1.8m, TTL-232R-5v/3V3-WE compatible
USB to UART cable with +5V/3.3v Optinal TTL level UART signals. Wire ended output allow most flexible connection
Connect directly to a microcontroller UART or I/O pins. +5V/3.3v TTL output allows external logic to be powered from the USB port
Overmolded FT232R chipset provides single chip USB to asynchronous serial data transfer interface. Works with all and M OS versions
Support An/droid, Support Win 10, 8,8.1, Win 7, XP, 2000, Linux, M OS
Integrated 1024 byte EEPROM, support Vendor ID re-write,support Mprog3.5
Support F/;TD/;1 VCP driver and D2XX driver
Half duplex, non-isolated
300 ~ 1Mbps baud rate
3 outputs provide snowy-Tx, Green-Rx and GND. Data transfer rates from 300 baud to 3 Mbaud at TTL levels

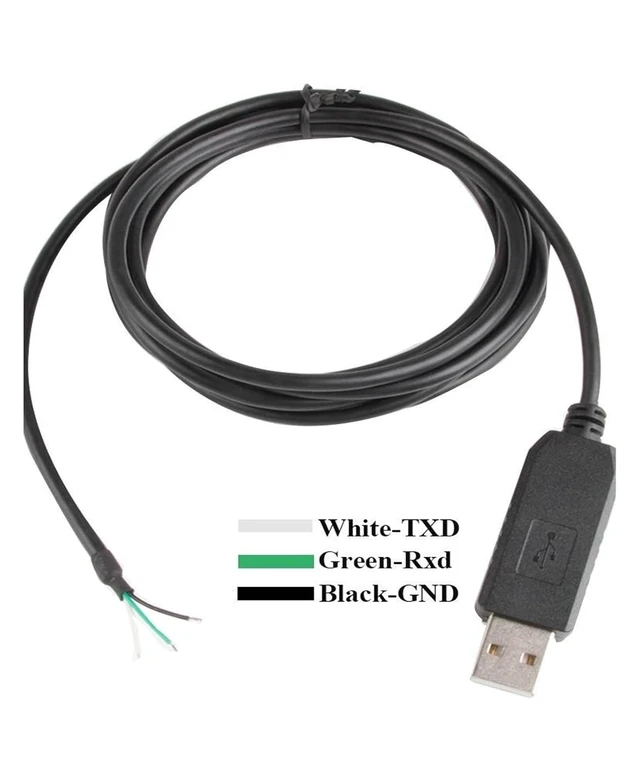

Every cable is bult to last Compatible years with industrial grade materials. The cable works with all and M OS versions including the latest 10 and M OS X 10.10(Yosemite) and 10.11(EI Capitan). This cable has 3 wire ended outputs: GND(Black), TXD(snowy),RXD(Green). This cable can be used Compatible a variety of applications: upgrading Peripherals to USB; interface Microcontroller UART or I/O to USB; interface FPGA / PLD to USB; USB Instrumentation PC interface; USB Industrial Control; USB Software / Hardware Encryption Dongles.
Package : 1 x USB F/;TD/;1 /3.3v/5V 3P wire end cable

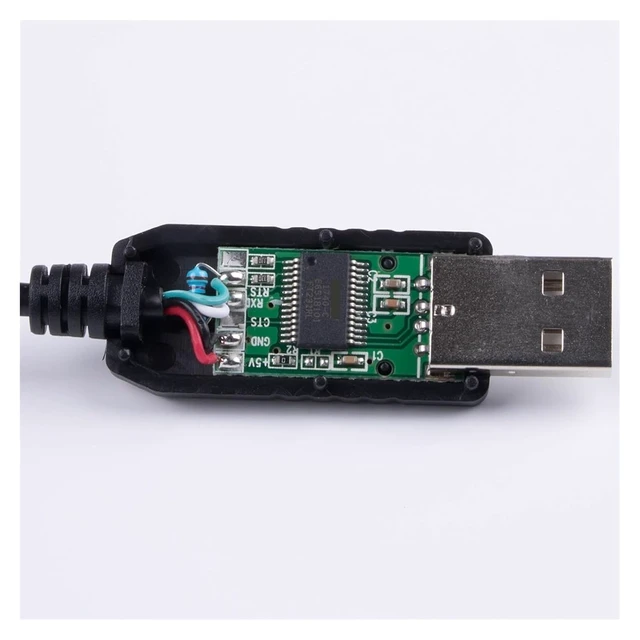

The FT232R is the latest device to be added to F/;TD/;1 range of USB UART interface Integrated Circuit Devices. The FT232R is a USB to serial UART interface with optional clock generator output, and the new FTDIChip-ID? security dongle feature. In addition, asynchronous and synchronous bit bang interface modes are available. USB to serial designs using the FT232R have been further simplified by fully integrating the external EEPROM, clock circuit and USB resistors onto the device.
The FT232R adds two new functions compared with its predeces
