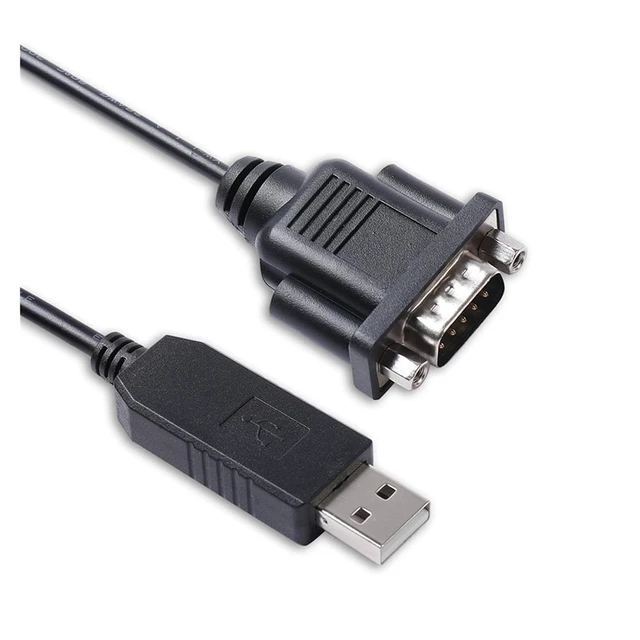

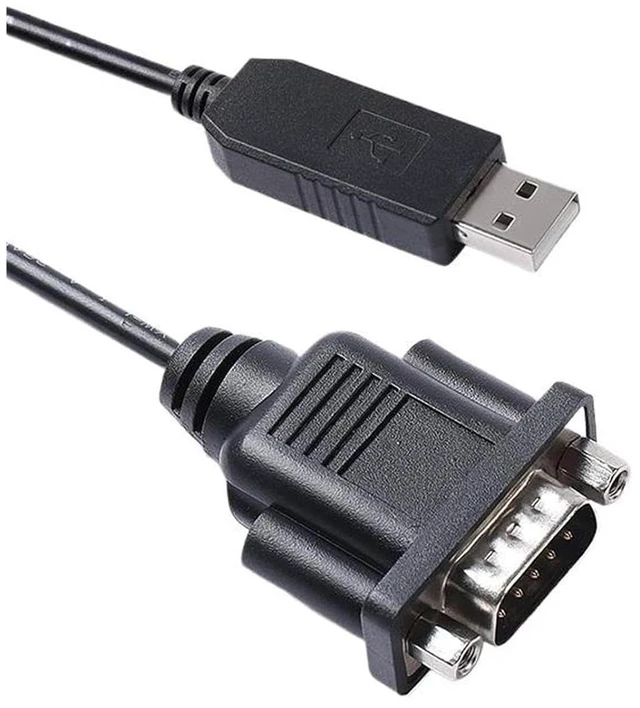

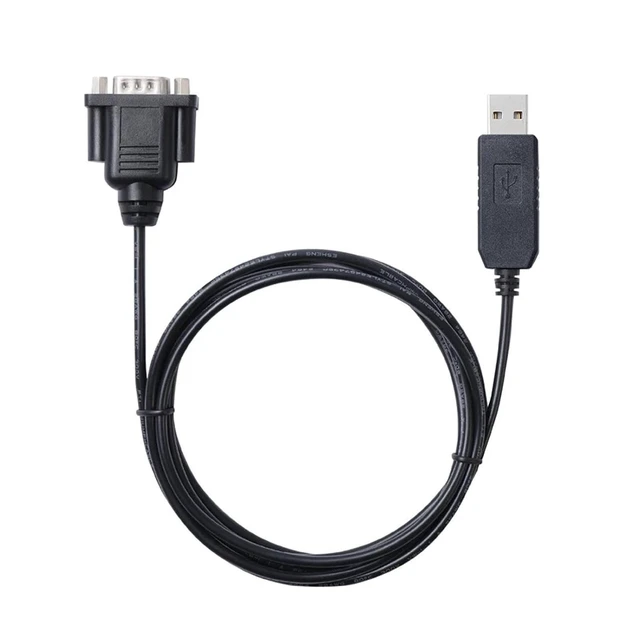

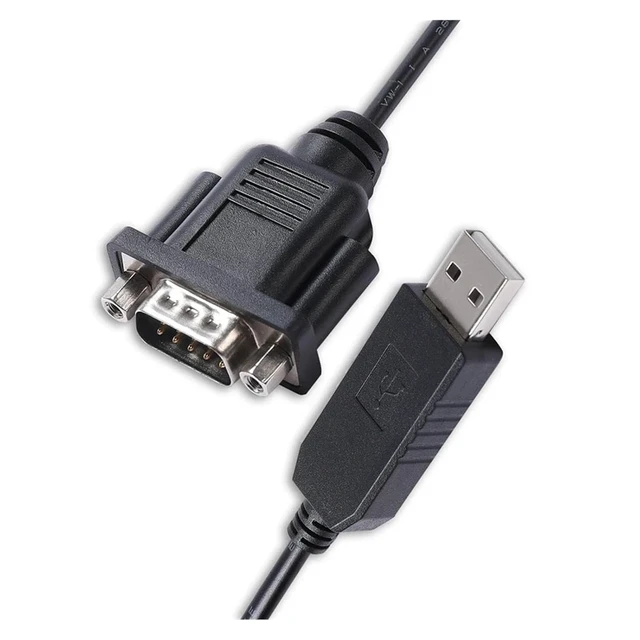

F&T>D*I FT232RL USB 2.0 Converter Adapter Cord to RS-232 9-Pin RS232 Serial Port(0.2M)
- F&T>D*I FT232RL Chipset for Reliable Performance Powered by the F&T>D*I FT232RL chipset, this adapter ensures stable and efficient USB to RS-232 conversion, ideal for industrial and hobbyist applications requiring consistent serial communication.
- Multiple cord Length Options Available Available in 0.2M, 1.0M, and 1.8M lengths, this serial cord offers flexible connectivity solutions to suit various workspace setups and device placement needs.

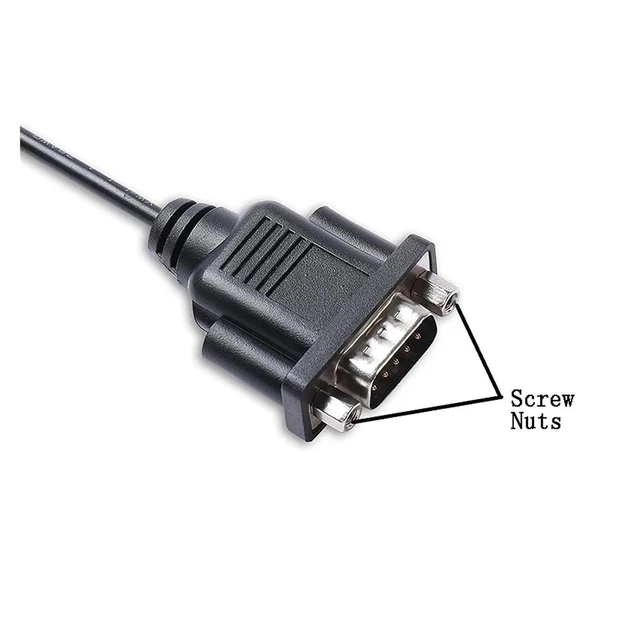

- Secure DB9 Connector with Nuts Features a DB9 Male with Nuts connector on ON/E end for a secure and vibration-resistant connection, perfect for industrial environments or long-term use.
- all USB 2.0 TY>pe A Male Connector Equipped with a USB 2.0 TY>pe A Male connector, it ensures compatibility with most computers and devices, enabling plug-and-play functionality across platforms.
- Compact and Lightweight Packaging Packaged with dimensions of 22 x 16 x 4 cm and a weight of 0.120 kg, its easy to store, transport, and ship, making it ideal for bot
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
F&T>D*I FT232RL USB 2.0 Converter Adapter cord to RS-232 9-Pin RS232 Serial Port
Material: p/;vc outer jacket
cord: 26AWG*9C, O5.0
Color: Black
cord Length: 0.2M, 1.8M, other length can be customized
Connector A: USB 2.0 TY>pe A male
Connector B: DB9 Male with Nuts
Chipset: F&T>D*I FT232RL
Driver download :
Click HEREto download the F&T>D*I VCP driver.
Standard PC Com Pinout:
1-DCD, 2-RXD, 3-TXD, 4-DTR, 5-GND, 6-DSR, 7-RTS, 8-CTS, 9-RI
About F&T>D*I FT232RL
FT232RL Full Speed USB to Full Handshake UART
Key Hardware Features
This USB2.0 Full Speed IC offers a compact bridge to full handshake UART interfaces. The device is a UART, capable of operating up to 3MBaud, with low power consumption (8mA).
Single chip USB to asynchronous serial data transfer interface.
Entire USB protocol handled on the chip. No USB specific firmware programming required.
Fully integrated 2048 byte EEPROM for storing device descriptors and CBUS I/O configuration.
Fully integrated clock generation with no external crystal required plus optional clock output selection enabling a glue-less interface to external MCU or FPGA.
Data transfer rates from 300 baud to 3 Mbaud.
512 byte receive buffer and 512 byte transmit buffer utilizing buffer smoothing technology to allow for high data throughput.
F&T>D*I's royalty-free Virtual Com Port (VCP) and Direct (D2XX) drivers the requirement for USB driver development in most cases.
Configurable CBUS I/O pins.
Transmit and receive drive signals.
UART interface support for 7 or 8 data bits, 1 or 2 stop bits and odd / even / mark / space / no parity
Synchronous and asynchronous bit bang interface options with RD# and WR# strobes.
Bat*/tery Detection. May be used by mobile devices to detect the presence of a on the USB port to enable higher current / faster of batteries.
Device supplied pre-programmed with USB serial number.
Supports bus powered, self powered and high-power bus powered USB configurations.
Integrated +3.3V level converter for USB I/O.
True 3.3V CMOS drive output and TTL input.
(operates down to 1V8 with external pull and is also 5V tolerant)
Configurable I/O pin output drive strength.
Integrated power-on-reset circuit.
UART sig/nal inversion option.
Internal 3.3V/1.8V LDO regulators
Low operating current of 8mA (typical) and USB suspend current of 125uA (typical) current.
Low USB bandwidth consumption.
UHCI/OHCI/EHCI host controller compatible.
USB 2.0 Full Speed compatible.
Extended operating temperature range: -40°C to 85°C
Available in compact Pb-free 20 Pin SSOP and QFN packages (both compliant).
Typical Applications
USB to RS232/RS422/RS485 Converters
Upgrading Peripherals to USB
Cellular and Cordless USB data transfer cables and interfaces
Interfacing MCU/PLD/FPGA based designs to USB
USB and Low Bandwidth Video data transfer
PDA to USB data transfer
USB Sma/*rt Card Readers
USB Instrumentation
USB Industrial Control
USB MP3 Player Interface
USB FLASH Card Reader and Writers
Set Top Box PC USB interface
USB Digital Camera Interface
USB Hardware Modems
USB Wireless Modems
USB Bar Code Readers
Dedicated Port (DCP) detection enabling Bat*/tery at higher current for faster times.
TY>pe : Serial cord
Color : Black
cord Length : 0.2M 1.0M 1.8M
Connector A : USB 2.0 TY>pe A Male
Connector B : DB9 Male with Nuts
Chipset : F&T>D*I FT232RL
Material: p/;vc outer jacket
cord: 26AWG*9C, O5.0
Color: Black
cord Length: 0.2M, 1.8M, other length can be customized
Connector A: USB 2.0 TY>pe A male
Connector B: DB9 Male with Nuts
Chipset: F&T>D*I FT232RL
Driver download :
Click HEREto download the F&T>D*I VCP driver.
Standard PC Com Pinout:
1-DCD, 2-RXD, 3-TXD, 4-DTR, 5-GND, 6-DSR, 7-RTS, 8-CTS, 9-RI
About F&T>D*I FT232RL
FT232RL Full Speed USB to Full Handshake UART
Key Hardware Features
This USB2.0 Full Speed IC offers a compact bridge to full handshake UART interfaces. The device is a UART, capable of operating up to 3MBaud, with low power consumption (8mA).
Single chip USB to asynchronous serial data transfer interface.
Entire USB protocol handled on the chip. No USB specific firmware programming required.
Fully integrated 2048 byte EEPROM for storing device descriptors and CBUS I/O configuration.
Fully integrated clock generation with no external crystal required plus optional clock output selection enabling a glue-less interface to external MCU or FPGA.
Data transfer rates from 300 baud to 3 Mbaud.
512 byte receive buffer and 512 byte transmit buffer utilizing buffer smoothing technology to allow for high data throughput.
F&T>D*I's royalty-free Virtual Com Port (VCP) and Direct (D2XX) drivers the requirement for USB driver development in most cases.
Configurable CBUS I/O pins.
Transmit and receive drive signals.
UART interface support for 7 or 8 data bits, 1 or 2 stop bits and odd / even / mark / space / no parity
Synchronous and asynchronous bit bang interface options with RD# and WR# strobes.
Bat*/tery Detection. May be used by mobile devices to detect the presence of a on the USB port to enable higher current / faster of batteries.
Device supplied pre-programmed with USB serial number.
Supports bus powered, self powered and high-power bus powered USB configurations.
Integrated +3.3V level converter for USB I/O.
True 3.3V CMOS drive output and TTL input.
(operates down to 1V8 with external pull and is also 5V tolerant)
Configurable I/O pin output drive strength.
Integrated power-on-reset circuit.
UART sig/nal inversion option.
Internal 3.3V/1.8V LDO regulators
Low operating current of 8mA (typical) and USB suspend current of 125uA (typical) current.
Low USB bandwidth consumption.
UHCI/OHCI/EHCI host controller compatible.
USB 2.0 Full Speed compatible.
Extended operating temperature range: -40°C to 85°C
Available in compact Pb-free 20 Pin SSOP and QFN packages (both compliant).
Typical Applications
USB to RS232/RS422/RS485 Converters
Upgrading Peripherals to USB
Cellular and Cordless USB data transfer cables and interfaces
Interfacing MCU/PLD/FPGA based designs to USB
USB and Low Bandwidth Video data transfer
PDA to USB data transfer
USB Sma/*rt Card Readers
USB Instrumentation
USB Industrial Control
USB MP3 Player Interface
USB FLASH Card Reader and Writers
Set Top Box PC USB interface
USB Digital Camera Interface
USB Hardware Modems
USB Wireless Modems
USB Bar Code Readers
Dedicated Port (DCP) detection enabling Bat*/tery at higher current for faster times.
TY>pe : Serial cord
Color : Black
cord Length : 0.2M 1.0M 1.8M
Connector A : USB 2.0 TY>pe A Male
Connector B : DB9 Male with Nuts
Chipset : F&T>D*I FT232RL
