FENG GUO Factory Supply USB to Optical Near Infrared Irda IR Adapter Serial Interface Adapter Cable Compatible Slimme Meter Reading

Factory Supply USB to Optical Near Infrared Irda IR Adapter Serial Interface Adapter Cable Compatible Slimme Meter Reading
Specifications and parameters of the entire cable:

Hardware parameters: Build American CP2102 chip, powered by USB interface, without the need Compatible external power supply,

Standard: transparent transmission, supporting multiple communication protocols such as IEC62056-21, IEC1107, DLMS, MODBUS, etc

USB&Driver Supports multiple versions of operating systems, MacOS, Linux, and other systems;

Baud rate: Communication baud rate supports 300-19200bps

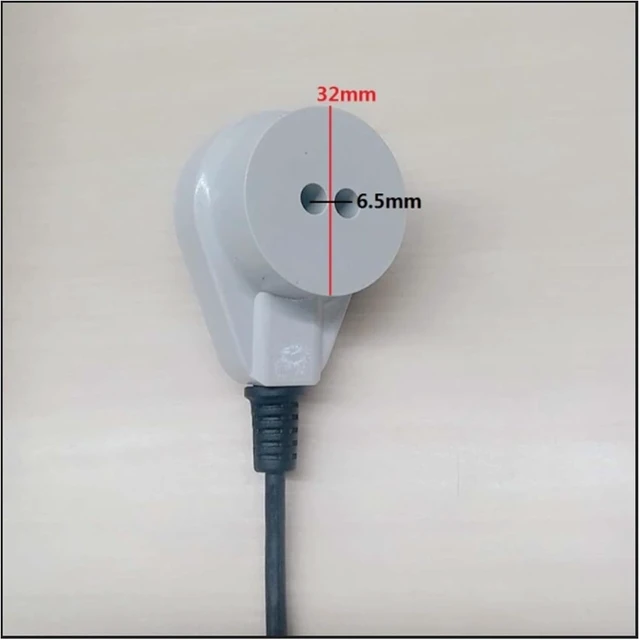

Overall dimensions: diameter: 32mm, transmitting and receiving spacing: 6.5mm

Installation: 25mm * 15mm * 5mm galvanized with strong adsorption (as specified in IEC62056)

Environment: specified working range -25 -70

length: 2.0M

CP2102 Driver, please click here Compatible CP2102 Driver

About CP2102
Single-Chip USB to UART Data Transfer
-Integrated USB transceiver; no external resistors required
-Integrated clock; no external crystal required
-Internal 1024-byte programmable ROM Compatible vendor ID, product ID, serial number, power descriptor, release number, and product description strings
- EEPROM (CP2102)
- EPROM (o/n;e-time programmable) (CP2109)
-On-chip power-on reset circuit
-On-chip voltage regulator
- 3.3 V output (CP2102)
- 3.45 V output (CP2109)
-100/% pin and software compatible with CP2101
USB Function Controller
-USB Specification 2.0 compliant; full-speed (12 Mbps)
-USB suspend states supported via SUSPEND pins
Asynchronous Serial Data BUS (UART)
-All handshaking and modem interface signals
-Data formats supported:
- Data bits: 5, 6, 7, and 8
- Stop bits: 1, 1.5, and 2
- Parity: odd, even, mark, space, no parity
-Baud rates: 300 bps to 1 Mbps
-576 Byte receive buffer; 640 byte transmit buffer
-Har
