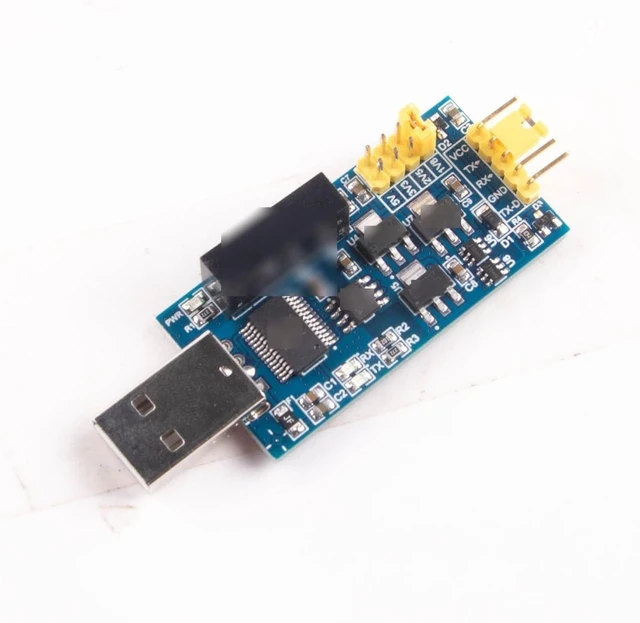

EVURU FT232RL Magnetically Isolated USB to T-T-L U-A-R-T Level 1.8v 2.5v 3v3 5v Serial Port Converter Module Adapter (Color : 1v8 2v5 3v3 5v TTL)
- The latest generation of ADI ma~netic isolation chip ADU3201 has fast speed, high waveform, and power consumption is significantly lower than that of photoelectric isolation.
- On-board large-spacing isolated power supply, no need Compatible With external power supply, just plug in the USB interface to use.
- Increase the isolation gap and slot the PCB to better avoid creepage and improve safety performance.
- Integrated protection diode to improve protection ability.
- USB-A male connector, no need to connect cable, directly plug into the computer USB port to use.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Welcome to my small store, where you can find unique products and high-quality services, providing you with a better service experience
FT232RL Magnetically isolated USB to TTL serial port (ie UART, COM port)
MCS-88 is a magnetically isolated USB to TTL serial interface (ie UART/COM port), the main control uses FTDI USB chip FT232RL, originally designed by DBS Technology, with 1000V DC isolation voltage and reliable communication speed up to 3Mbps, USB The side and TTL side are completely isolated, which fully guarantees the safety of the computer and effectively reduces interference.
FT232RL main control, the industry's excellent USB-to-serial chip, a stable choice Compatible With industrial applications.
The latest generation of ADI ma~netic isolation chip ADU3201 has fast speed, high waveform, and power consumption is significantly lower than that of photoelectric isolation.
On-board large-spacing isolated power supply, no need Compatible With external power supply, just plug in the USB interface to use.
Increase the isolation gap and slot the PCB to better avoid creepage and improve safety performance.
Integrated protection diode to improve protection ability.
USB-A male connector, no need to connect cable, directly plug into the computer USB port to use.
The communication level can be conveniently switched to 5V or 3.3V through the jumper cap (four-level models support 2.5V/1.8V).
VCC can output voltage 5V or 3.3V (four-level model supports 2.5V/1.8V). , The communication level and VCC can be the same or different.
TX leads to TX-D (open-drain output) through the reverse diode, which is convenient Compatible With programming STC single-chip microcomputer, and avoids incomplete programming failure after power failure.
On-board power supply, sending and receiving three L indicators, and observe the
typical application
Isolation USB to TTL serial communication and debugging equipment under high-voltage dange
FT232RL Magnetically isolated USB to TTL serial port (ie UART, COM port)
MCS-88 is a magnetically isolated USB to TTL serial interface (ie UART/COM port), the main control uses FTDI USB chip FT232RL, originally designed by DBS Technology, with 1000V DC isolation voltage and reliable communication speed up to 3Mbps, USB The side and TTL side are completely isolated, which fully guarantees the safety of the computer and effectively reduces interference.
FT232RL main control, the industry's excellent USB-to-serial chip, a stable choice Compatible With industrial applications.
The latest generation of ADI ma~netic isolation chip ADU3201 has fast speed, high waveform, and power consumption is significantly lower than that of photoelectric isolation.
On-board large-spacing isolated power supply, no need Compatible With external power supply, just plug in the USB interface to use.
Increase the isolation gap and slot the PCB to better avoid creepage and improve safety performance.
Integrated protection diode to improve protection ability.
USB-A male connector, no need to connect cable, directly plug into the computer USB port to use.
The communication level can be conveniently switched to 5V or 3.3V through the jumper cap (four-level models support 2.5V/1.8V).
VCC can output voltage 5V or 3.3V (four-level model supports 2.5V/1.8V). , The communication level and VCC can be the same or different.
TX leads to TX-D (open-drain output) through the reverse diode, which is convenient Compatible With programming STC single-chip microcomputer, and avoids incomplete programming failure after power failure.
On-board power supply, sending and receiving three L indicators, and observe the
typical application
Isolation USB to TTL serial communication and debugging equipment under high-voltage dange
