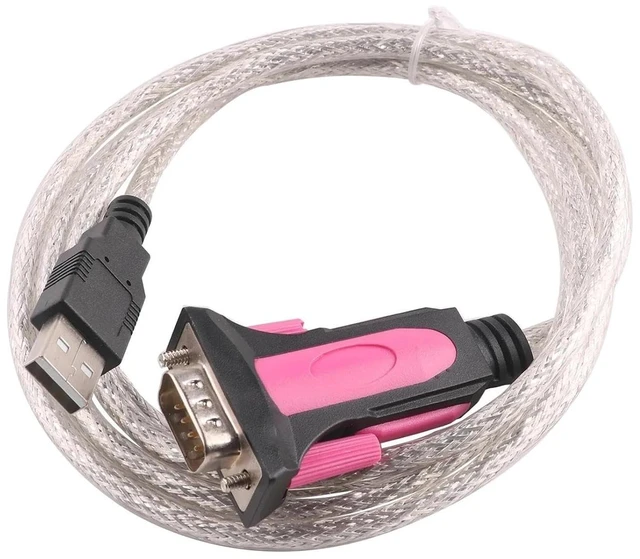

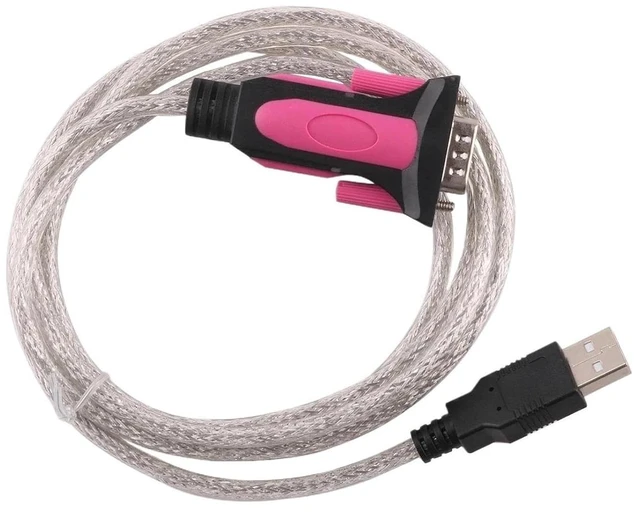

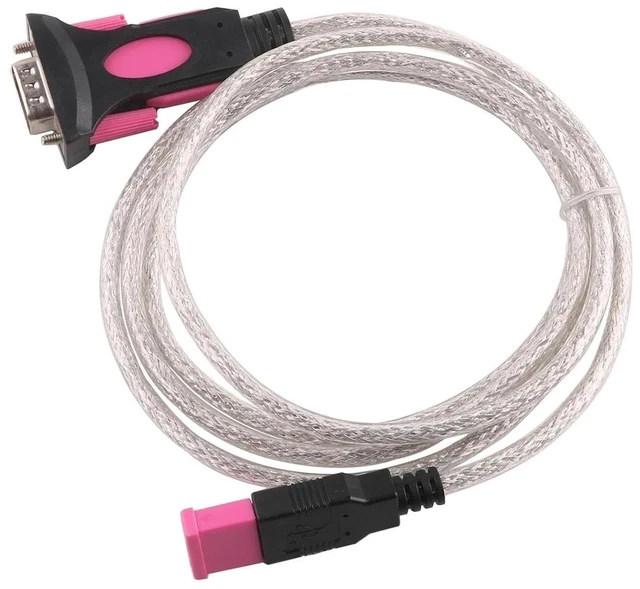

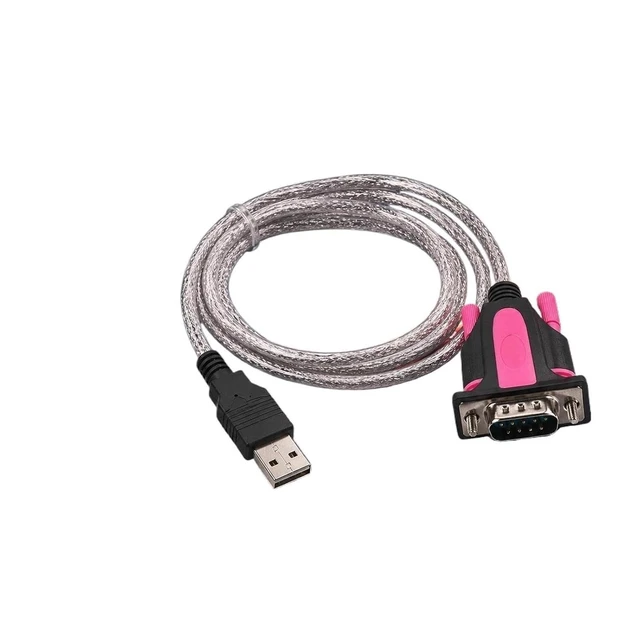

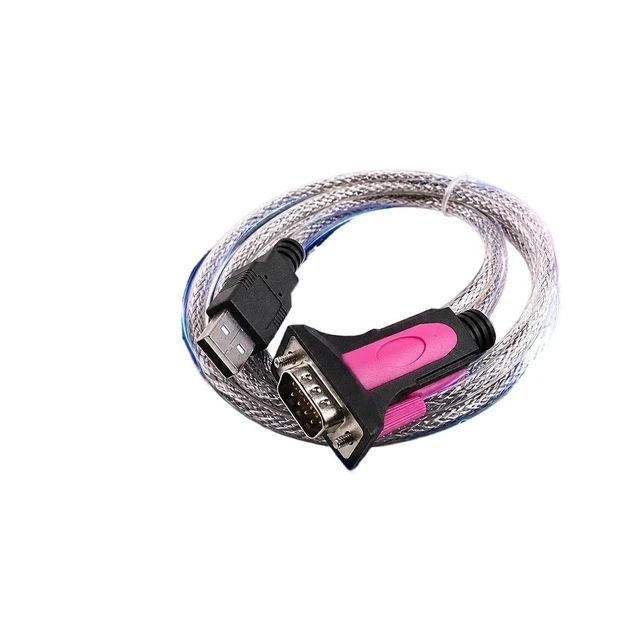

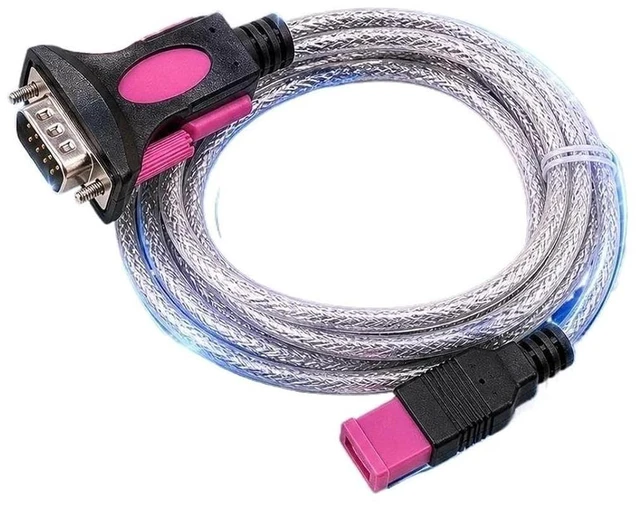

F&T>D*I USB to DB9 9 Pin Port Male Connector RS232 Adapter Serial Programming Cord

F&T>D*I USB to DB9 9 Pin Port Male Connector RS232 Adapter Serial Programming cord
F&T>D*I FT232RL Chip import from UK .
Connector: USB 2.0 to DB9
Gender : Male to Male
Serial : RS232
Material : Environment p/;vc, 28awg Bare Copper Wires
Output Signals : DCD TXD RXD GND VCC CTS RTS DTR DSR CTS RI
Sys/tem Support: Window 7/8/10/11/xp/android/mac os/linux/vista/wince
CE, Compliance
Package: 1 x F&T>D*I USB to DB9 Male Connector RS232 Serial Programming cord
FT232RL features:
Single chip USB to asynchronous serial data transfer interface.
Entire USB protocol handled on the chip - No USB-specific firmware programming required.
UART interface support for 7 or 8 data bits, 1 or 2 stop bits and odd / even / mark / space / no parity.
Fully assisted hardware or X-On / X-Off software handshaking.
Data transfer rates from 300 baud to 3 Megabaud (RS422 / RS485 and at TTL levels) and 300 baud to 1 Megabaud (RS232).
In-built support for event characters and line break condition.
USB FTDIChip-ID? feature.
configurable CBUS I/O pins.
Auto transmit buffer control for RS485 applications.
Transmit and receive drive signals.
48MHz, 24MHz,12MHz, and 6MHz clock output sig/nal Options for driving external MCU or FPGA.
FIFO receive and transmit buffers for high data throughput.
256 Byte receive buffer and 128 Byte transmit buffer utilising buffer smoothing technology to allow for high data throughput.
Adjustable receive buffer timeout.
Synchronous and asynchronous bit bang interface options with RD# and WR# strobes.
CBUS bit bang option.
Integrated 1024 bit internal EEPROM for I/O configuration and storing USB VID, PID, serial number and product description strings.
Device supplied preprogrammed with USB serial number.
Support for USB suspend / resume.
Support for bus powered, self powered, and high-power bus powered USB configurations.
Integrated 3.3V level converter for USB I/O .
Integrated level converter on UART and CBUS for interfacing to 5V - 1.8V Logic.
True 5V / 3.3V / 2.8V / 1.8V CMOS drive output and TTL input.
High I/O pin output drive option.
Integrated USB resistors.
Integrated power-on-reset circuit.
Fully integrated clock - no external crystal, oscillator, or resonator required.
Fully integrated AVCC supply filtering - No separate AVCC pin and no external R-C filter required.
UART sig/nal inversion option.
USB bulk transfer .
3.3V to 5.25V Single Supply Operation.
Low operating and USB suspend current.
Low USB bandwidth consumption.
UHCI / OHCI / EHCI host controller compatible.
USB 2.0 Full Speed compatible.
-40°C to 85°C extended operating temperature range.
Structure : Without modular telephone connectors
USB TY>pe : Standard
Use : Computer
CHIP : F&T>D*I FT232R
INTERFACE : RS232
OUTPUT : TXD RXD GND VCC CTS RTS VCC DTR DSR
