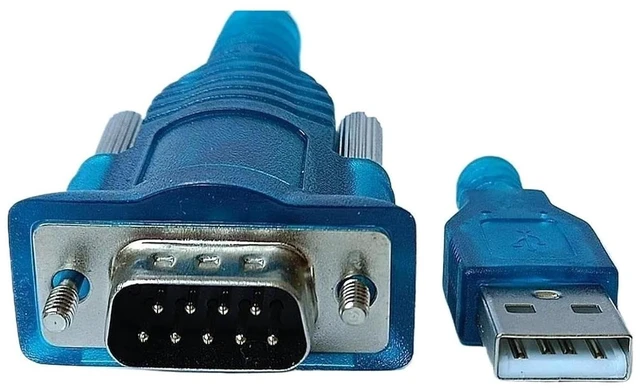

USB RS232 Serial Interface Cord F&T>D*I Chip RS-232 to Converter for Receipt Label Ticket Thermal Printer(100cm,Transparent Blue)
- All USB to RS232 Converter This USB to RS232 Converter cord enables seamless connection between USB devices and RS232 equipment, ensuring compatibility with older systems and industrial hardware.
- High-Performance F&T>D*I Chip Powered by the FT231XS ZT213 chip, this adapter delivers stable, high-speed data transfer with reliable communication and minimal latency for consistent performance.
- Multiple Length Options Available Available in four lengths: 15cm, 100cm, 180cm, and 300cm, this cord offers flexibility for various setup needs, from compact desktop use to extended industrial applications.

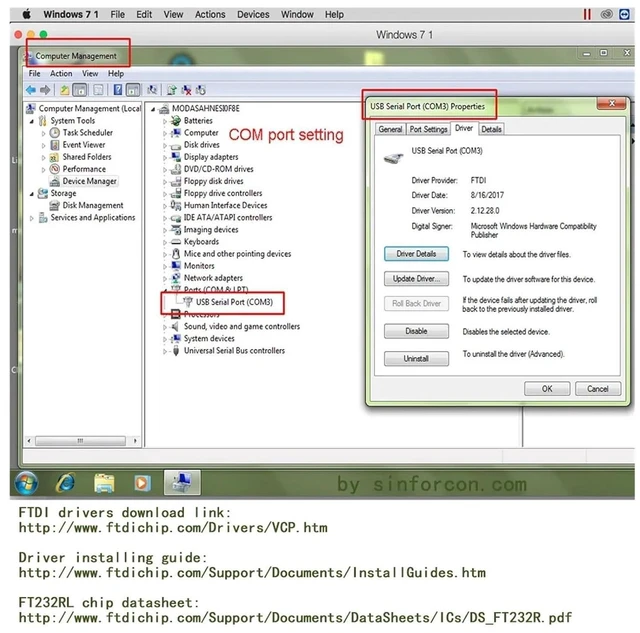

- Plug-and-Play with Driver Support For optimal use, install the driver before use as noted. The cord is for easy integration with , macOS, and Linux systems after driver setup.
- Durable and Compact Design Featuring a black or transparent blue finish, the cord combines aesthetic appeal with durability. The compact design supports easy storage and portability.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
F&T>D*I USB RS232 Serial Adapter for ticket/label/thermal/receipt printer
28AWG*2C+28AWG*1P+48B+D+AL, OD4.0mm
Support Win XP/7/8/10, An/dro/id usb serial drivers
F&T>D*I FT232R chip

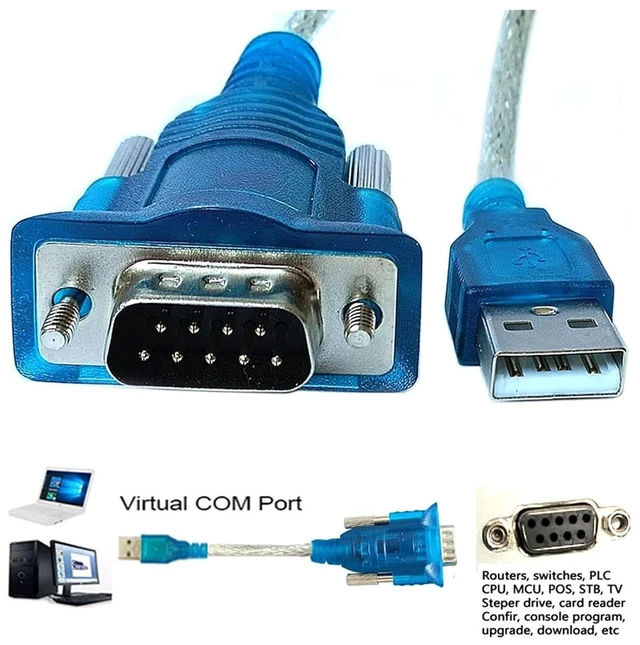

USB to RS232 DB9 COM port standard pinout:
1-DCD 2-RXD 3-TXD 4-DTR 5-GND 6-DSR 7-RTS 8-CTS 9-RI
About FT231X
Single chip USB to asynchronous serial data transfer interface.
Entire USB protocol handled on the chip. No USB specific firmware programming required.
Fully integrated 2048 byte EEPROM for storing device descriptors and CBUS I/O configuration.
Fully integrated clock generation with no external crystal required plus optional clock output selection enabling a glue-less interface to external MCU or FPGA.
Data transfer rates from 300 baud to 3 Mbaud.
512 byte receive buffer and 512 byte transmit buffer utilising buffer smoothing technology to allow for high data throughput.
F&T>D*I royalty-free Virtual Com Port (VCP) and Direct (D2XX) drivers the requirement for USB driver development in most cases.
Configurable CBUS I/O pins.
Transmit and receive drive signals.
UART interface support for 7 or 8 data bits, 1 or 2 stop bits and odd / even / mark / space / no parity
Synchronous and asynchronous bit bang interface options with RD# and WR# strobes.
Bat*/tery Detection. May be used by mobile devices to detect the presence of a on the USB port to enable higher current / faster of batteries.
Device supplied pre-programmed with USB serial number.
Supports bus powered, self powered and high-power bus powered USB configurations.
Integrated +3.3V level converter for USB I/O.
True 3.3V CMOS drive output and TTL input.
(operates down to 1V8 with external pull and is also 5V tolerant)
Configurable I/O pin output drive strength.
Integrated power-on-reset circuit.
UART sig/nal inversion option.
Internal 3.3V/1.8V LDO regulators
Low operating current of 8mA (typical) and USB suspend current of 125uA (typical) current.
Low USB bandwidth consumption.
UHCI/OHCI/EHCI host controller compatible.
USB 2.0 Full Speed compatible.
Extended operating temperature range: -40c to 85c
Available in compact Pbfree 20 Pin SSOP and QFN packages (both compliant).
Typical application
USB to RS232/RS422/RS485 Converters
Upgrading Peripherals to USB
Cellular and Cordless USB data transfer cables and interfaces
Interfacing MCU/PLD/FPGA based designs to USB
USB and Low Bandwidth Video data transfer
PDA to USB data transfer
USB Sma/*rt Card Readers
USB Instrumentation
USB Industrial Control
USB MP3 Player Interface
USB FLASH Card Reader and Writers
Set Top Box PC - USB interface
USB Digital Camera Interface
USB Hardware Modems
USB Wireless Modems
USB Bar Code Readers
Dedicated Port (DCP) detection enabling Bat*/tery at higher current for faster times.
TY>pe : USB Adapter
Chip : FT231XS ZT213
Name : USB to RS232 Converter cord
28AWG*2C+28AWG*1P+48B+D+AL, OD4.0mm
Support Win XP/7/8/10, An/dro/id usb serial drivers
F&T>D*I FT232R chip
USB to RS232 DB9 COM port standard pinout:
1-DCD 2-RXD 3-TXD 4-DTR 5-GND 6-DSR 7-RTS 8-CTS 9-RI
About FT231X
Single chip USB to asynchronous serial data transfer interface.
Entire USB protocol handled on the chip. No USB specific firmware programming required.
Fully integrated 2048 byte EEPROM for storing device descriptors and CBUS I/O configuration.
Fully integrated clock generation with no external crystal required plus optional clock output selection enabling a glue-less interface to external MCU or FPGA.
Data transfer rates from 300 baud to 3 Mbaud.
512 byte receive buffer and 512 byte transmit buffer utilising buffer smoothing technology to allow for high data throughput.
F&T>D*I royalty-free Virtual Com Port (VCP) and Direct (D2XX) drivers the requirement for USB driver development in most cases.
Configurable CBUS I/O pins.
Transmit and receive drive signals.
UART interface support for 7 or 8 data bits, 1 or 2 stop bits and odd / even / mark / space / no parity
Synchronous and asynchronous bit bang interface options with RD# and WR# strobes.
Bat*/tery Detection. May be used by mobile devices to detect the presence of a on the USB port to enable higher current / faster of batteries.
Device supplied pre-programmed with USB serial number.
Supports bus powered, self powered and high-power bus powered USB configurations.
Integrated +3.3V level converter for USB I/O.
True 3.3V CMOS drive output and TTL input.
(operates down to 1V8 with external pull and is also 5V tolerant)
Configurable I/O pin output drive strength.
Integrated power-on-reset circuit.
UART sig/nal inversion option.
Internal 3.3V/1.8V LDO regulators
Low operating current of 8mA (typical) and USB suspend current of 125uA (typical) current.
Low USB bandwidth consumption.
UHCI/OHCI/EHCI host controller compatible.
USB 2.0 Full Speed compatible.
Extended operating temperature range: -40c to 85c
Available in compact Pbfree 20 Pin SSOP and QFN packages (both compliant).
Typical application
USB to RS232/RS422/RS485 Converters
Upgrading Peripherals to USB
Cellular and Cordless USB data transfer cables and interfaces
Interfacing MCU/PLD/FPGA based designs to USB
USB and Low Bandwidth Video data transfer
PDA to USB data transfer
USB Sma/*rt Card Readers
USB Instrumentation
USB Industrial Control
USB MP3 Player Interface
USB FLASH Card Reader and Writers
Set Top Box PC - USB interface
USB Digital Camera Interface
USB Hardware Modems
USB Wireless Modems
USB Bar Code Readers
Dedicated Port (DCP) detection enabling Bat*/tery at higher current for faster times.
TY>pe : USB Adapter
Chip : FT231XS ZT213
Name : USB to RS232 Converter cord
