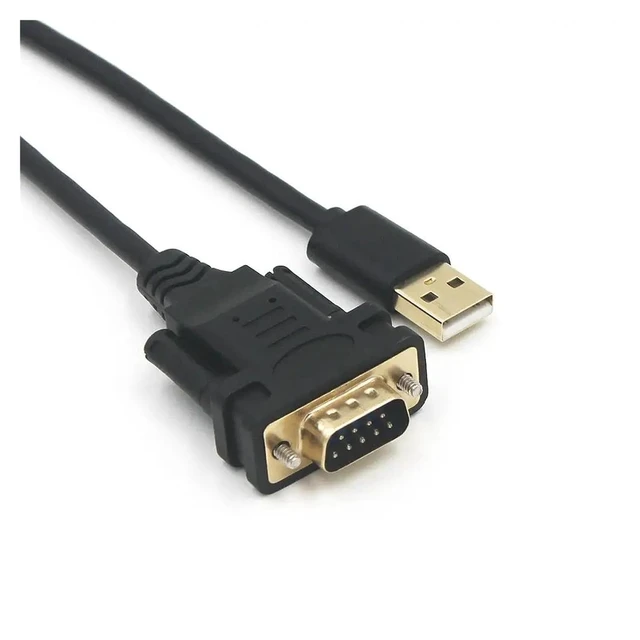

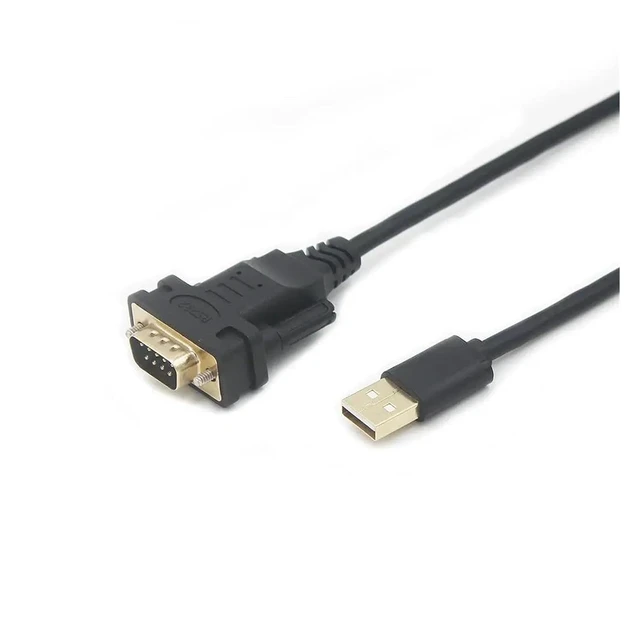

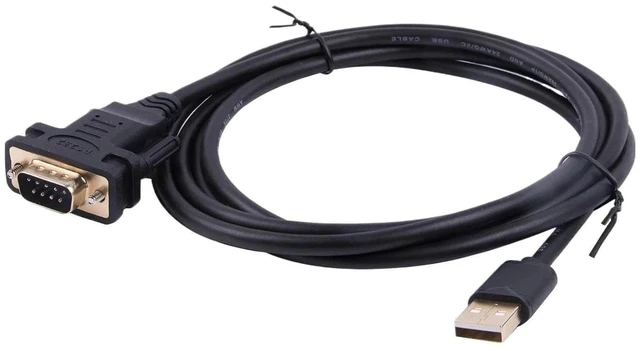

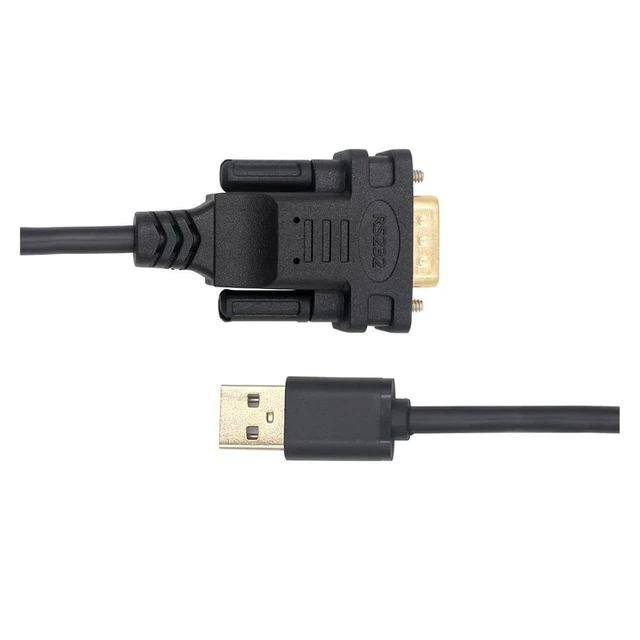

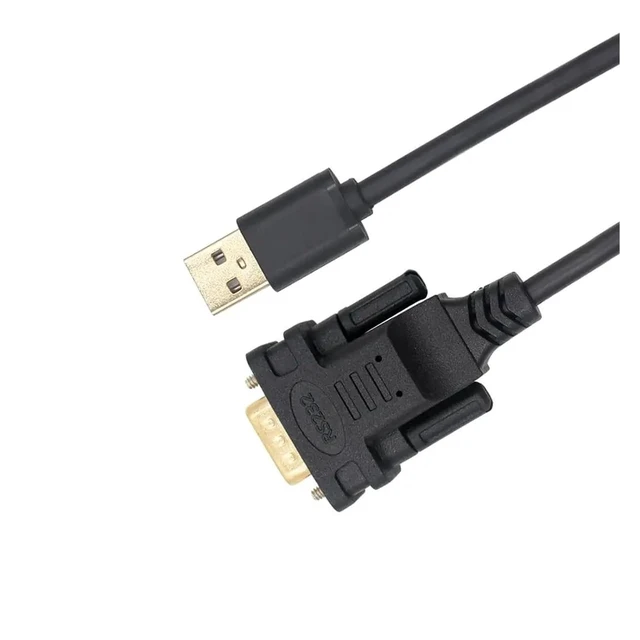

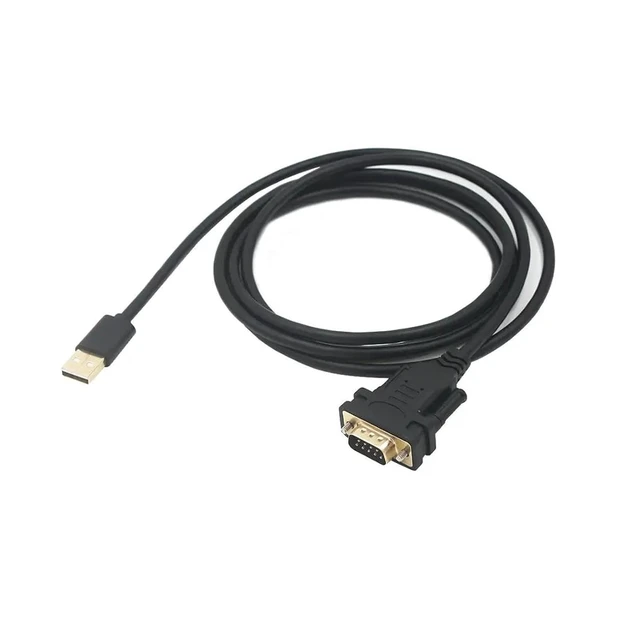

USB to RS232 DB9 Serial Cord Male Connector Converter Adapter F&T>D*I Chip Black 6ft Support Win10 8 7 XP an/DRO/id Linux
- USB to RS232 Serial cord This USB to DB9 Male adapter supports seamless communication between USB devices and RS232 equipment. Ideal for industrial and electronic applications requiring reliable serial connectivity.
- High-Performance F&T>D*I Chip Technology Powered by the FT232RL chip, this converter ensures stable data transmission and plug-and-play functionality across multiple operating systems without additional drivers.
- Wide Sys/tem Compatibility Fully compatible with 10/8/7/XP, , Linux, An/dro/id, Vista, and Wince, making it a versatile solution for diverse computing environments and embedded systems.
- 6FT Length for Flexible Setup The 6ft cord provides ample reach for connecting devices in various configurations while maintaining sig/nal integrity and reducing clutter.
- Durable Construction with Reliable Materials Made with p/;vc jacket and bare copper wires, this cord offers excellent durability and resistance to wear, ensuring long-term performance in demanding environments.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
About FT232RL
The FT232R is the latest device to be added to FTDI?s range of USB UART interface Integrated Circuit Devices. The FT232R is a USB to serial UART interface with optional clock generator output, and the FTDIChip-ID? security dongle feature. In addition, asynchronous and synchronous bit bang interface modes are available. USB to serial designs using the FT232R have been further simplified by fully integrating the external EEPROM, clock circuit and USB resistors onto the device.
The FT232R adds two functions compared with its predecessors, effectively making it a "3-in-1" chip for some application areas. The internally generated clock (6MHz, 12MHz, 24MHz, and 48MHz) can be brought out of the device and used to drive a microcontroller or external logic. A number (the FTDIChip-ID?) is burnt into the device during manufacture and is readable over USB, thus forming the basis of a security dongle which can be used to customer application software from being copied.
Single chip USB to asynchronous serial data transfer interface.
Entire USB protocol handled on the chip - No USB-specific firmware programming required.
UART interface support for 7 or 8 data bits, 1 or 2 stop bits and odd / even / mark / space / no parity.
Fully assisted hardware or X-On / X-Off software handshaking.
Data transfer rates from 300 baud to 3 Megabaud (RS422 / RS485 and at TTL levels) and 300 baud to 1 Megabaud (RS232).
In-built support for event characters and line break condition.
USB FTDIChip-ID? feature.
configurable CBUS I/O pins.
Auto transmit buffer control for RS485 applications.
Transmit and receive drive signals.
48MHz, 24MHz,12MHz, and 6MHz clock output sig/nal Options for driving external MCU or FPGA.
FIFO receive and transmit buffers for high data throughput.
256 Byte receive buffer and 128 Byte transmit buffer utilising buffer smoothing technology to allow for high data throughput.
Adjustable receive buffer timeout.
Synchronous and asynchronous bit bang interface options with RD# and WR# strobes.
CBUS bit bang option.
Integrated 1024 bit internal EEPROM for I/O configuration and storing USB VID, PID, serial number and product description strings.
Device supplied preprogrammed with USB serial number.
Support for USB suspend / resume.
Support for bus powered, self powered, and high-power bus powered USB configurations.
Integrated 3.3V level converter for USB I/O .
Integrated level converter on UART and CBUS for interfacing to 5V - 1.8V Logic.
True 5V / 3.3V / 2.8V / 1.8V CMOS drive output and TTL input.
High I/O pin output drive option.
Integrated USB resistors.
Integrated power-on-reset circuit.
Fully integrated clock - no external crystal, oscillator, or resonator required.
Fully integrated AVCC supply filtering - No separate AVCC pin and no external R-C filter required.
UART sig/nal inversion option.
USB bulk transfer .
3.3V to 5.25V Single Supply Operation.
Low operating and USB suspend current.
Low USB bandwidth consumption.
UHCI / OHCI / EHCI host controller compatible.
USB 2.0 Full Speed compatible.
-40°C to 85°C extended operating temperature range.
Drivers are available which allow F&T>D*I devices to work with the following operating systems:
10
8.1 x64
8
8 x64
Server2012
Server 2008 R2
7
7 x64
Server 2008
Server 2008 x64
Vista
Vista x64
Server 2003
Server 2003 x64
XP
XP x64
ME
98
Linux
OS X
OS 9
OS 8
CE.NET (Version 4.2 and greater)
An/dro/id
RT
Support for WinCE7.0
Initial functional testing conducted by F&T>D*I has shown that the F&T>D*I drivers function as expected on CE 7.0
Support for older versions of Desktop
NOTE: have ended support for certifying XP and VISTA through their WHCK test program. As such current builds will still work on XP and VISTA but are not certified.
Differences in Driver API
For most of the
The FT232R is the latest device to be added to FTDI?s range of USB UART interface Integrated Circuit Devices. The FT232R is a USB to serial UART interface with optional clock generator output, and the FTDIChip-ID? security dongle feature. In addition, asynchronous and synchronous bit bang interface modes are available. USB to serial designs using the FT232R have been further simplified by fully integrating the external EEPROM, clock circuit and USB resistors onto the device.
The FT232R adds two functions compared with its predecessors, effectively making it a "3-in-1" chip for some application areas. The internally generated clock (6MHz, 12MHz, 24MHz, and 48MHz) can be brought out of the device and used to drive a microcontroller or external logic. A number (the FTDIChip-ID?) is burnt into the device during manufacture and is readable over USB, thus forming the basis of a security dongle which can be used to customer application software from being copied.
Single chip USB to asynchronous serial data transfer interface.
Entire USB protocol handled on the chip - No USB-specific firmware programming required.
UART interface support for 7 or 8 data bits, 1 or 2 stop bits and odd / even / mark / space / no parity.
Fully assisted hardware or X-On / X-Off software handshaking.
Data transfer rates from 300 baud to 3 Megabaud (RS422 / RS485 and at TTL levels) and 300 baud to 1 Megabaud (RS232).
In-built support for event characters and line break condition.
USB FTDIChip-ID? feature.
configurable CBUS I/O pins.
Auto transmit buffer control for RS485 applications.
Transmit and receive drive signals.
48MHz, 24MHz,12MHz, and 6MHz clock output sig/nal Options for driving external MCU or FPGA.
FIFO receive and transmit buffers for high data throughput.
256 Byte receive buffer and 128 Byte transmit buffer utilising buffer smoothing technology to allow for high data throughput.
Adjustable receive buffer timeout.
Synchronous and asynchronous bit bang interface options with RD# and WR# strobes.
CBUS bit bang option.
Integrated 1024 bit internal EEPROM for I/O configuration and storing USB VID, PID, serial number and product description strings.
Device supplied preprogrammed with USB serial number.
Support for USB suspend / resume.
Support for bus powered, self powered, and high-power bus powered USB configurations.
Integrated 3.3V level converter for USB I/O .
Integrated level converter on UART and CBUS for interfacing to 5V - 1.8V Logic.
True 5V / 3.3V / 2.8V / 1.8V CMOS drive output and TTL input.
High I/O pin output drive option.
Integrated USB resistors.
Integrated power-on-reset circuit.
Fully integrated clock - no external crystal, oscillator, or resonator required.
Fully integrated AVCC supply filtering - No separate AVCC pin and no external R-C filter required.
UART sig/nal inversion option.
USB bulk transfer .
3.3V to 5.25V Single Supply Operation.
Low operating and USB suspend current.
Low USB bandwidth consumption.
UHCI / OHCI / EHCI host controller compatible.
USB 2.0 Full Speed compatible.
-40°C to 85°C extended operating temperature range.
Drivers are available which allow F&T>D*I devices to work with the following operating systems:
10
8.1 x64
8
8 x64
Server2012
Server 2008 R2
7
7 x64
Server 2008
Server 2008 x64
Vista
Vista x64
Server 2003
Server 2003 x64
XP
XP x64
ME
98
Linux
OS X
OS 9
OS 8
CE.NET (Version 4.2 and greater)
An/dro/id
RT
Support for WinCE7.0
Initial functional testing conducted by F&T>D*I has shown that the F&T>D*I drivers function as expected on CE 7.0
Support for older versions of Desktop
NOTE: have ended support for certifying XP and VISTA through their WHCK test program. As such current builds will still work on XP and VISTA but are not certified.
Differences in Driver API
For most of the
