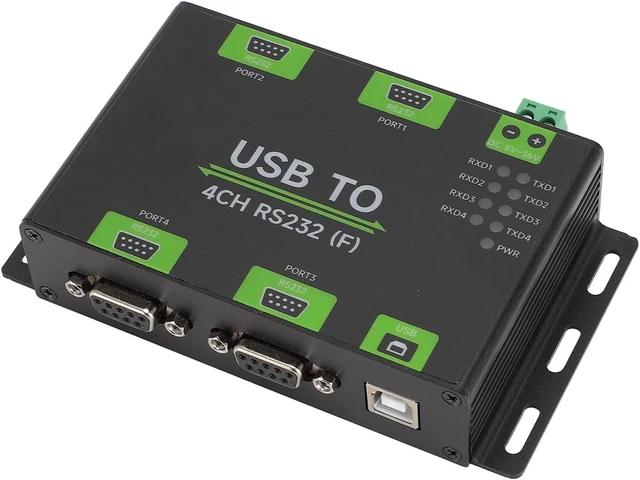

Hidyliu Isolated USB to RS232 Converter, Industrial Adapter
- [EFFICIENT MULTI-DEVICE CONNECTION] Our Industrial Grade Isolated USB to RS232 Converter is designed to extend connectivity to up to 4 isolated RS232 interfaces via USB. This feature streamlines your setup, allowing you to manage multiple serial devices with ease and efficiency, perfect for any telecommunication task.
- [EXCEPTIONAL SIGNAL ISOLATION] This USB to RS232 Converter boasts digital isolation to ensure high reliability and minimal interference. Whether in a crowded electronics environment or a communications setting, uninterrupted signal clarity for your industrial devices.
- [RELIABLE VOLTAGE PROTECTION] Say goodbye to equipment damage with the advanced TVS design that mitigates surge and transient voltages. This feature not only safeguards your devices but also enhances overall performance by preventing damage that can occur due to power fluctuations.
- [CLEAR STATUS MONITORING] The built-in LED indicators provide a user-friendly way to monitor power supply and data transmiss
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Specification:
Item Type: Industrial Grade Isolated USB to RS232 Converter
Material: Aluminium Alloy
Host Interface: USB
Device Interface: RS232
Telecommunication Range: 300bps ~ 921600bps
USB Interface:
Working Level: 5V
Connector Type: USB B Port
Interface Guard: 200ma Self Restoring Fuse, Isolated Output
Transmission Distance: About 5m/16.4ft
Power Supply Interface:
Supply Voltage: 5 to 36V DC Power Supply Terminals
Interface Guard: Anti Reverse Connection
RS232 Interface:
Interface Form: DB9 Female Head
Interface Guard: TVS Tube Guard, Surge And Static Protection
Transmission Distance: About 15m/49.2ft
Transmission Mode: Point to Point
Indicator:
PWR: Power Indicator, When USB Is Connected, It Turns Red When Voltage Is Detected
TXD: Send Indicator, Green When Data Is Sent from the RS232 Interface
RXD: Receiving Indicator: When Data Is Sent Back from the RS232 Interface, The Blue Lighting Is On
Operating Environment:
Temperature Range: -40 ~ 85
Humidity Range: 5% ~ 95%RH
Operating System: for OS X, for for Android
packing list:
1 x Converter
1 x Adapter
1 x USB Cable
Notice:
Manual measurement please allow some error.
Item Type: Industrial Grade Isolated USB to RS232 Converter
Material: Aluminium Alloy
Host Interface: USB
Device Interface: RS232
Telecommunication Range: 300bps ~ 921600bps
USB Interface:
Working Level: 5V
Connector Type: USB B Port
Interface Guard: 200ma Self Restoring Fuse, Isolated Output
Transmission Distance: About 5m/16.4ft
Power Supply Interface:
Supply Voltage: 5 to 36V DC Power Supply Terminals
Interface Guard: Anti Reverse Connection
RS232 Interface:
Interface Form: DB9 Female Head
Interface Guard: TVS Tube Guard, Surge And Static Protection
Transmission Distance: About 15m/49.2ft
Transmission Mode: Point to Point
Indicator:
PWR: Power Indicator, When USB Is Connected, It Turns Red When Voltage Is Detected
TXD: Send Indicator, Green When Data Is Sent from the RS232 Interface
RXD: Receiving Indicator: When Data Is Sent Back from the RS232 Interface, The Blue Lighting Is On
Operating Environment:
Temperature Range: -40 ~ 85
Humidity Range: 5% ~ 95%RH
Operating System: for OS X, for for Android
packing list:
1 x Converter
1 x Adapter
1 x USB Cable
Notice:
Manual measurement please allow some error.
