RS232 to RJ45 Ethernet Converter, Highspeed Data Transmission
- [BIDIRECTIONAL DATA TRANSMISSION] Experience seamless communications with the RS232 ETH PRO, designed for bidirectional transparent transmission of RS232 serial and RJ45 Ethernet data. This module guarantees full duplex, high-speed data transfer, enabling you to transmit large volumes of information without interruptions, ensuring reliable and efficient operations in industrial settings.
- [MULTIPLE PROTOCOL SUPPORT] The RS232 ETH PRO is a versatile module compatible with various protocols including Modbus RTU, Modbus , and -645. With built-in support for HTTP, MQTT, and JSON protocols, this device allows for customized programming, enabling you to efficiently integrate it into diverse applications while handling complex data transmission tasks with ease.
- [ROBUST SIGNAL AND POWER ISOLATION] This module features advanced on-board signal and power isolation, capable of accommodating a wide voltage range for stable operation even in challenging industrial environments. It ensures enhance
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Specification:
Item Type: RS232 to RJ45 Ethernet Converter
Material: Aluminum Alloy

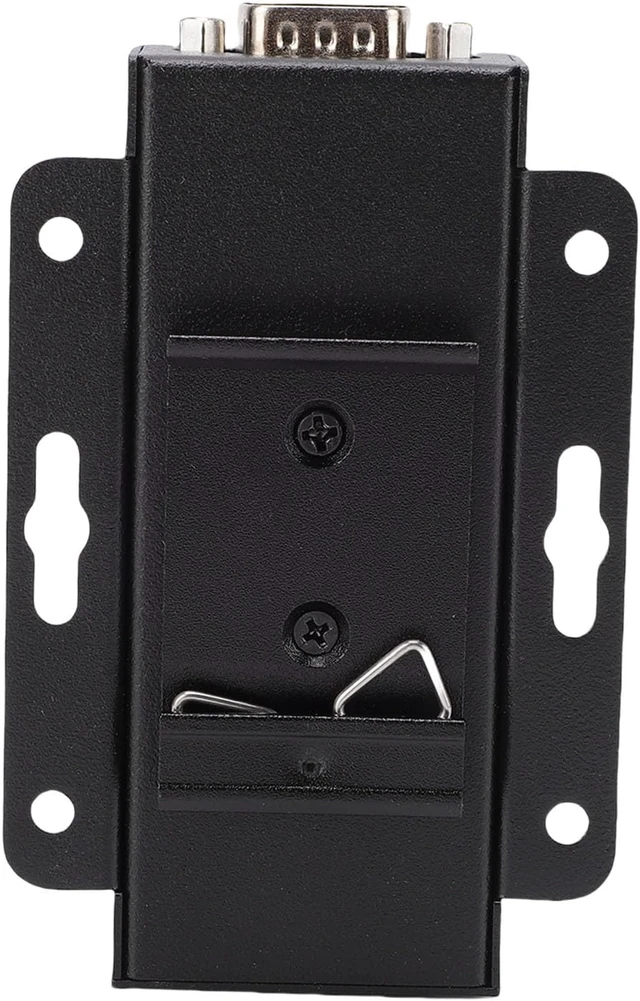

Installation: Hanging mounting or 3.5cm Universal Guide Rail
Operating Temperature: -40 to 85°C
Network Interface: RJ45, MDI/MDIX automatic line conversion, crossover direct connection
Serial Interface: RS232 DB9 Male Head
Baud Rate: 300bps to 460800bps
Control: RS232: RTS/CTS
Operating Mode: Server, Client ( Server also coexists), UDP, UDP Multicast, UDP Dynamic Mode
Conversion Protocol: Modbus , , JSON, for Realcom Protocol, for HTTP
Modbus : Supports mode, storage mode, pre configured table (ZLMB) mode; supports to RTU/ASCII
IP and Address Resolution: Static or DHCP, supports DNS resolution
Communication Method: /IP direct communication, virtual serial port mode
Connection Quantity: Server: 30, Client: 7 destination IP
Configuration Method: for ZLVirCOM Tool, web browser (customizable webpage), device management function library, Serial AT Command Configuration, device cloud management
Package List:
1 x RS232 to Ethernet Module
1 x Terminal Block
1 x Screwdriver
1 x Ethernet Cable
Notice:
Item Type: RS232 to RJ45 Ethernet Converter
Material: Aluminum Alloy
Installation: Hanging mounting or 3.5cm Universal Guide Rail
Operating Temperature: -40 to 85°C
Network Interface: RJ45, MDI/MDIX automatic line conversion, crossover direct connection
Serial Interface: RS232 DB9 Male Head
Baud Rate: 300bps to 460800bps
Control: RS232: RTS/CTS
Operating Mode: Server, Client ( Server also coexists), UDP, UDP Multicast, UDP Dynamic Mode
Conversion Protocol: Modbus , , JSON, for Realcom Protocol, for HTTP
Modbus : Supports mode, storage mode, pre configured table (ZLMB) mode; supports to RTU/ASCII
IP and Address Resolution: Static or DHCP, supports DNS resolution
Communication Method: /IP direct communication, virtual serial port mode
Connection Quantity: Server: 30, Client: 7 destination IP
Configuration Method: for ZLVirCOM Tool, web browser (customizable webpage), device management function library, Serial AT Command Configuration, device cloud management
Package List:
1 x RS232 to Ethernet Module
1 x Terminal Block
1 x Screwdriver
1 x Ethernet Cable
Notice:
