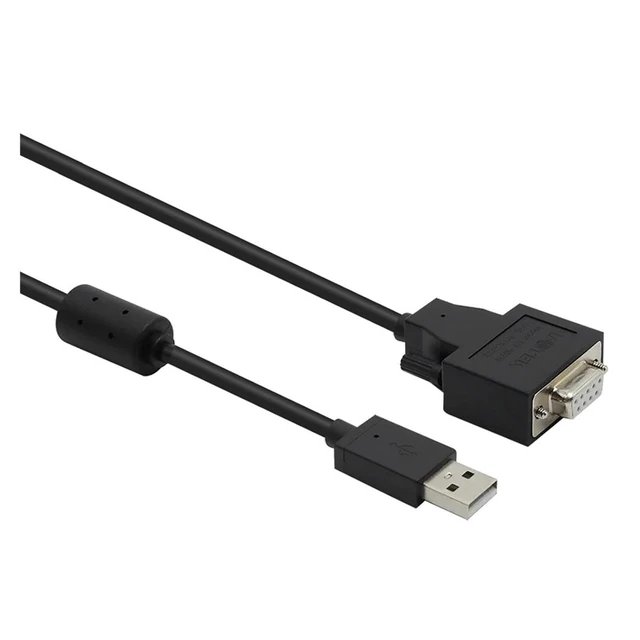

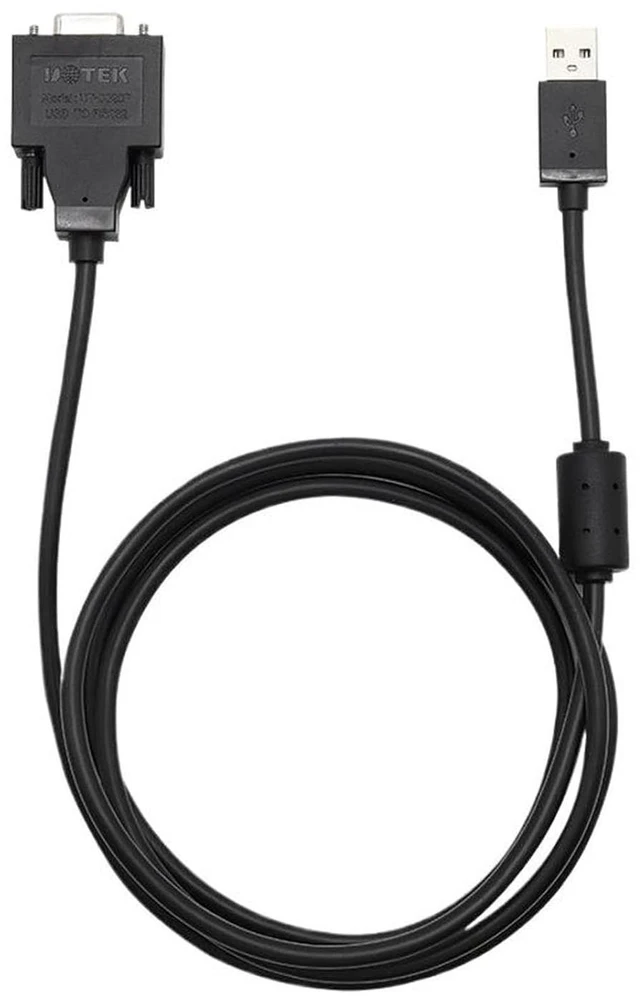

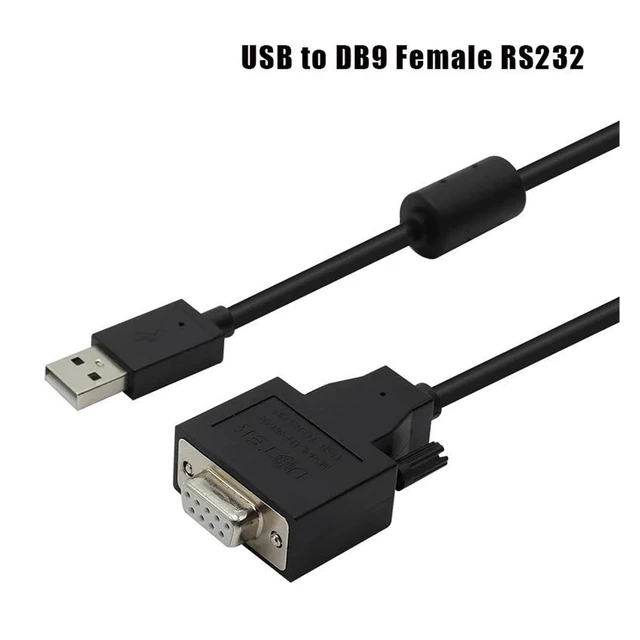

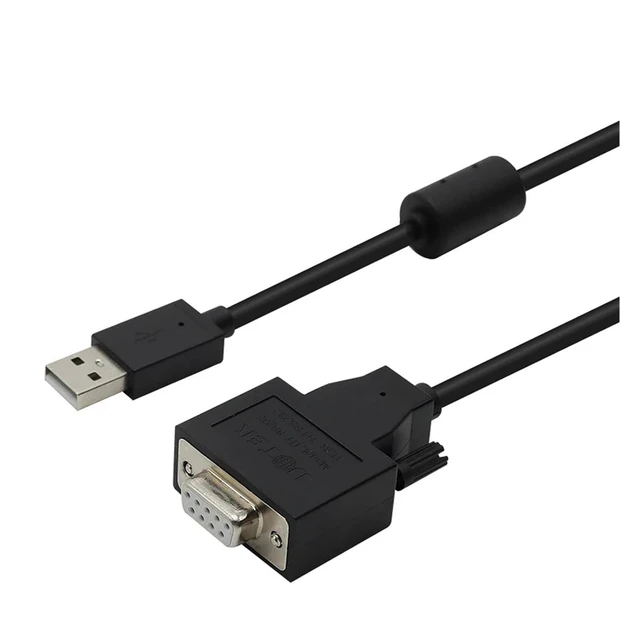

4.9Ft USB to DB9 Female RS232 Converter USB-A DB9-F RS-232 Cord Serial Connector UT-8823F

4.9Ft USB to DB9 Female RS232 Converter USB-A DB9-F RS-232 cord Serial Connector UT-8823F
UT-8823F is a all USB/RS-232 converter that does not require an external power supply, is compatible with USB and RS-232 standards, and can convert single-ended USB signals into RS-232 signals. The converter has zero-delay automatic send/receive conversion and I/O circuitry that automatically controls the direction of data flow without any handshake signals (such as RTS, DTR, etc.) or set/*tings, pl-ug and play, ensuring compatibility with all existing communication software and interface hardware.
1. Standard: Compliant with USBV1.1, 1.0, 2.0 standards, EIA RS-232 standard
2. USB sig/nal: VCC, DATA-, DATA+, GND, FG
3. RS-232 sig/nal: DCD RXD TXD DTR GND DSR RTS CTS RI
4. Operation : Asynchronous operation, point-to-point operation
5. Direction control: Adopts data flow automatic control technology,
automatically identifies and controls the direction of data transmission
6. Baud rate: 300-460800bps, automatically detects the serial port sig/nal rate
7. Load capacity: Supports point-to-point communication
8. Transmission distance: 5 meters for RS-232 end, not exceeding 5 meters for USB port
9. Interface protection: ±15KV electrostatic protection
10. Interface form: USB end A-type interface male head, connected by DB9 female head connector
11. Transmission medium: Twisted pair or shielded wire
12. Dimensions: 1530mm × 34mm × 16mm
13. Operating environment: -40 to 85, relative humidity from 5% to 95%
14. Support Windows95 98 2000 2008 xp Vista win7 8 8.1 10 11, , Linux, etc.
Package : Yes
Model Number : UT-8823F
TY>pe : cord Adapter
Model Number : UT-8823F
TY>pe : cord Adapter
