HF2211S Serial Communication RS485 to WiFi Server
- Serial Adapters
- High-performance RS485 to WiFi communication module The HF2211S enables seamless data transfer from RS485 Modbus RTU devices to TCP/IP networks, ideal for industrial automation and remote monitoring applications.
- Universal compatibility for global use Available with AU, EU, UK, US, or None types, the HF2211S ensures easy integration into diverse electrical systems across international markets.
- certified for safety and compliance This Communication Converter holds certification, confirming compliance with European safety and electromagnetic standards for reliable operation.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Serial Adapters
Overview of Characteristic
Support802.11bgn Wireless Standard
Support TCP/UDP/Telnet /Modbus TCPProtocol
Support RS485 to Wi-Fi Conversion, Serial Speed Up to 230400bps
Support STA/AP/AP+ Mode
Support SmartLink V8 Smart Config(Provide APP)
Support Easy ConfigurationThrough Web Interfaceor PC IOTService Tool
Support Security ProtocolSuch AsTLS/AES/DES3
Support WebpageOTA Wirelss Upgrade
Wide DC Input 5~36VDC

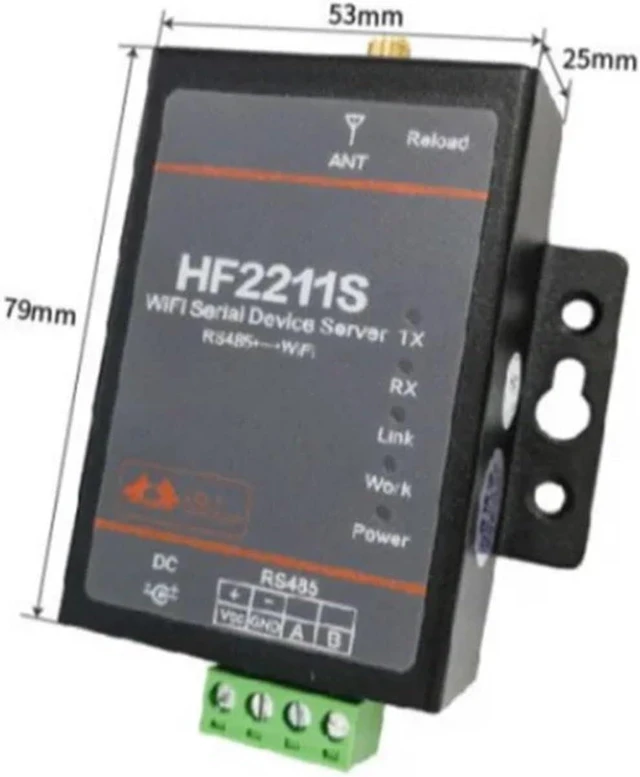

Size: 79x53x 25mm(L x W x H)
Processor
Cortex-M4 SOC
Basic Frequency
160MHz
Flash
2MB
SDRAM
352KB
Operating System
mbed
Protection
8KV Isolation
Network Protocol
IP,UDP,DHCP,DNS,HTTP Server/Client,ARP, BOOTP, AutoIP, ICMP,Web socket, Telnet, uPNP, NTP, Modbus
Security Protocol
SSL v3 AES 128Bit DES3
Standard
802.11 b/g/n
Network Mode
STA/AP/STA+AP
Transmit Power
802.11b: +20dBm(Max.) 802.11g: +18dBm(Max.) 802.11n: +15dBm(Max.)
Receive Sensitivity
802.11b: -89dBm 802.11g: -81dBm 802.11n: -71dBm
Wi-Fi Security
WEP64/WEP128/TKIP/ AES
Antenna Interface
3dBi antenna
Port Number
1
Interface Standard
RS485/RS422: 5.08mm connector
Data Bits
8
Stop Bit
1,2
Check Bit
None,Even,Odd
Baud Rate
TTL: 300 bps~230400bps
Flow Control
No Flow control Hardware RTS/CTS,DSR/DTR Software Xon/ Xoffflow control
Buffer
1K
Configuration
Web CLI XML import Telnet IOTManagerPC Software
Virtual Serial
Windows, XP/Vista, 7, Server 2003/2008
Size
79mm x 53mm x 25 mm
Operating Temp.
-40 ~ 85°C
Storage Temp.
-45 ~ 105°C,5 ~ 95% RH(no condensation)
Input Voltage
5~36VDC
Working Current
~200mA
Power
<;700mW
Warranty
3 year
==========
High-concerned chemical : None
Type : US,EU,UK,AU,None
Size : 1
Model Number : HF2211S
Certification :
Item Type : Communication Converter
Overview of Characteristic
Support802.11bgn Wireless Standard
Support TCP/UDP/Telnet /Modbus TCPProtocol
Support RS485 to Wi-Fi Conversion, Serial Speed Up to 230400bps
Support STA/AP/AP+ Mode
Support SmartLink V8 Smart Config(Provide APP)
Support Easy ConfigurationThrough Web Interfaceor PC IOTService Tool
Support Security ProtocolSuch AsTLS/AES/DES3
Support WebpageOTA Wirelss Upgrade
Wide DC Input 5~36VDC
Size: 79x53x 25mm(L x W x H)
Processor
Cortex-M4 SOC
Basic Frequency
160MHz
Flash
2MB
SDRAM
352KB
Operating System
mbed
Protection
8KV Isolation
Network Protocol
IP,UDP,DHCP,DNS,HTTP Server/Client,ARP, BOOTP, AutoIP, ICMP,Web socket, Telnet, uPNP, NTP, Modbus
Security Protocol
SSL v3 AES 128Bit DES3
Standard
802.11 b/g/n
Network Mode
STA/AP/STA+AP
Transmit Power
802.11b: +20dBm(Max.) 802.11g: +18dBm(Max.) 802.11n: +15dBm(Max.)
Receive Sensitivity
802.11b: -89dBm 802.11g: -81dBm 802.11n: -71dBm
Wi-Fi Security
WEP64/WEP128/TKIP/ AES
Antenna Interface
3dBi antenna
Port Number
1
Interface Standard
RS485/RS422: 5.08mm connector
Data Bits
8
Stop Bit
1,2
Check Bit
None,Even,Odd
Baud Rate
TTL: 300 bps~230400bps
Flow Control
No Flow control Hardware RTS/CTS,DSR/DTR Software Xon/ Xoffflow control
Buffer
1K
Configuration
Web CLI XML import Telnet IOTManagerPC Software
Virtual Serial
Windows, XP/Vista, 7, Server 2003/2008
Size
79mm x 53mm x 25 mm
Operating Temp.
-40 ~ 85°C
Storage Temp.
-45 ~ 105°C,5 ~ 95% RH(no condensation)
Input Voltage
5~36VDC
Working Current
~200mA
Power
<;700mW
Warranty
3 year
==========
High-concerned chemical : None
Type : US,EU,UK,AU,None
Size : 1
Model Number : HF2211S
Certification :
Item Type : Communication Converter
