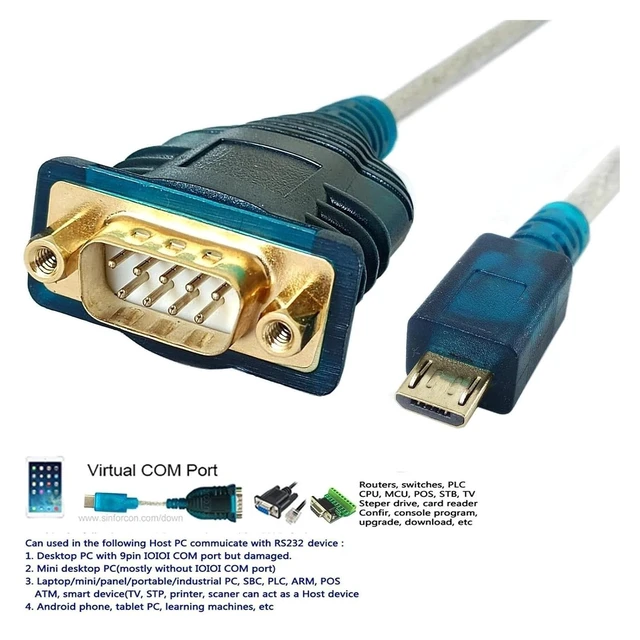

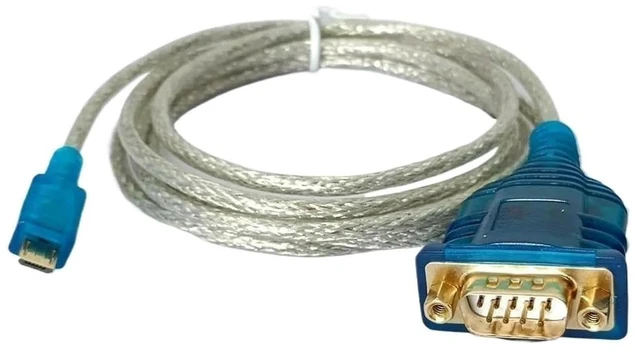

F&T>D*I m;ic/ro USB TY>pe B to RS232 DB9 Serial Adapter for POS Card Reader Panel M1ni All-in-one PC to 9pin Communicate Cord
- F&T>D*I FT232R Chip for Reliable Performance Equipped with the F&T>D*I FT232R chip, this adapter ensures stable and efficient communication between USB and RS232 devices, offering high compatibility and reliable data transfer.
- Perfect for POS and Industrial Devices for use with POS card readers, panel systems, and M1ni all-in-one PCs, this adapter enables seamless 9-pin RS232 communication for industrial and retail applications.

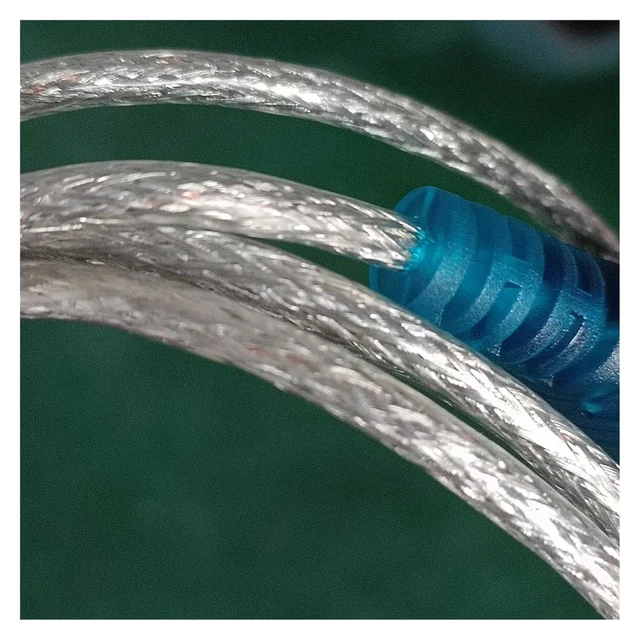

- 150cm Long cord for Flexible Setup Featuring a 150cm cord length, this adapter provides ample reach for connecting devices without strain, ideal for desktop or embedded installations.
- Compact and Lightweight Packaging Packaged with dimensions of 10 x 10 x 2 cm and weighing only 0.200 kg, the product is easy to store, ship, and handle, minimizing space and logistics costs.
- ON/E Piece per Pack, Ready to Use Sold as 1 piece per pack, this adapter is ideal for immediate use, replacement, or scale integration into existing systems without overstocking.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
FT232RL features:
Single chip USB to asynchronous serial data transfer interface.
Entire USB protocol handled on the chip - No USB-specific firmware programming required.
UART interface support for 7 or 8 data bits, 1 or 2 stop bits and odd / even / mark / space / no parity.
Fully assisted hardware or X-On / X-Off software handshaking.
Data transfer rates from 300 baud to 3 Megabaud (RS422 / RS485 and at TTL levels) and 300 baud to 1 Megabaud (RS232).
In-built support for event characters and line break condition.
USB FTDIChip-ID? feature.
configurable CBUS I/O pins.
Auto transmit buffer control for RS485 applications.
Transmit and receive drive signals.
48MHz, 24MHz,12MHz, and 6MHz clock output sig/nal Options for driving external MCU or FPGA.
FIFO receive and transmit buffers for high data throughput.
256 Byte receive buffer and 128 Byte transmit buffer utilising buffer smoothing technology to allow for high data throughput.
Adjustable receive buffer timeout.
Synchronous and asynchronous bit bang interface options with RD# and WR# strobes.
CBUS bit bang option.
Integrated 1024 bit internal EEPROM for I/O configuration and storing USB VID, PID, serial number and product description strings.
Device supplied preprogrammed with USB serial number.
Support for USB suspend / resume.
Support for bus powered, self powered, and high-power bus powered USB configurations.
Integrated 3.3V level converter for USB I/O .
Integrated level converter on UART and CBUS for interfacing to 5V - 1.8V Logic.
True 5V / 3.3V / 2.8V / 1.8V CMOS drive output and TTL input.
High I/O pin output drive option.
Integrated USB resistors.
Integrated power-on-reset circuit.
Fully integrated clock - no external crystal, oscillator, or resonator required.
Fully integrated AVCC supply filtering - No separate AVCC pin and no external R-C filter required.
UART sig/nal inversion option.
USB bulk transfer .
3.3V to 5.25V Single Supply Operation.
Low operating and USB suspend current.
Low USB bandwidth consumption.
UHCI / OHCI / EHCI host controller compatible.
USB 2.0 Full Speed compatible.
-40°C to 85°C extended operating temperature range.
Package : Yes
Model Number : USB RS232 PCB
TY>pe : USB Adapter
Chip : F&T>D*I FT232R chip
Single chip USB to asynchronous serial data transfer interface.
Entire USB protocol handled on the chip - No USB-specific firmware programming required.
UART interface support for 7 or 8 data bits, 1 or 2 stop bits and odd / even / mark / space / no parity.
Fully assisted hardware or X-On / X-Off software handshaking.
Data transfer rates from 300 baud to 3 Megabaud (RS422 / RS485 and at TTL levels) and 300 baud to 1 Megabaud (RS232).
In-built support for event characters and line break condition.
USB FTDIChip-ID? feature.
configurable CBUS I/O pins.
Auto transmit buffer control for RS485 applications.
Transmit and receive drive signals.
48MHz, 24MHz,12MHz, and 6MHz clock output sig/nal Options for driving external MCU or FPGA.
FIFO receive and transmit buffers for high data throughput.
256 Byte receive buffer and 128 Byte transmit buffer utilising buffer smoothing technology to allow for high data throughput.
Adjustable receive buffer timeout.
Synchronous and asynchronous bit bang interface options with RD# and WR# strobes.
CBUS bit bang option.
Integrated 1024 bit internal EEPROM for I/O configuration and storing USB VID, PID, serial number and product description strings.
Device supplied preprogrammed with USB serial number.
Support for USB suspend / resume.
Support for bus powered, self powered, and high-power bus powered USB configurations.
Integrated 3.3V level converter for USB I/O .
Integrated level converter on UART and CBUS for interfacing to 5V - 1.8V Logic.
True 5V / 3.3V / 2.8V / 1.8V CMOS drive output and TTL input.
High I/O pin output drive option.
Integrated USB resistors.
Integrated power-on-reset circuit.
Fully integrated clock - no external crystal, oscillator, or resonator required.
Fully integrated AVCC supply filtering - No separate AVCC pin and no external R-C filter required.
UART sig/nal inversion option.
USB bulk transfer .
3.3V to 5.25V Single Supply Operation.
Low operating and USB suspend current.
Low USB bandwidth consumption.
UHCI / OHCI / EHCI host controller compatible.
USB 2.0 Full Speed compatible.
-40°C to 85°C extended operating temperature range.
Package : Yes
Model Number : USB RS232 PCB
TY>pe : USB Adapter
Chip : F&T>D*I FT232R chip
