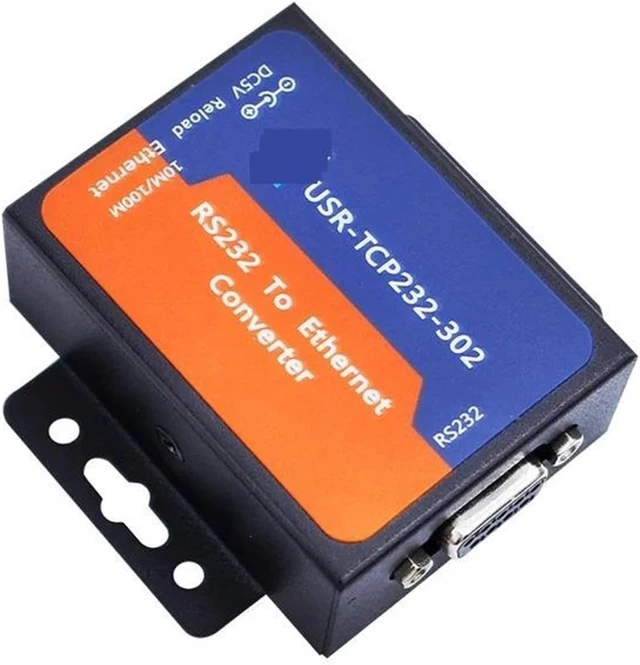

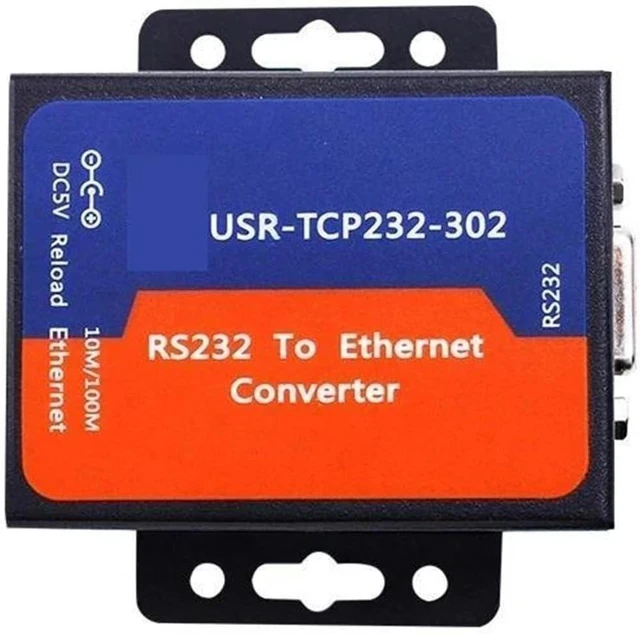

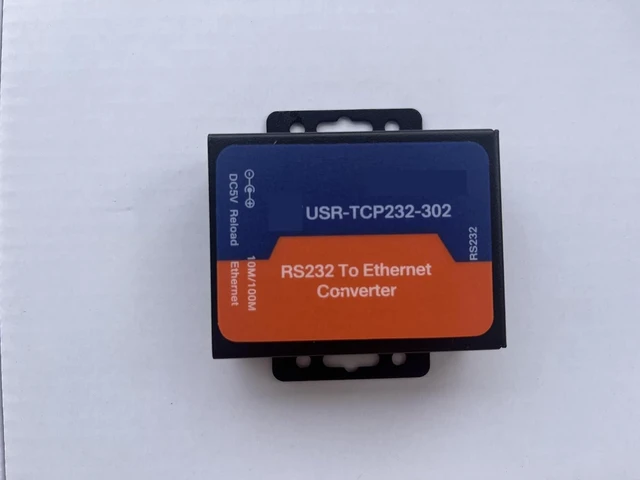

USR-TCP232-302 Trasmissione Ethernet Seriale

Serial Adapters
USR-TCP232-302
1-port RS232 to Ethernet Converters
1 port RS232 to Ethernet converters USR-TCP232-302 can transmit data transparently between TCP/IP and RS232. RS232 to IP Converters USR-TCP232-302 are widespread required in industrial automation. Simple configuration and easy to use.
Single RS232 to ethernet converters
Cost-effective
RS232 port
Power supply: DC 4.75-7V
Compact, Light Weight
Supports server/client, UDP server/client
Virtual COM
Basic Function of 1 Port RS232 to Ethernet Converters
Function Diagram
Work mode
Server
RS232 to Ethernet converters USR-TCP232-302monitorthe set port and waits for a client connection.
Data from the serial device will transmit to all successfully-connected clients.
client mode
RS232 to Ethernet converters USR-TCP232-302 will initiate connection to the destination IP address that
configured by the user and USR-TCP232-302 will try to reconnect if establishing connection
unsuccessfully. If the USR-TCP232-302 establishes connection to Server successfully, it can realize
bidirectional data transparent transmission between Server and the serial device.
UDP mode
RS232 to Ethernet converters USR-TCP232-302 will transmit serial data from serial device to target network device
by UDP connection. USR-TCP232-302 will listen to port and transmit all received data to serial device.
httpsD Client
RS232 to Ethernet converters USR-TCP232-302 supports https Client mode which can transmit serial data
to the https server in https format(GET/POST).
Virtual Com Software
Baud Rate
Dynamically change baud rate, data bit, check bit and stop bit of serial device server via network command.
Identity packet function
When RS232 to Ethernet converterUSR-TCP232-302works as Client, it can send identity packet to server
which can be identification. Identity packet can be IMEI code, ICCID code and user editable identity packet.
Serial & Network Heartbeat Packet
RS232 to Ethernet converters USRTCP232302 maintainthe normal connection with the server by
sending heartbeat packet regularly
Application
Unattended Weighing ]
Connect RS232 to Ethernet converters USR-TCP232-302 to barrier gate and they can realize
remote control of barrier gate by Ethernet in control center.
[ Traffic Lights Management System ]
Connect RS232 to Ethernet converterUSR-TCP232-302 and it can realize traffic data acquisition and processing
by Ethernet in control center. It can also provide accurate quantitative basis for traffic dispatch
management and urban transport planning Can implement the optimum control for transportation phenomena
such as traffic jam, traffic accident, traffic capacity from a regional or global perspective.
System Information
Processor
TI Cortex-M0

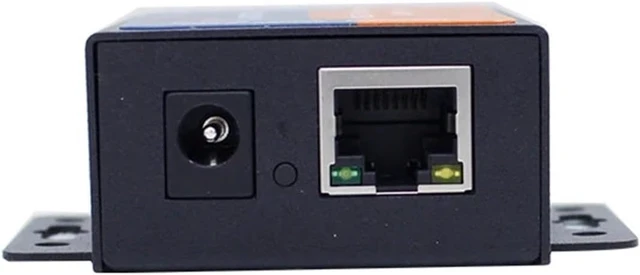

Ethernet
Port Number
1
Interface Standard
RJ45
Rate
10/100 Mbps, MDI/MDIX, auto switch between cross and direct connection
Protection
2KV electromagnetism isolation, shell insulation blocking
Network Protocol
IP,TCP/UDP,ARP,ICMP,IPV4,HTTP
Buffer
Send: 6K bytes, receive: 4K bytes
Serial Port
Port Number
1
Interface Standard
RS-232: DB9 female port
Data Bits
5, 6, 7, 8
Stop Bit
1, 2
Check Bit
None, Even, Odd, Space, Mark
Baud Rate
600 bps ~ 230.4 Kbps
Flow Control
Null
Buffer
Receive: 800 bytes
Software
Virtual Serial(USR-VCOM)
Windows 2000 or higher (32 bit/64 bit)
Configuration
Computer set-up software, serial command, built-in webpage
Basic Parameter
Size
71 x 60 x 25 mm
Operating Temp.
-25 ~ 75°C
Storage Temp.
-40 ~ 105°C, 5 ~ 95% RH
Input Voltage
DC 4.75 ~ 7V
Working Current
150mA @ 5V
Power
<;1W
More
Accessory
5V1A power supply
Certificate
CE/FCC/RoHs
==========
High-concerned chemical : None
Size : 1
Model Number : USR-TCP232-302
