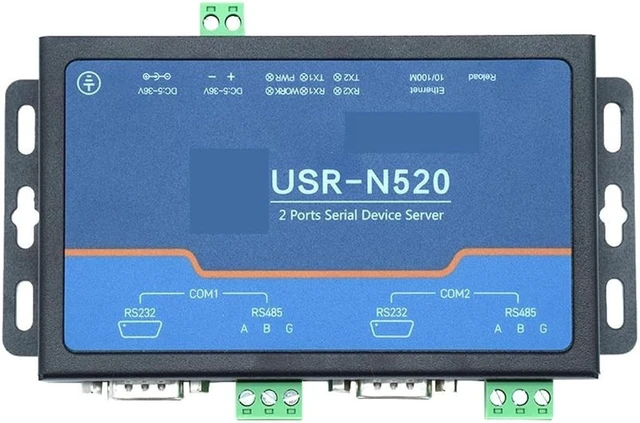

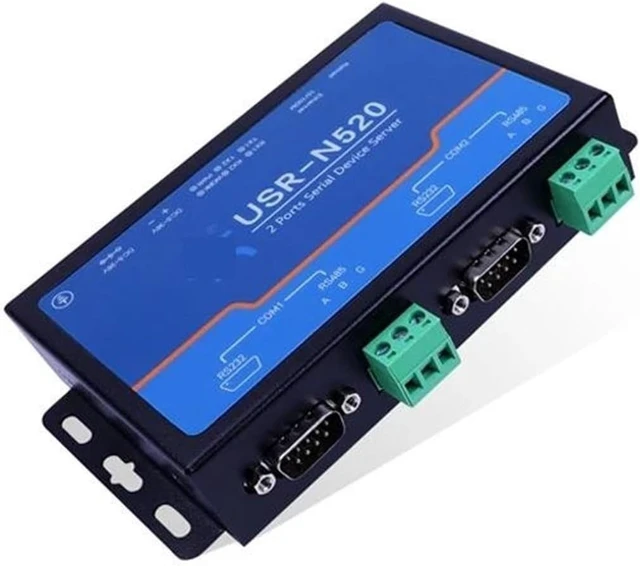

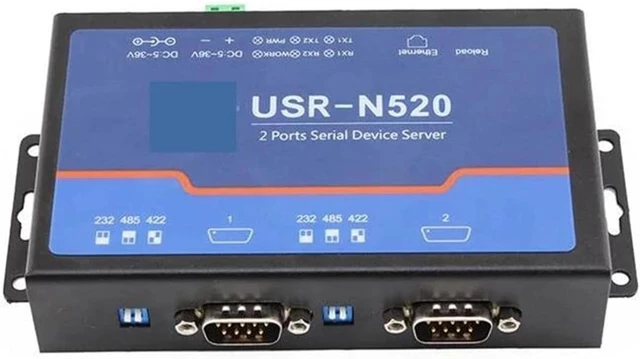

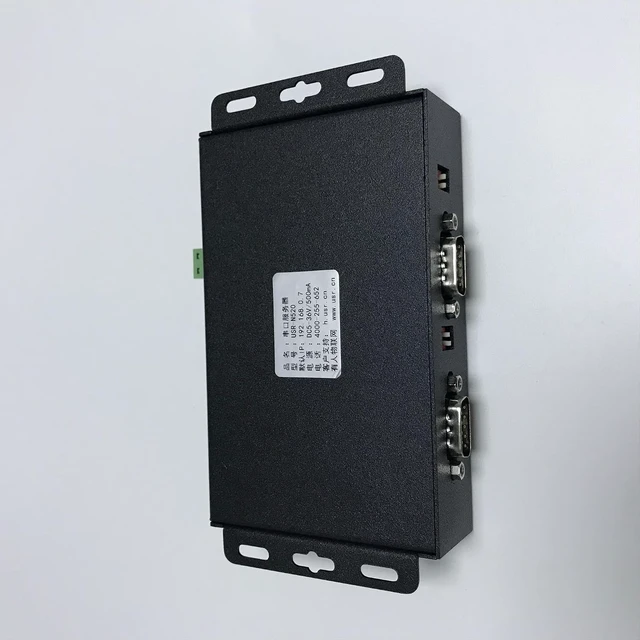

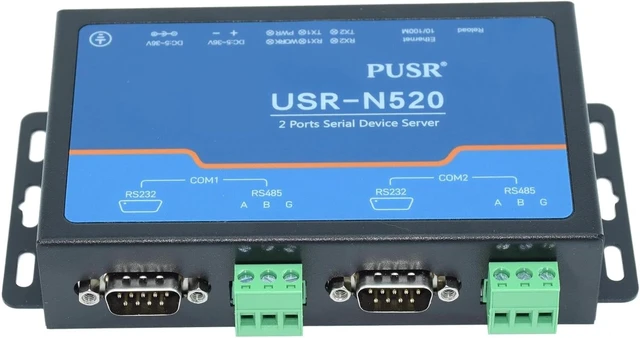

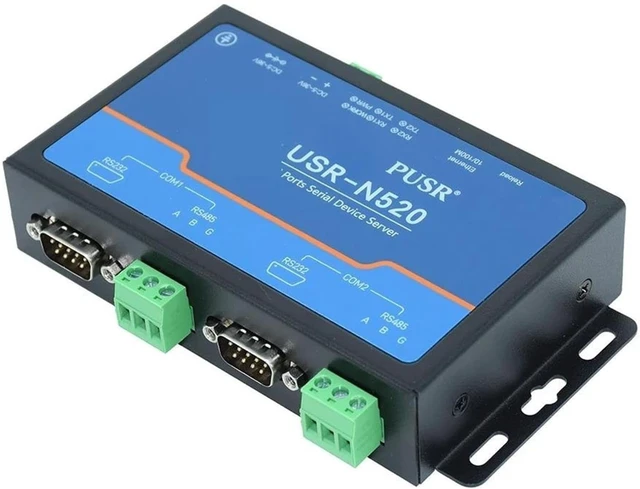

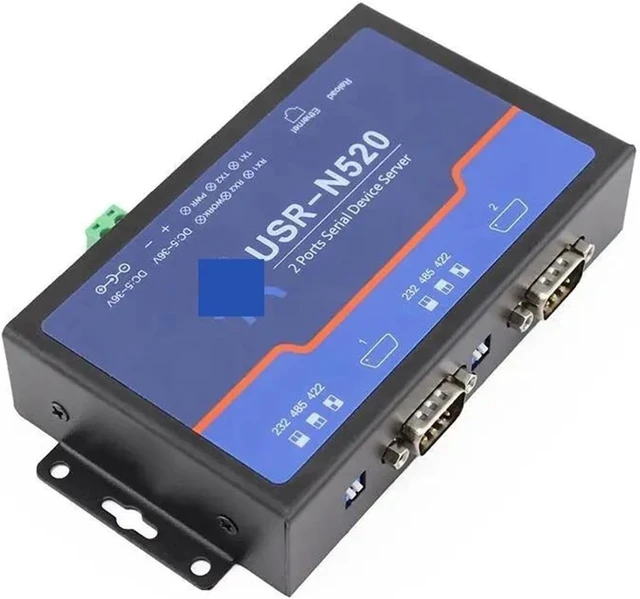

Industrial USR-N520 Dual Serial Server RS232/485/422 to Ethernet

Serial Adapters
USR-N520
2 Ports Serial to Ethernet Servers
Note: USR-N520-H7 support RS232/RS485/RS422;Support MQTTS.
USR-N520-H7-6 support RS485 only.Support MQTTS and Edge Computing.
2-port serial to Ethernet servers USR-N520 can realize transparent transmission between TCP/UDP data package and RS232/RS485/RS422 interface.
2-port RS-232/422/485 serial to Ethernet servers
Power supply accepts wide voltage input range DC 5-36V
Support server/client, UDP server/client, https client, Virtual COM
Support Modbus RTU to Modbus
Support flow control CTS/RTS, XON/XOFF
Support 2 RS-232, RS-485/422 3IN1 serial port to 1 10/100Base-T(X) self-adaptive Ethernet interface
Configuration via Web Server page, AT commands, and Windows Utility
Serial Ports
Baud rate: 600bps-230.4Kbps
Hardware flow control: RTS/CTS
Software flow control: XON/XOFF
Serial data can be divided into frames flexibly
USR-N520-H7-6
2 Port Serial Device Server
USR-N520 is 2-port serial to Ethernet converter. It adopts Cortex-M7 solution,which has a main frequency up to 400MHz, powerful performance, fast transmission speed, and high reliability. Equipped with a deeply optimized TCP/IP stack, built in hardware and software watchdog and a variety of keepalive mechanisms,USR-N520 keeps online all the time. It supports Client, Server, UDP Client, UDP Server and HTTPD Client working modes, achieves data transparent transmission via simple configuration.
Supports 2 serial ports working independently.
Supports 5-36V wide voltage input, with reverse polarity protection.
Supports connecting to Virtual COM Port Driver (USR-VCOM).
Supports static IP and DHCP client.
Supports Modbus RTU to Modbus protocol conversion.
Supports configuring parameters via built-in webpage.
Supports upgrading firmware via built-in webpage and configuration software, more convenient.
Supports hardware watchdog, automatically restarts when the device goes down.
Supports serial and network AT commands.
Supports UDP broadcast function.
Basic Function-Transmission
Scheme Upgrade to
Provide Better Experience
Master chip adopts ST crotex-M7 core, the main frequency is up to 400Mhz,
fast processing speed, high stable and reliable performance.
Multiple hardware protection
Redundant Power Supply
Wide input voltage DC 5-36V,with reverse polarity protection
Block Diagram
Work mode
Server
The server listens to the specified port and waits for the client to connect,
the data sent by the serial device will be transparently transmitted
to all successfully connected clients through the serial device server.
Client
The serial device server initiates a connection to the specified IP address.
If the connection fails, the serial server will continue to try to
reconnect until it succeeds. If the connection is successful, the server can
transparently transmit data with the serial device in two-way.
UDP mode
The serial device server sends the data of the serial device to the designated IP network device.
The serial device server monitors the port meanwhile and forwards
all received data to the serial device.
HTTPD Client
Serial port data can be submitted to a specified server by GET or POST method.
More Features
Synchronized baud rate
Change the baud rate, data bit, check bit and stop bit dynamically via network protocol
Modbus gateway
Support modbus RTU and modbus protocol conversion
Support modbus multi-host polling
Virtual Com Software
Application Case
Charging Pile Application Case
N520 can connect the charging pile to the charging intelligent service platform to
realize two-way data transmission between the charging device and the platform.
The billing information and power usage can be viewed remotely through
the platform to facilitate operation and maintenance.
Item
Parameter
Description
Hardware
Para
