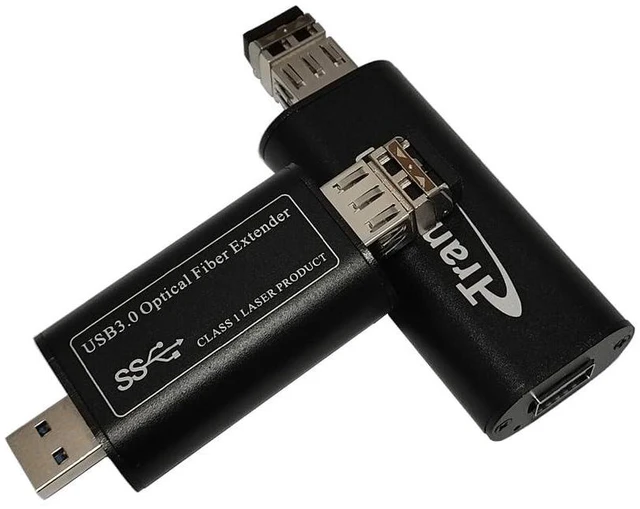

Mini USB 3.0 Fiber Optic Extender to Max 250 Meters Over Single-Mode Fiber, Supports 5Gbps Speed (Over 2 Fibers)
- Supports USB 3.0 Super Speed up to 5 Gbps, USB 3.0 Type A Receptacle NOT backwards compatible with USB 2.0 and USB 1.1, so it does not support Keyboard & Mouse etc devices.
- Max extension distance 250 Meters (820FT) over single-mode fiber cable for U disc device; but For real-time transmission devices like High Speed USB 3.0 Camera, the Max distance is 150 Meters over Single-mode Fiber; If require over Multi-mode Fiber, please search by Asin: B08YY2Q4FH

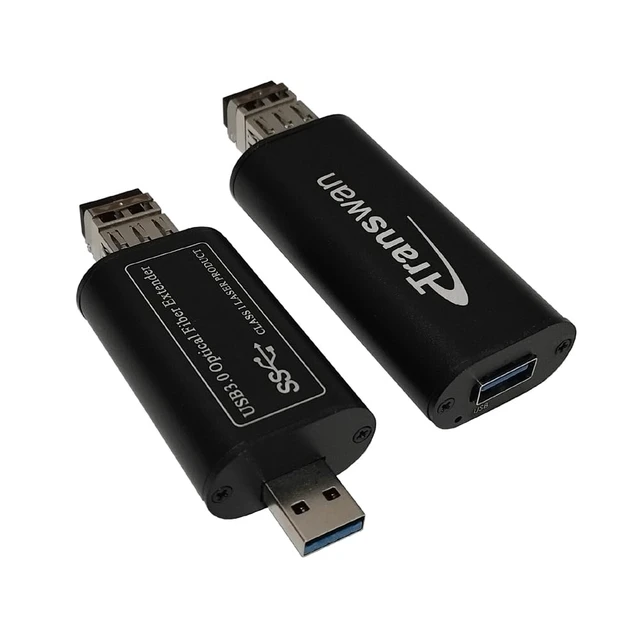

- with the Mini Size, Looks like U disc; with LC fiber connector SFP module
- Compatible with Windows 8, Windows 8.1, Windows 10, Windows 11, full version of the LINUX or UNIX operation systems or Mac OS.
- Supports Full Duplex; Support plug and play; pure hardware design, no driver needed.
- Power-up sequence: Because of USB status (Suspend and Resume), Both the the computer and the USB device it's being connected to should be shut down completely BEFORE making all the connections. The USB devices and the transmitter module it's connecte
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Description:

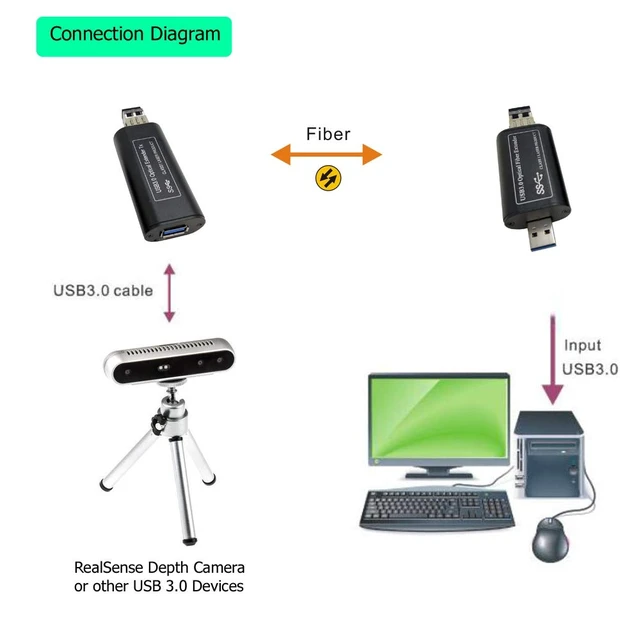

BY-USB-912 includes a transmitterclient-sideand a receiverhost-side, which can extend the Super speed USB 3.0 to a remote location over 1 or 2 core single-mode optical fiber cable, Max distance 250 Meters(820FT).
Supported Typical USB 3.0 Devices (the last image):
1). USB 3.0 Camera:
RealSense, XiQ USB 3.0 Camera, Kinect Devices, EMCCM camera etc
2). Instruments:
Data Acquisition, Spectrum Analyzer, Oscilloscope, Ultrasonic Testing etc
3). Aduio Device:
Stereo D to A Converter etc
4). Computer Peripherals:
Keyboard Controller, USB 3.0 Printer, USB 3.0 Flash Drive etc
5.) Others
Application:
1.Industrial video transmission
2.USB 3.0 Vision cameras
3.HD video surveillance system.
4.High - speed data acquisition system
5.Remote storage.
6.Digital signage and TV wall.
7.Industrial printer system.
8. VA/VR systems.
Note
Not backwards compatible with USB 2.0 and USB 1.1 devices. For Example, Touch Monitor like P2418HT, this itemdoes not support.
SPECS
Optical:
Fiber Connector: 2 x LC or 1 x LC
Wavelength: 1310nm
Support Fiber types: 9/125m
Physical:

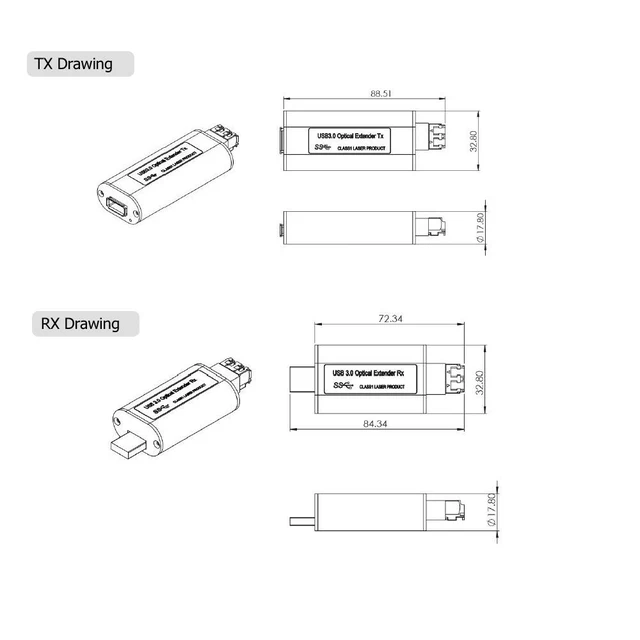

Size (L× W ×H): 1) Transmitter: 88.50 x 32.80 x 17.80 mm ; 2) Receiver: 84.3 x 33 x 17.8 mm
Case Material:Aluminum
Color:Black
N.W.:0.75Kg
Power Voltage: 5V DC
Sender power consumption:<10W
Receiver power consumption:<5W
Environment:
Working temperature:0-50
Storage temperature:-40-85
Humidity: 0-95% (non-condensing)
Package:
1. 1 x transmitter (client side) with SFP module.
2. 1 x receiver (host side) with SFP module.
3. 1 x Power Adapter DC 5V with US/UK/AU plug for the transmitter
4. 1 x Manual.
BY-USB-912 includes a transmitterclient-sideand a receiverhost-side, which can extend the Super speed USB 3.0 to a remote location over 1 or 2 core single-mode optical fiber cable, Max distance 250 Meters(820FT).
Supported Typical USB 3.0 Devices (the last image):
1). USB 3.0 Camera:
RealSense, XiQ USB 3.0 Camera, Kinect Devices, EMCCM camera etc
2). Instruments:
Data Acquisition, Spectrum Analyzer, Oscilloscope, Ultrasonic Testing etc
3). Aduio Device:
Stereo D to A Converter etc
4). Computer Peripherals:
Keyboard Controller, USB 3.0 Printer, USB 3.0 Flash Drive etc
5.) Others
Application:
1.Industrial video transmission
2.USB 3.0 Vision cameras
3.HD video surveillance system.
4.High - speed data acquisition system
5.Remote storage.
6.Digital signage and TV wall.
7.Industrial printer system.
8. VA/VR systems.
Note
Not backwards compatible with USB 2.0 and USB 1.1 devices. For Example, Touch Monitor like P2418HT, this itemdoes not support.
SPECS
Optical:
Fiber Connector: 2 x LC or 1 x LC
Wavelength: 1310nm
Support Fiber types: 9/125m
Physical:
Size (L× W ×H): 1) Transmitter: 88.50 x 32.80 x 17.80 mm ; 2) Receiver: 84.3 x 33 x 17.8 mm
Case Material:Aluminum
Color:Black
N.W.:0.75Kg
Power Voltage: 5V DC
Sender power consumption:<10W
Receiver power consumption:<5W
Environment:
Working temperature:0-50
Storage temperature:-40-85
Humidity: 0-95% (non-condensing)
Package:
1. 1 x transmitter (client side) with SFP module.
2. 1 x receiver (host side) with SFP module.
3. 1 x Power Adapter DC 5V with US/UK/AU plug for the transmitter
4. 1 x Manual.
