ThePoEstore 10G PoE++ Injector: The 10G PoE++ injector supplies a PoE device with PoE (15.4W)802.3af, PoE+ (30W) 802.3at, or PoE++ (60W)802.3bt power.

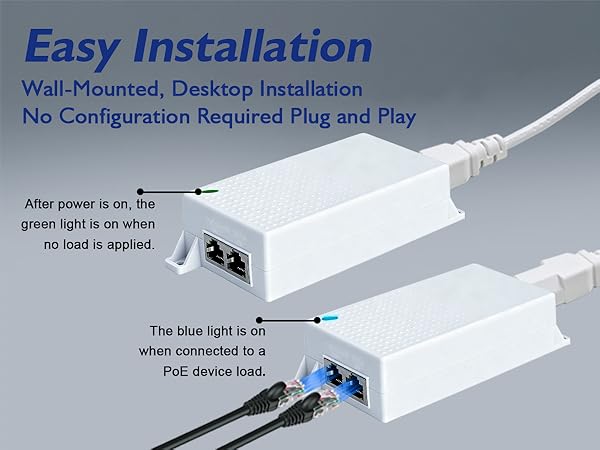

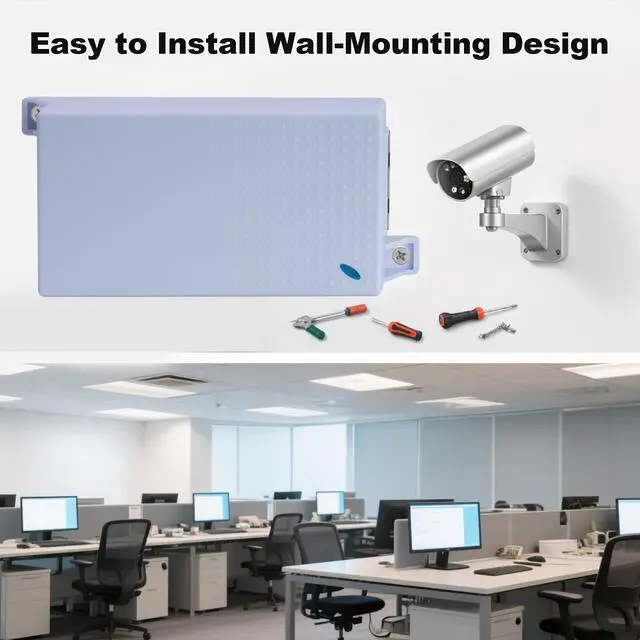

Installation Flexibility: Wall-mounted and desktop design: High-quality, heat-resistant and oxidation-resistant white plastic shell accommodates most installations scenarios.

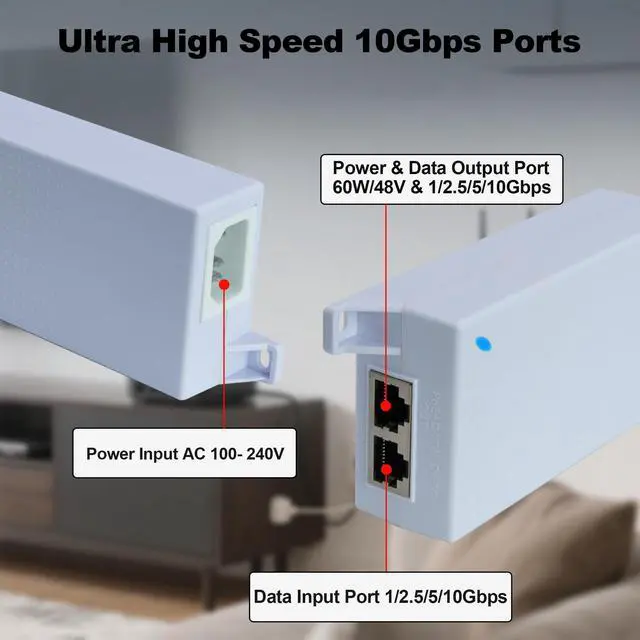

10G Speeds: Equipped with a 10GBASE-T RJ-45 port providing network speeds of up to 10Gbps over existing Cat6a or better cabling.
Product Overview

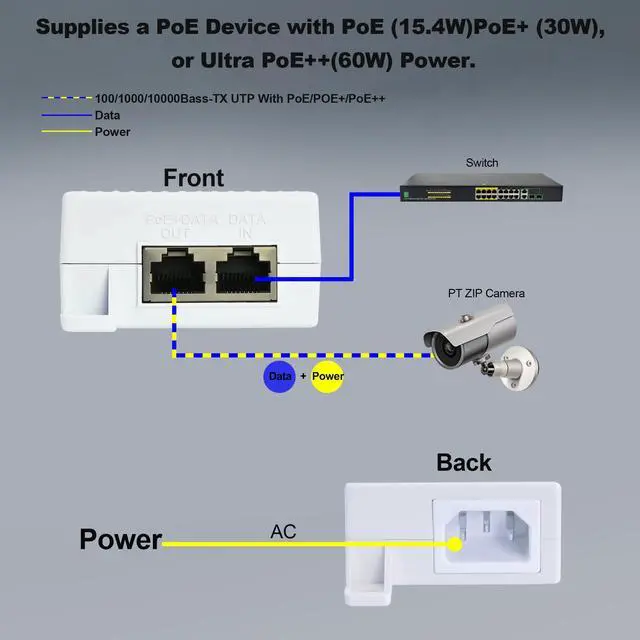

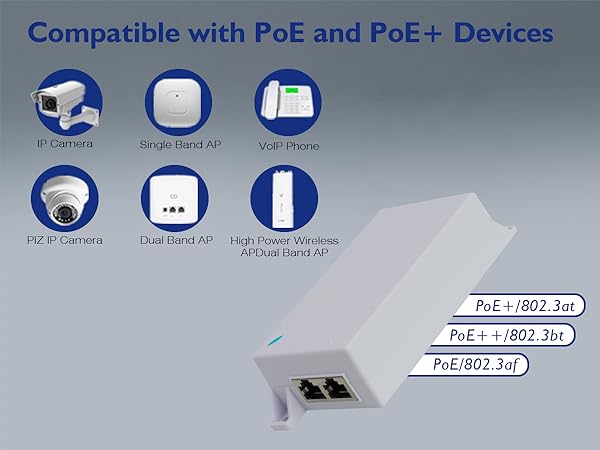

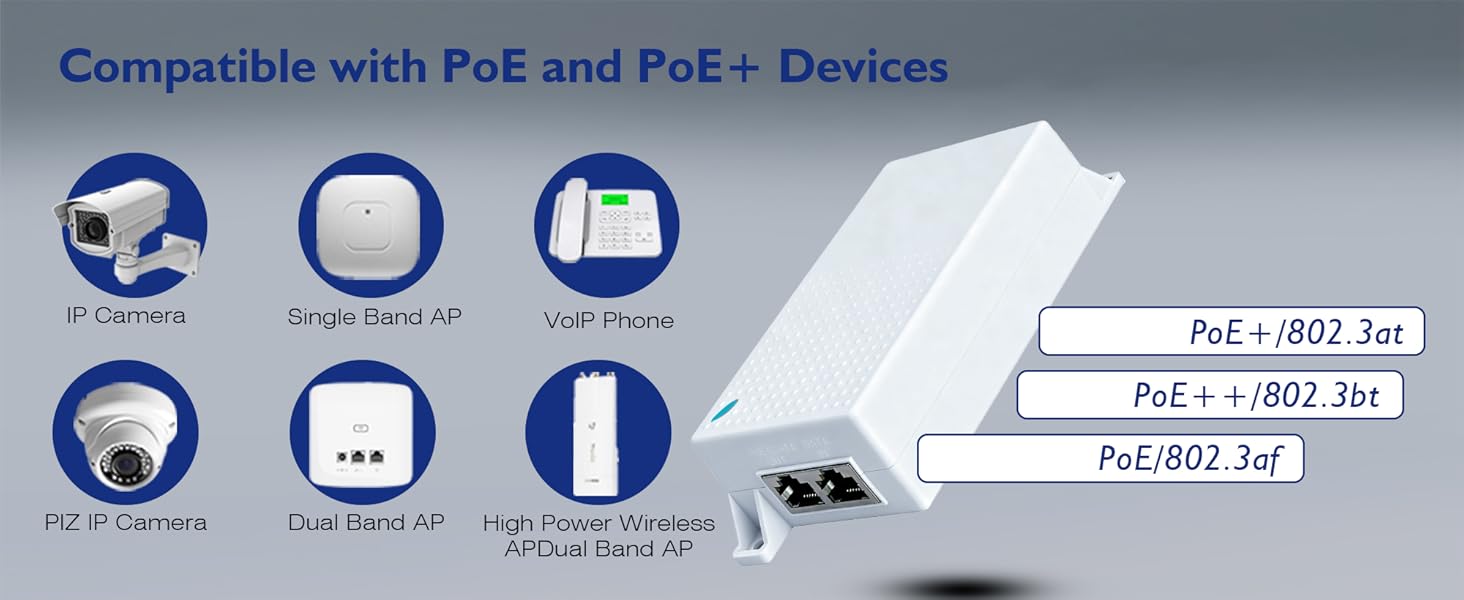

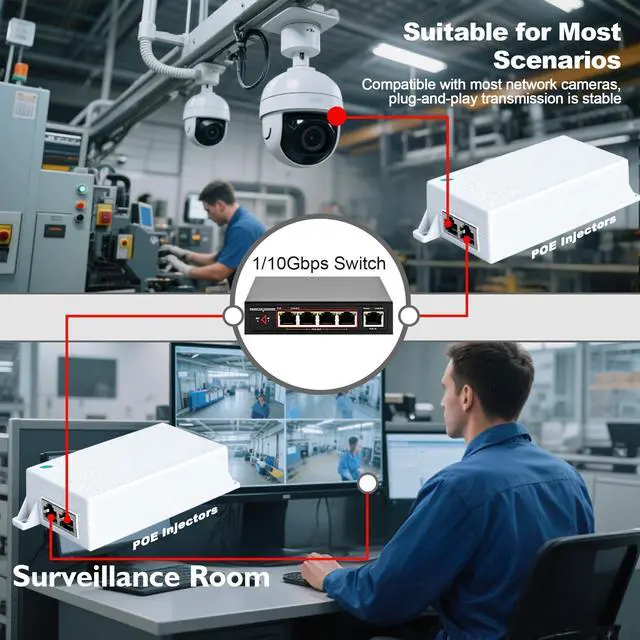

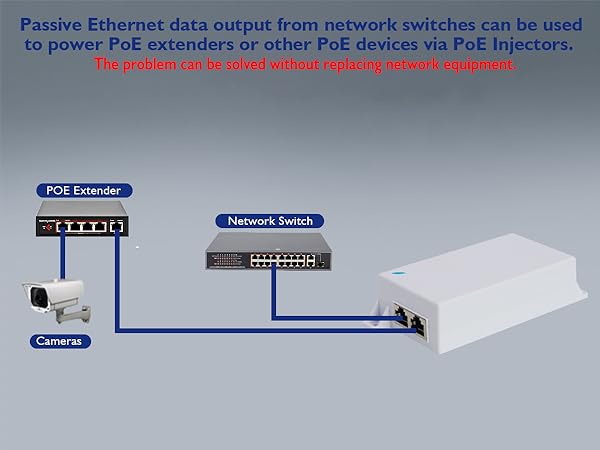

ThePoEstore 10G PoE++ Injector, model PoE-M921-10GW, combines electrical power with a 10GBASE-Tnetwork connection to produce a 10G PoE++ network signal. Auto-sensing technology conveniently delivers the correct wattage needed to power your PoE, PoE+ and PoE++ devices. Connect the 10G PoE++ injector to a non-PoE switch, and then run an Ethernet cable with data + power to network a PoE, PoE+ or PoE++ device up to 100 meters (328 ft.) over Cat6A or better cabling. Network PoE devices such as wireless access points, IPcameras, IPTV decoders, VoIPphone systems, access controls, and more.
Product Specifications
What is the output voltage and power of this PoE injector? My device is 48V 55W. Is it compatible?
Yes, this PoE++ injector has a standard output voltage of 48V and 60W and complies with IEEE 802.3af/at/bt, the standard handshake protocol.
Can I use a PoE injector with my PoE wifi router?
Yes, it can work for all PoE devices below 60W.
I noticed the indicator light on the product. Is it the same color when it's receiving power and data?

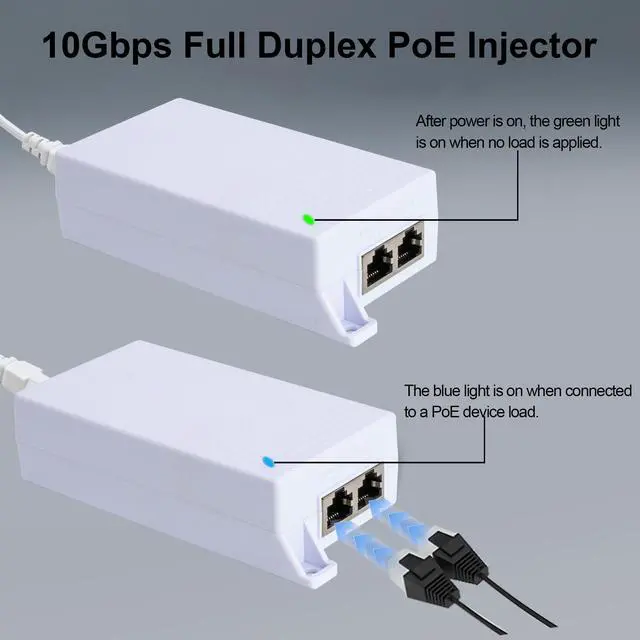

The PoE indicator light is green when it's receiving power and blue when it's receiving data.
Will this power the unifi u6 lite wifi access point, which requires the newer Search term:u-poe-af, an active 48vdc
Yes. The u in that model number is just their part number for what they want to sell you. This adapter is Poe-af and poe-at. Or poe+. I have enterprise watchguard waps that also require this much power and they work great.
ThePoEstore Is A Security Surveillance Network Equipment Company That Specializes In The Research, Design And Production Of Poe Switch, Poe Extender, Poe Injectro, Network Cable, Dc Power Connectro, Etc. Of Various Network Security Products For Homes And Offices. Product Quality is Stable and Leading
ThePoEstore Is Committed To Creating High-Quality Products, All Products Have Undergone Strict Safety Testing,All Have CE,ETL,UL,CUL,GS Listed.
PoE Extender & Injector
PoE Extender
Cat 6 Cable & PoE Splitter
ThePoEstore 10G PoE++ Injector: The 10G PoE++ injector supplies a PoE device with PoE (15.4W)802.3af, PoE+ (30W) 802.3at, or PoE++ (60W)802.3bt power.
Installation Flexibility: Wall-mounted and desktop design: High-quality, heat-resistant and oxidation-resistant white plastic shell accommodates most installations scenarios.
10G Speeds: Equipped with a 10GBASE-T RJ-45 port providing network speeds of up to 10Gbps over existing Cat6a or better cabling.
Product Overview
ThePoEstore 10G PoE++ Injector, model PoE-M921-10GW, combines electrical power with a 10GBASE-Tnetwork connection to produce a 10G PoE++ network signal. Auto-sensing technology conveniently delivers the correct wattage needed to power your PoE, PoE+ and PoE++ devices. Connect the 10G PoE++ injector to a non-PoE switch, and then run an Ethernet cable with data + power to network a PoE, PoE+ or PoE++ device up to 100 meters (328 ft.) over Cat6A or better cabling. Network PoE devices such as wireless access points, IPcameras, IPTV decoders, VoIPphone systems, access controls, and more.
Product Specifications
| Origin | China |
|---|---|
| Brand | ThePoEstore |
| Model | PoE-M921-10GW |
| Number of ports | 1 CH, Data IN PoE Out |
| Data Rate | 10/100/1000Mbps/2.5G/5G/10G Base-T |
| Power Input | AC100~240V 50/60HZ - PoE Output |
| Output Power Voltage | 48 - 54V |
| PoE Output Power | 60W MAX / Support IEEE 802.3af/at/bt |
| Pin Assignment | 1/2(-)3/6(+), 4/5(+)7/8(-) |
| Operating Temperature | 0?to 40? |
| Operating Humidity | Max.80%, non-condensing |
| Storage Temperature | -10? to 50? |
| Storage Humidity | Max.90%, non-condensing |
| Protection | Over current protection / Over load protection |
| Protection | Over voltage protection / Anti-interference protection |

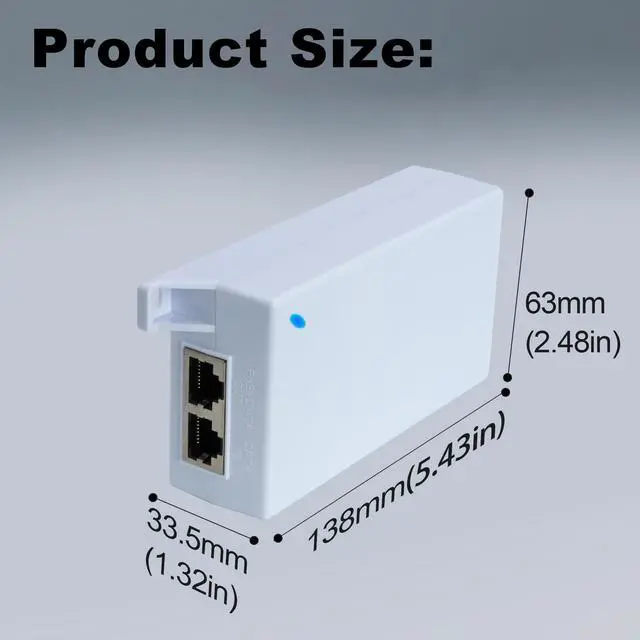

| Product Size | 138×63×33.5mm |
What is the output voltage and power of this PoE injector? My device is 48V 55W. Is it compatible?
Yes, this PoE++ injector has a standard output voltage of 48V and 60W and complies with IEEE 802.3af/at/bt, the standard handshake protocol.
Can I use a PoE injector with my PoE wifi router?
Yes, it can work for all PoE devices below 60W.
I noticed the indicator light on the product. Is it the same color when it's receiving power and data?
The PoE indicator light is green when it's receiving power and blue when it's receiving data.
Will this power the unifi u6 lite wifi access point, which requires the newer Search term:u-poe-af, an active 48vdc
Yes. The u in that model number is just their part number for what they want to sell you. This adapter is Poe-af and poe-at. Or poe+. I have enterprise watchguard waps that also require this much power and they work great.
ThePoEstore Is A Security Surveillance Network Equipment Company That Specializes In The Research, Design And Production Of Poe Switch, Poe Extender, Poe Injectro, Network Cable, Dc Power Connectro, Etc. Of Various Network Security Products For Homes And Offices. Product Quality is Stable and Leading
ThePoEstore Is Committed To Creating High-Quality Products, All Products Have Undergone Strict Safety Testing,All Have CE,ETL,UL,CUL,GS Listed.
