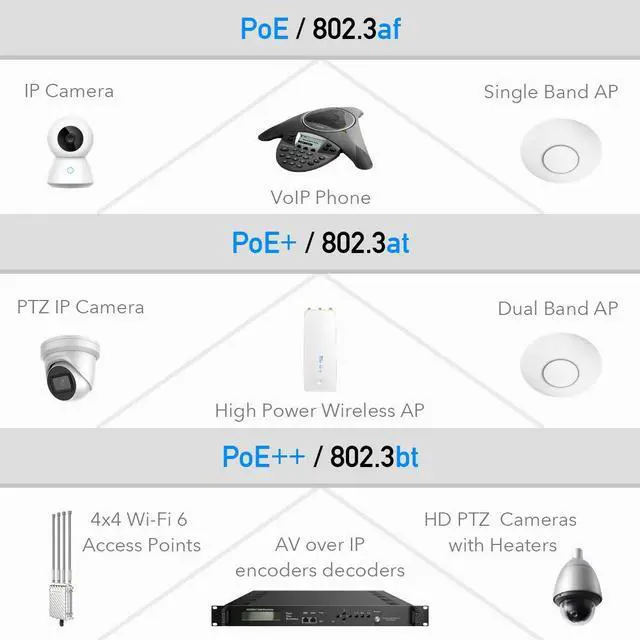

Full Compatible with PoE?PoE+ and PoE++ Devices

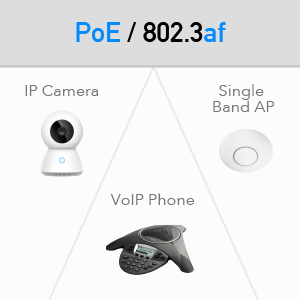

PoE / 802.3af
Each PoE port powers up to 15W at a very short distance. Power delivered at a longer distance (up to 100m) is 12.95W. Typical devices needing less than 12.95W are:
• IP Phones with small or no display
• Indoor Wireless 802.11n or 2x2 Wireless 802.11ac Access Points
• Simple IP Cameras

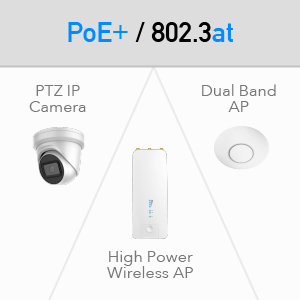

PoE+ / 802.3at
Each PoE+ port powers up to 30W(2 Pair)or 60W(4 Pair) at a very short distance. Power delivered at a longer distance (up to 100m) is 25.5W or 51W(4 Pair). Typical devices are:
• IP Phones with a large display, video phones, conference systems
• Up to 4x4 Wireless 802.11ac (WiFi 5) or 2x2 802.11ax (WiFi 6) Access Points
• Pan-Tilt-Zoom HD IP Cameras without heaters

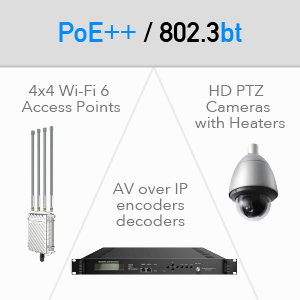

PoE++ / 802.3bt
Each PoE++ port powers up to 60W(2 Pair) or 90W (4 Pair) at a very short distance. Power delivered at a longer distance (up to 100m) is 51W(2 Pair) or 71W (4 Pair). Typical devices are:
• Conference systems with a large display
• Up to 4x4 802.11ax (WiFi 6) Access Points
• PTZ HD IP Cameras with heaters
• AV over IP encoders/decoders
• Ceiling tiles LED Lighting
• Large audio speakers
Application Scenario
Surveillance
Works with IP Cameras for home and office, small business
VoIP Conference Call
Works with VoIP phones for business conference
Wi-Fi Coverage
Works with WiFi APs for office and business

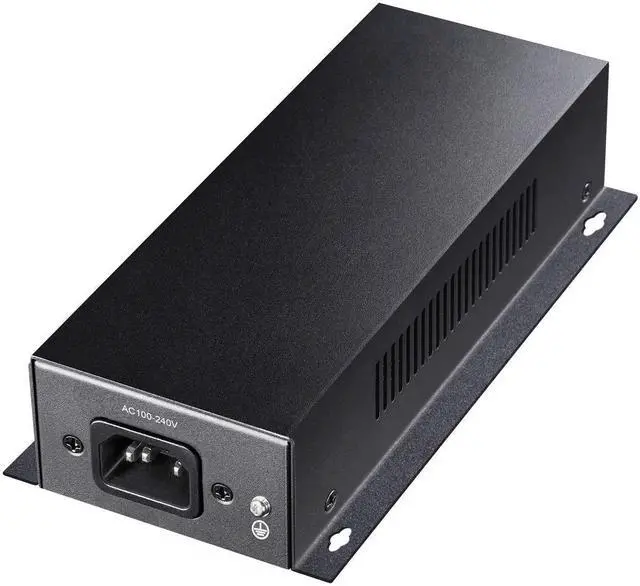

Input Power Requirements:
- AC Input Voltage: 100~240V
- AC Input Current: 1A 100~240V
- AC Frequency: 50 to 60 Hz
Environmental Conditions:
- Operating Ambient Temperature: 0 to 40°C
- Operating Humidity: Maximum 85%, Non-condensing
- Storage Temperature:-40 to 40°C
- StorageHumidity: Maximum 90%, Non-condensing

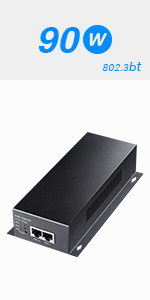

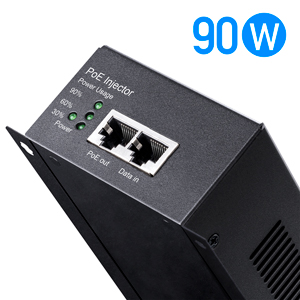

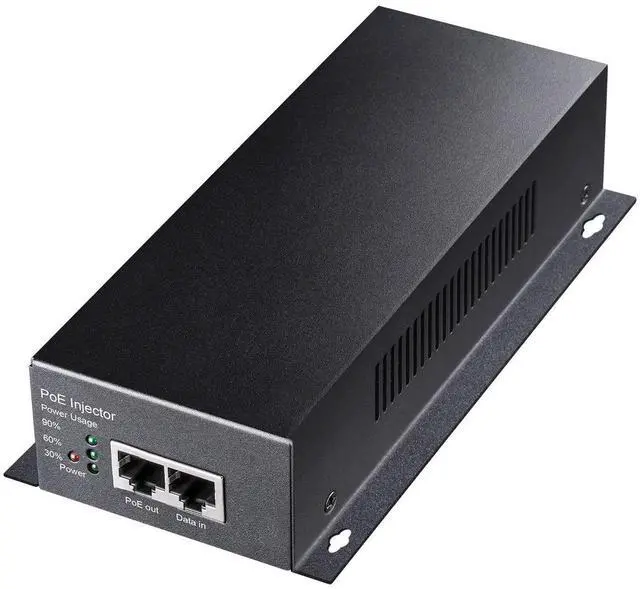

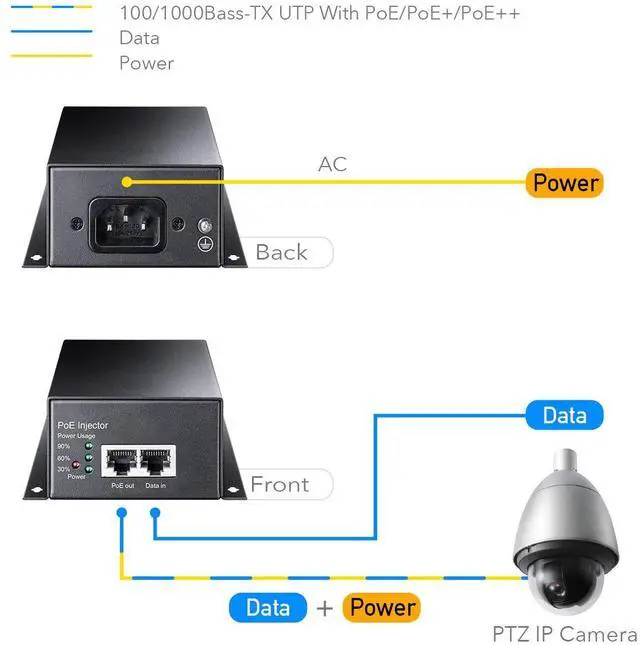

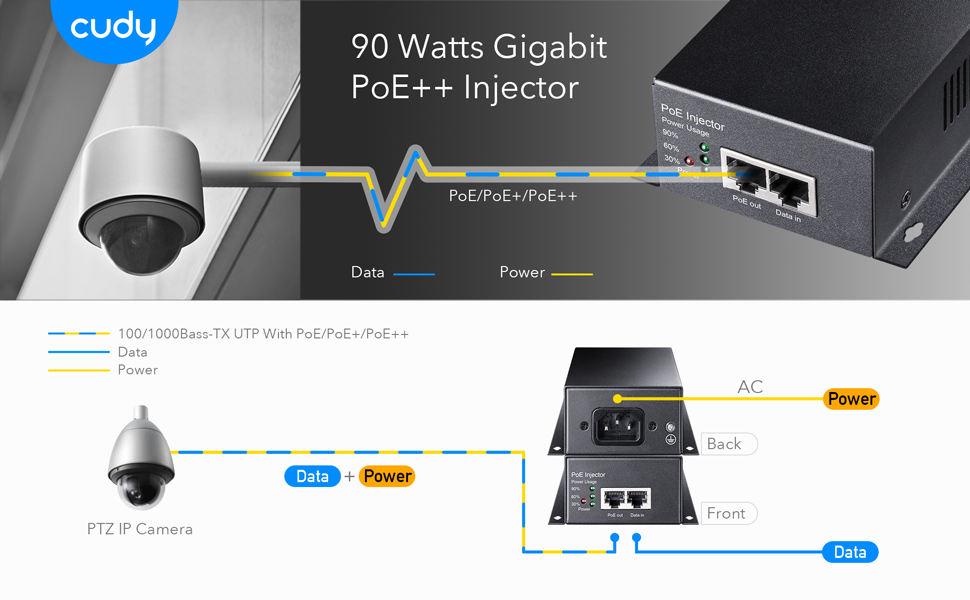

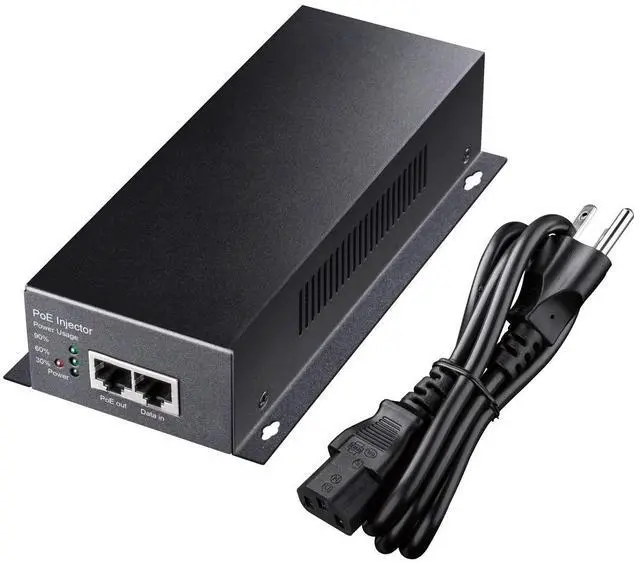

Cudy 90watt Gigabit 802.11bt/at/af PoE++ Injector
PoE Output :
- Pin Assignment and Polarity: 1/2 (-), 3/6 (+), 4/5 (+), 7/8 (-)
- Output Power Voltage: Typical:52V, Support any 802.3 bt/ 802.3at / 802.3af device
- User Port Power Output: 90W max
Protection:
- Over current protection
- Over load protection
- Over voltage protection

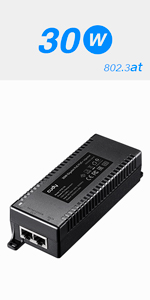

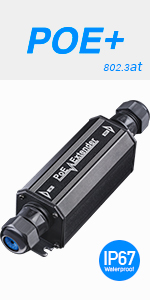

 POE100 |  POE200 |  POE300 |  POE350 |  PoE+ Extender |  Outdoor PoE+ Extender | |
|---|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — | — |
| Price | — no data | — | — | — | — | — no data |

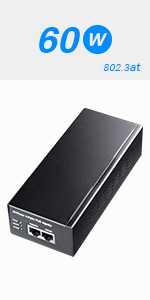

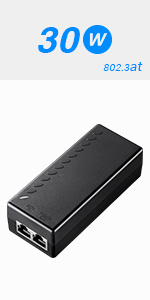

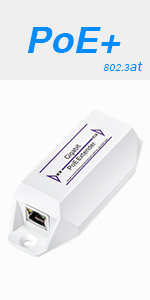

| PoE Output | 30 Watts max, Typical Voltage:50V, Support any PoE/PoE+ device | 30 Watts max, Typical Voltage:50V, Support any PoE/PoE+ device | 60 Watts max, Typical Voltage:53V, Support any PoE/PoE+ device | 90 Watts max, Typical Voltage:52V, Support any PoE/PoE+/PoE++ device | 22 Watts max, support any PoE/PoE+ device | 25 Watts max, support any PoE/PoE+ device |
| 802.3bt | - no data | - no data | - no data | ? | - no data | - no data |
| 802.3at | ? | ? | ? | ? | ? | ? |
| 802.3af | ? | ? | ? | ? | ? | ? |
| Ethernet port | 10/100/1000 Mbps | 10/100/1000 Mbps | 10/100/1000 Mbps | 10/100/1000 Mbps | 10/100/1000 Mbps | 10/100/1000 Mbps |
| Pin Assignment and Polarity | 1/2 (+), 3/6 (-) | 1/2 (-), 3/6 (+) | 1/2 (-), 3/6 (+), 4/5(+), 7/8(-) | 1/2 (-), 3/6 (+), 4/5 (+), 7/8 (-) | Input: 1/2 (-), 3/6 (+), 4/5 (+), 7/8 (-). Output: 1/2 (+), 3/6 (-) | Input: 1/2 (-), 3/6 (+), 4/5 (+), 7/8 (-). Output: 1/2 (+), 3/6 (-) |
| Input Voltage | 100 ~ 240 V | 100 ~ 240 V | 100 ~ 240 V | 100 ~ 240 V | - no data | - no data |
| Over current protection | ? | ? | ? | ? | ? | ? |
| Over load protection | ? | ? | ? | ? | ? | ? |
| Over voltage protection | ? | ? | ? | ? | ? | ? |
Full Compatible with PoE?PoE+ and PoE++ Devices
PoE / 802.3af
Each PoE port powers up to 15W at a very short distance. Power delivered at a longer distance (up to 100m) is 12.95W. Typical devices needing less than 12.95W are:
• IP Phones with small or no display
• Indoor Wireless 802.11n or 2x2 Wireless 802.11ac Access Points
• Simple IP Cameras
PoE+ / 802.3at
Each PoE+ port powers up to 30W(2 Pair)or 60W(4 Pair) at a very short distance. Power delivered at a longer distance (up to 100m) is 25.5W or 51W(4 Pair). Typical devices are:
• IP Phones with a large display, video phones, conference systems
• Up to 4x4 Wireless 802.11ac (WiFi 5) or 2x2 802.11ax (WiFi 6) Access Points
• Pan-Tilt-Zoom HD IP Cameras without heaters
PoE++ / 802.3bt
Each PoE++ port powers up to 60W(2 Pair) or 90W (4 Pair) at a very short distance. Power delivered at a longer distance (up to 100m) is 51W(2 Pair) or 71W (4 Pair). Typical devices are:
• Conference systems with a large display
• Up to 4x4 802.11ax (WiFi 6) Access Points
• PTZ HD IP Cameras with heaters
• AV over IP encoders/decoders
• Ceiling tiles LED Lighting
• Large audio speakers
Application Scenario
Surveillance
Works with IP Cameras for home and office, small business
VoIP Conference Call
Works with VoIP phones for business conference
Wi-Fi Coverage
Works with WiFi APs for office and business
Input Power Requirements:
- AC Input Voltage: 100~240V
- AC Input Current: 1A 100~240V
- AC Frequency: 50 to 60 Hz
Environmental Conditions:
- Operating Ambient Temperature: 0 to 40°C
- Operating Humidity: Maximum 85%, Non-condensing
- Storage Temperature:-40 to 40°C
- StorageHumidity: Maximum 90%, Non-condensing
Cudy 90watt Gigabit 802.11bt/at/af PoE++ Injector
PoE Output :
- Pin Assignment and Polarity: 1/2 (-), 3/6 (+), 4/5 (+), 7/8 (-)
- Output Power Voltage: Typical:52V, Support any 802.3 bt/ 802.3at / 802.3af device
- User Port Power Output: 90W max
Protection:
- Over current protection
- Over load protection
- Over voltage protection
POE100 | POE200 | POE300 | POE350 | PoE+ Extender | Outdoor PoE+ Extender | |
|---|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — | — |
| Price | — no data | — | — | — | — | — no data |
| PoE Output | 30 Watts max, Typical Voltage:50V, Support any PoE/PoE+ device | 30 Watts max, Typical Voltage:50V, Support any PoE/PoE+ device | 60 Watts max, Typical Voltage:53V, Support any PoE/PoE+ device | 90 Watts max, Typical Voltage:52V, Support any PoE/PoE+/PoE++ device | 22 Watts max, support any PoE/PoE+ device | 25 Watts max, support any PoE/PoE+ device |
| 802.3bt | - no data | - no data | - no data | ? | - no data | - no data |
| 802.3at | ? | ? | ? | ? | ? | ? |
| 802.3af | ? | ? | ? | ? | ? | ? |
| Ethernet port | 10/100/1000 Mbps | 10/100/1000 Mbps | 10/100/1000 Mbps | 10/100/1000 Mbps | 10/100/1000 Mbps | 10/100/1000 Mbps |
| Pin Assignment and Polarity | 1/2 (+), 3/6 (-) | 1/2 (-), 3/6 (+) | 1/2 (-), 3/6 (+), 4/5(+), 7/8(-) | 1/2 (-), 3/6 (+), 4/5 (+), 7/8 (-) | Input: 1/2 (-), 3/6 (+), 4/5 (+), 7/8 (-). Output: 1/2 (+), 3/6 (-) | Input: 1/2 (-), 3/6 (+), 4/5 (+), 7/8 (-). Output: 1/2 (+), 3/6 (-) |
| Input Voltage | 100 ~ 240 V | 100 ~ 240 V | 100 ~ 240 V | 100 ~ 240 V | - no data | - no data |
| Over current protection | ? | ? | ? | ? | ? | ? |
| Over load protection | ? | ? | ? | ? | ? | ? |
| Over voltage protection | ? | ? | ? | ? | ? | ? |
